Tukituki Thrust Details

PropertyValue
Rupture Count316
Ruptures Above Sect Min Mag303
Ruptures w/ Nonzero Rates43
Magnitude Range[6.77, 8.04]
Length Range[19, 293] km
Total Rate5.8940484E-4 /yr
Multi-Fault Rate3.1399794E-4 /yr (53.27%)
Directly-Connected Faults5
All Co-Rupturing Faults22

Table Of Contents

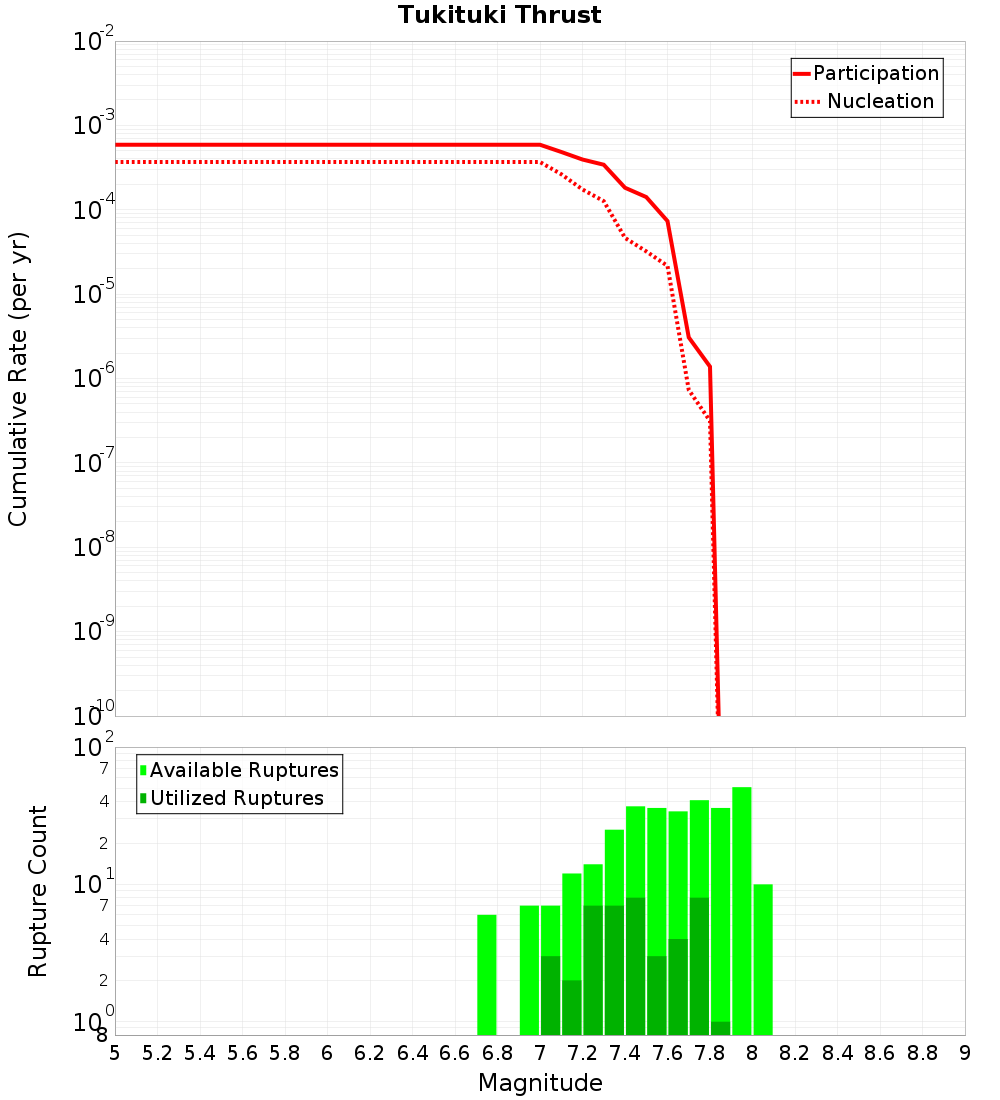

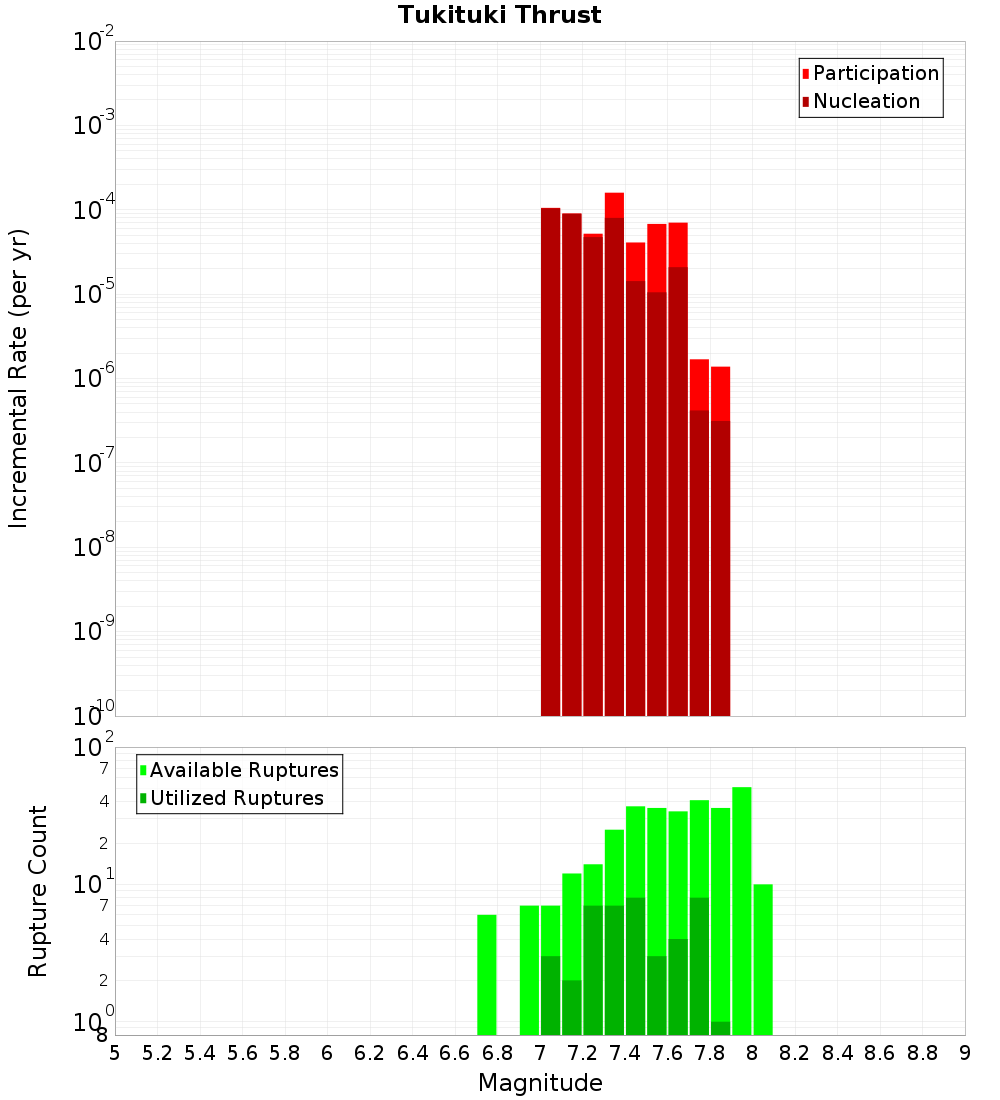

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

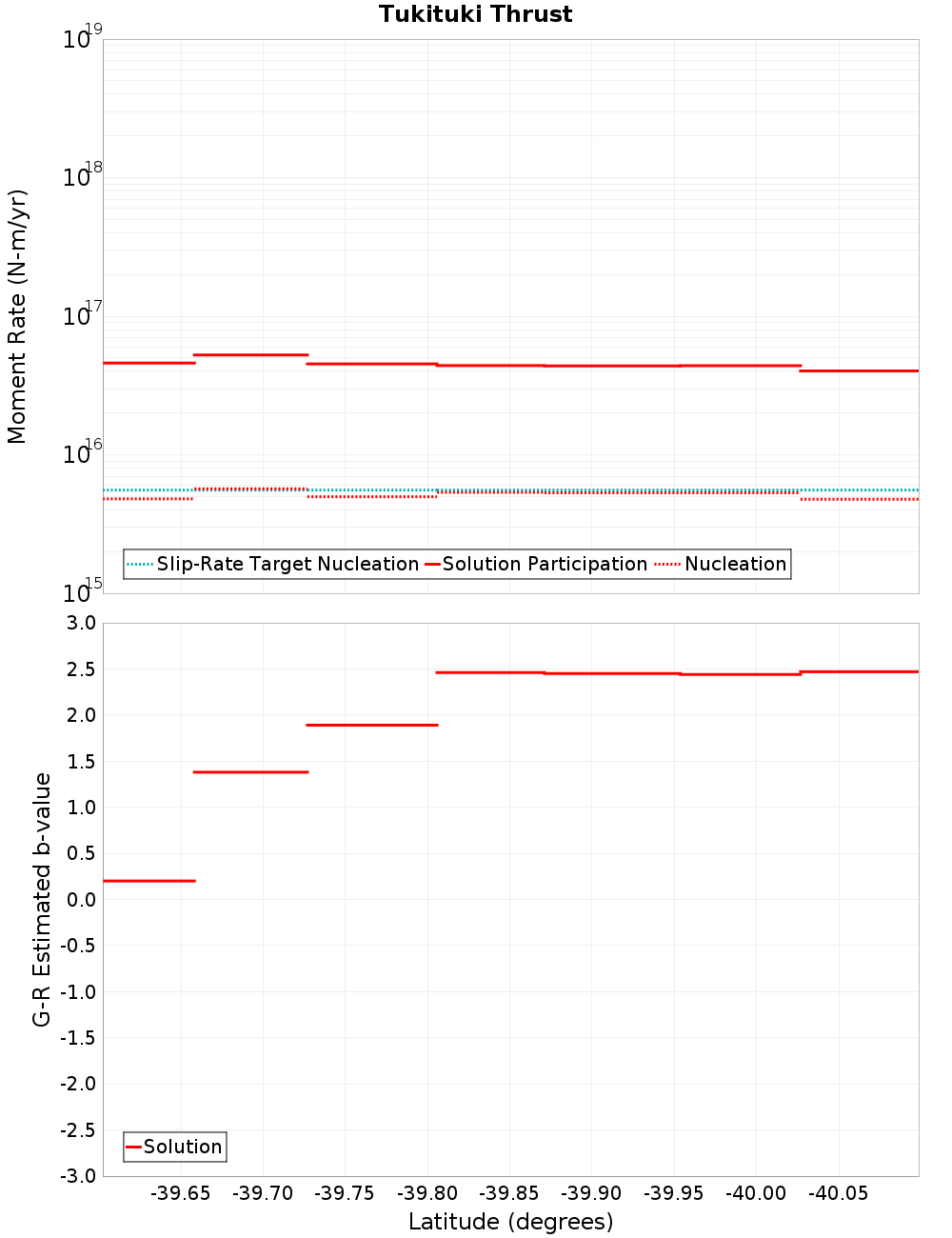

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Hawke Bay 8, 2 km away
Waipukurau - Poukawa, 3.57 km away
Awanui, 3.57 km away
Clear Hills - Waikopiro, 7.68 km away
Oruawharo - Mangatoro, 9.21 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.24 km away
Waimarama 1 & 2, 13.06 km away

Hawke Bay 8, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate6.505251E-5

Waipukurau - Poukawa, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?true
Co-rupture Count39
Co-rupture Rate2.17211E-4

Awanui, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?true
Co-rupture Count216
Co-rupture Rate6.260537E-5

Clear Hills - Waikopiro, 7.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?true
Co-rupture Count51
Co-rupture Rate7.5758435E-6

Oruawharo - Mangatoro, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate9.877701E-5

Te Heka, 11.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?true
Directly Connected?true
Co-rupture Count44
Co-rupture Rate6.8335335E-6

Kidnappers Ridge, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimarama 1 & 2, 13.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxNzIuMEs4ZUhN
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
