Lyell South Details

Property	Value
Rupture Count	2,183
Ruptures Above Sect Min Mag	2,174
Ruptures w/ Nonzero Rates	747
Magnitude Range	[6.80, 8.46]
Length Range	[19, 814] km
Total Rate	1.7834261E-4 /yr
Multi-Fault Rate	1.3292328E-4 /yr (74.53%)
Directly-Connected Faults	4
All Co-Rupturing Faults	32

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

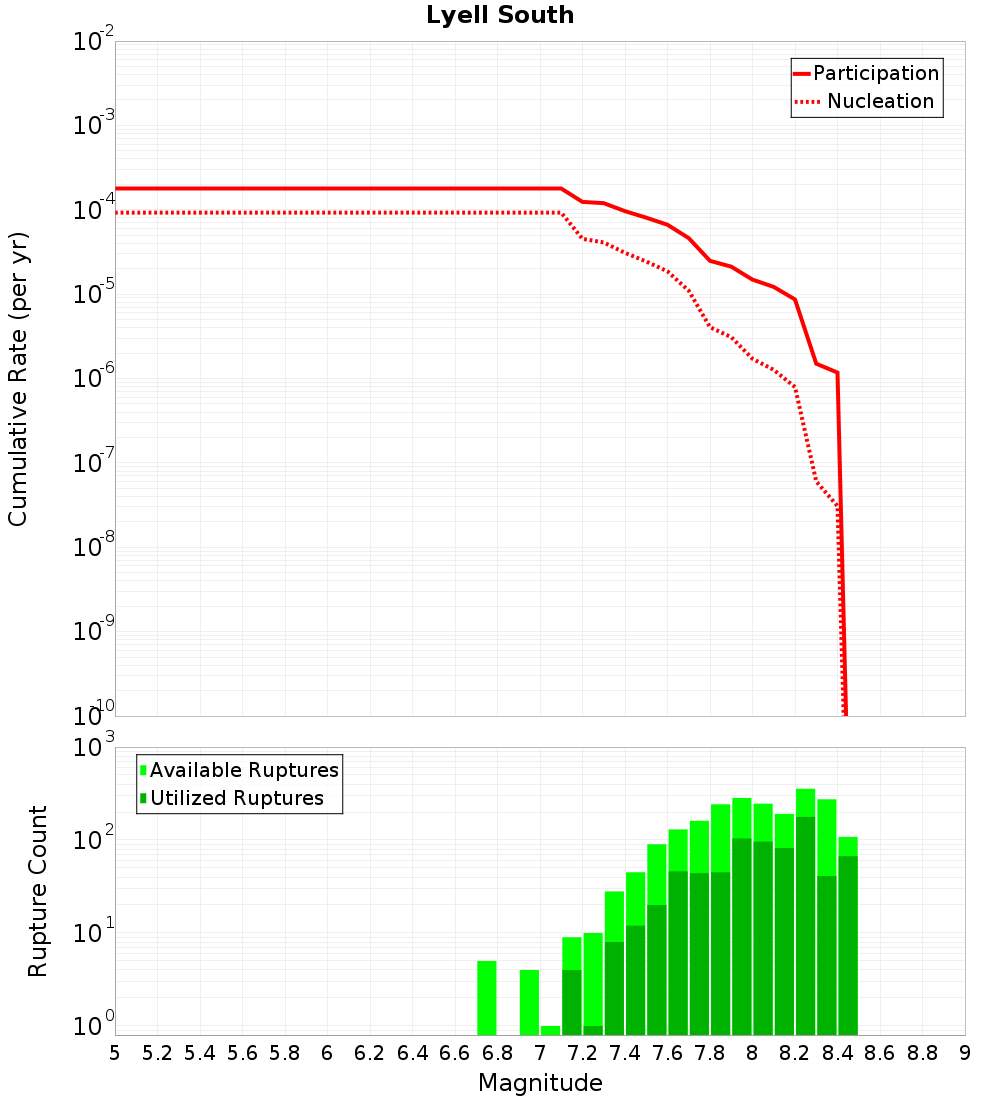

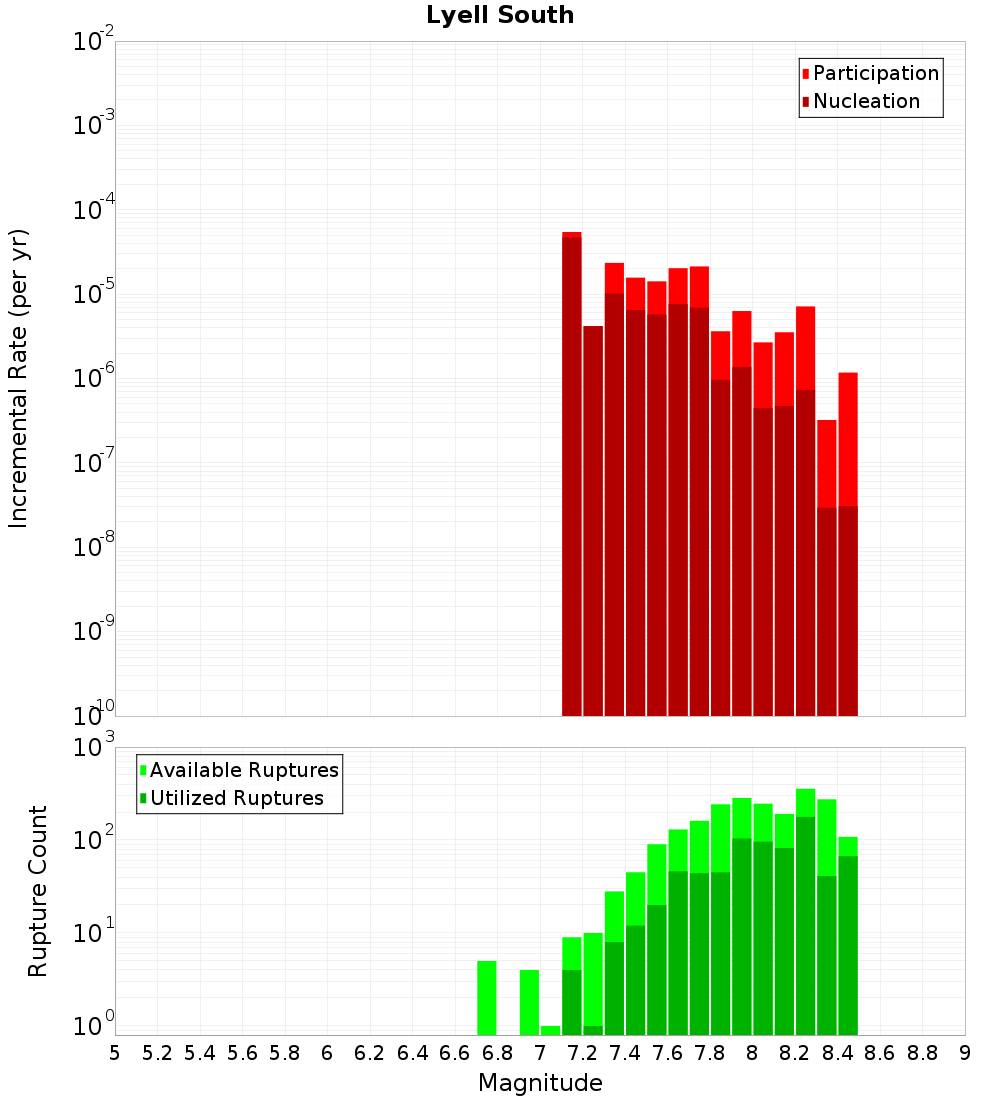

Magnitude-Frequency Distribution

Incremental	Cumulative

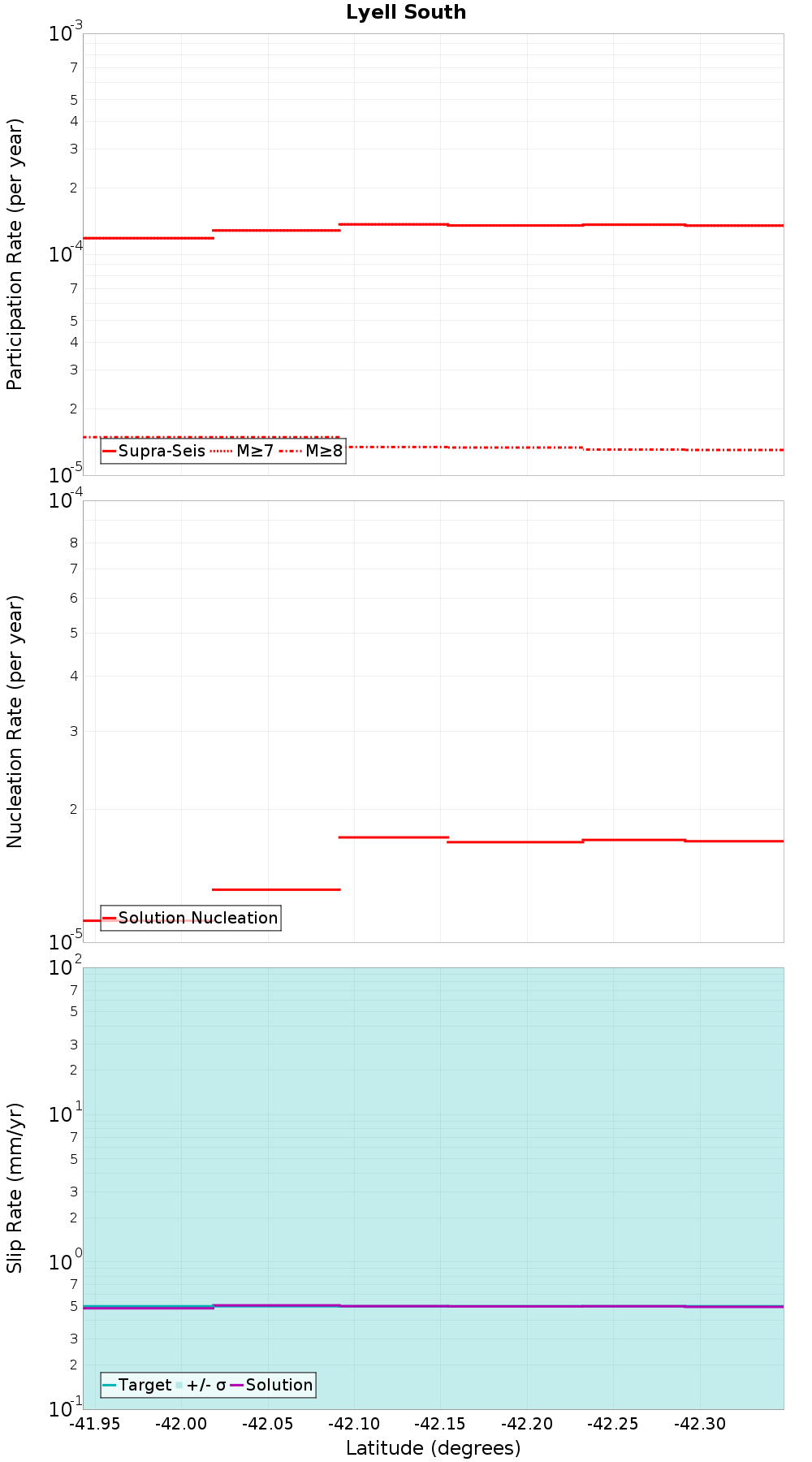

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lyell, 1.51 km away
White Creek, 6.32 km away
Maimai: North, 7.01 km away
White Creek - buried, 7.39 km away
Inangahua, 9 km away
Maimai, 9.15 km away
Maimai: South, 11.15 km away

Lyell, 1.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,377
Co-rupture Rate	9.955132E-5

White Creek, 6.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	true
Co-rupture Count	1,891
Co-rupture Rate	6.0741047E-5

Maimai: North, 7.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	true
Co-rupture Count	131
Co-rupture Rate	9.198837E-6

White Creek - buried, 7.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	false
Co-rupture Count	1,318
Co-rupture Rate	1.8736855E-5

Inangahua, 9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	false
Co-rupture Count	249
Co-rupture Rate	3.2452037E-6

Maimai, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	4.0581056E-11

Maimai: South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODYuMDl4QlM4
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	3.0990293E-5
