Alexander Details

Property	Value
Rupture Count	1,546
Ruptures Above Sect Min Mag	1,541
Ruptures w/ Nonzero Rates	100
Magnitude Range	[6.75, 8.23]
Length Range	[16, 522] km
Total Rate	7.154033E-5 /yr
Multi-Fault Rate	6.5457265E-5 /yr (91.50%)
Directly-Connected Faults	4
All Co-Rupturing Faults	57

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

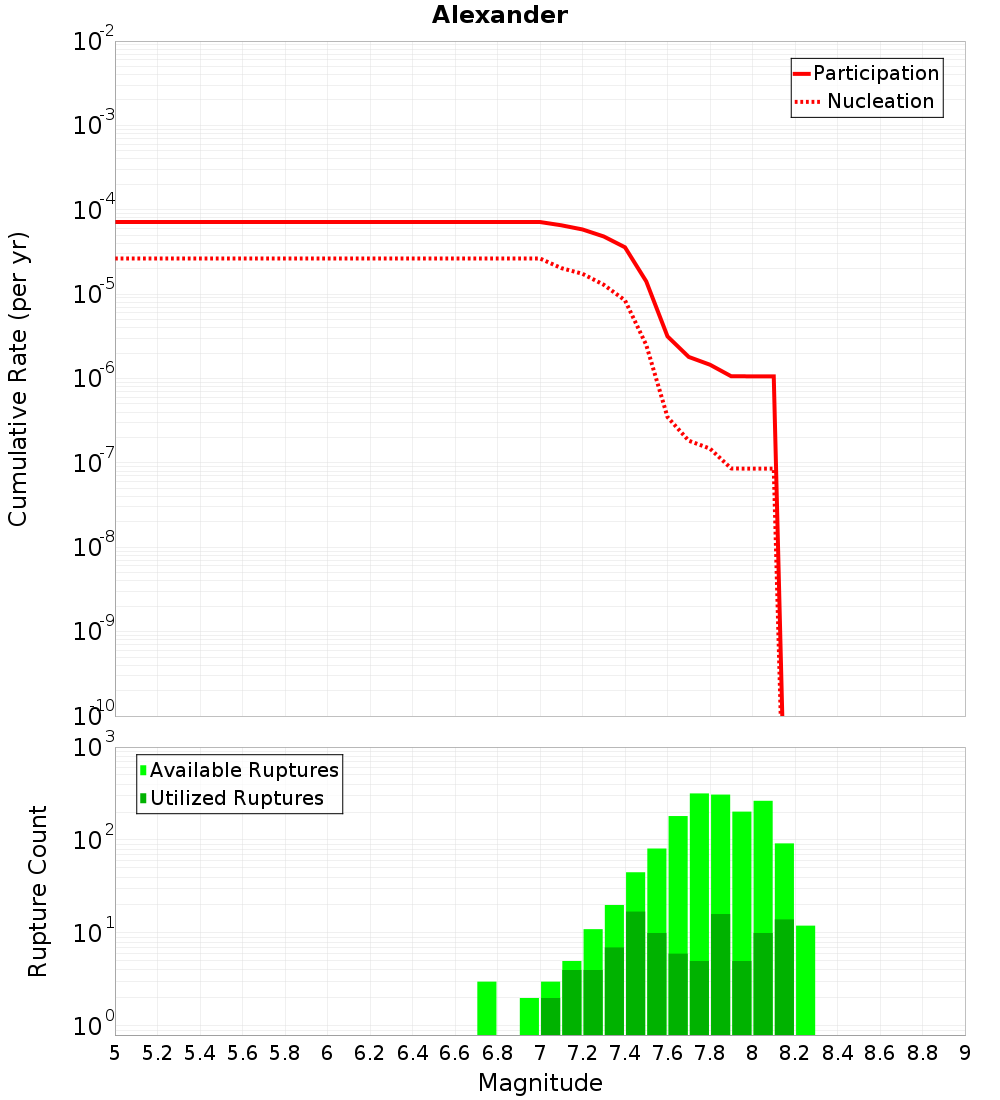

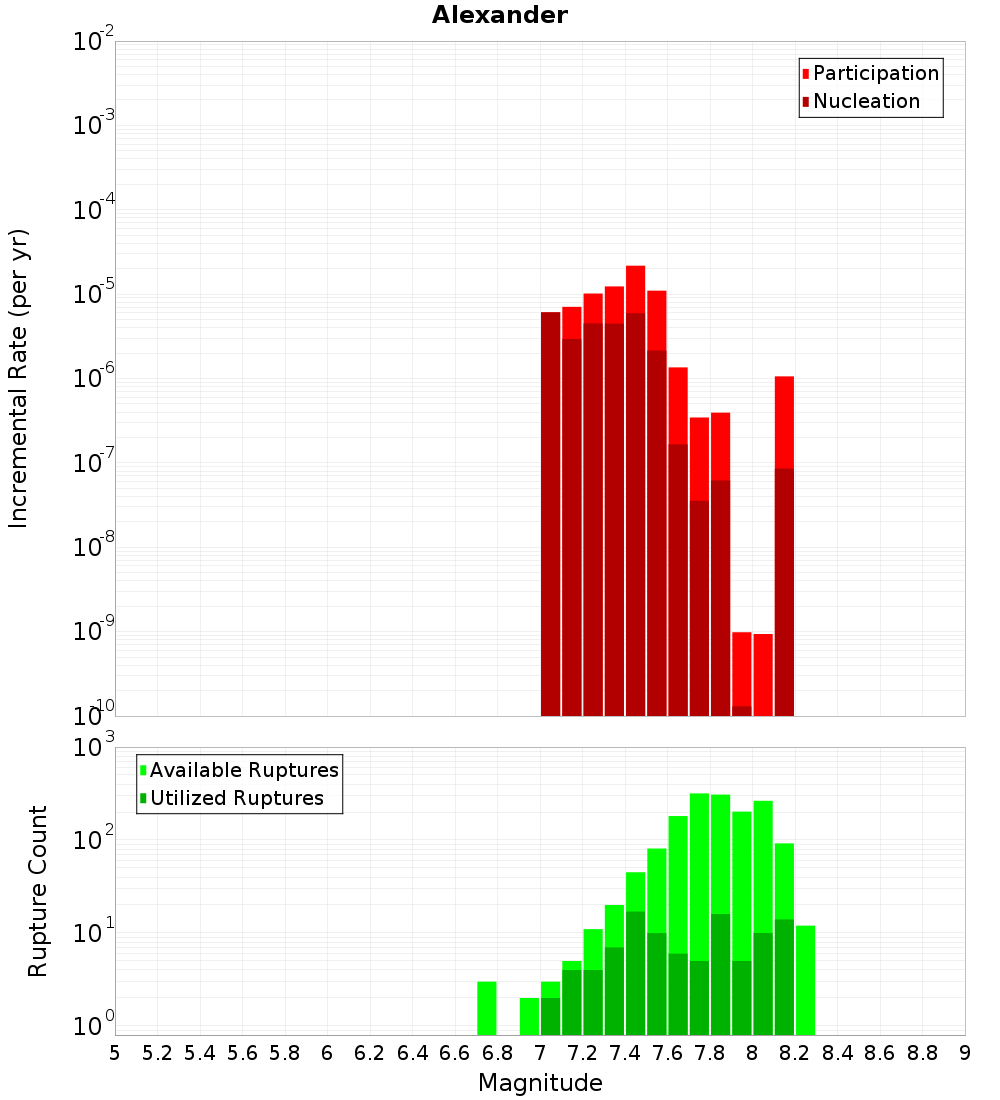

Magnitude-Frequency Distribution

Incremental	Cumulative

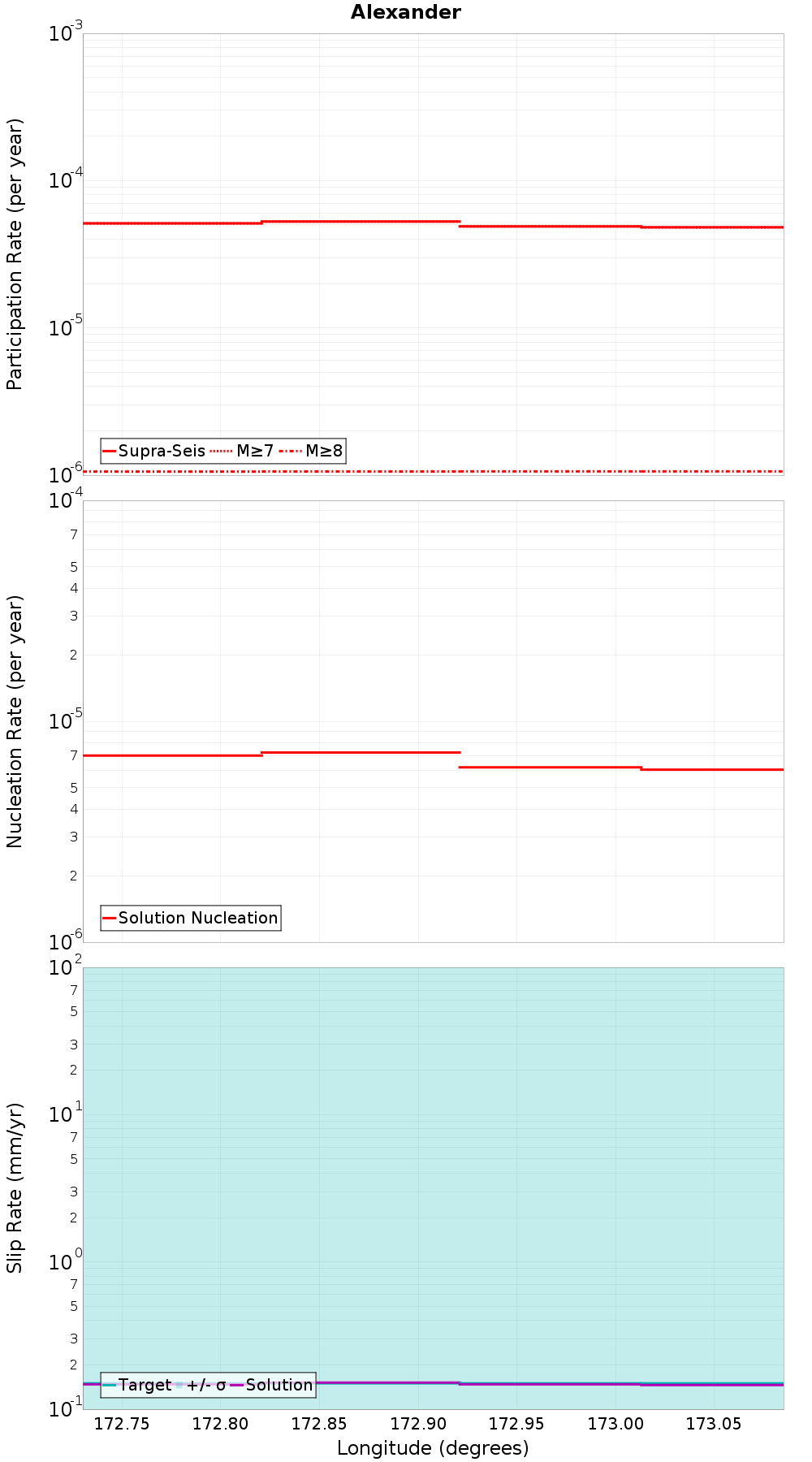

Along-Strike Values

Moment-Rates and b-Values

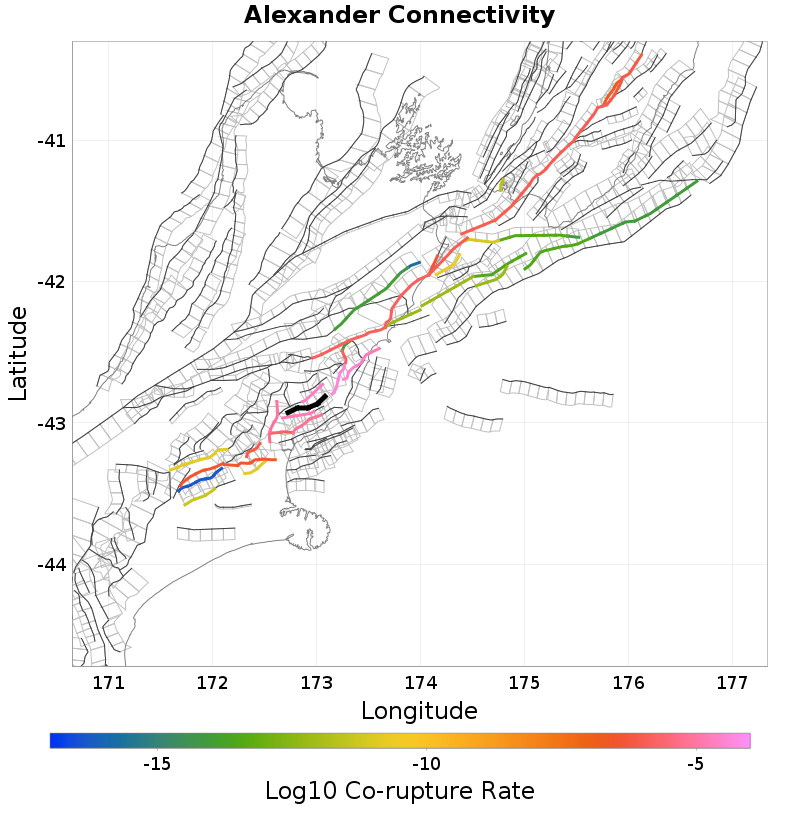

Connectivity

Nearby Sections

Fault Section
Lowry, 2.38 km away
Kaiwara South, 2.77 km away
Balmoral, 4.21 km away
Doctors, 4.38 km away
Kaiwara North, 5.18 km away
OmihiLwrHuru, 6.66 km away
Leonard Mound, 8.1 km away
Boby Stream, 10.71 km away
AmberBlyth, 11.84 km away
Mt Culverden, 14.58 km away

Lowry, 2.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	true
Co-rupture Count	244
Co-rupture Rate	2.336588E-5

Kaiwara South, 2.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	true
Co-rupture Count	655
Co-rupture Rate	1.5182259E-5

Balmoral, 4.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	true
Co-rupture Count	850
Co-rupture Rate	1.414918E-5

Kaiwara North, 5.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	true
Co-rupture Count	1,296
Co-rupture Rate	4.0338324E-5

OmihiLwrHuru, 6.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	7.220443E-6

Leonard Mound, 8.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 10.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	true
Directly Connected?	false
Co-rupture Count	740
Co-rupture Rate	2.121384E-6

AmberBlyth, 11.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Culverden, 14.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNU1yRm9r
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
