Wellington Hutt Valley: 4 Details

PropertyValue
Rupture Count7,937
Ruptures Above Sect Min Mag7,933
Ruptures w/ Nonzero Rates728
Magnitude Range[6.79, 8.35]
Length Range[18, 639] km
Total Rate0.0015716606 /yr
Multi-Fault Rate0.0015716606 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults106

Table Of Contents

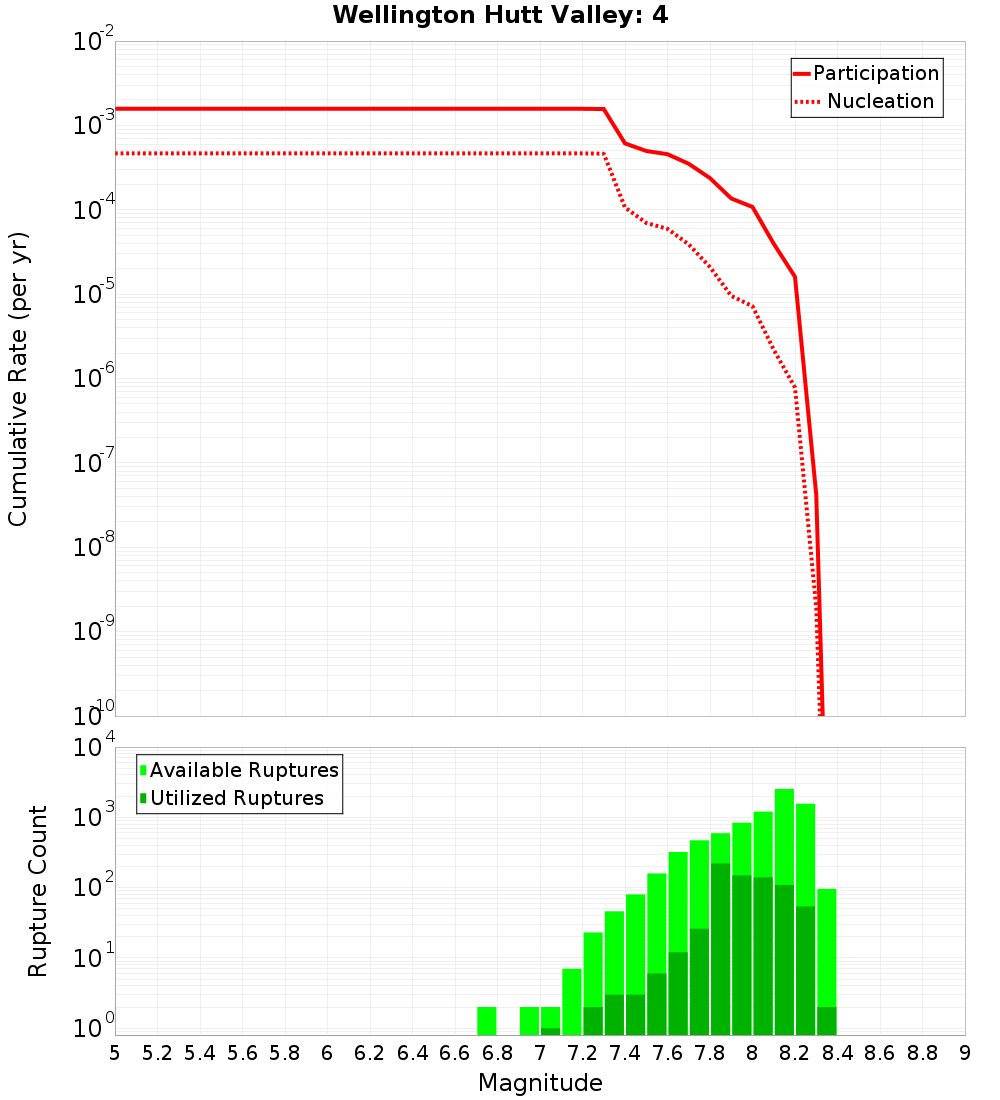

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wellington Hutt Valley: 3, 0 km awayMoonshine, 4.31 km away
Akatarawa, 0.01 km awayOhariu, 4.6 km away
Wellington Hutt Valley: 5, 0.01 km awayPukerua - Shepherds Gully: 2, 8.22 km away
Wharekauhau, 0.09 km awayPukerua - Shepherds Gully: 3, 8.98 km away
Whitemans Valley, 0.09 km awayPukerua - Shepherds Gully: 1, 9.04 km away
Aotea - Evans Bay, 1.2 km awayShepherds Gully - Mana, 10.91 km away
Wairarapa: 1, 2.73 km awayWellington Hutt Valley: 2, 10.98 km away
Wairarapa: 2, 3.98 km awayOtaki Forks: 1, 14.19 km away

Wellington Hutt Valley: 3, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count1,367
Co-rupture Rate0.0012551746

Akatarawa, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count3,000
Co-rupture Rate1.05096326E-4

Wellington Hutt Valley: 5, 0.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count3,800
Co-rupture Rate0.0013522173

Wharekauhau, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count2,941
Co-rupture Rate8.743193E-5

Whitemans Valley, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate1.1898752E-13

Aotea - Evans Bay, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count2,851
Co-rupture Rate2.5442932E-4

Wairarapa: 1, 2.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?false
Co-rupture Count296
Co-rupture Rate4.4210334E-5

Wairarapa: 2, 3.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?false
Co-rupture Count508
Co-rupture Rate2.2807921E-4

Moonshine, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count279
Co-rupture Rate8.193205E-6

Ohariu, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?true
Co-rupture Count653
Co-rupture Rate5.3651638E-5

Pukerua - Shepherds Gully: 2, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 3, 8.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pukerua - Shepherds Gully: 1, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Shepherds Gully - Mana, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 10.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?false
Co-rupture Count669
Co-rupture Rate0.0012385629

Otaki Forks: 1, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNWtLVGR0
Connected?true
Directly Connected?false
Co-rupture Count2,905
Co-rupture Rate1.04608545E-4
