Hope: Hurunui Details

Property	Value
Rupture Count	31,188
Ruptures Above Sect Min Mag	31,187
Ruptures w/ Nonzero Rates	3,881
Magnitude Range	[6.73, 8.56]
Length Range	[14, 973] km
Total Rate	0.0019645826 /yr
Multi-Fault Rate	0.0019645826 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	168

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

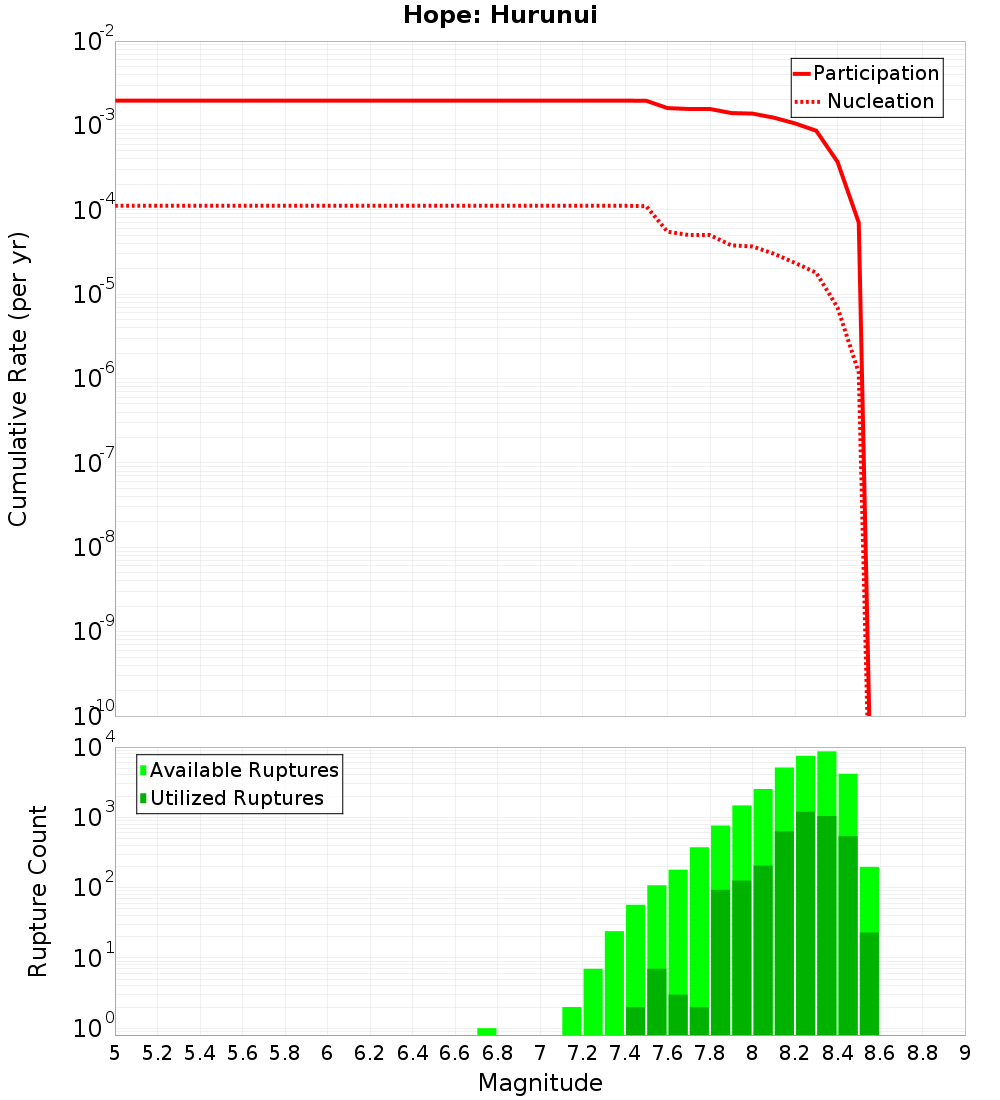

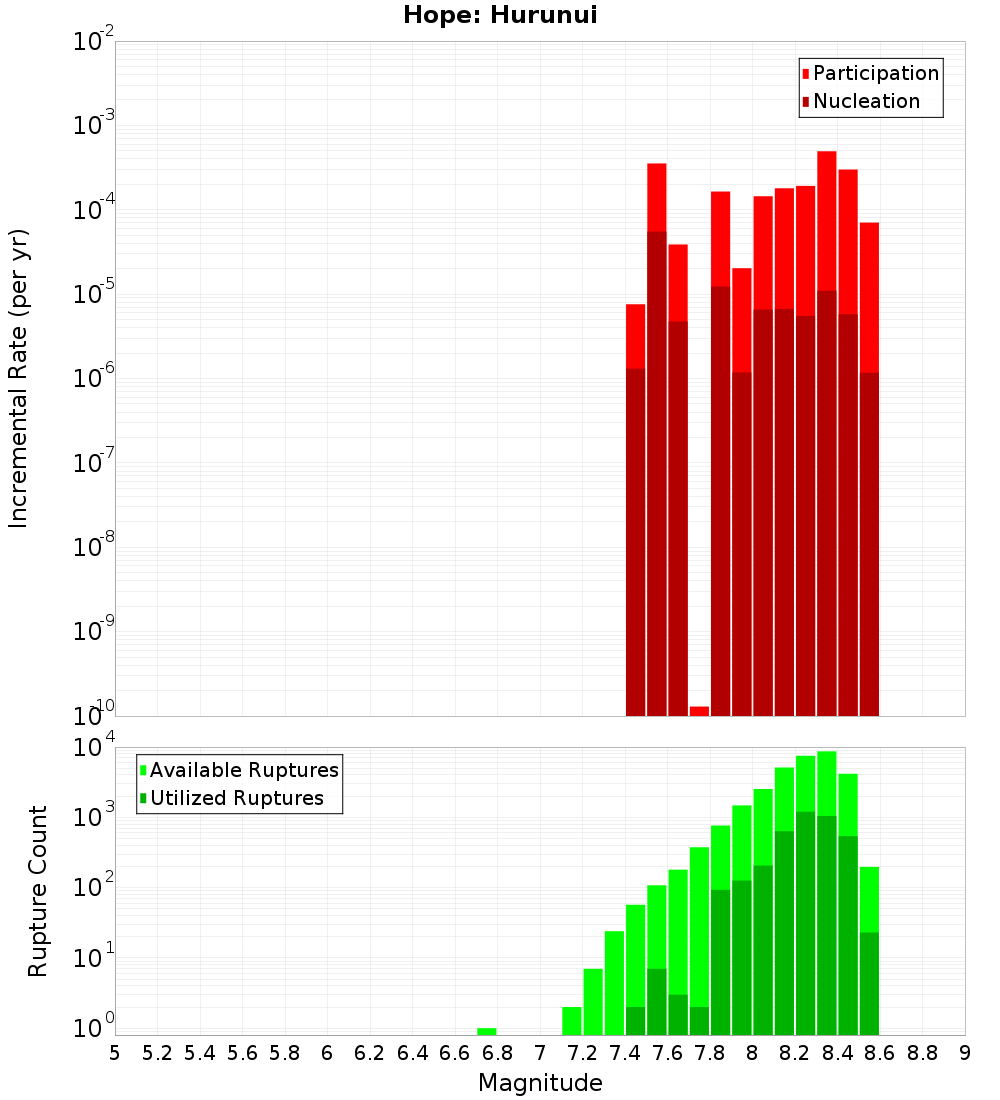

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

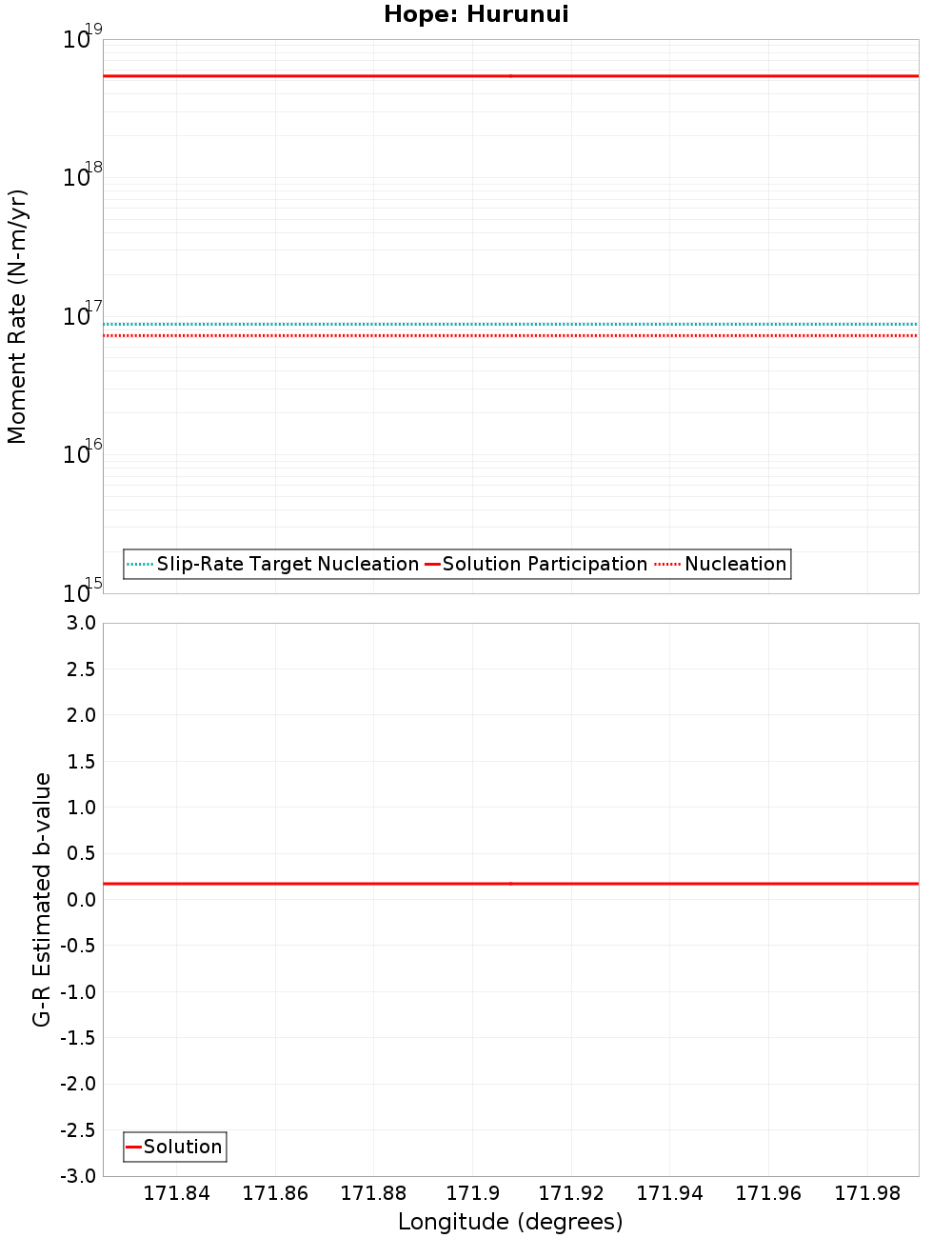

Moment-Rates and b-Values

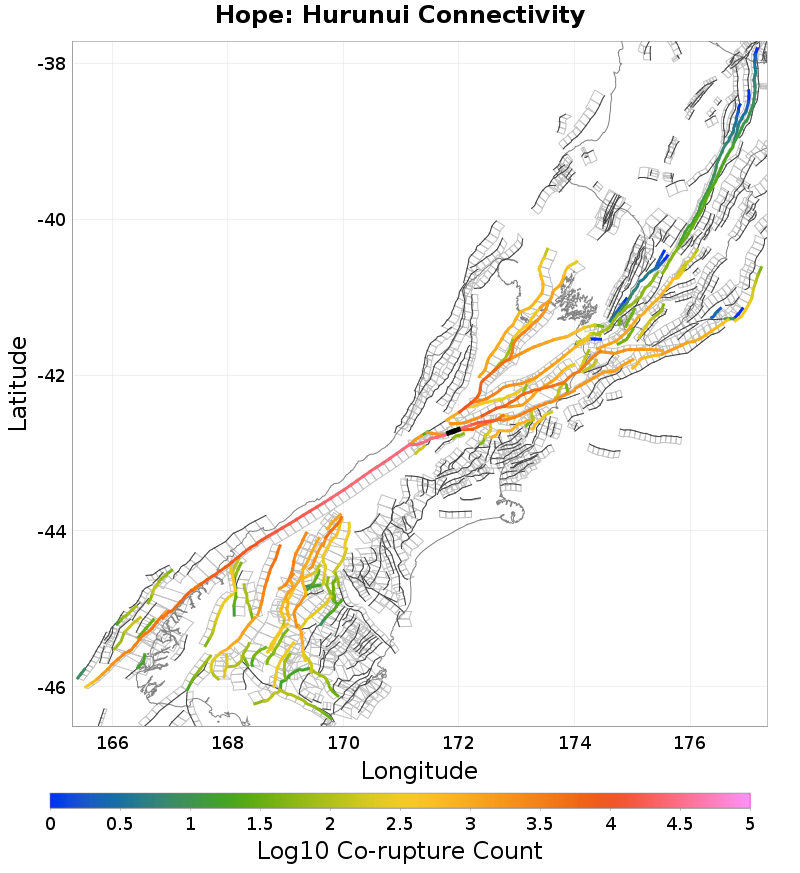

Connectivity

Nearby Sections

Fault Section
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Kelly, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 0.19 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kakapo, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	true
Co-rupture Count	6,997
Co-rupture Rate	7.231043E-4

Hope: Taramakau, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,721
Co-rupture Rate	5.777859E-4

Kelly, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	true
Co-rupture Count	29,970
Co-rupture Rate	0.0018603395

Hope: Hope River, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	true
Co-rupture Count	23,914
Co-rupture Rate	0.0013215031

Alpine: Kaniere to Springs Junction, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	true
Co-rupture Count	11,548
Co-rupture Rate	6.1732426E-4

Poulter, 7.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	1.322902E-13

Clarence: Southwest, 8.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0
Connected?	true
Directly Connected?	false
Co-rupture Count	8,724
Co-rupture Rate	2.482328E-4
