Tuakana 6 Details
| Property | Value |
|---|---|
| Rupture Count | 74 |
| Ruptures Above Sect Min Mag | 73 |
| Ruptures w/ Nonzero Rates | 58 |
| Magnitude Range | [6.86, 7.75] |
| Length Range | [14, 126] km |
| Total Rate | 1.4988727E-4 /yr |
| Multi-Fault Rate | 1.4988727E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 15 |
Table Of Contents

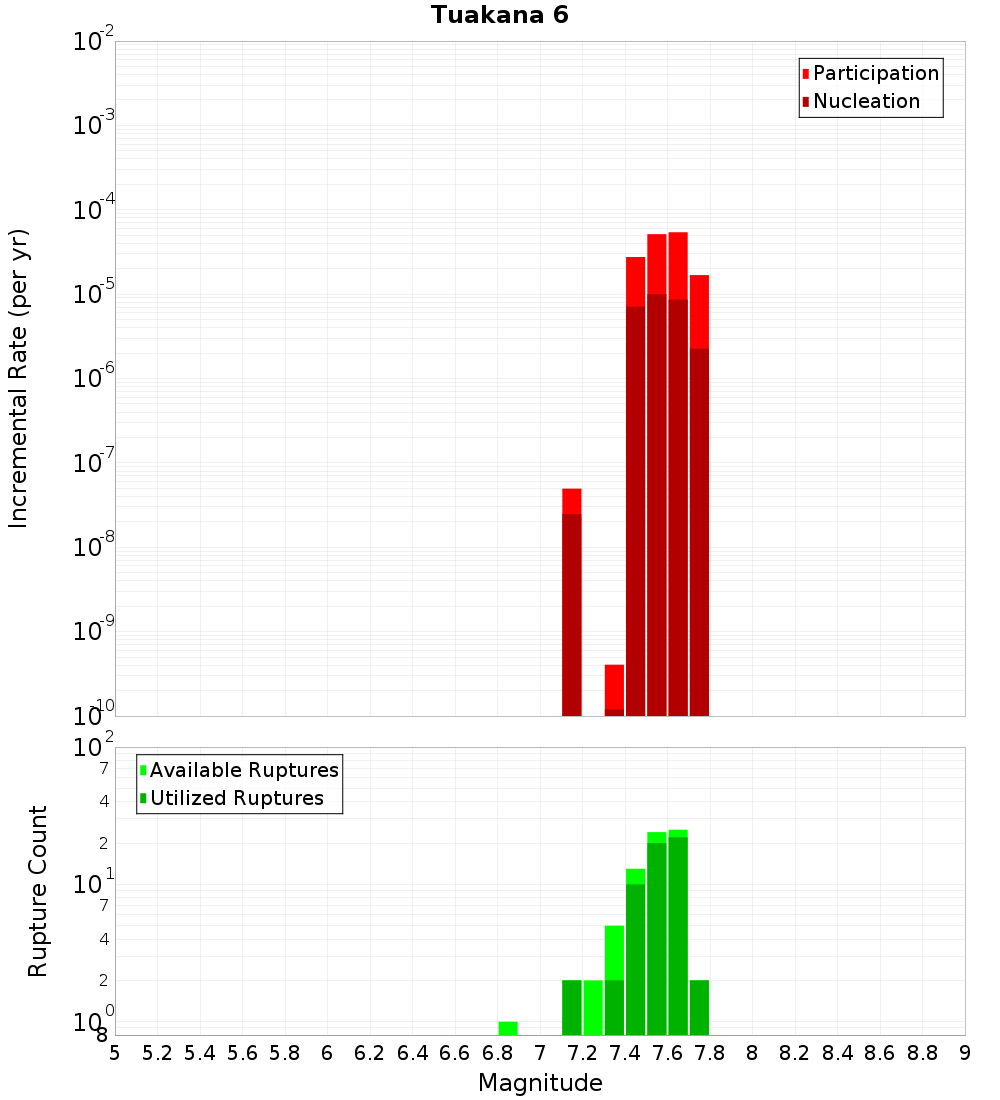

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

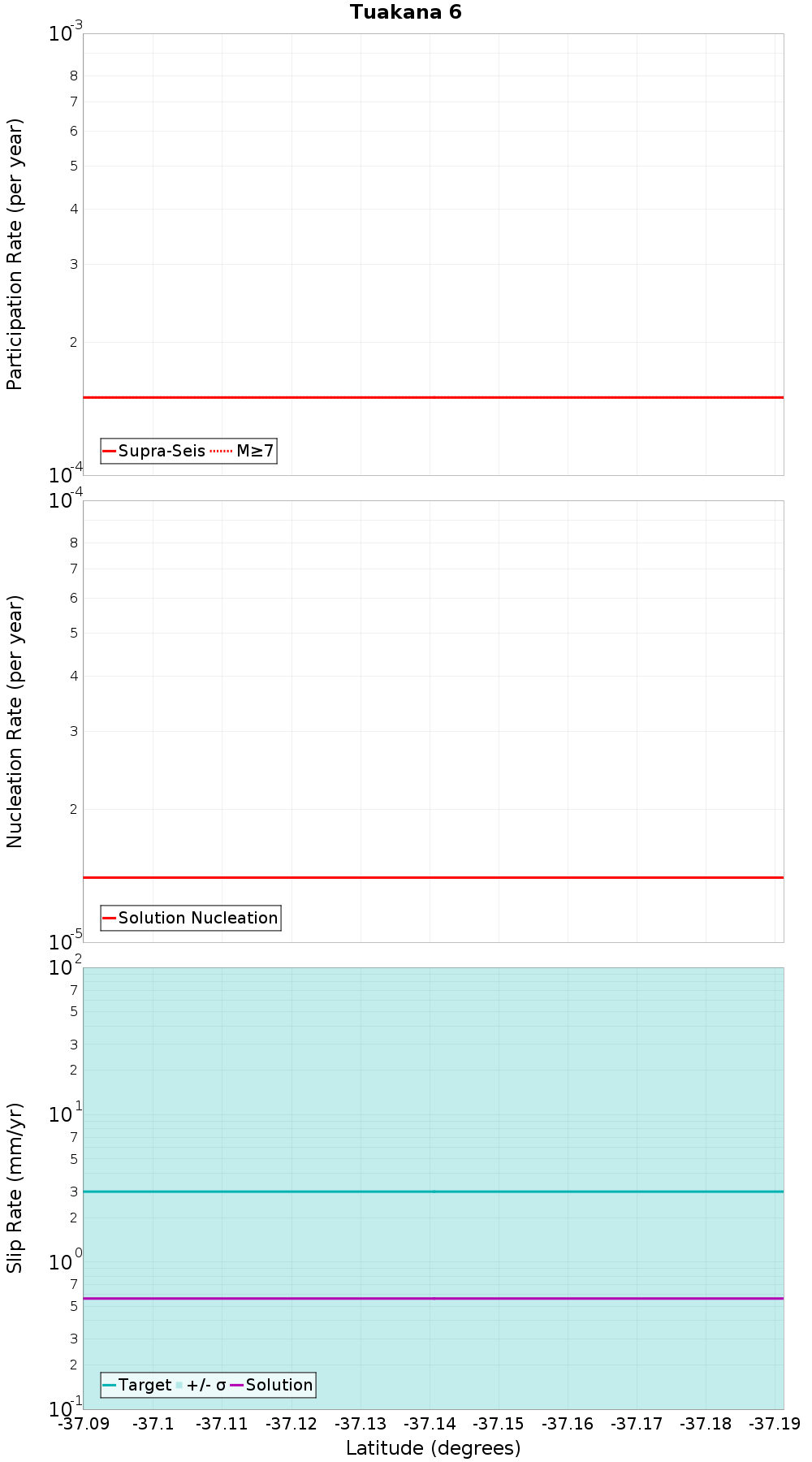

Along-Strike Values
Moment-Rates and b-Values

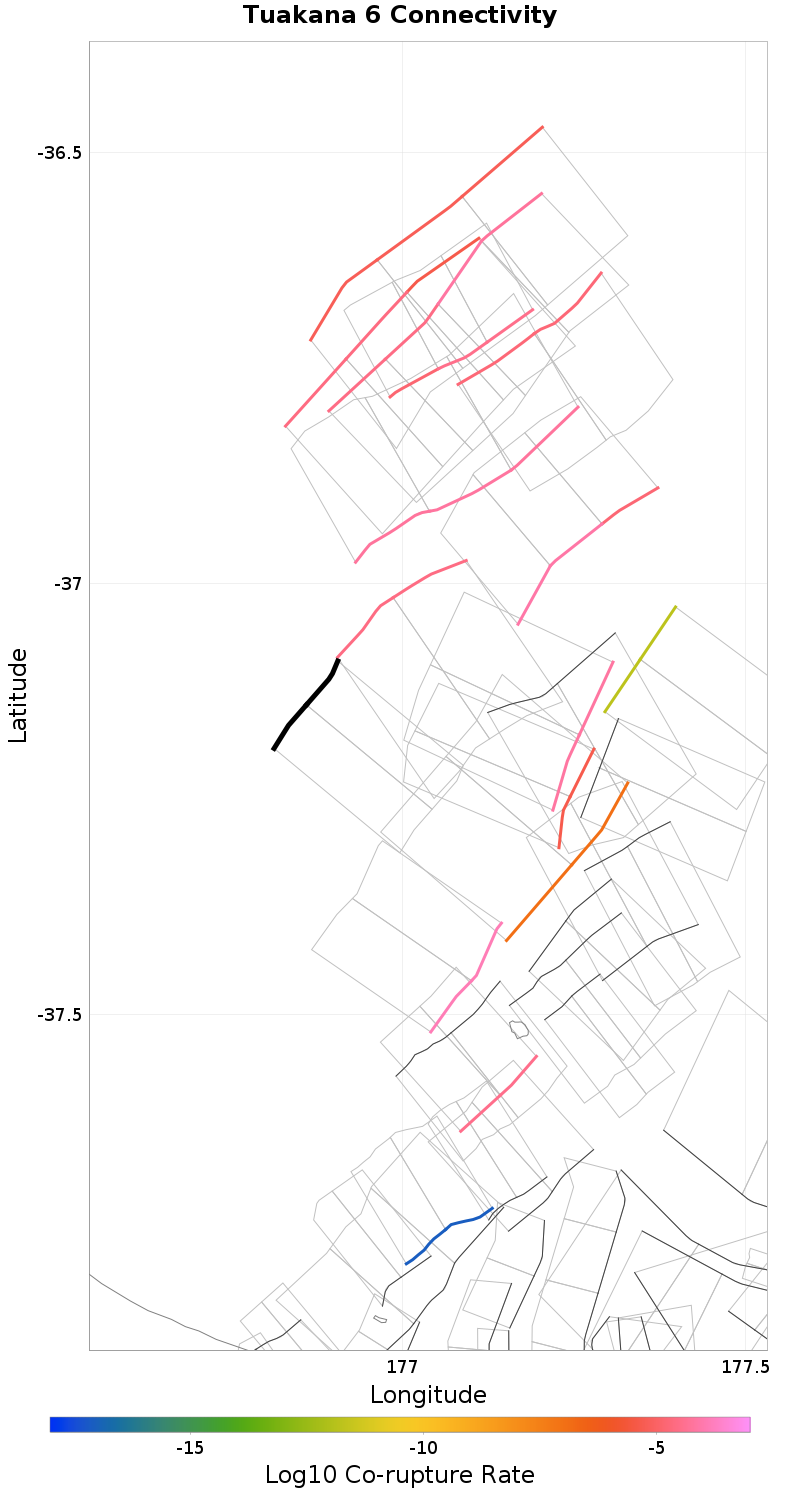

Connectivity
 |  |
|---|
Nearby Sections
Volkner 3, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 46 |
| Co-rupture Rate | 1.2702336E-4 |
Volkner 4, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.0599731E-7 |
Otara West 1, 0.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 4.472721E-6 |
Tuakana 7, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 17 |
| Co-rupture Rate | 2.525948E-5 |
Otara West 2, 0.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 6.4590575E-5 |
Tuatoru 2, 11.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tauranga Trough West 2, 12.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 24 |
| Co-rupture Rate | 6.218805E-5 |
Otara West 3, 14.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYxODkuNXhESDc0 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
