Fisherman 1 Details

Property	Value
Rupture Count	114
Ruptures Above Sect Min Mag	113
Ruptures w/ Nonzero Rates	27
Magnitude Range	[6.79, 7.93]
Length Range	[16, 184] km
Total Rate	3.238444E-4 /yr
Multi-Fault Rate	3.238444E-4 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

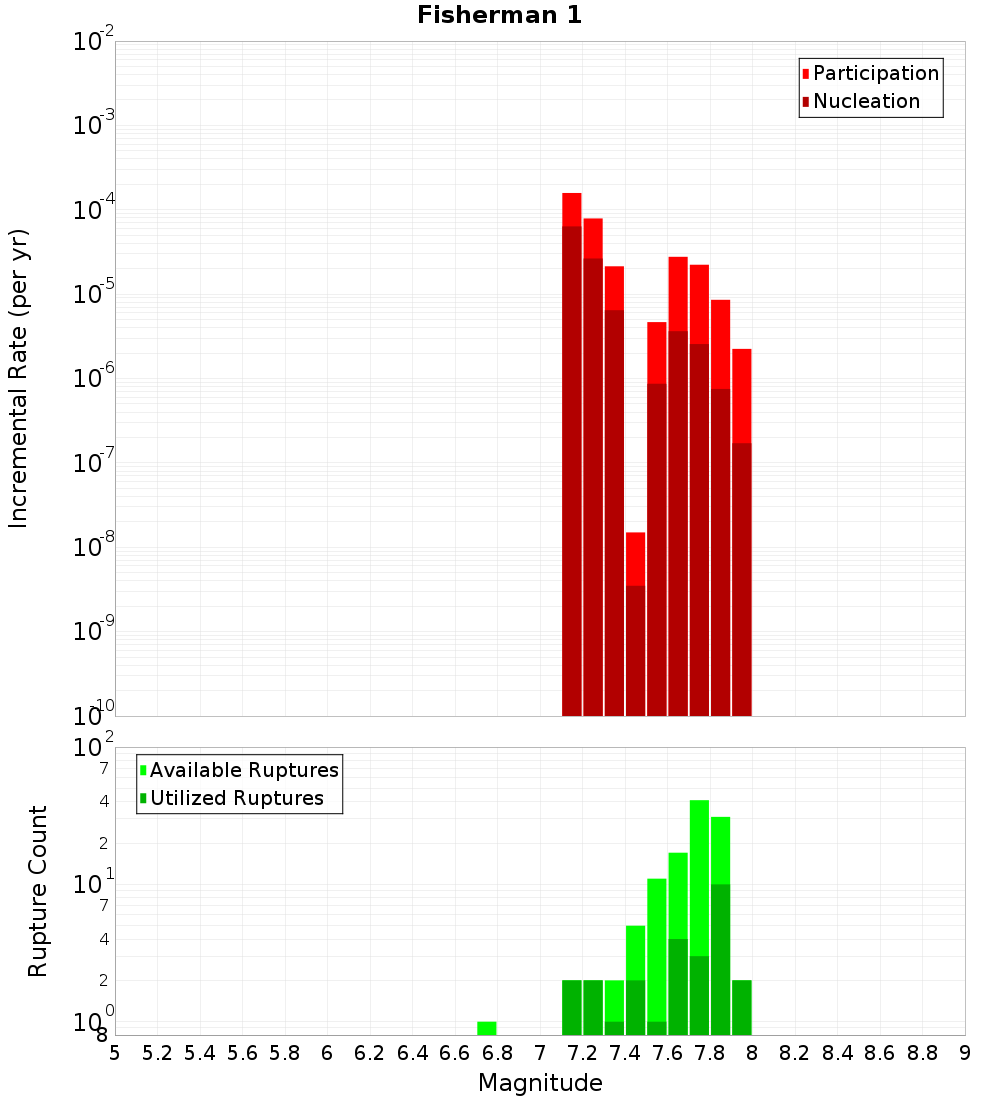

Magnitude-Frequency Distribution

Incremental	Cumulative

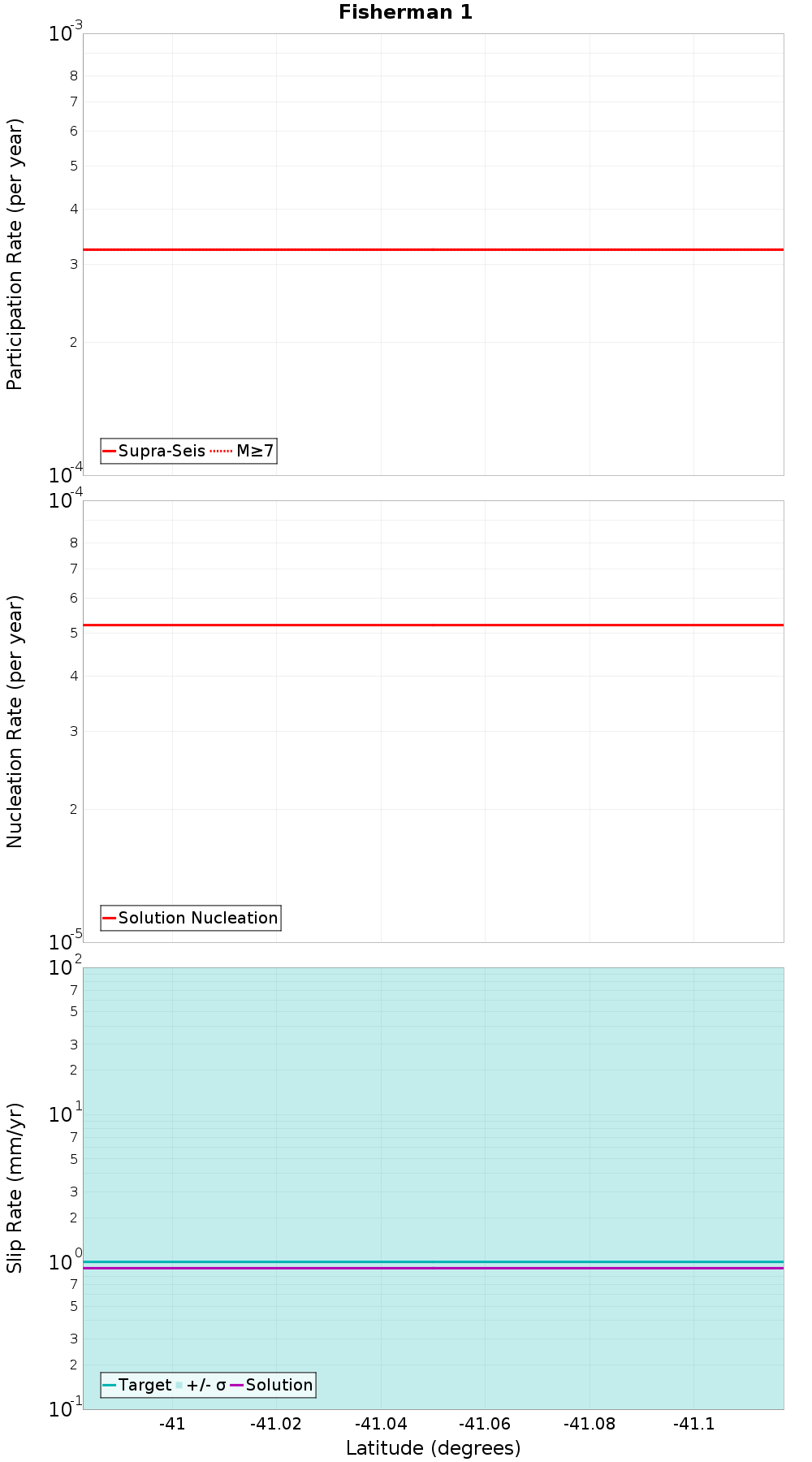

Along-Strike Values

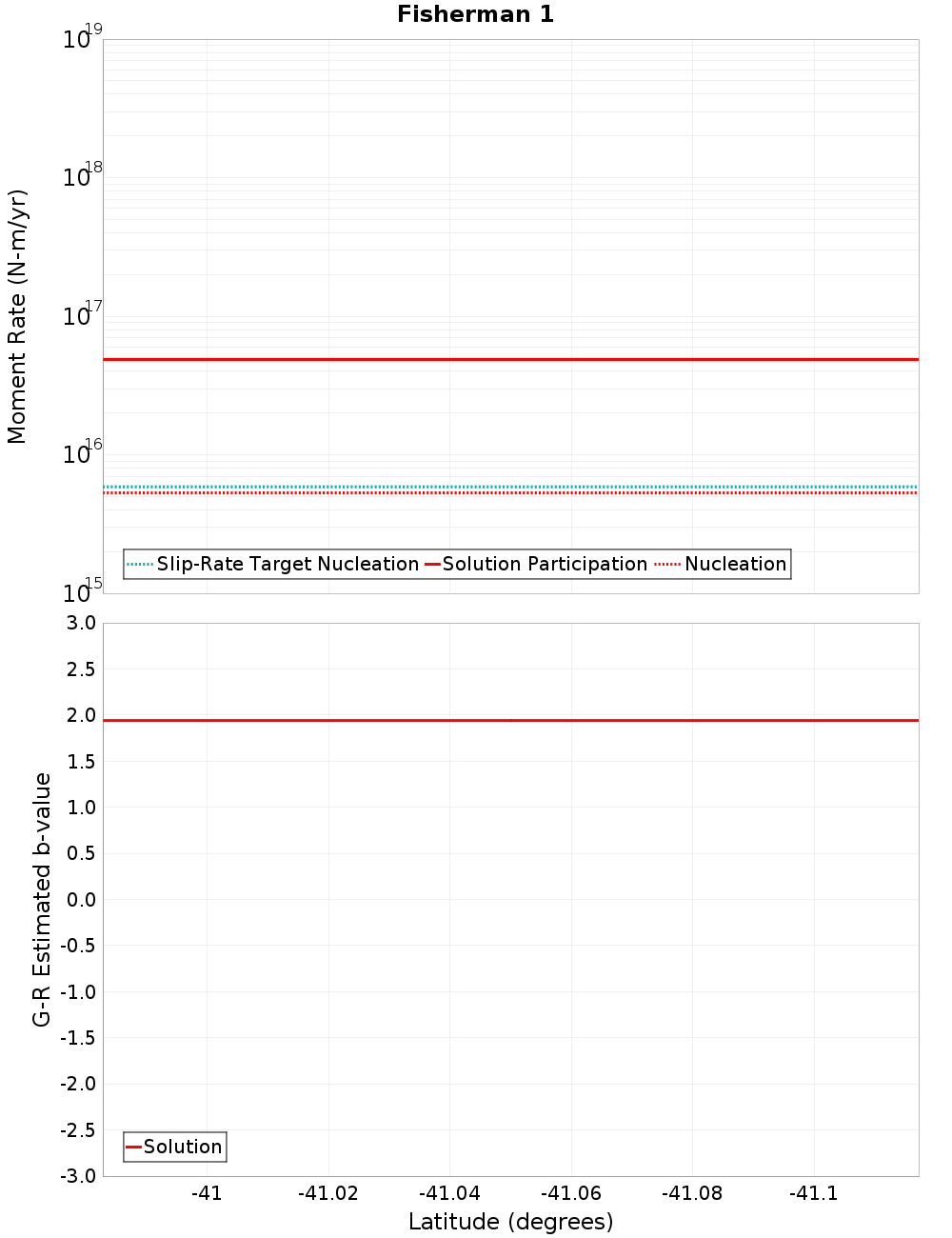

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Fisherman 2, 0 km away
Okupe 1, 3.93 km away
Shepherds Gully - Mana, 8.62 km away
Otaheke South, 8.64 km away
Pukerua - Shepherds Gully: 3, 13.16 km away
Pukerua - Shepherds Gully: 2, 13.34 km away

Fisherman 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	false
Co-rupture Count	62
Co-rupture Rate	3.5353587E-5

Okupe 1, 3.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	184
Co-rupture Rate	3.2696227E-4

Shepherds Gully - Mana, 8.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 8.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 3, 13.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	3.1328507E-6

Pukerua - Shepherds Gully: 2, 13.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	false
Co-rupture Count	40
Co-rupture Rate	2.4510075E-5
