Maimai Details

Property	Value
Rupture Count	2,768
Ruptures Above Sect Min Mag	2,767
Ruptures w/ Nonzero Rates	497
Magnitude Range	[6.99, 8.13]
Length Range	[25, 383] km
Total Rate	4.7291603E-4 /yr
Multi-Fault Rate	4.7291603E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

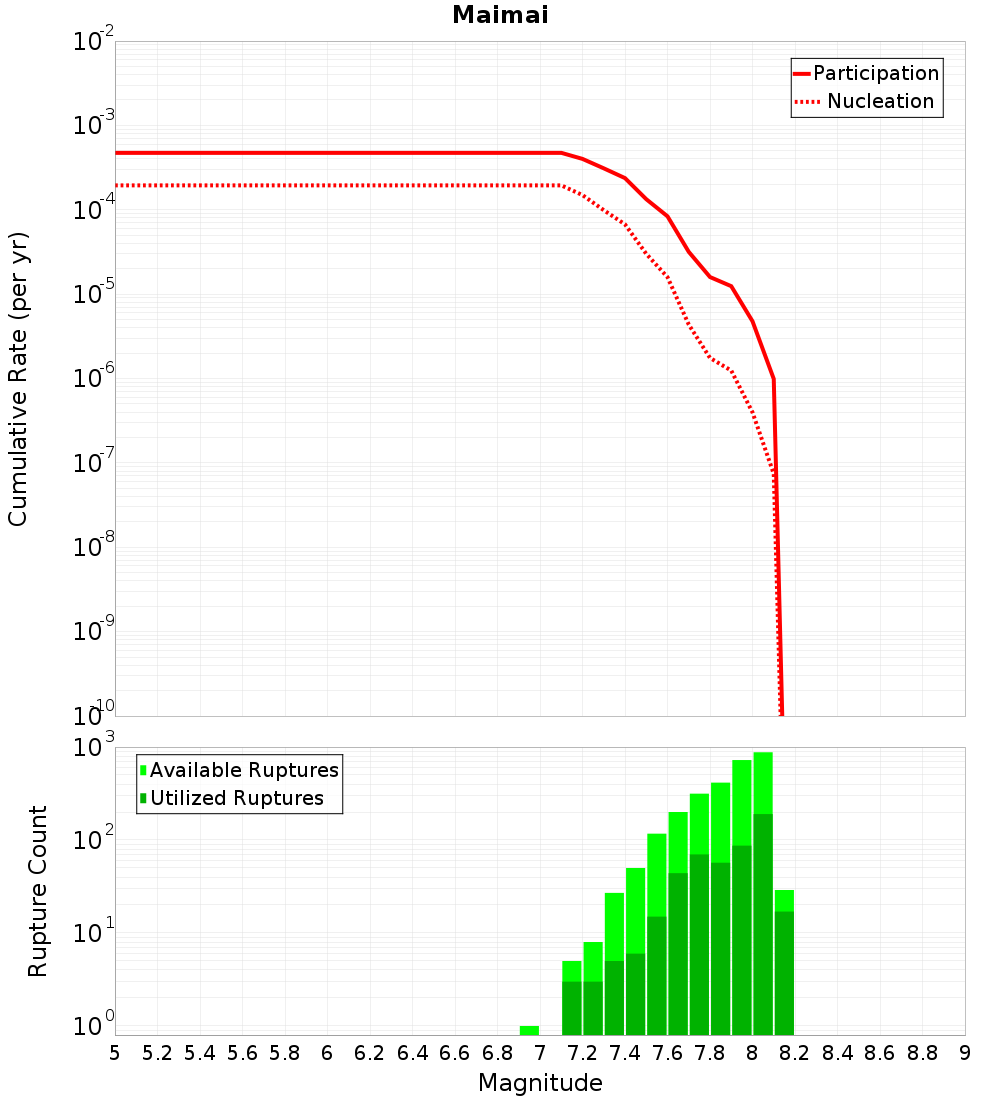

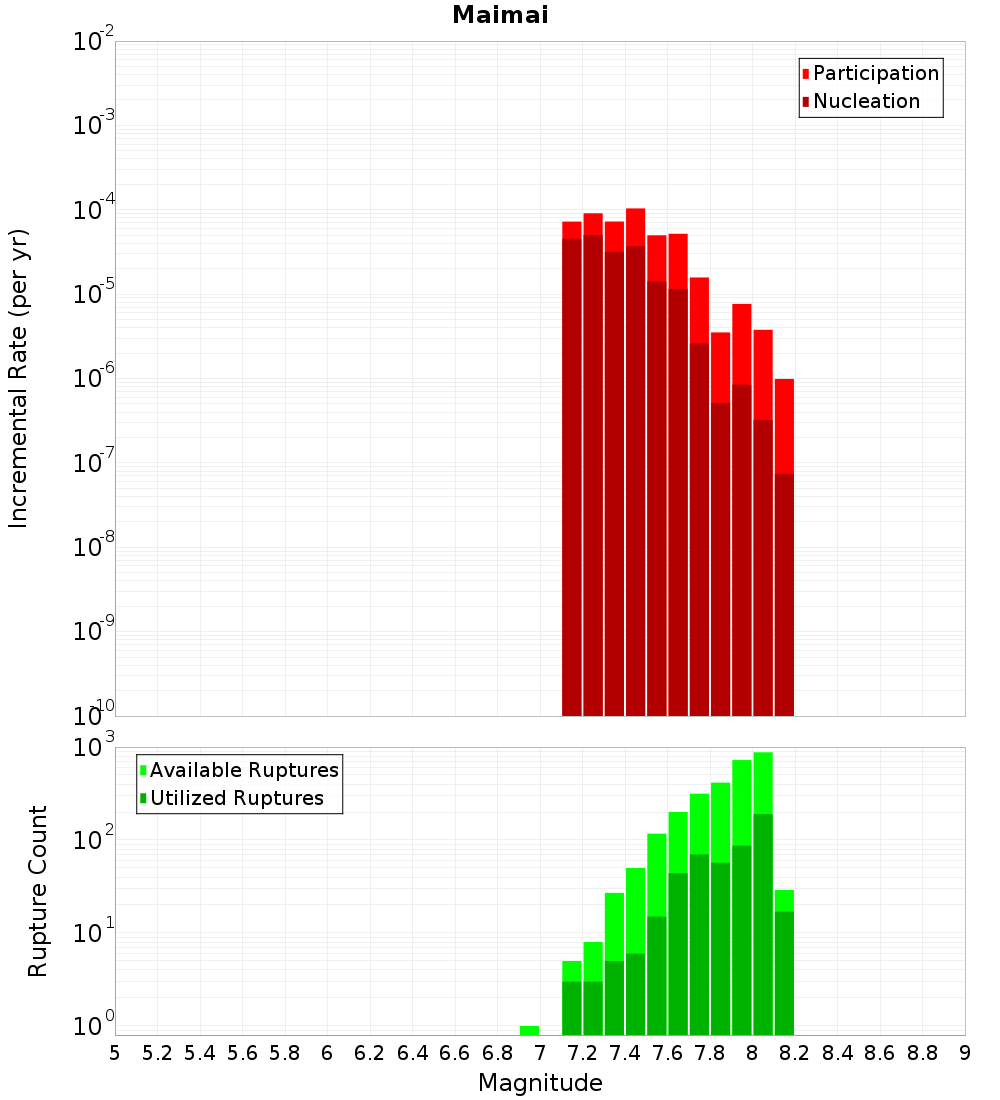

Magnitude-Frequency Distribution

Incremental	Cumulative

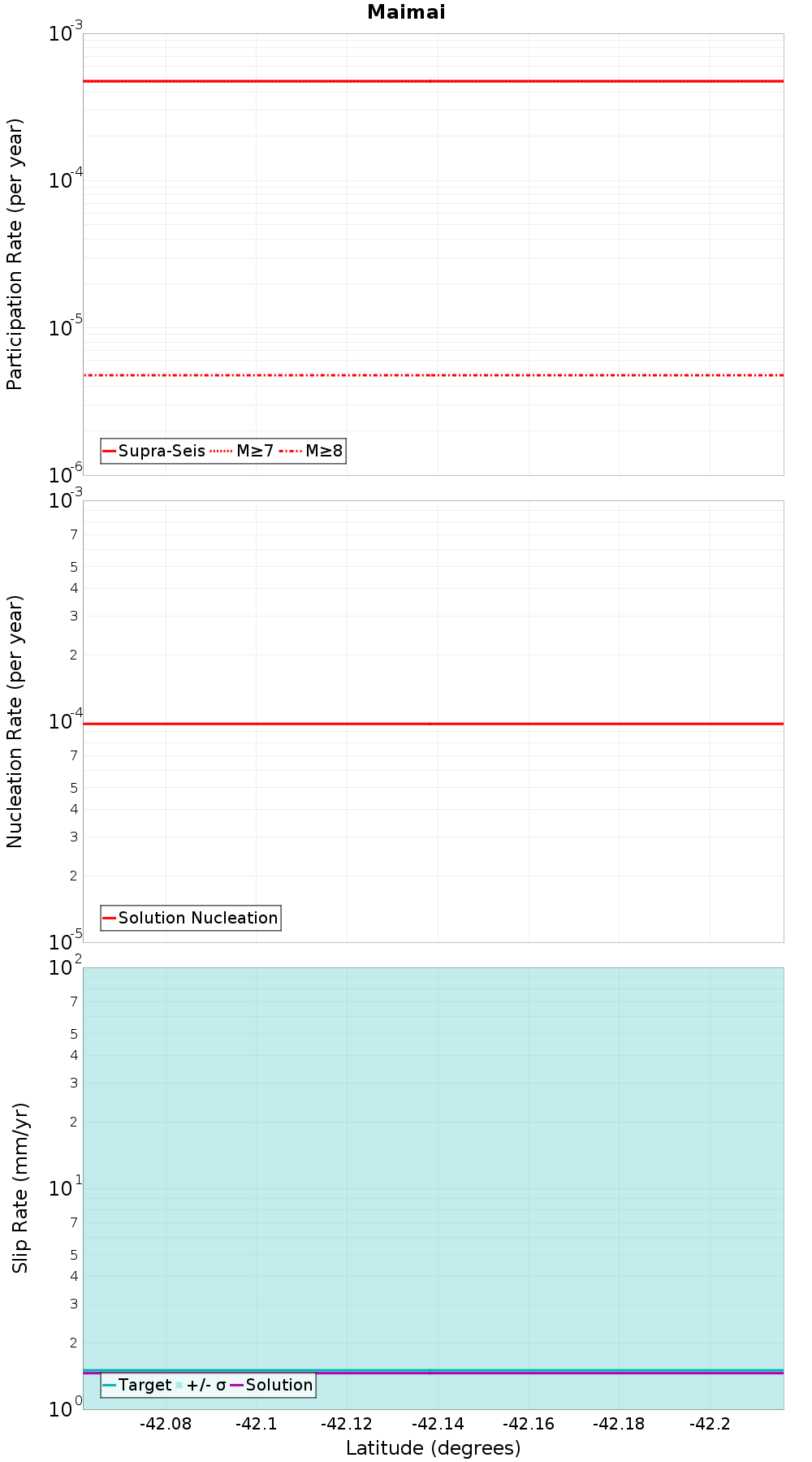

Along-Strike Values

Moment-Rates and b-Values

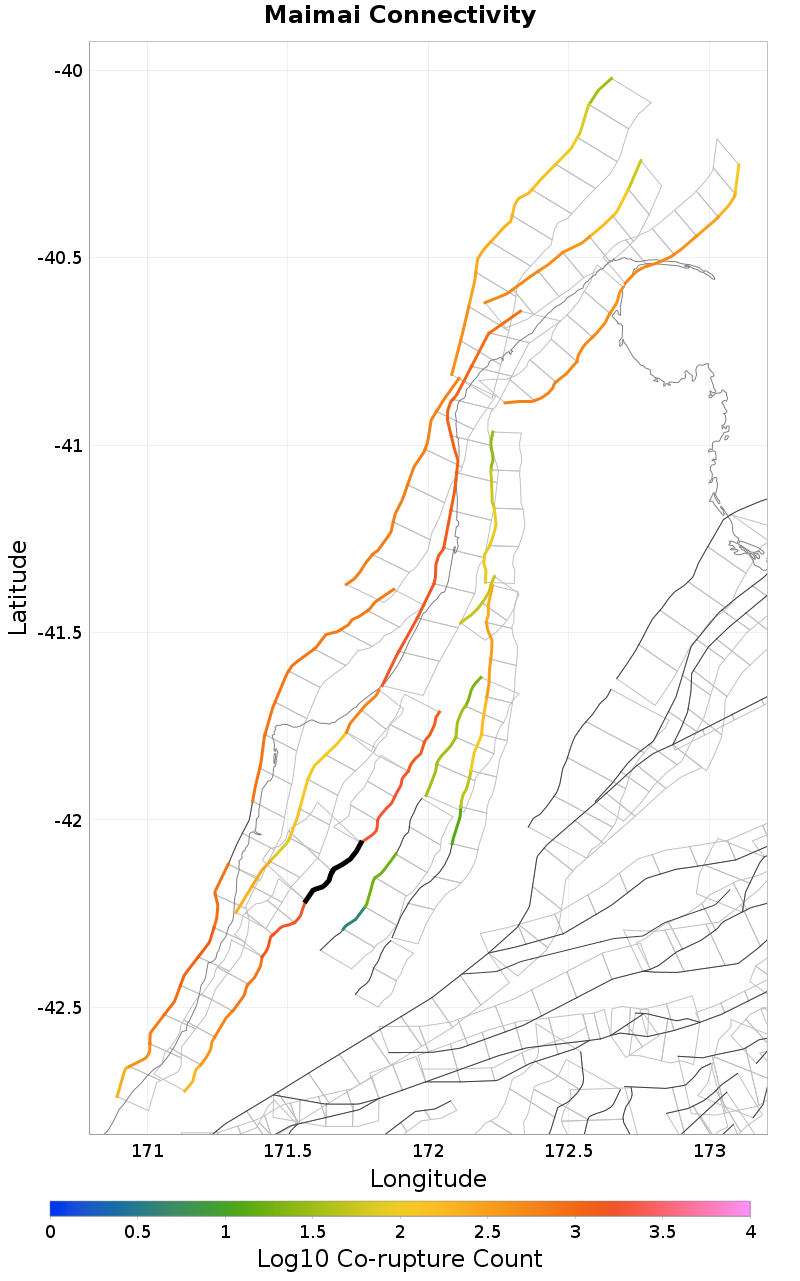

Connectivity

Nearby Sections

Fault Section
Maimai: North, 0 km away
Maimai: South, 0.09 km away
Paparoa West, 0.14 km away
Cape Foulwind 2, 0.27 km away
Cape Foulwind 1, 4.83 km away
Lyell South, 9.15 km away

Maimai: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,846
Co-rupture Rate	2.2714713E-4

Maimai: South, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,552
Co-rupture Rate	1.8640942E-5

Paparoa West, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	350
Co-rupture Rate	4.2056004E-4

Cape Foulwind 2, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	805
Co-rupture Rate	3.3075874E-5

Cape Foulwind 1, 4.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	true
Co-rupture Count	1,465
Co-rupture Rate	2.9219995E-5

Lyell South, 9.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	9.9873325E-11
