Marlborough Slope 3 Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 13 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [6.59, 7.44] |
| Length Range | [14, 91] km |
| Total Rate | 1.2073232E-4 /yr |
| Multi-Fault Rate | 1.2073232E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 3 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

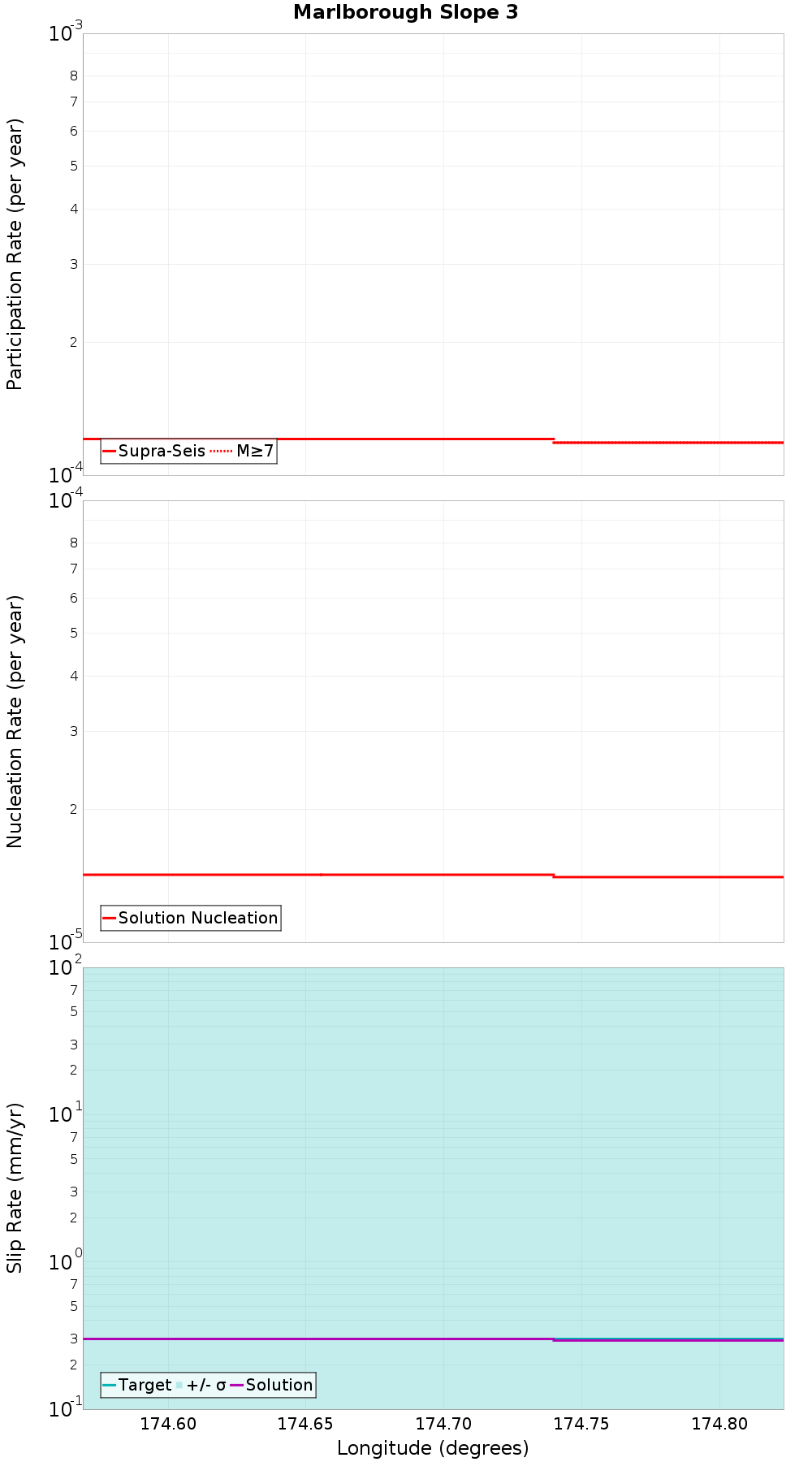

Along-Strike Values

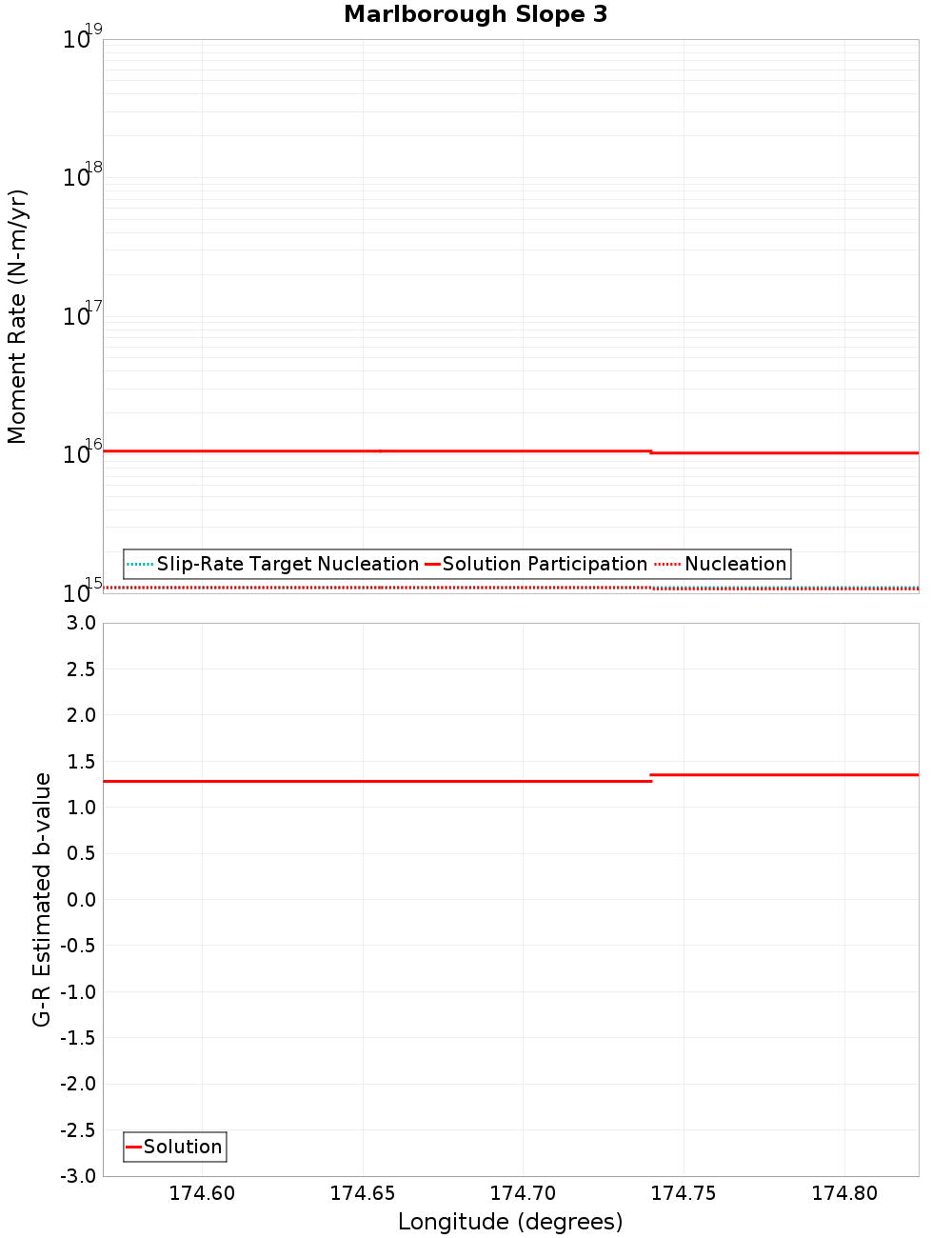

Moment-Rates and b-Values

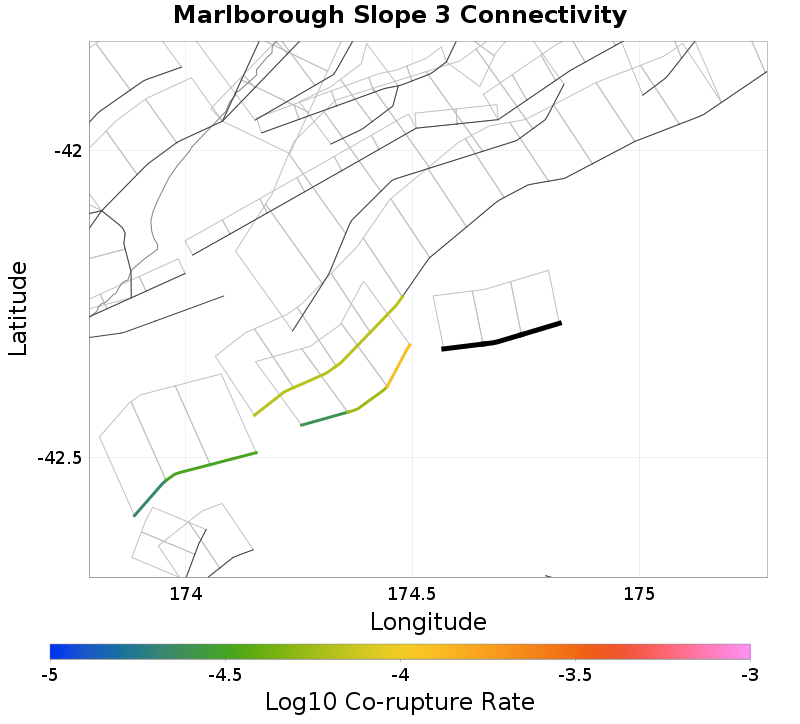

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Marlborough Slope 4, 6.08 km away |
| Kekerengu Bank, 10.31 km away |
Marlborough Slope 4, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 14 |
| Co-rupture Rate | 1.2073232E-4 |
Kekerengu Bank, 10.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMDRobmpC | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 6.632339E-5 |
