Carterton Details

Property	Value
Rupture Count	8,064
Ruptures Above Sect Min Mag	8,027
Ruptures w/ Nonzero Rates	334
Magnitude Range	[6.59, 8.32]
Length Range	[15, 599] km
Total Rate	9.104467E-4 /yr
Multi-Fault Rate	9.104467E-4 /yr (100.00%)
Directly-Connected Faults	13
All Co-Rupturing Faults	102

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

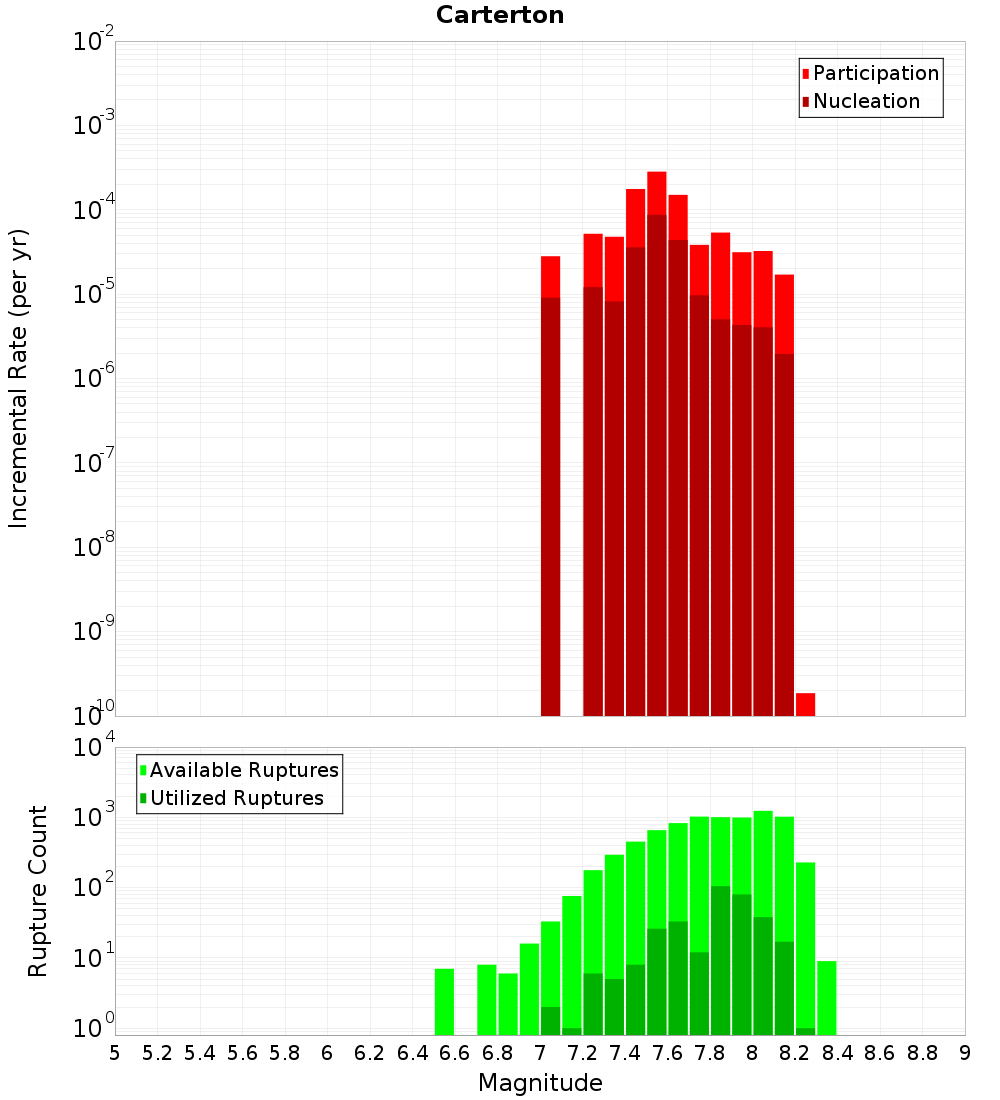

Magnitude-Frequency Distribution

Incremental	Cumulative

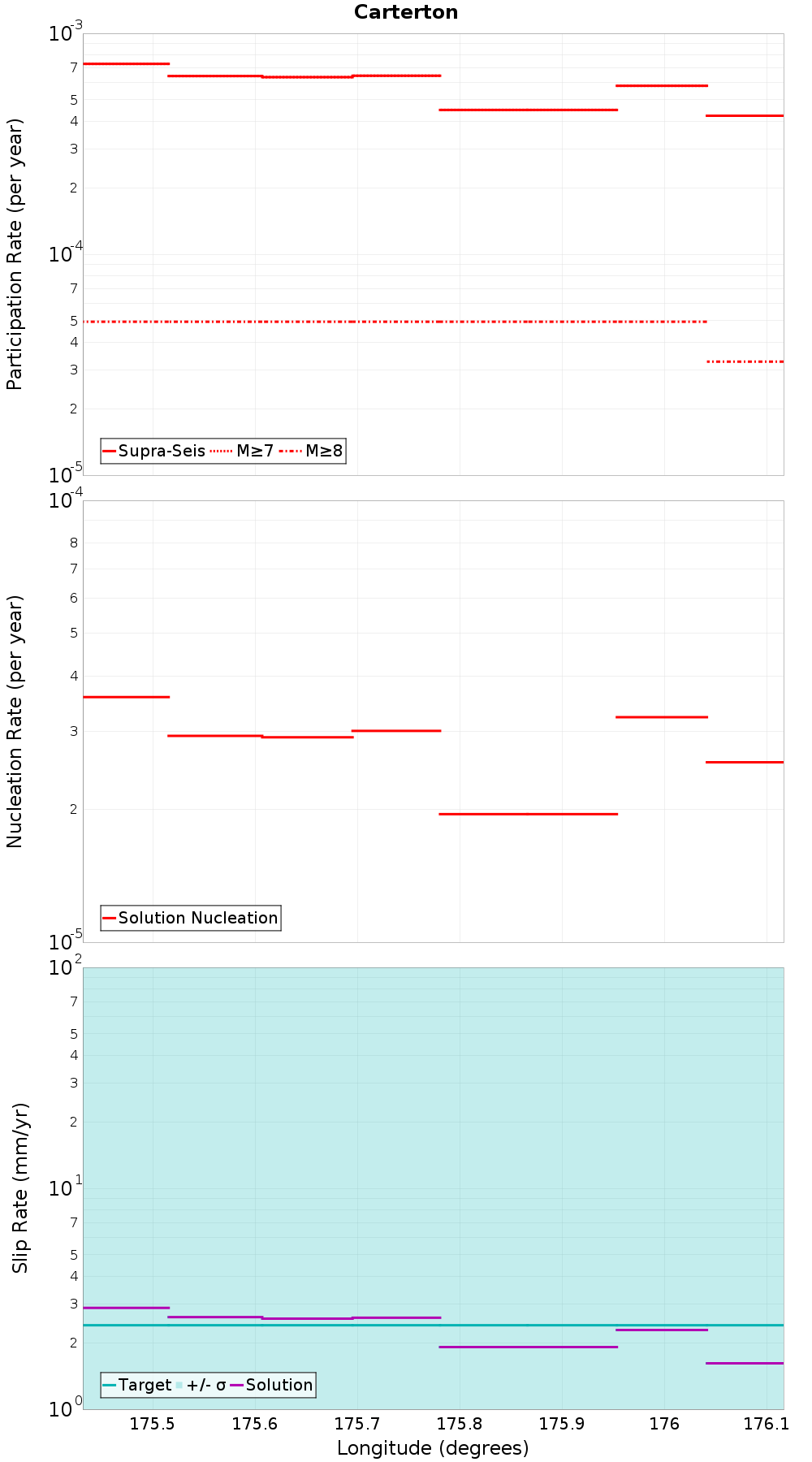

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Wairarapa: 3, 0.02 km away	Mataikona East, 7.85 km away
Wairarapa: 2, 0.05 km away	Wellington: Tararua 2, 8.44 km away
Mataikona, 0.32 km away	Dry River - Huangarua: 3, 9.56 km away
Martinborough, 0.42 km away	Mokonui Northeast, 9.67 km away
Masterton, 0.45 km away	Riversdale, 10.74 km away
Kaumingi, 0.54 km away	Uruti Point, 12.06 km away
Riversdale North, 2 km away	Dry River - Huangarua: 2, 12.78 km away
Bidwill, 3.31 km away	Wellington: Tararua 3, 13.79 km away
Mokonui Southwest, 5.71 km away

Wairarapa: 3, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 2, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,476
Co-rupture Rate	2.946975E-4

Mataikona, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	2,153
Co-rupture Rate	5.6289224E-4

Martinborough, 0.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	1,659
Co-rupture Rate	1.4275613E-5

Masterton, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	227
Co-rupture Rate	3.140384E-4

Kaumingi, 0.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	323
Co-rupture Rate	1.9243812E-4

Riversdale North, 2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	129
Co-rupture Rate	1.3911874E-4

Bidwill, 3.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	968
Co-rupture Rate	3.8696264E-5

Mokonui Southwest, 5.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mataikona East, 7.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	334
Co-rupture Rate	5.480035E-5

Wellington: Tararua 2, 8.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	false
Co-rupture Count	148
Co-rupture Rate	3.433068E-5

Dry River - Huangarua: 3, 9.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	291
Co-rupture Rate	1.1606996E-4

Mokonui Northeast, 9.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	162
Co-rupture Rate	1.0463671E-4

Riversdale, 10.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	false
Co-rupture Count	61
Co-rupture Rate	8.562439E-5

Uruti Point, 12.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	297
Co-rupture Rate	3.0863678E-6

Dry River - Huangarua: 2, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	377
Co-rupture Rate	7.067309E-5

Wellington: Tararua 3, 13.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMDkuMEZDUUo5
Connected?	true
Directly Connected?	true
Co-rupture Count	3,082
Co-rupture Rate	4.2337833E-5
