OmihiLwrHuru Details

PropertyValue
Rupture Count4,246
Ruptures Above Sect Min Mag4,239
Ruptures w/ Nonzero Rates275
Magnitude Range[6.76, 8.25]
Length Range[18, 538] km
Total Rate2.0991558E-4 /yr
Multi-Fault Rate2.0942789E-4 /yr (99.77%)
Directly-Connected Faults6
All Co-Rupturing Faults59

Table Of Contents

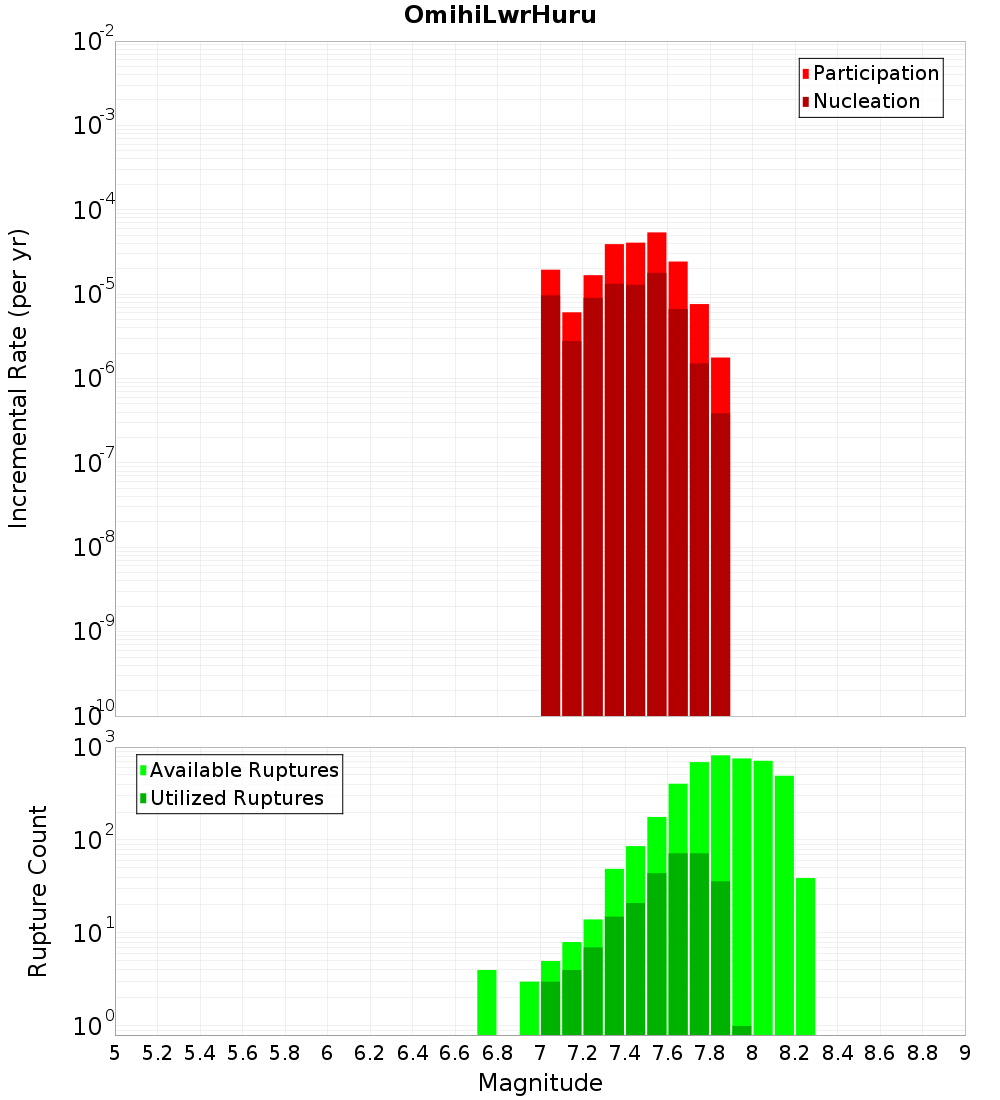

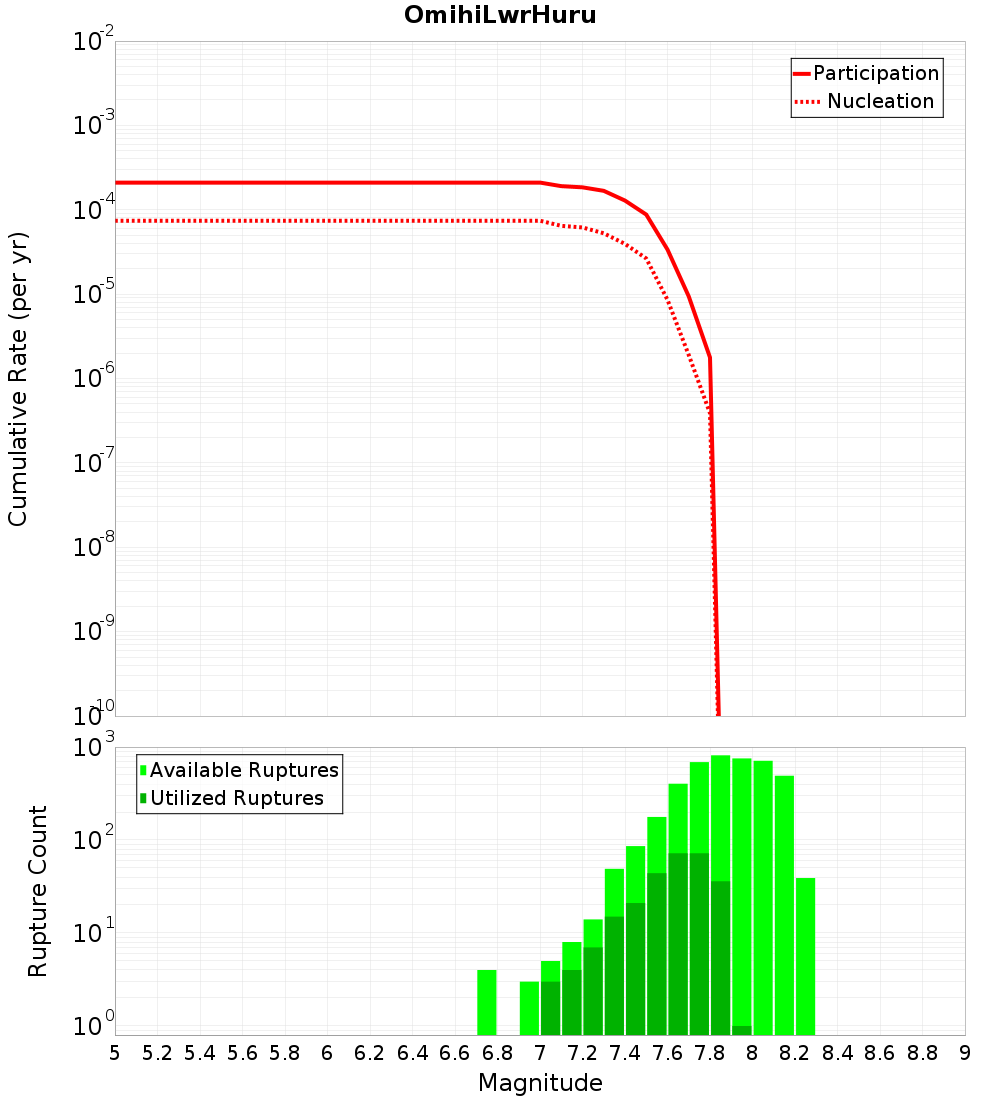

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

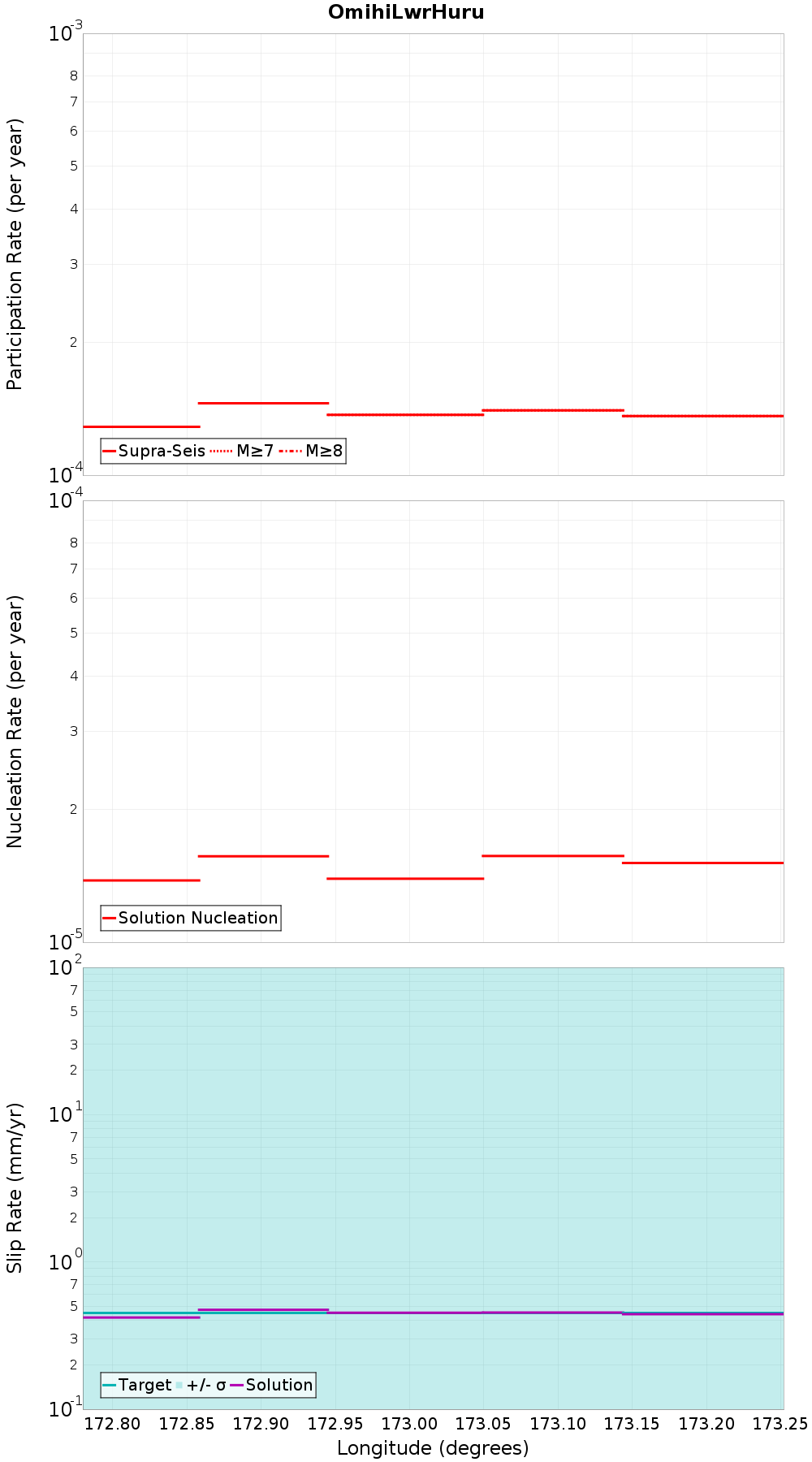

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

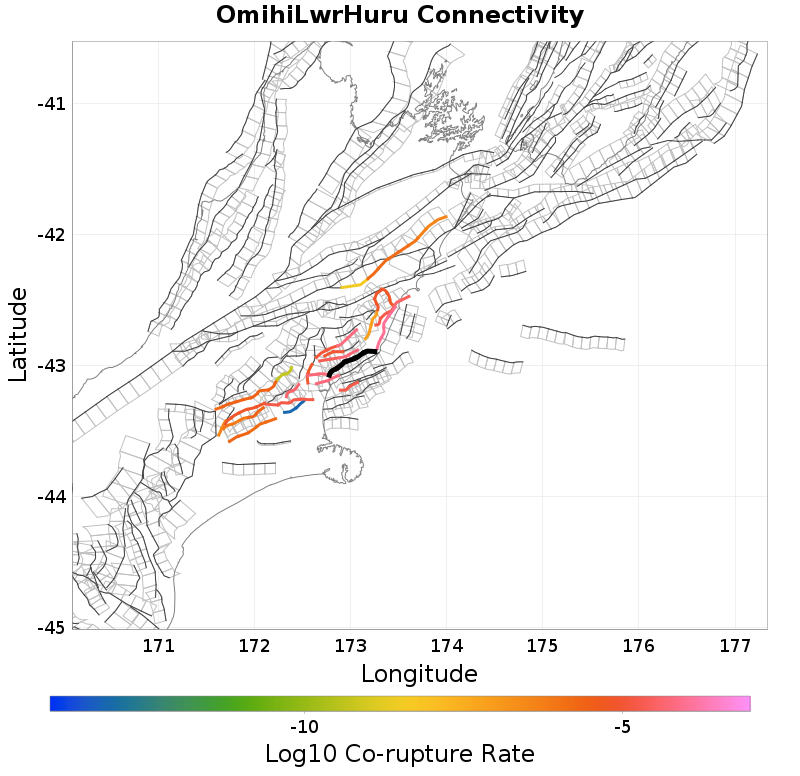

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Boby Stream, 0.79 km away
AmberBlyth, 1.98 km away
Kaiwara South, 3.01 km away
Hawkswood, 3.06 km away
Alexander, 6.66 km away
Motunau, 8.85 km away
Point Gibson, 9.05 km away
Kaiwara North, 10.71 km away
Leithfield - NCVI - NCVII, 11.17 km away
North Canterbury Shelf 2, 11.23 km away
Lowry, 11.55 km away
North Canterbury Shelf 11, 11.78 km away
Doctors, 12.16 km away
Waikuku, 14.73 km away

Boby Stream, 0.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count3,217
Co-rupture Rate5.090483E-5

AmberBlyth, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count394
Co-rupture Rate5.561351E-5

Kaiwara South, 3.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count405
Co-rupture Rate5.2309235E-5

Hawkswood, 3.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count3,422
Co-rupture Rate1.020953E-4

Alexander, 6.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate9.826546E-6

Motunau, 8.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 9.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara North, 10.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?false
Co-rupture Count97
Co-rupture Rate7.361806E-8

Leithfield - NCVI - NCVII, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate1.686932E-5

North Canterbury Shelf 2, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lowry, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?true
Co-rupture Count251
Co-rupture Rate6.053021E-5

North Canterbury Shelf 11, 11.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?false
Co-rupture Count304
Co-rupture Rate9.442596E-6

Waikuku, 14.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyMzQuMERnRWto
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
