Moonshine Details

Property	Value
Rupture Count	13,399
Ruptures Above Sect Min Mag	13,393
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.78, 8.61]
Length Range	[18, 1,132] km
Total Rate	2.5802989E-5 /yr
Multi-Fault Rate	2.5802989E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	132

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

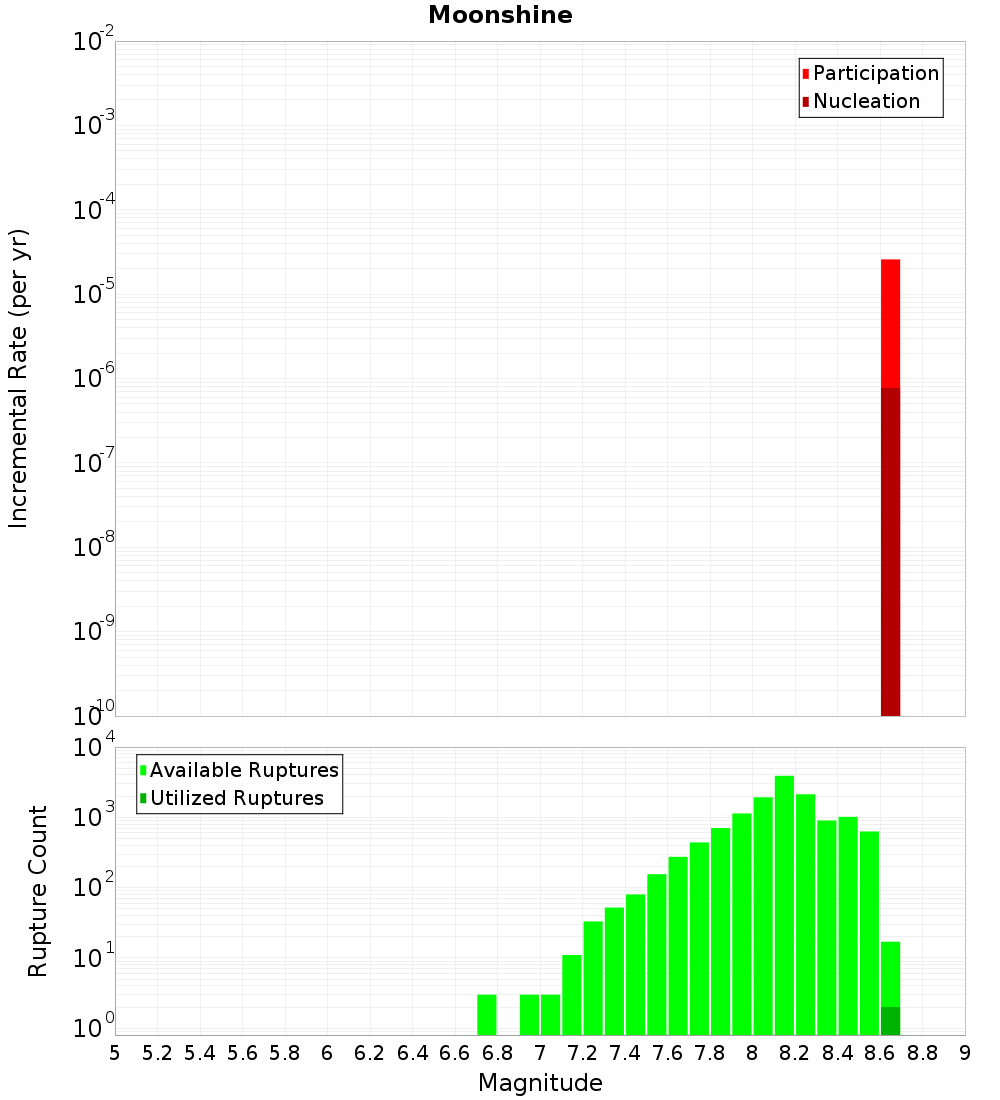

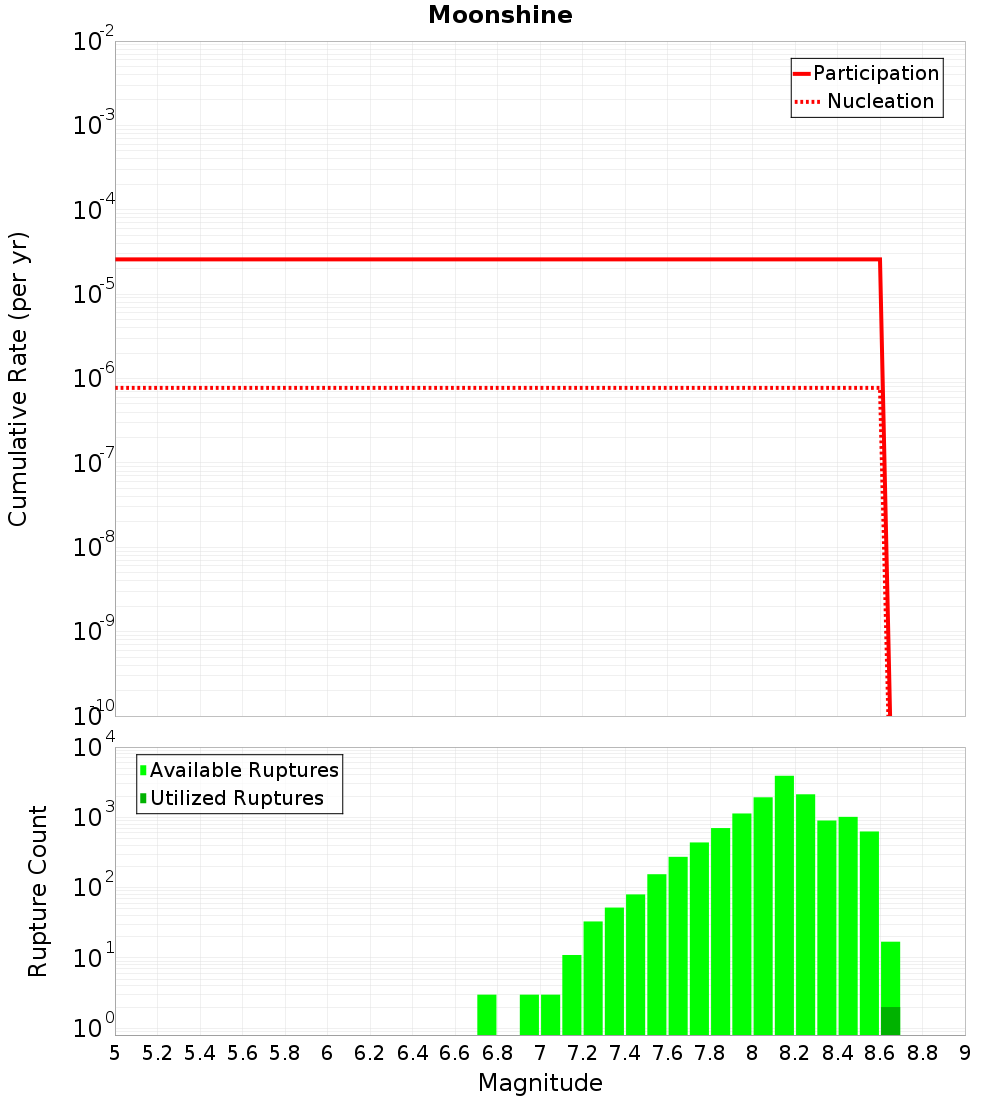

Magnitude-Frequency Distribution

Incremental	Cumulative

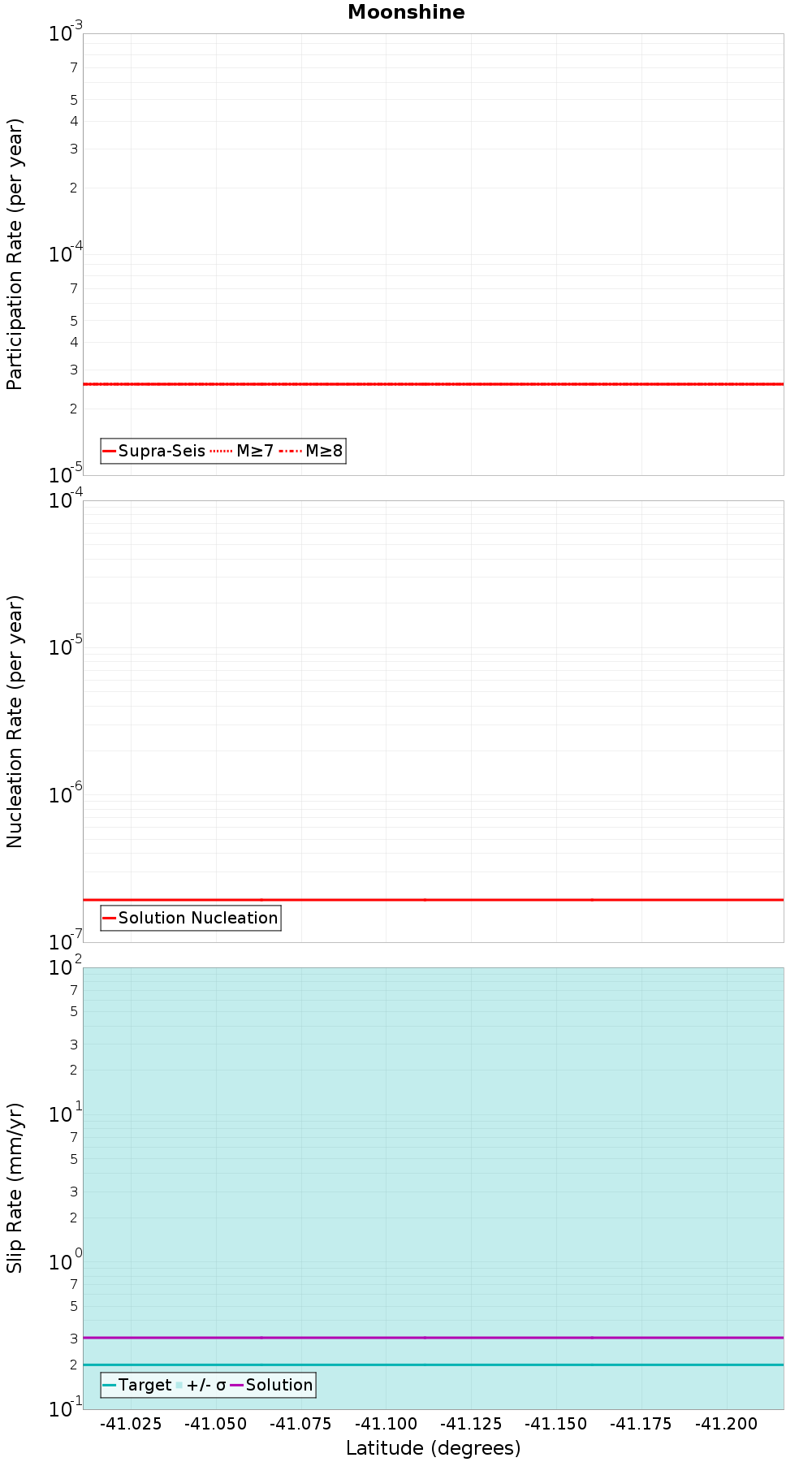

Along-Strike Values

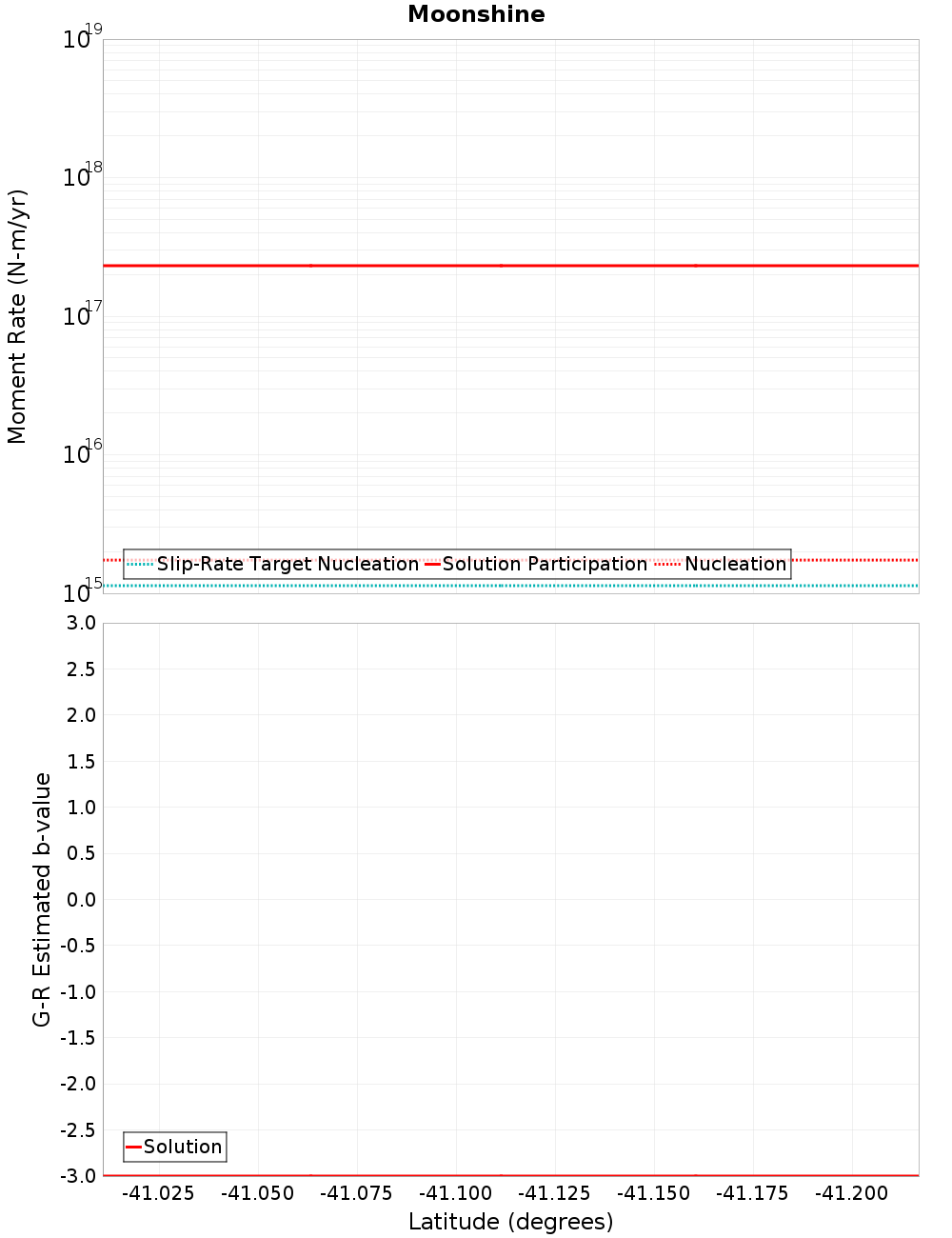

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Otaki Forks: 1, 0 km away	Aotea - Evans Bay, 6.34 km away
Akatarawa, 0 km away	Pukerua - Shepherds Gully: 2, 6.63 km away
Whitemans Valley, 0.2 km away	Wellington: Tararua 2, 6.9 km away
Ohariu, 2.04 km away	Shepherds Gully - Mana, 9.63 km away
Wellington Hutt Valley: 4, 4.31 km away	Pukerua - Shepherds Gully: 1, 11.23 km away
Wellington Hutt Valley: 5, 4.9 km away	Otaheke South, 11.31 km away
Wharekauhau, 4.93 km away	Wairarapa: 1, 13.22 km away
Wellington: Tararua 1, 5.02 km away	Wairarapa: 2, 13.37 km away
Wellington Hutt Valley: 3, 5.8 km away	Okupe 1, 14.37 km away
Pukerua - Shepherds Gully: 3, 5.97 km away

Otaki Forks: 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	12,096
Co-rupture Rate	2.5802989E-5

Akatarawa, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,699
Co-rupture Rate	0.0

Whitemans Valley, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	2,162
Co-rupture Rate	0.0

Ohariu, 2.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	6,247
Co-rupture Rate	2.5802989E-5

Wellington Hutt Valley: 4, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	279
Co-rupture Rate	0.0

Wellington Hutt Valley: 5, 4.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wharekauhau, 4.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	989
Co-rupture Rate	0.0

Wellington: Tararua 1, 5.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington Hutt Valley: 3, 5.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	155
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 3, 5.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	0.0

Aotea - Evans Bay, 6.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	124
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 2, 6.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	57
Co-rupture Rate	0.0

Wellington: Tararua 2, 6.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	72
Co-rupture Rate	0.0

Shepherds Gully - Mana, 9.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	0.0

Pukerua - Shepherds Gully: 1, 11.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 11.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	90
Co-rupture Rate	0.0

Wairarapa: 1, 13.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	175
Co-rupture Rate	0.0

Wairarapa: 2, 13.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	72
Co-rupture Rate	0.0

Okupe 1, 14.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0
