Timaru Creek Details

PropertyValue
Rupture Count11,591
Ruptures Above Sect Min Mag11,589
Ruptures w/ Nonzero Rates222
Magnitude Range[6.89, 8.56]
Length Range[19, 852] km
Total Rate9.6321455E-5 /yr
Multi-Fault Rate3.795928E-5 /yr (39.41%)
Directly-Connected Faults8
All Co-Rupturing Faults76

Table Of Contents

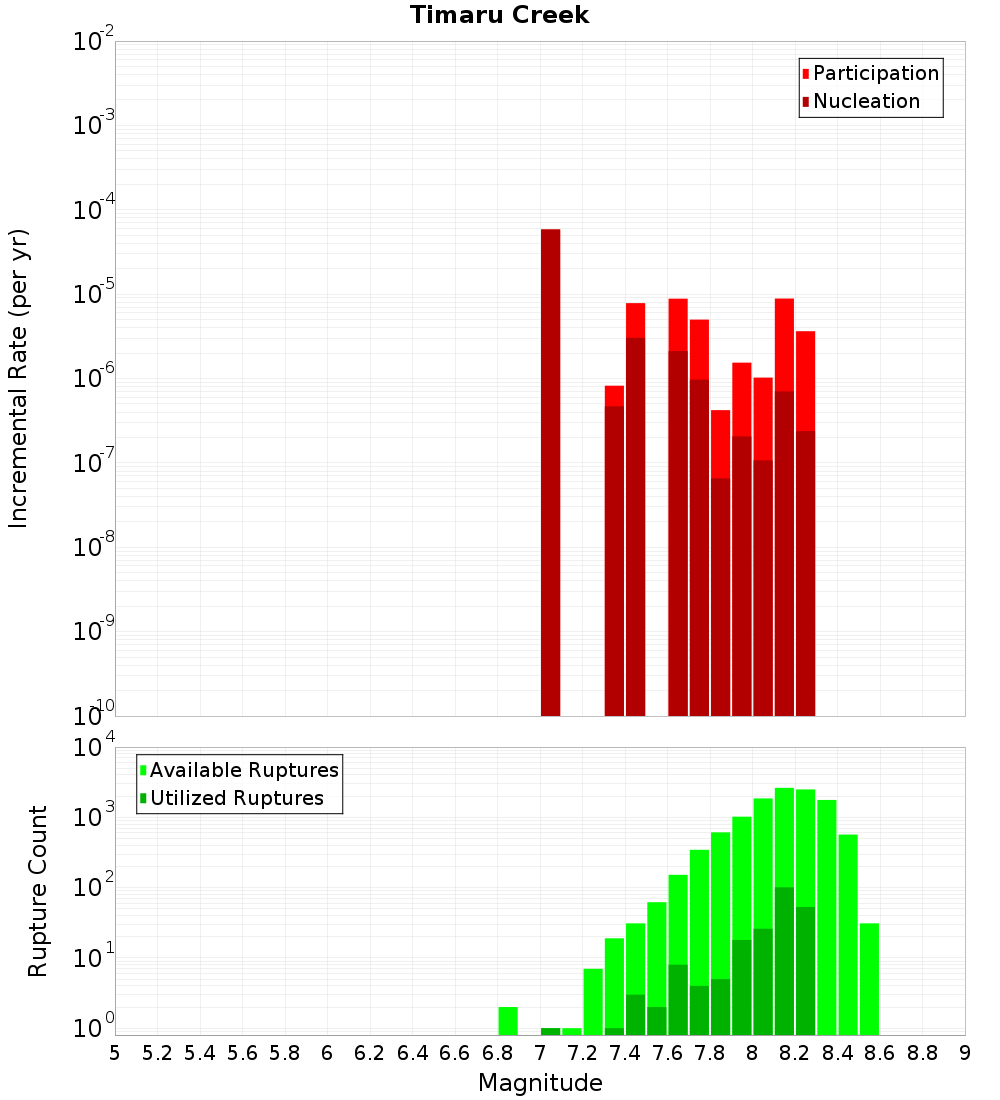

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

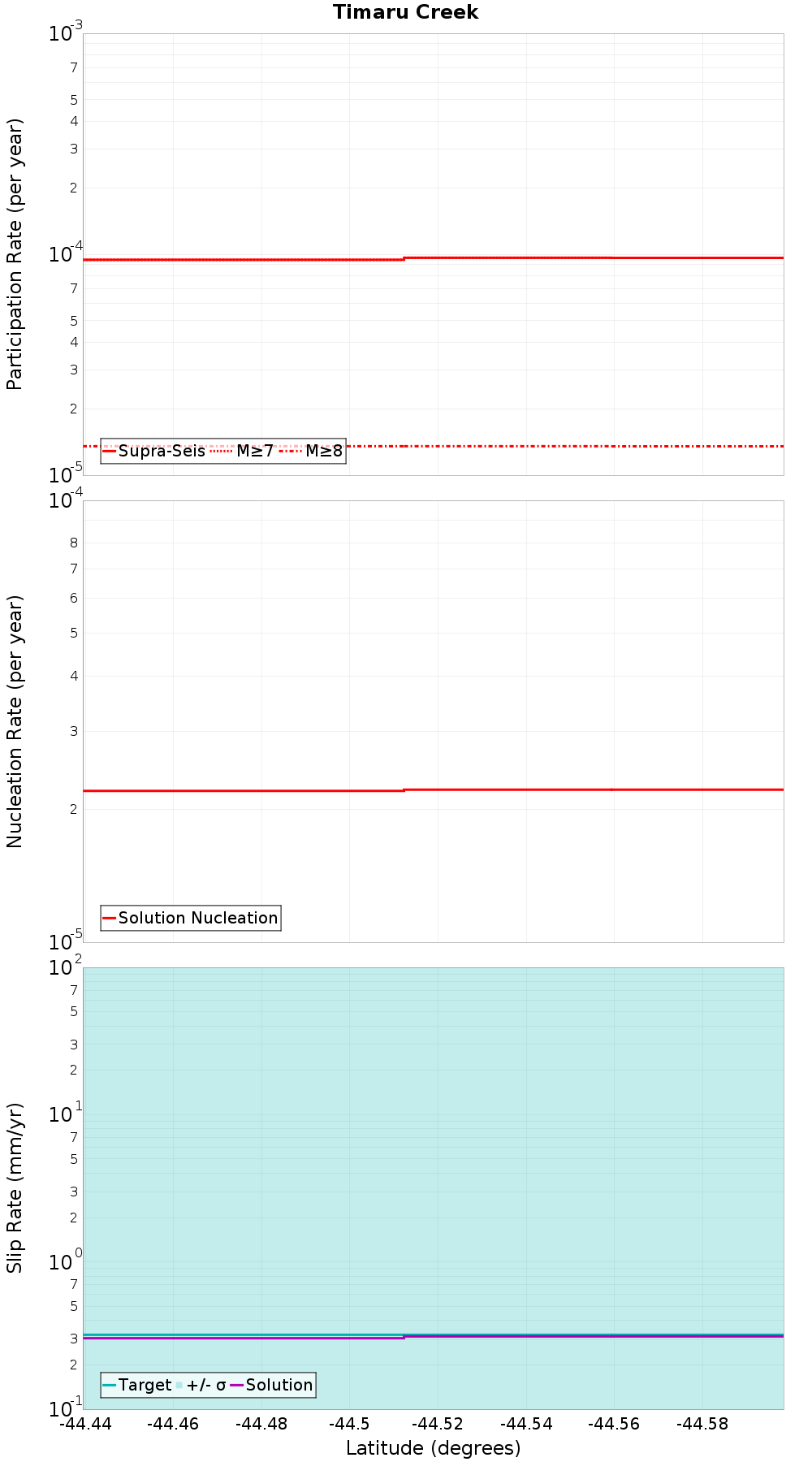

Along-Strike Values

(top)

Along-strike plot

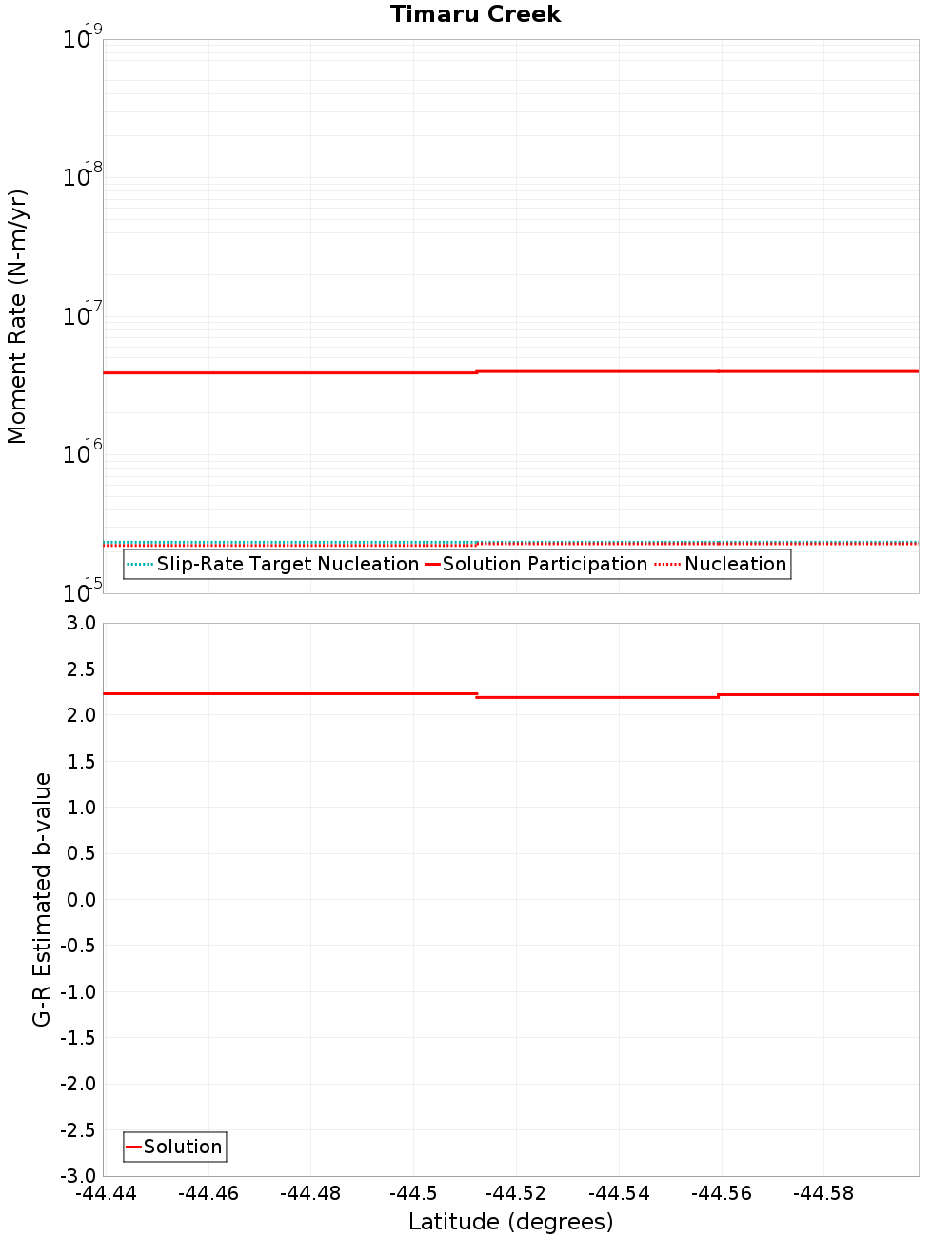

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Dromedary, 0.12 km away
Grandview, 0.3 km away
Wanaka, 0.46 km away
Lindis River, 2.49 km away
Cardrona - Hawea, 4.34 km away
Dingle, 4.92 km away
Hunter Valley, 4.93 km away
Motatapu, 7.02 km away
Barrier Range, 9.19 km away
Ostler South, 9.79 km away

Dromedary, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count123
Co-rupture Rate1.1217293E-6

Grandview, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count6,034
Co-rupture Rate1.2114494E-5

Wanaka, 0.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count2,416
Co-rupture Rate2.806576E-6

Lindis River, 2.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count103
Co-rupture Rate3.1994691E-6

Cardrona - Hawea, 4.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count4,044
Co-rupture Rate5.912995E-6

Dingle, 4.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count6,483
Co-rupture Rate5.006797E-6

Hunter Valley, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count127
Co-rupture Rate4.9207397E-6

Motatapu, 7.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?false
Co-rupture Count961
Co-rupture Rate4.1717885E-6

Barrier Range, 9.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?true
Directly Connected?true
Co-rupture Count1,879
Co-rupture Rate7.1372065E-6

Ostler South, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNDEuMHFnenRZ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
