Spylaw Details

Property	Value
Rupture Count	7,846
Ruptures Above Sect Min Mag	7,846
Ruptures w/ Nonzero Rates	348
Magnitude Range	[7.30, 8.59]
Length Range	[31, 893] km
Total Rate	7.812114E-5 /yr
Multi-Fault Rate	2.3098863E-5 /yr (29.57%)
Directly-Connected Faults	4
All Co-Rupturing Faults	94

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

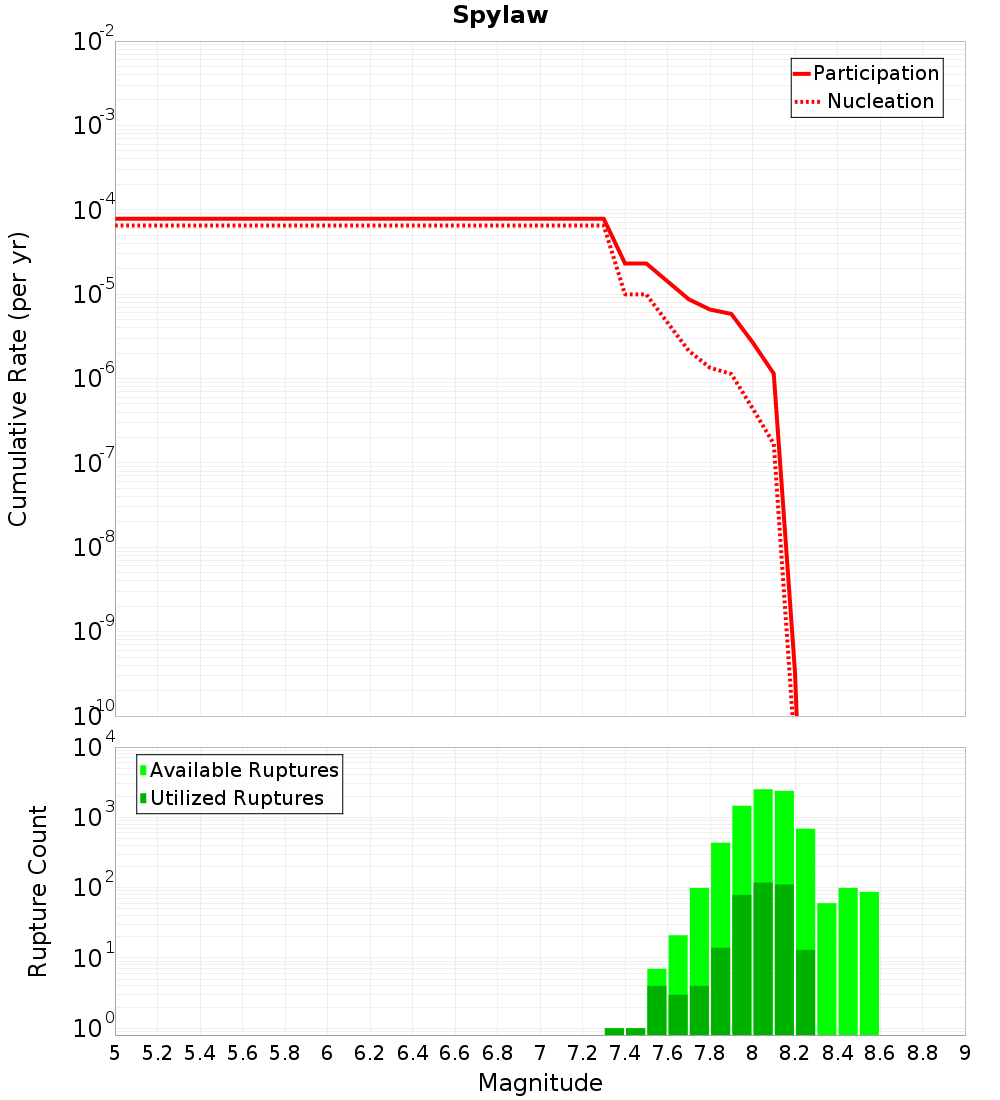

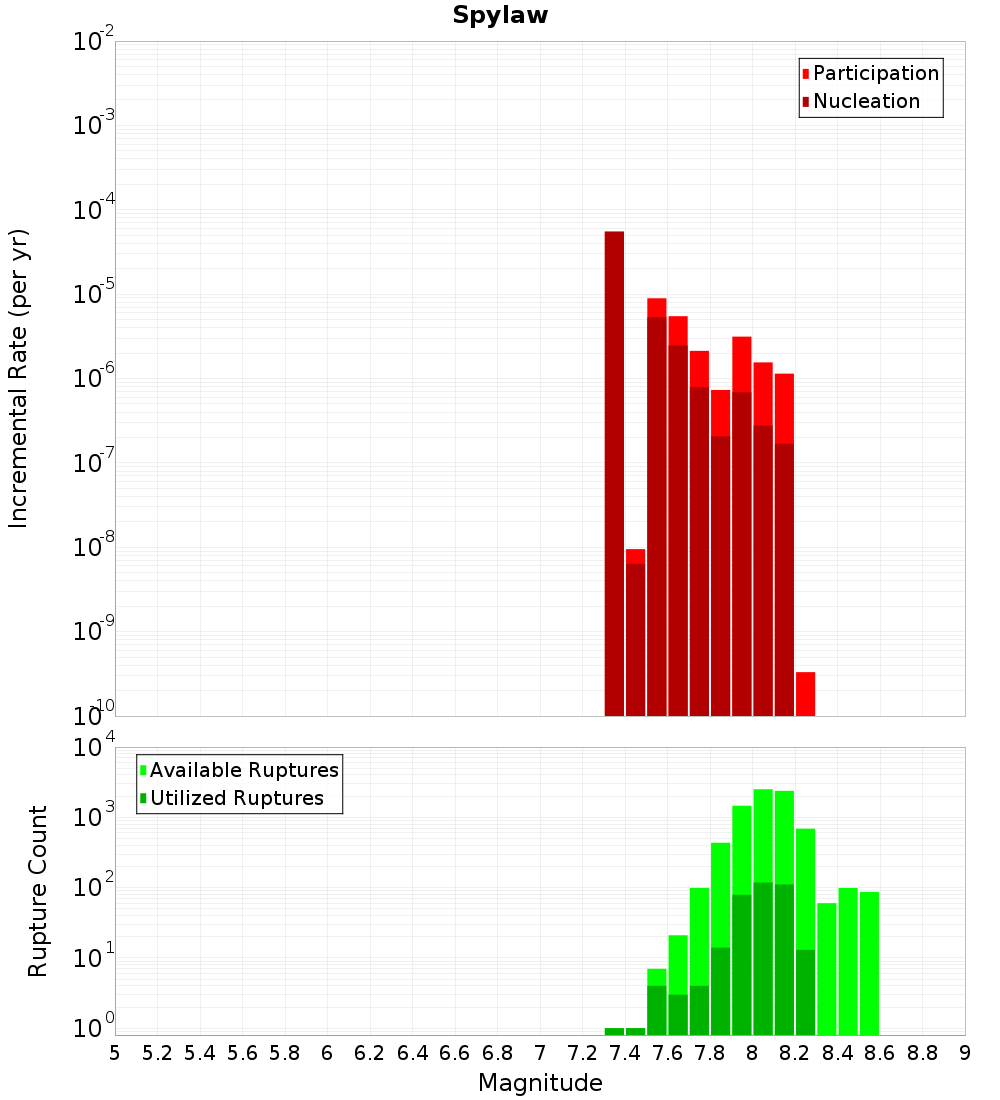

Magnitude-Frequency Distribution

Incremental	Cumulative

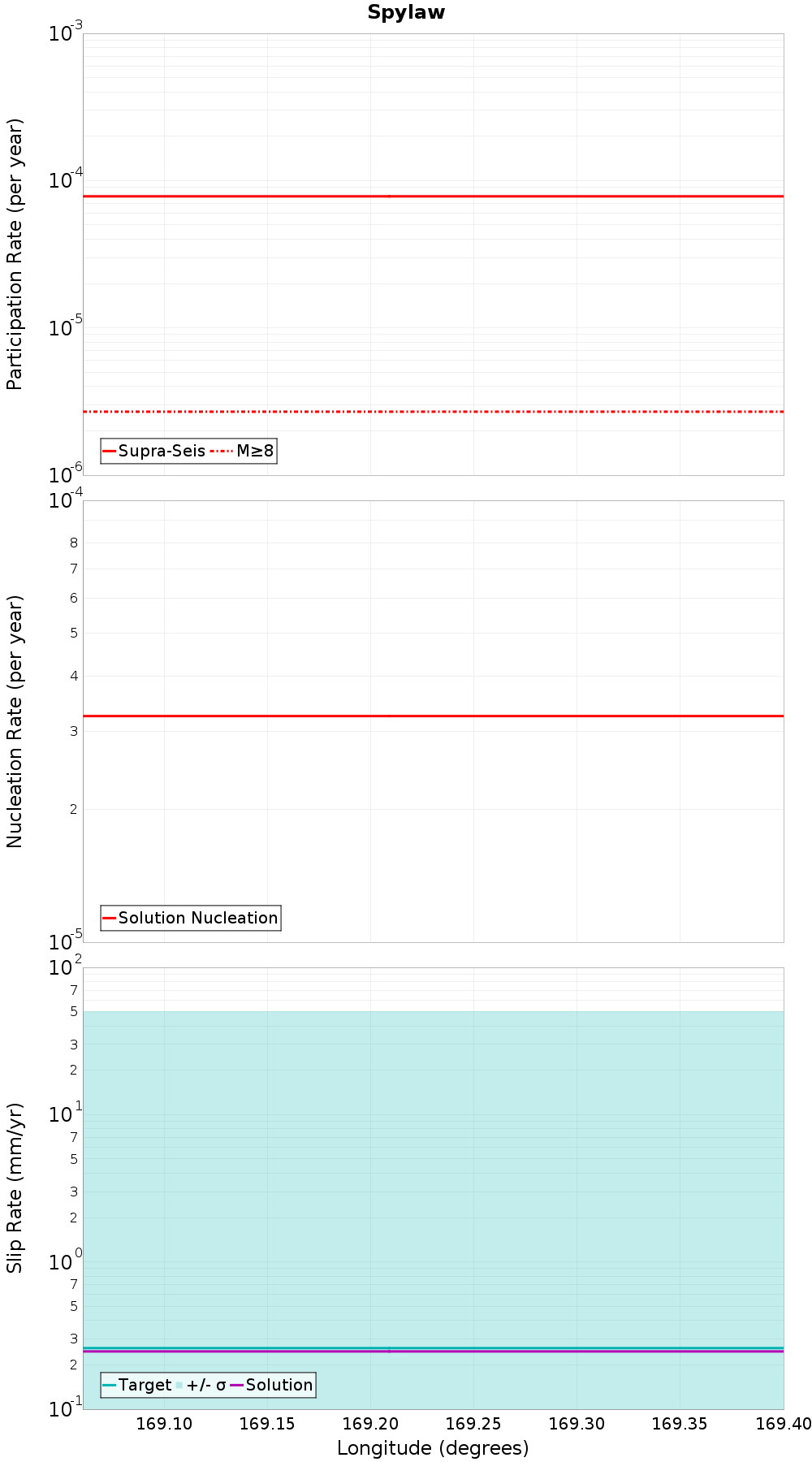

Along-Strike Values

Moment-Rates and b-Values

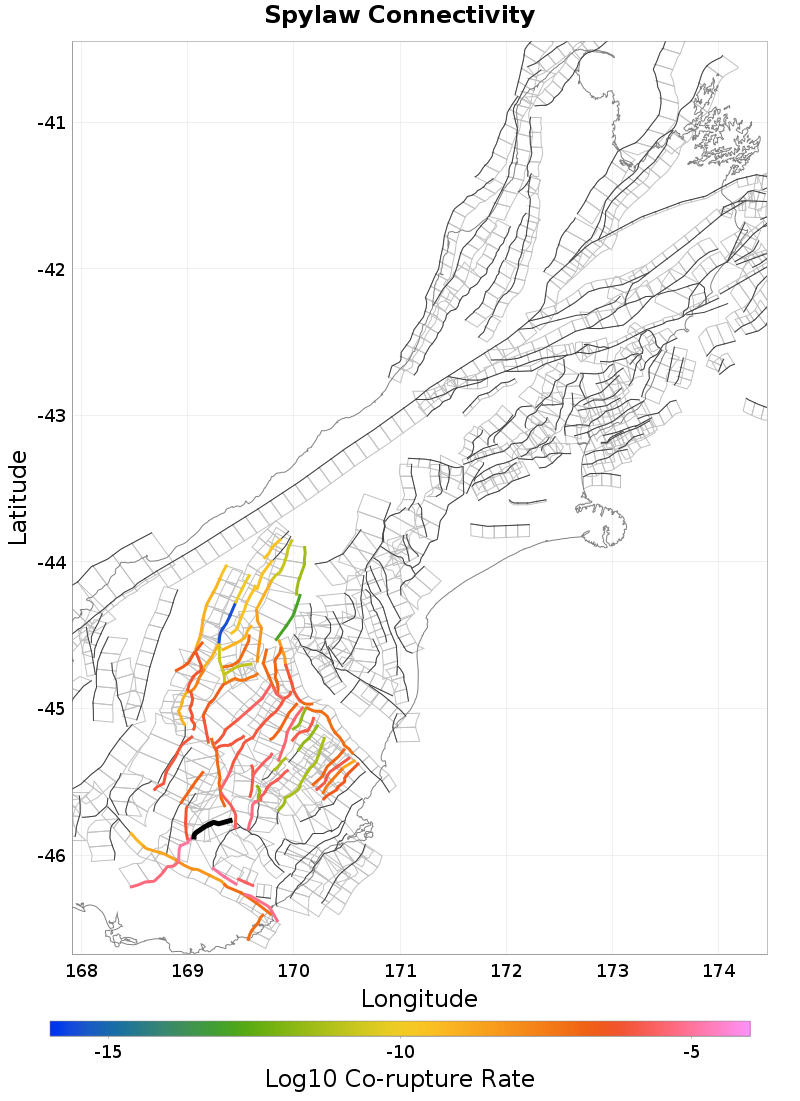

Connectivity

Nearby Sections

Fault Section
Teviot, 0.07 km away
Beacon Hill, 0.19 km away
Waikaka, 1.11 km away
Tuapeka, 2.17 km away
Wendon Valley, 3.67 km away
Blue Mountain, 3.89 km away
Backbone, 4.47 km away
Clifton, 8.67 km away
Hillfoot, 11.54 km away
Old Man, 11.99 km away
Beaumont River, 12.97 km away

Teviot, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	true
Co-rupture Count	4,133
Co-rupture Rate	1.8101617E-6

Beacon Hill, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,354
Co-rupture Rate	9.648094E-6

Waikaka, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,362
Co-rupture Rate	1.0817967E-5

Tuapeka, 2.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Wendon Valley, 3.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	126
Co-rupture Rate	6.5705746E-7

Blue Mountain, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Backbone, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	true
Co-rupture Count	3,699
Co-rupture Rate	4.646564E-6

Clifton, 8.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	484
Co-rupture Rate	2.2586362E-6

Hillfoot, 11.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	2,394
Co-rupture Rate	8.786671E-8

Old Man, 11.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	1,329
Co-rupture Rate	1.90015E-7

Beaumont River, 12.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyNTIuMFRab1VX
Connected?	true
Directly Connected?	false
Co-rupture Count	529
Co-rupture Rate	1.7452439E-12
