Hedgehope Details
| Property | Value |
|---|---|
| Rupture Count | 9,708 |
| Ruptures Above Sect Min Mag | 9,707 |
| Ruptures w/ Nonzero Rates | 205 |
| Magnitude Range | [7.15, 8.59] |
| Length Range | [27, 919] km |
| Total Rate | 1.094849E-5 /yr |
| Multi-Fault Rate | 1.0537352E-5 /yr (96.24%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 97 |
Table Of Contents

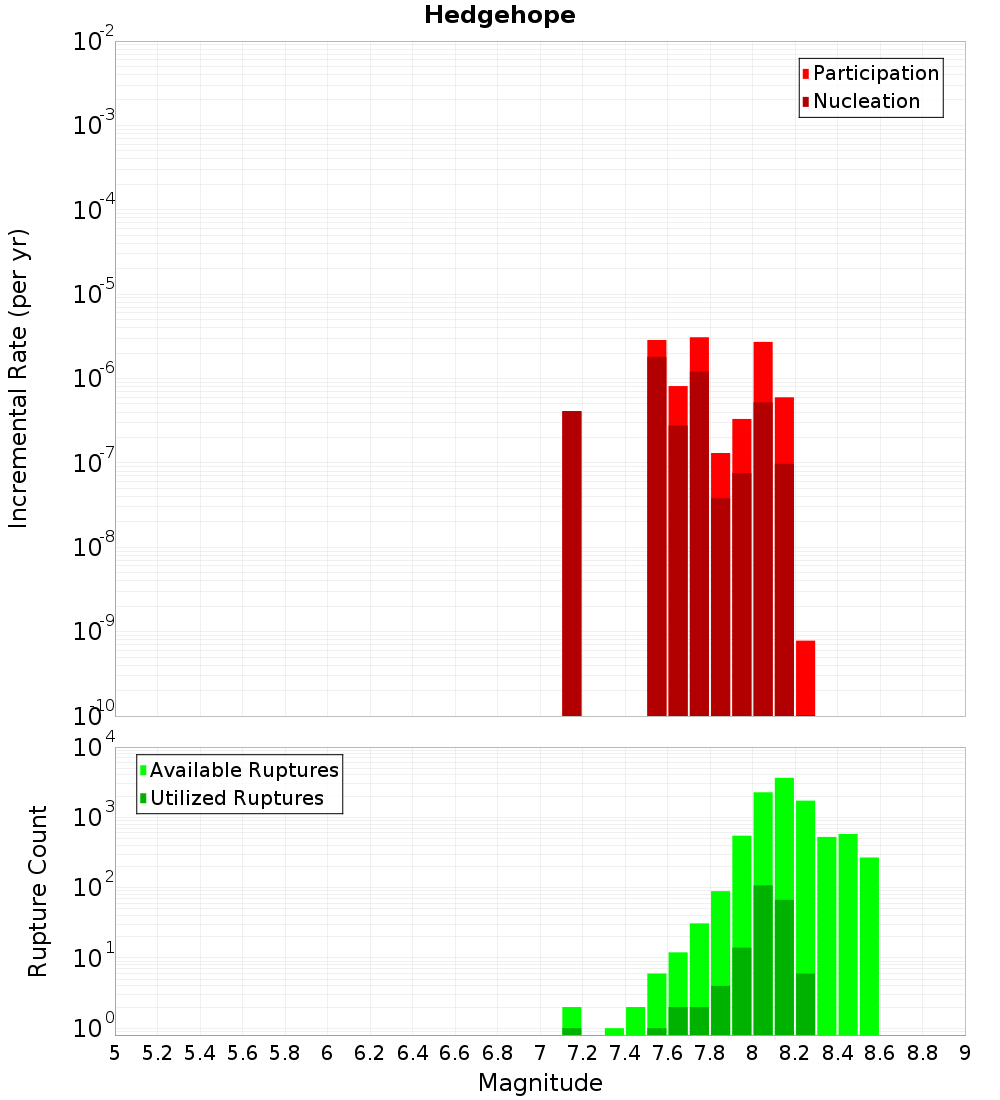

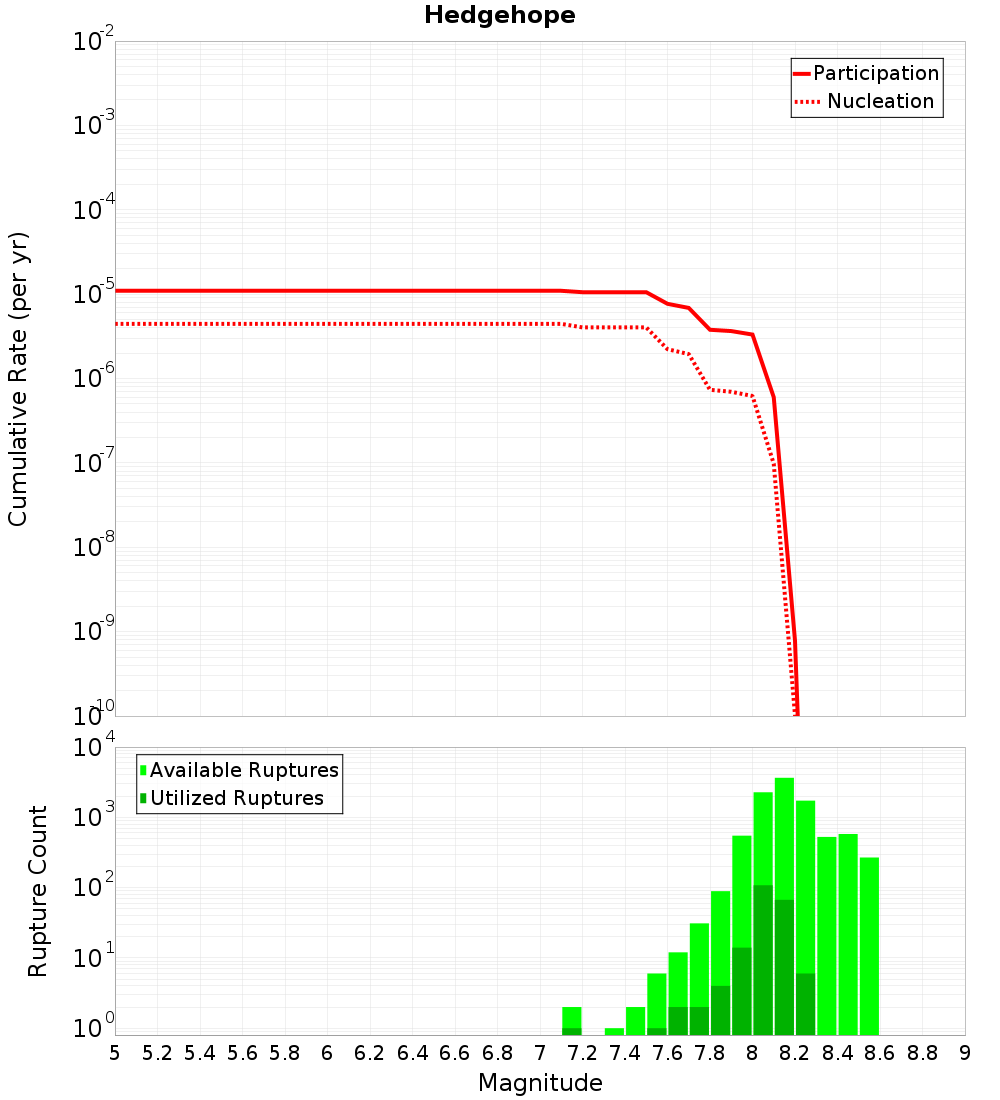

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

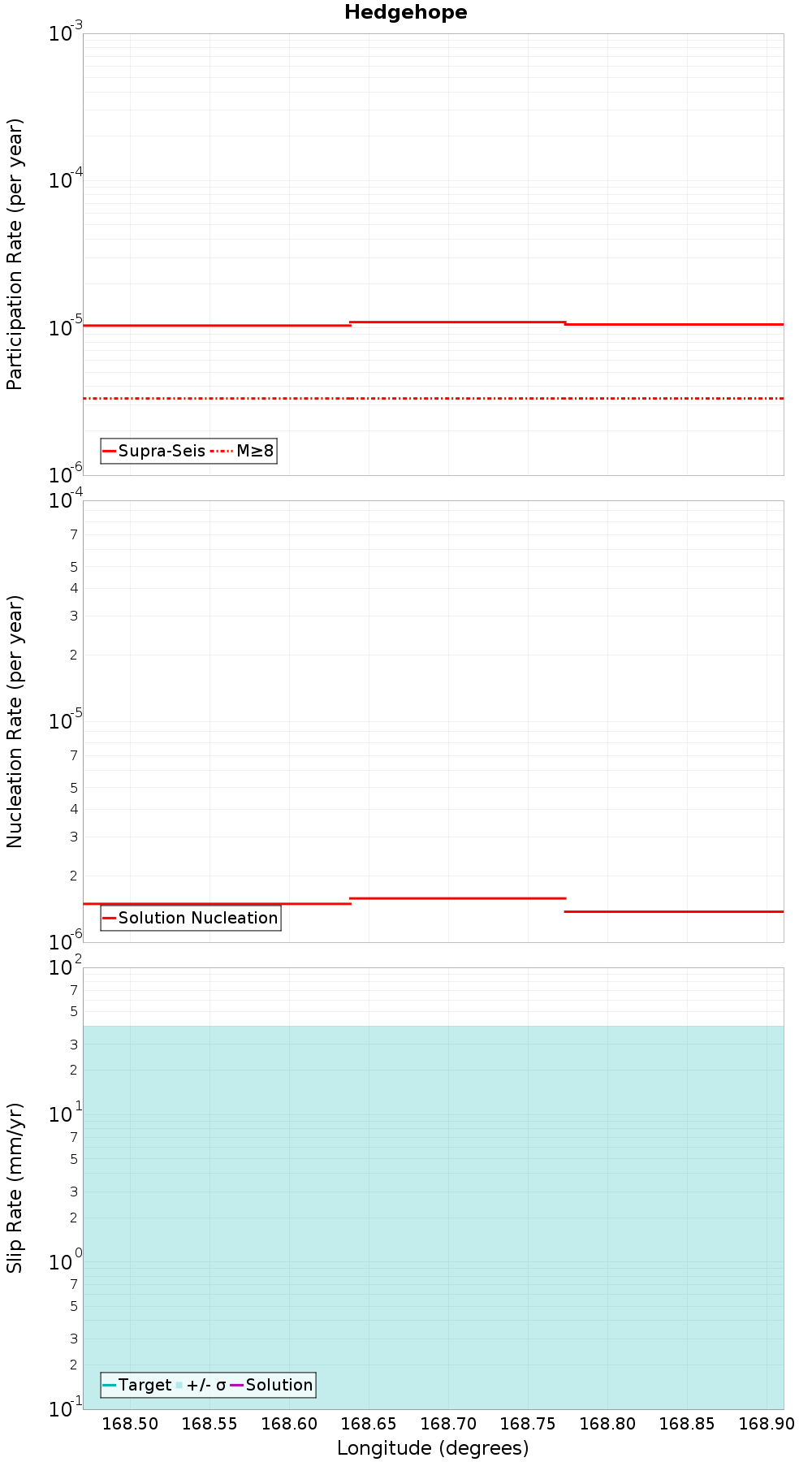

Along-Strike Values

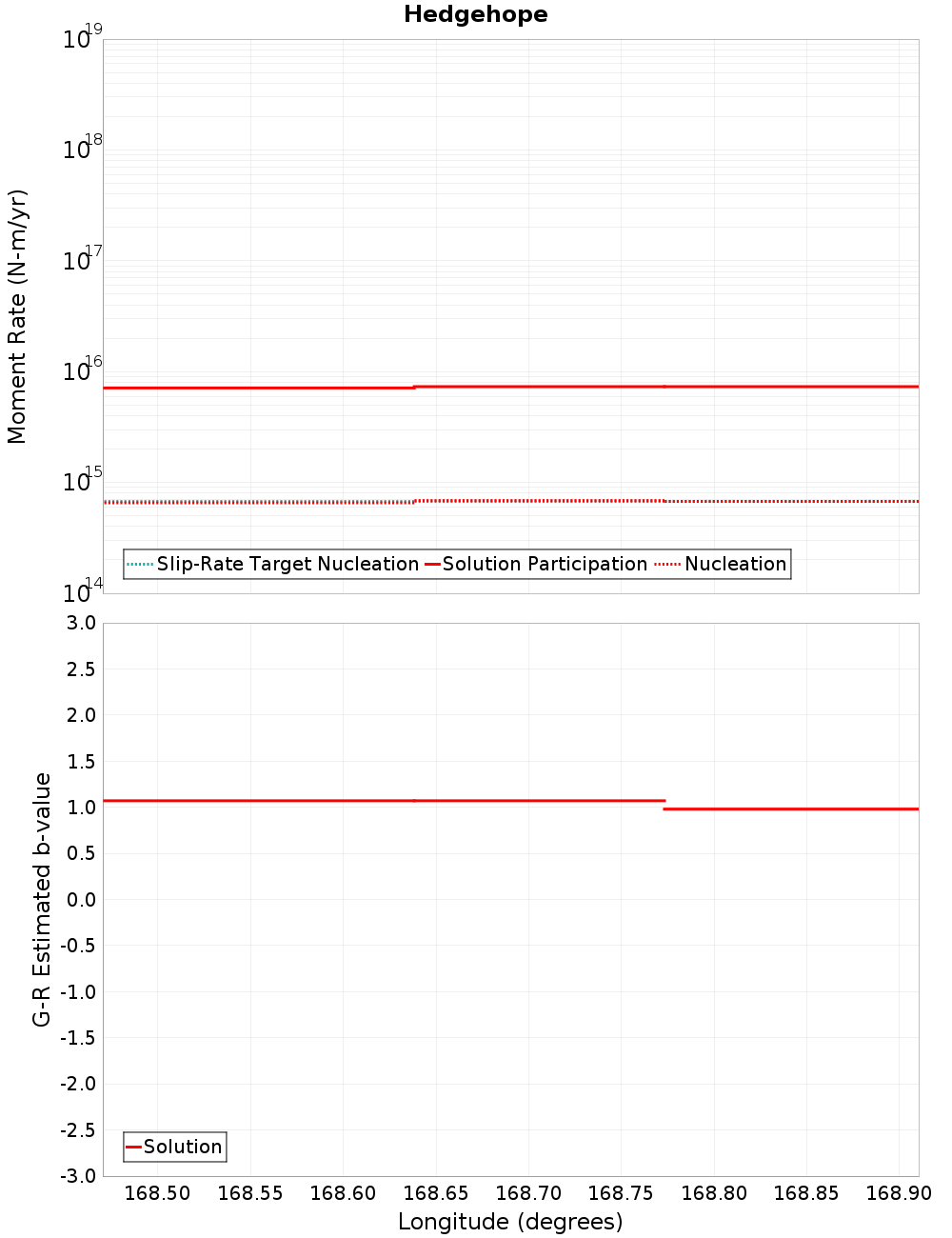

Moment-Rates and b-Values

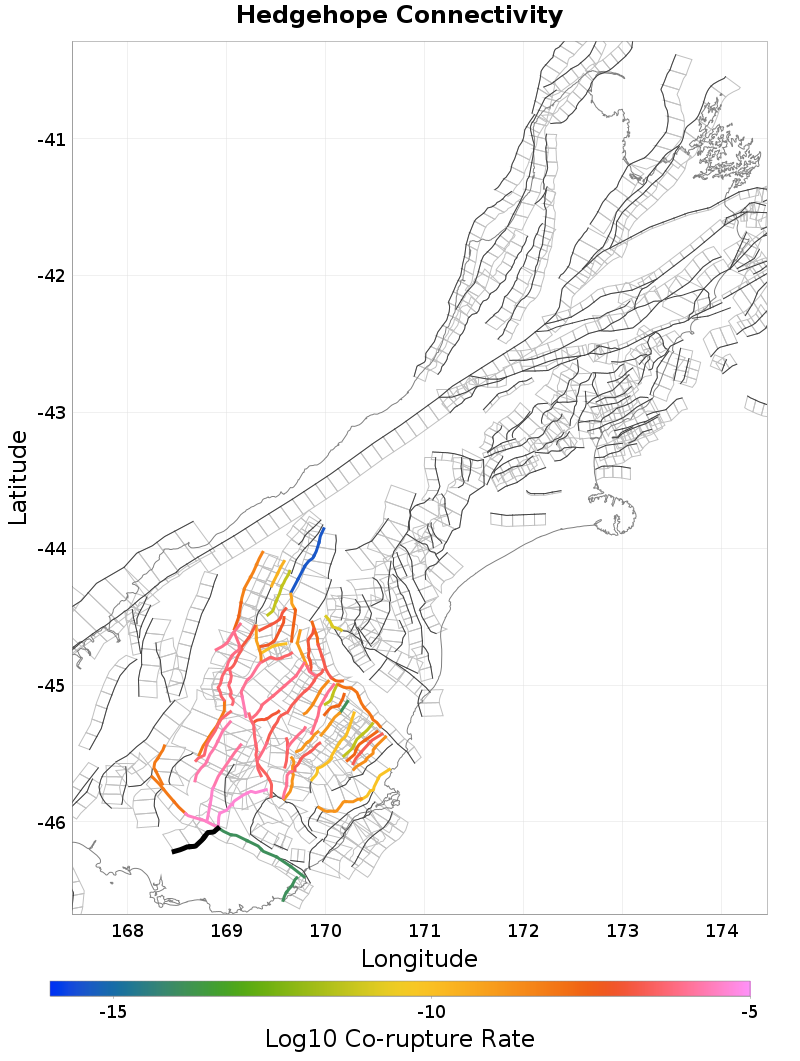

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hokonui, 0.08 km away |
| Hillfoot, 0.31 km away |
| Waikaka, 0.32 km away |
| Waikaia, 0.33 km away |
Hokonui, 0.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyODAuMFRlZk5V | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 118 |
| Co-rupture Rate | 2.873118E-6 |
Hillfoot, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyODAuMFRlZk5V | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,450 |
| Co-rupture Rate | 1.1198026E-14 |
Waikaka, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyODAuMFRlZk5V | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,082 |
| Co-rupture Rate | 4.220913E-6 |
Waikaia, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyODAuMFRlZk5V | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6,934 |
| Co-rupture Rate | 3.4547875E-6 |
