Hokonui Details

Property	Value
Rupture Count	5,096
Ruptures Above Sect Min Mag	5,094
Ruptures w/ Nonzero Rates	299
Magnitude Range	[7.09, 8.62]
Length Range	[27, 963] km
Total Rate	1.1175679E-5 /yr
Multi-Fault Rate	1.064986E-5 /yr (95.29%)
Directly-Connected Faults	6
All Co-Rupturing Faults	71

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

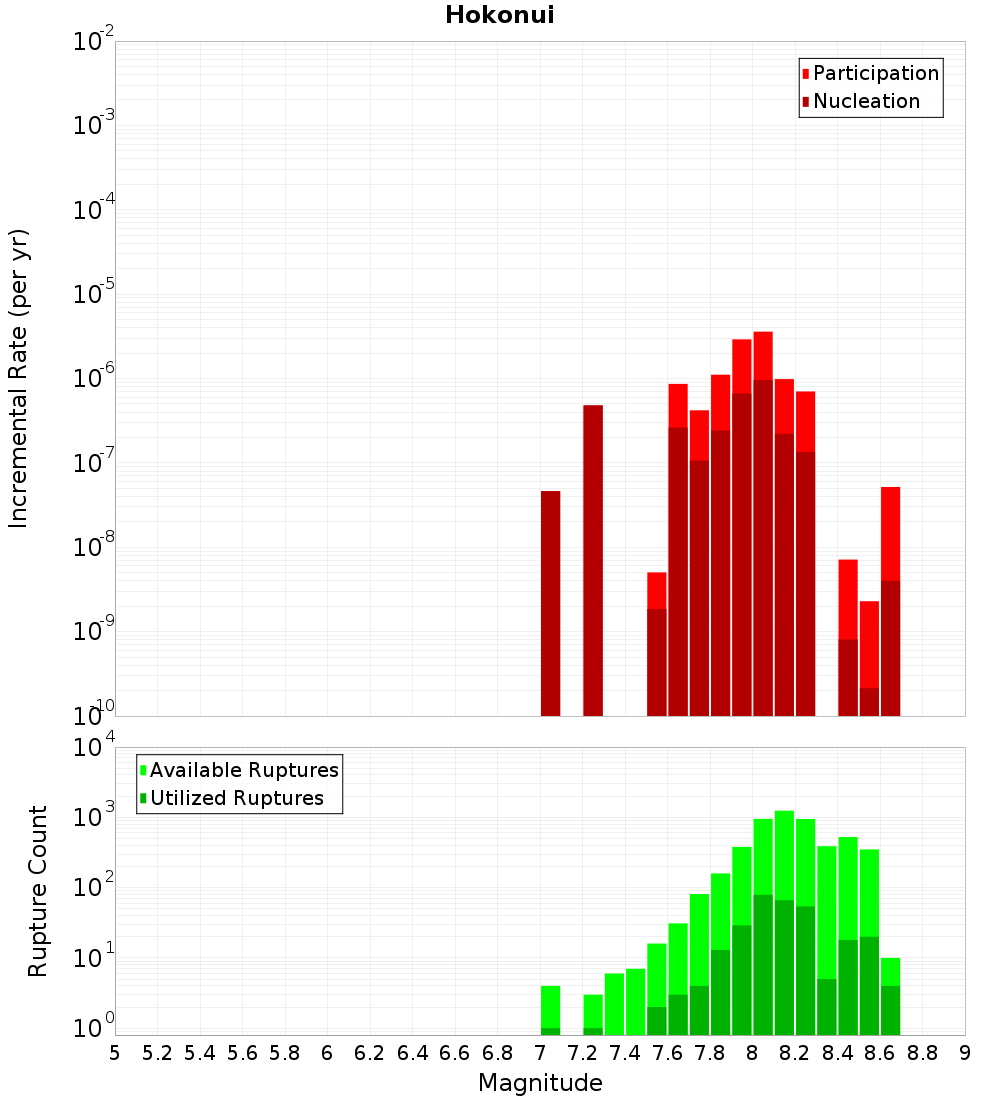

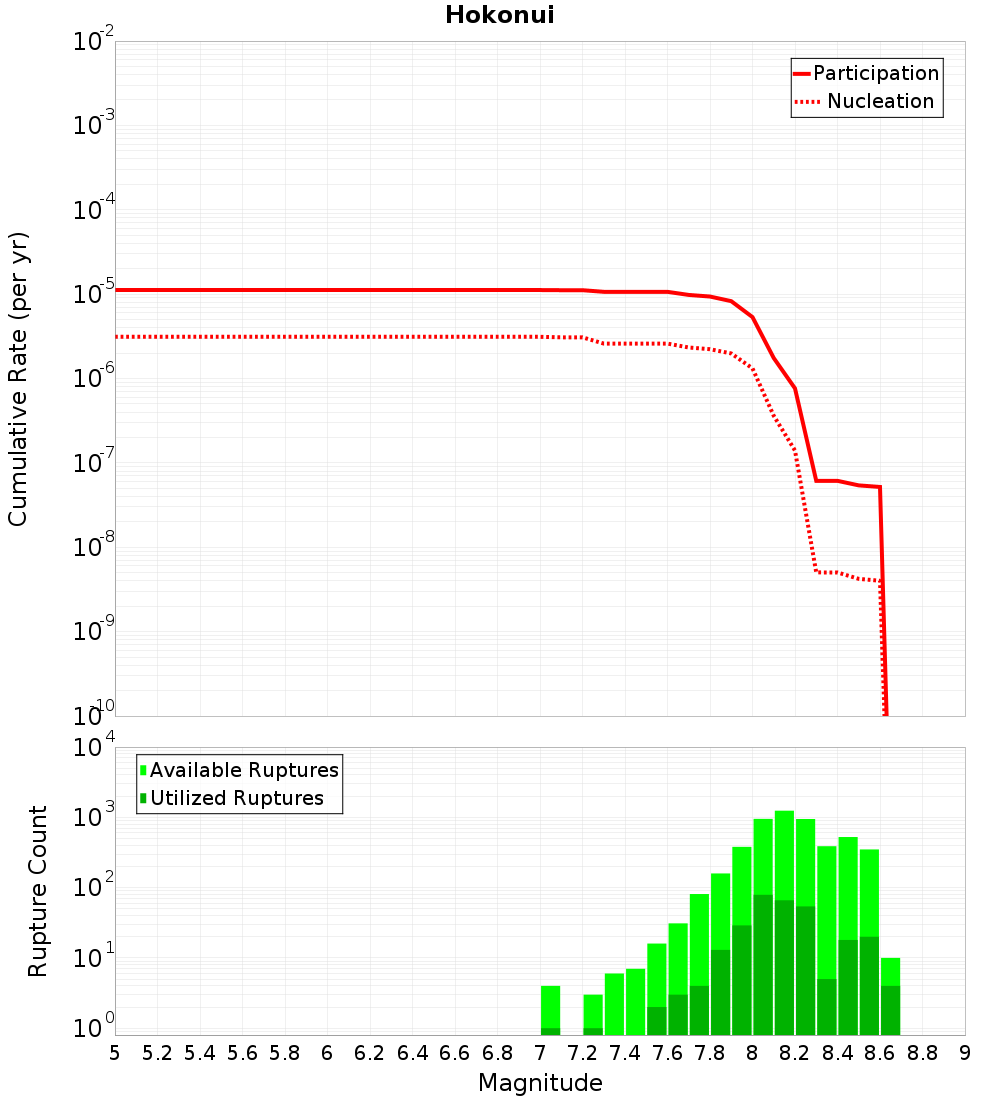

Magnitude-Frequency Distribution

Incremental	Cumulative

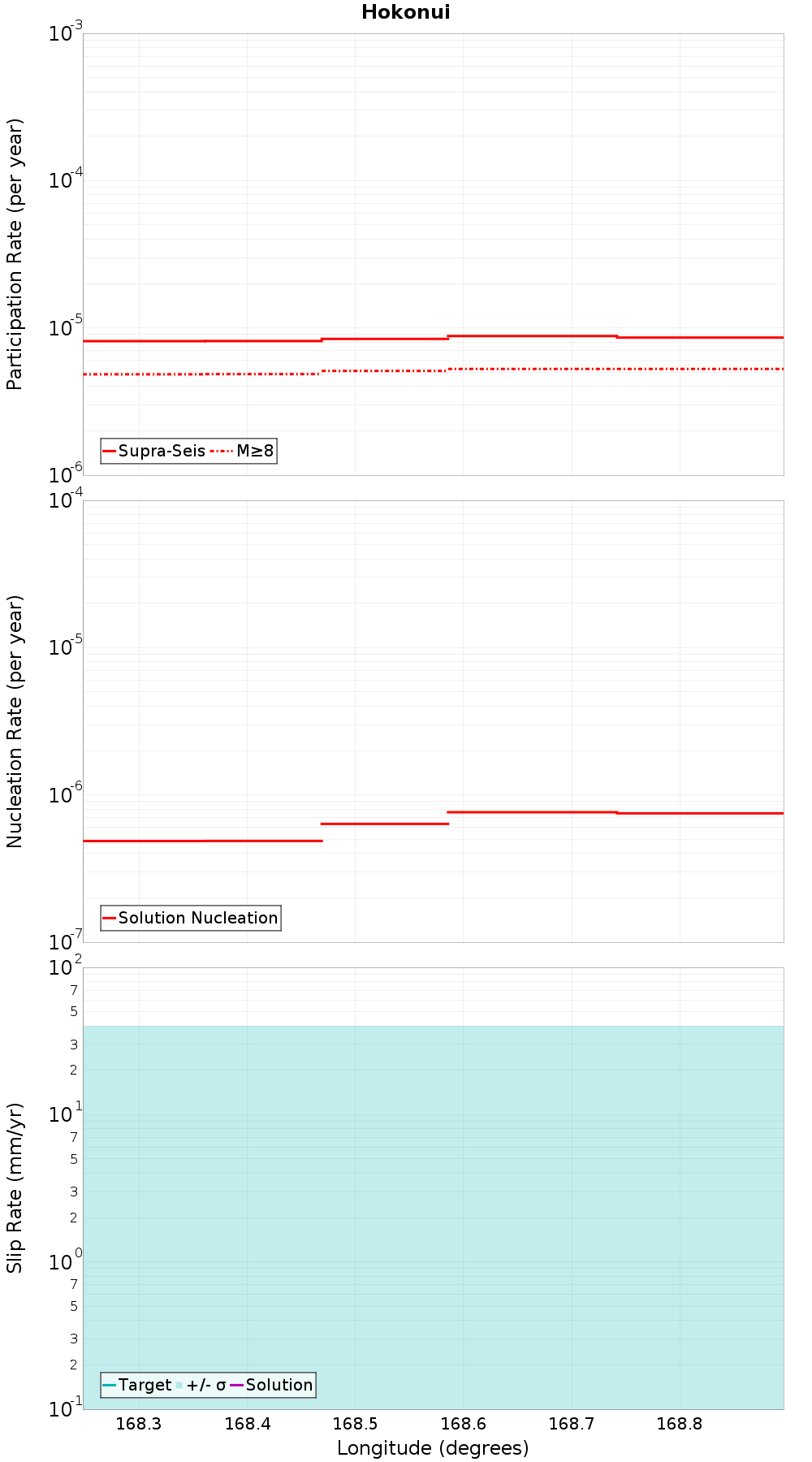

Along-Strike Values

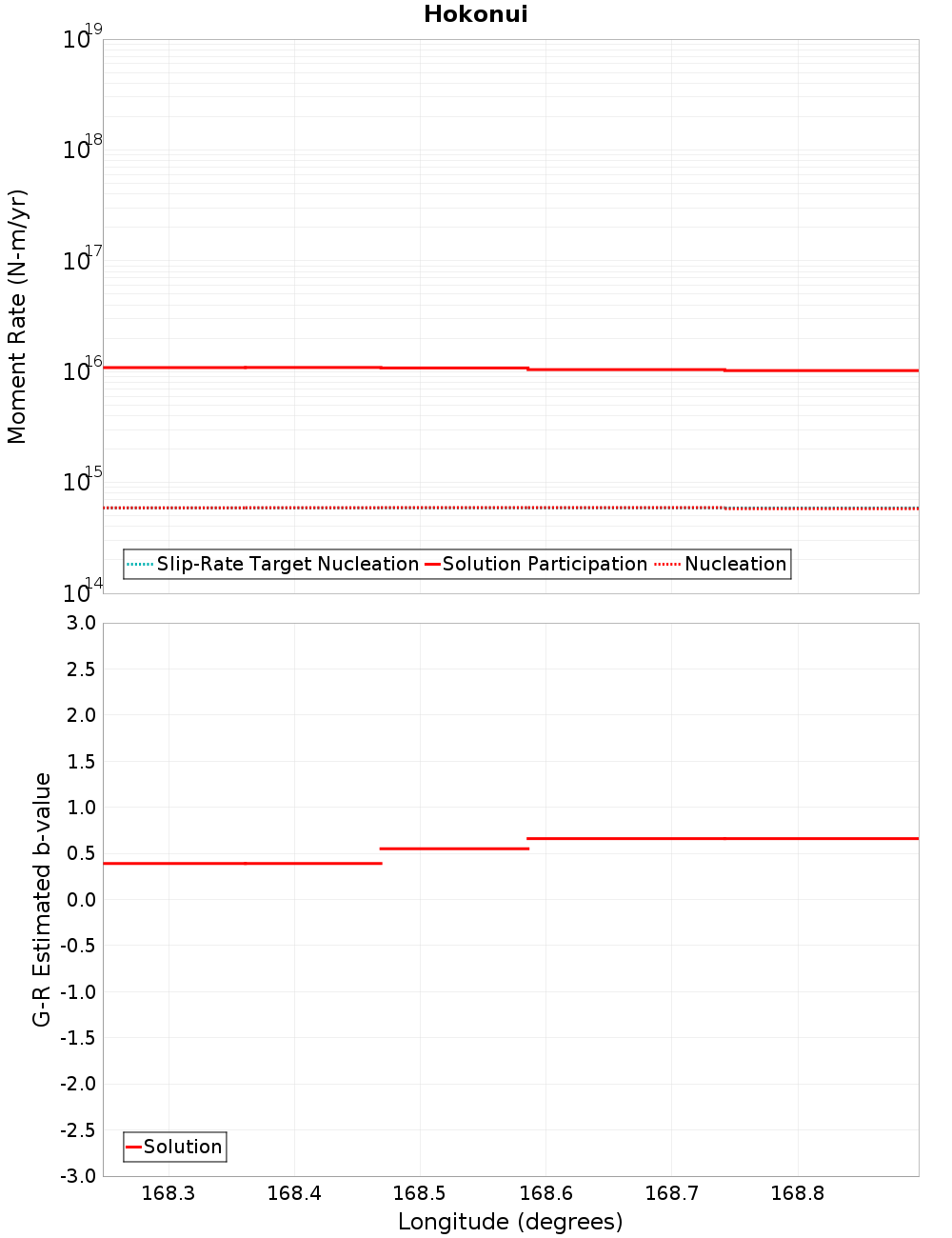

Moment-Rates and b-Values

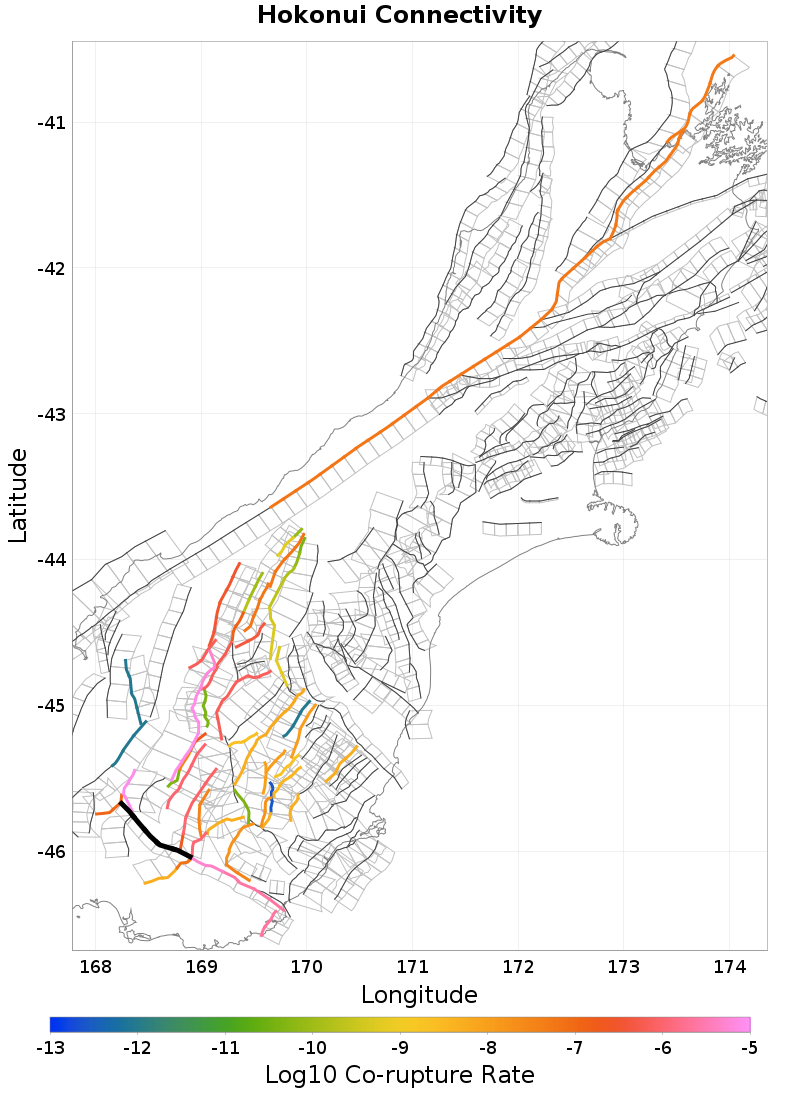

Connectivity

Nearby Sections

Fault Section
Hillfoot, 0 km away
Hedgehope, 0.08 km away
White Hill, 0.25 km away
Waikaia, 0.29 km away
Mossburn, 1.17 km away
Waikaka, 1.27 km away
Acton, 1.83 km away
Mid Dome, 6.47 km away
Moonlight South, 12.83 km away

Hillfoot, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	3,709
Co-rupture Rate	5.3265594E-6

Hedgehope, 0.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	118
Co-rupture Rate	7.1212504E-8

White Hill, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaia, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	680
Co-rupture Rate	1.0505E-6

Mossburn, 1.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	1.10597604E-7

Waikaka, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	false
Co-rupture Count	537
Co-rupture Rate	1.0639043E-6

Acton, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	2,902
Co-rupture Rate	8.014175E-6

Mid Dome, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	true
Co-rupture Count	314
Co-rupture Rate	0.0

Moonlight South, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTQuNTR5Mlg1
Connected?	true
Directly Connected?	false
Co-rupture Count	164
Co-rupture Rate	9.012462E-13
