Titri Central Details

PropertyValue
Rupture Count12
Ruptures Above Sect Min Mag12
Ruptures w/ Nonzero Rates9
Magnitude Range[7.23, 7.78]
Length Range[30, 120] km
Total Rate5.097351E-5 /yr
Multi-Fault Rate3.4244396E-5 /yr (67.18%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

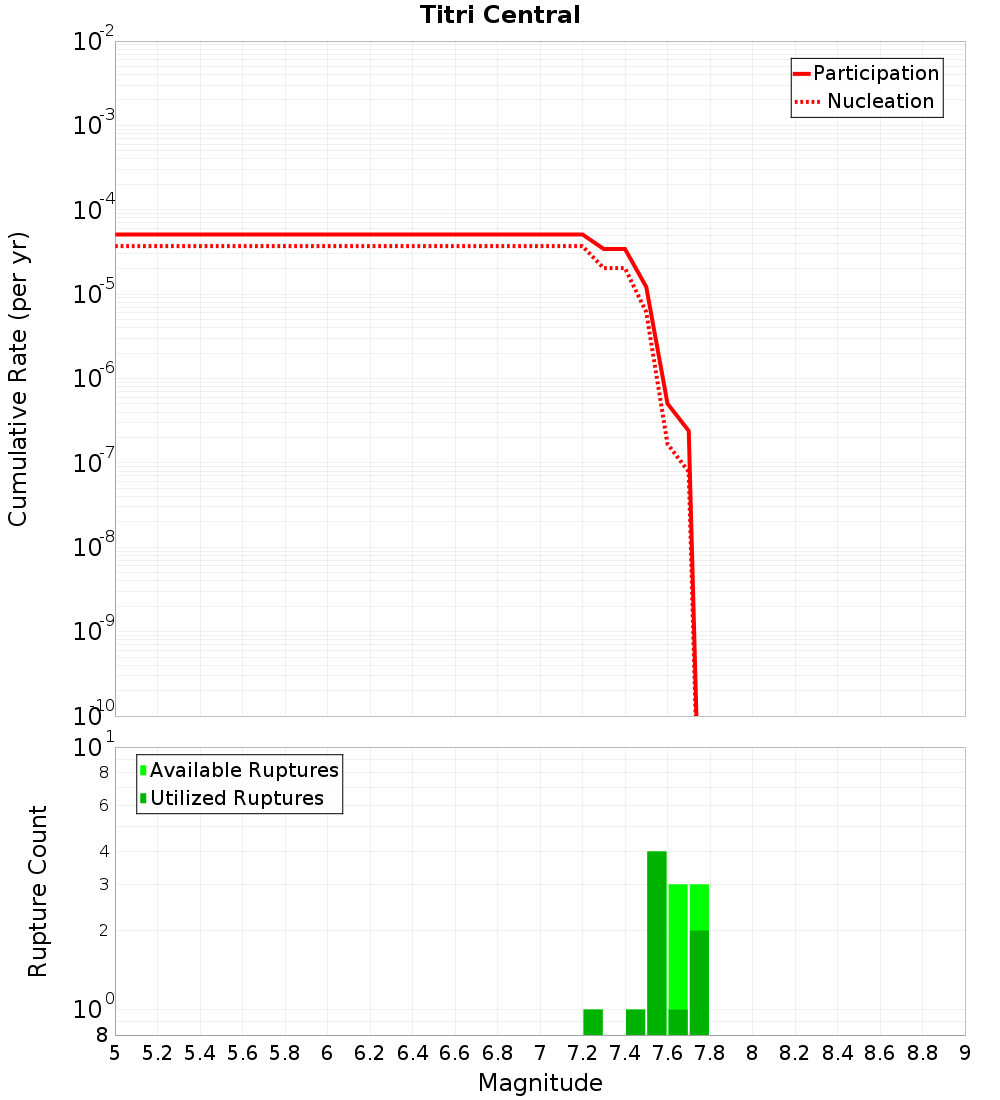

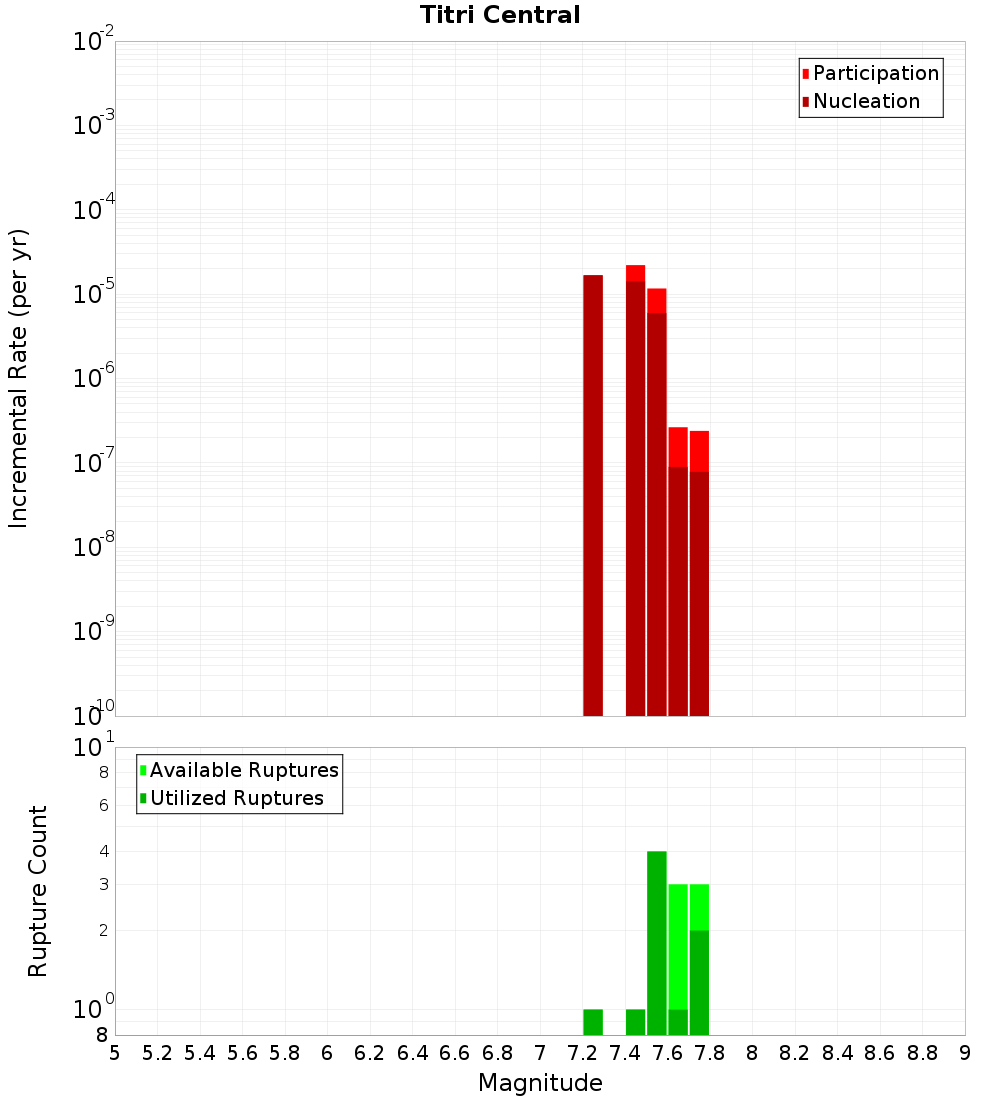

Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

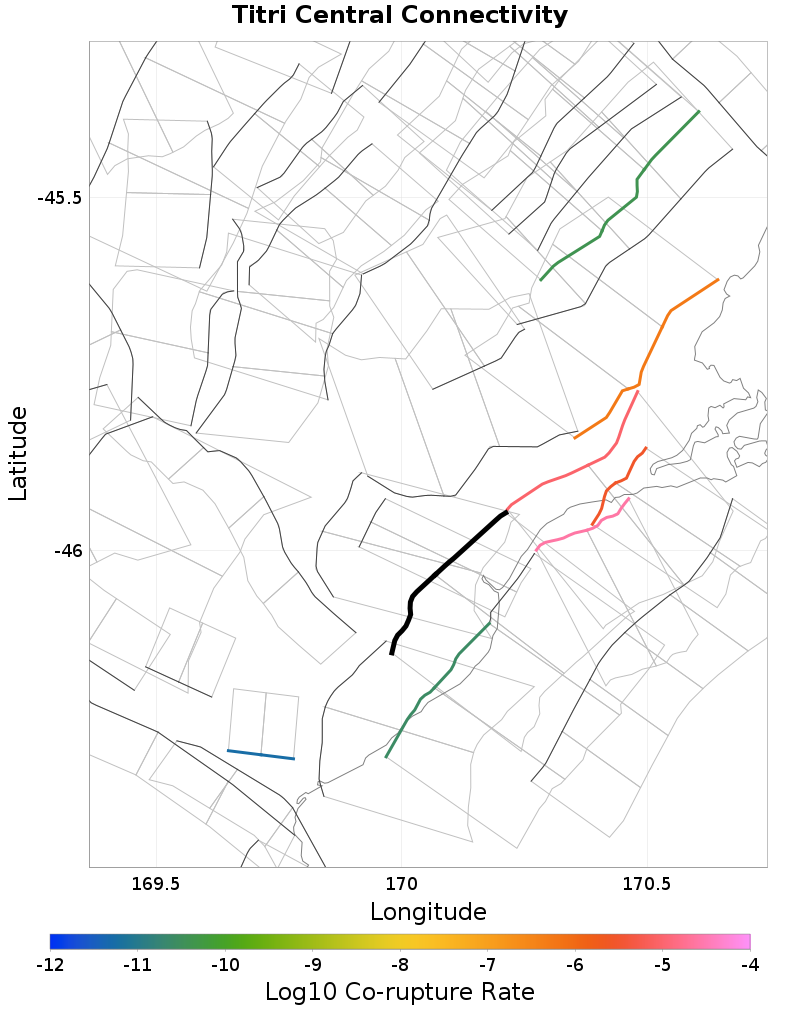

MapMap

Nearby Sections

(top)

Fault Section
Titri North, 0.03 km away
Titri South, 0.34 km away
Green Island, 5.11 km away
Akatore, 5.5 km away
Tuapeka, 6.22 km away
Maungatua - North Taieri, 7.17 km away
Waitahuna 1, 7.94 km away
Waitahuna 2, 8.3 km away
Kaikorai, 10.87 km away

Titri North, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate9.404842E-6

Titri South, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Green Island, 5.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate2.483953E-5

Akatore, 5.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate2.5175983E-11

Tuapeka, 6.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 7.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 1, 7.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 8.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaikorai, 10.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTYuMDZ6TXlO
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.7652823E-6
