Campbell Hills Details

Property	Value
Rupture Count	112
Ruptures Above Sect Min Mag	110
Ruptures w/ Nonzero Rates	21
Magnitude Range	[6.92, 7.94]
Length Range	[20, 224] km
Total Rate	1.6724272E-5 /yr
Multi-Fault Rate	1.1712114E-5 /yr (70.03%)
Directly-Connected Faults	3
All Co-Rupturing Faults	12

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

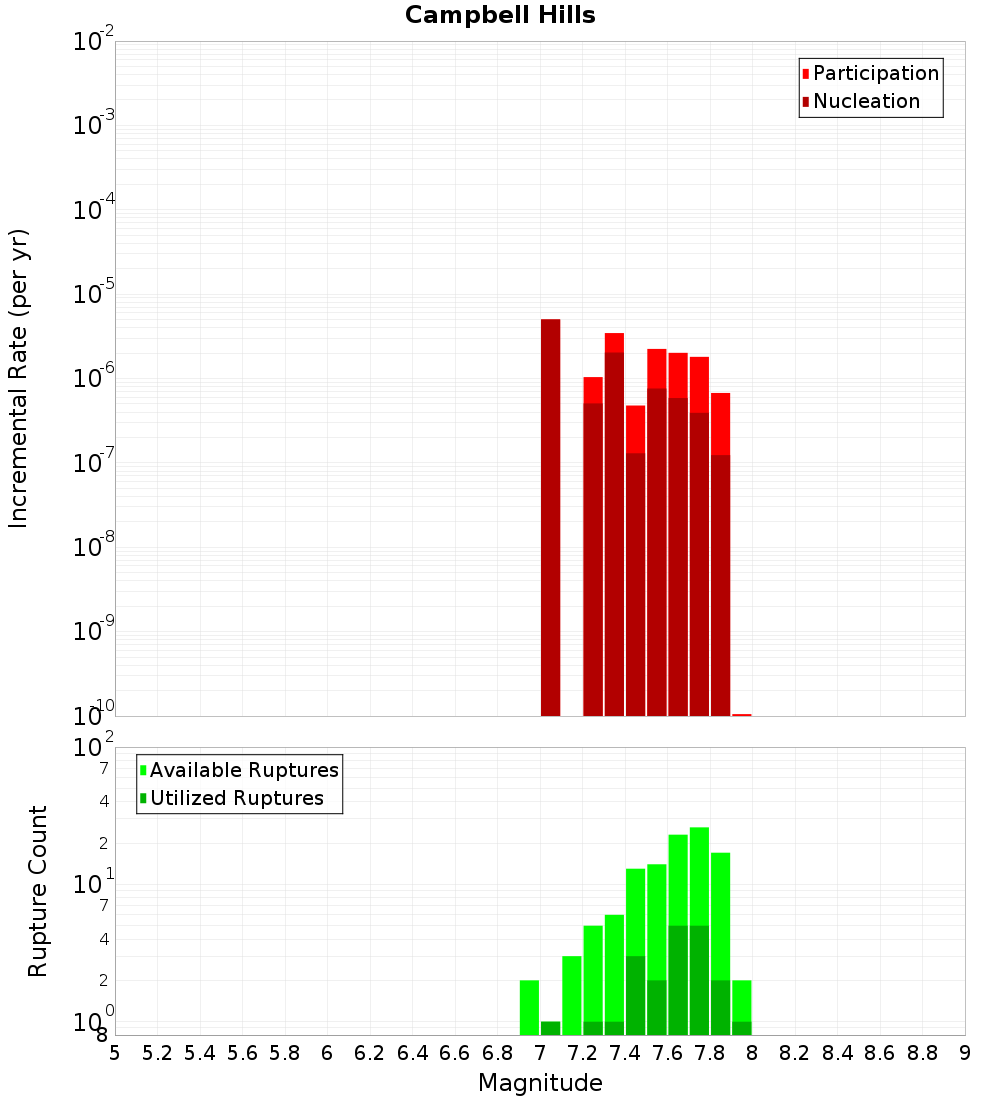

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

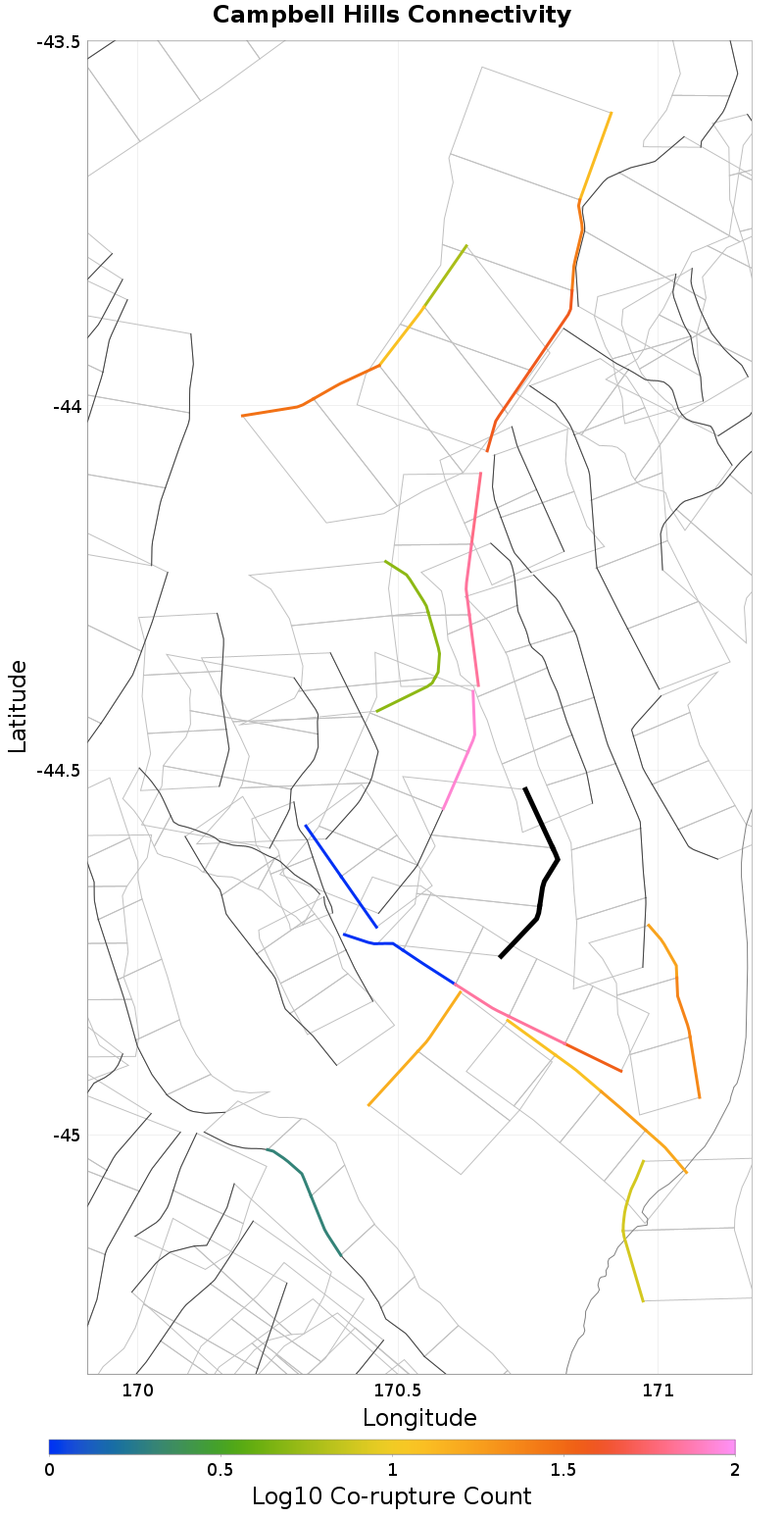

Connectivity

Nearby Sections

Fault Section
Dryburgh, 0.27 km away
Stonewall, 0.27 km away
Kirkliston, 6.26 km away
Middle Range, 6.3 km away
Black Hill, 7.16 km away
Chamberlain, 7.26 km away
Waitaki, 9.85 km away
Hunters, 11.24 km away
Fern Gully, 11.61 km away
Waitangi, 12.79 km away
Awahokomo, 13.6 km away
Dalgety, 13.77 km away
Waimate, 14.94 km away

Dryburgh, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Stonewall, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	true
Co-rupture Count	70
Co-rupture Rate	1.0156804E-6

Kirkliston, 6.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	6.654282E-6

Middle Range, 6.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Black Hill, 7.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	true
Co-rupture Count	15
Co-rupture Rate	9.998837E-6

Chamberlain, 7.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitaki, 9.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	false
Co-rupture Count	18
Co-rupture Rate	5.630538E-7

Hunters, 11.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 11.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitangi, 12.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awahokomo, 13.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dalgety, 13.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	false
Co-rupture Count	68
Co-rupture Rate	4.5045535E-6

Waimate, 14.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYyOTcuMHA4d0Rt
Connected?	true
Directly Connected?	false
Co-rupture Count	24
Co-rupture Rate	0.0
