Moonlight South Details

Property	Value
Rupture Count	7,737
Ruptures Above Sect Min Mag	7,735
Ruptures w/ Nonzero Rates	283
Magnitude Range	[7.15, 8.56]
Length Range	[28, 946] km
Total Rate	1.7431648E-5 /yr
Multi-Fault Rate	1.7431648E-5 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	90

Table Of Contents

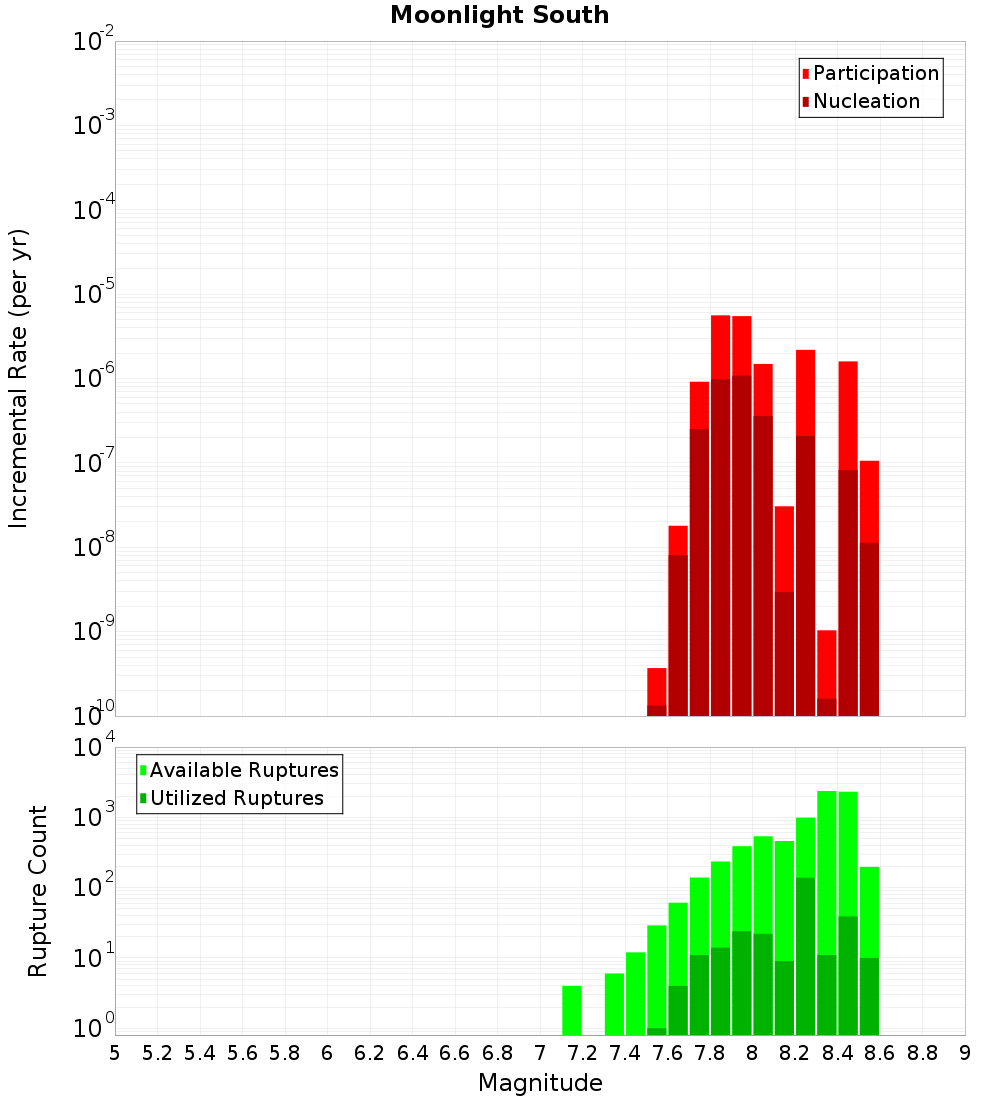

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

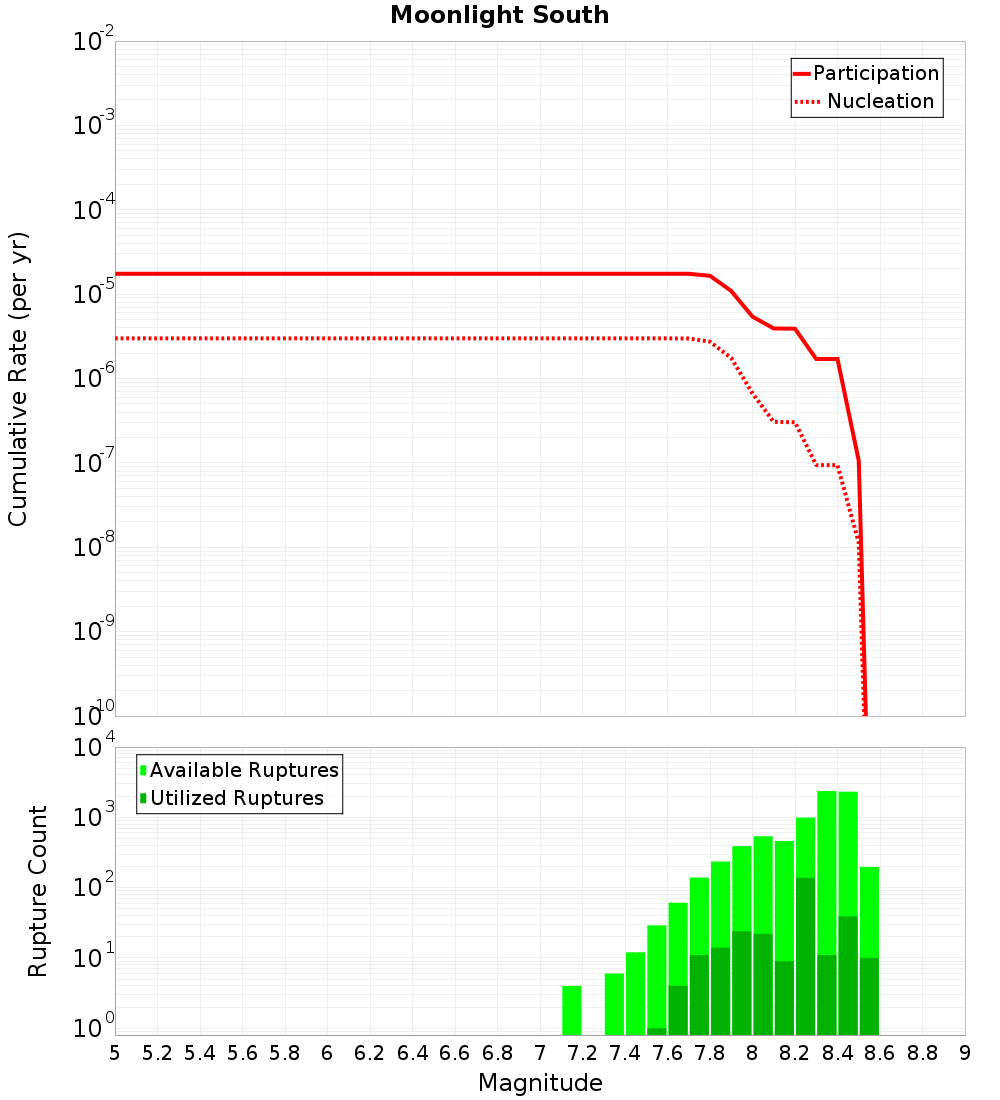

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mossburn, 0.15 km away
McKerchar, 0.52 km away
Tin Hut, 0.9 km away
Nevis, 1.43 km away
West Wakatipu, 1.86 km away
Moonlight North, 4.72 km away
Acton, 11.93 km away
Hokonui, 12.83 km away
Hauroko: North, 14.39 km away
White Hill, 14.52 km away

Mossburn, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	484
Co-rupture Rate	1.4198088E-6

McKerchar, 0.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,422
Co-rupture Rate	8.11109E-6

Tin Hut, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,175
Co-rupture Rate	9.538564E-12

Nevis, 1.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	977
Co-rupture Rate	6.073049E-6

West Wakatipu, 1.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,441
Co-rupture Rate	1.7213644E-6

Moonlight North, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	6,577
Co-rupture Rate	4.9666296E-6

Acton, 11.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	194
Co-rupture Rate	2.8483922E-7

Hokonui, 12.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	false
Co-rupture Count	164
Co-rupture Rate	2.8322278E-10

Hauroko: North, 14.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	true
Co-rupture Count	1,056
Co-rupture Rate	4.675473E-6

White Hill, 14.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?	true
Directly Connected?	false
Co-rupture Count	17
Co-rupture Rate	0.0
