North Canterbury Shelf 4 Details

PropertyValue
Rupture Count188
Ruptures Above Sect Min Mag177
Ruptures w/ Nonzero Rates37
Magnitude Range[6.61, 8.04]
Length Range[15, 311] km
Total Rate7.317695E-5 /yr
Multi-Fault Rate7.317695E-5 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults21

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

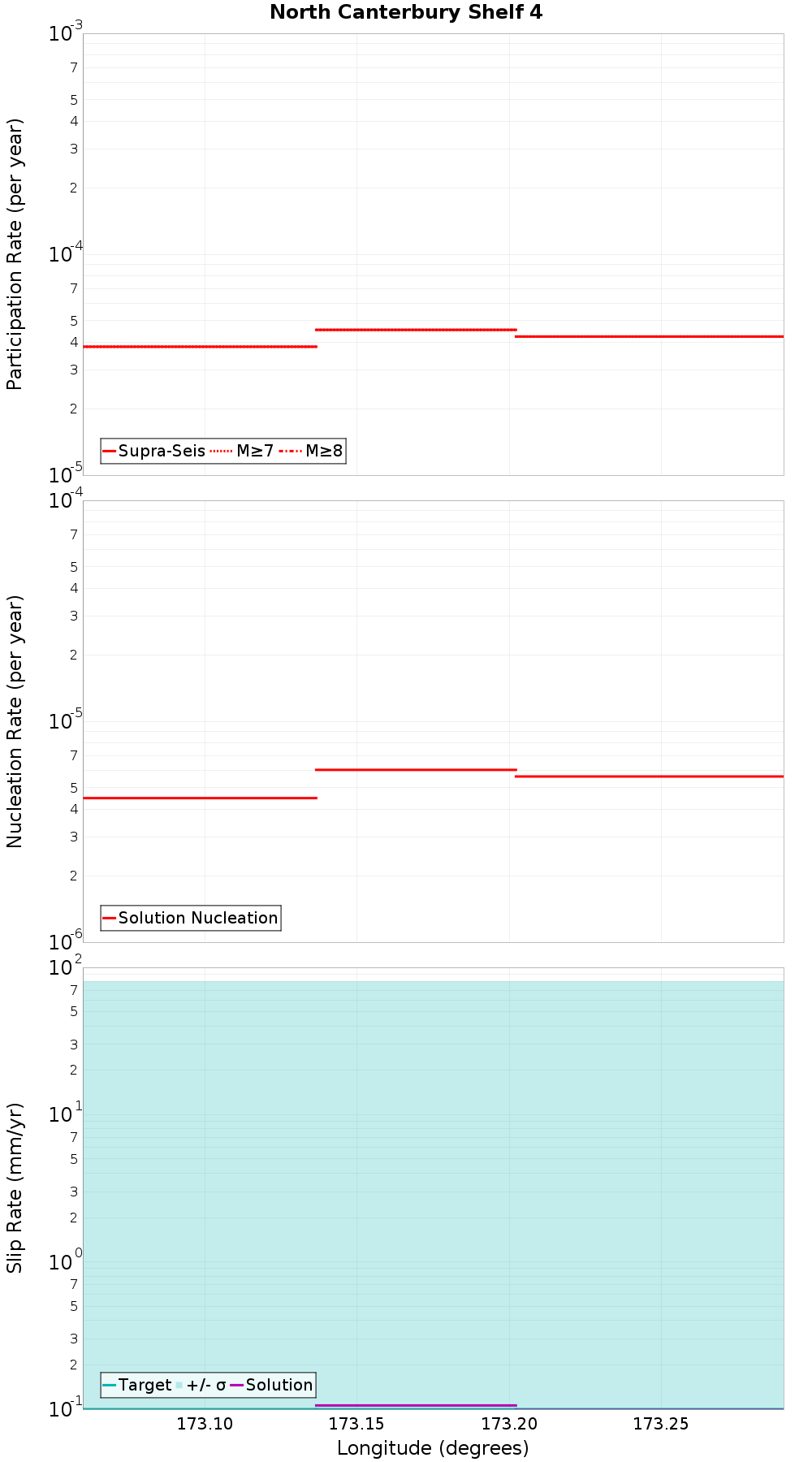

Along-Strike Values

(top)

Along-strike plot

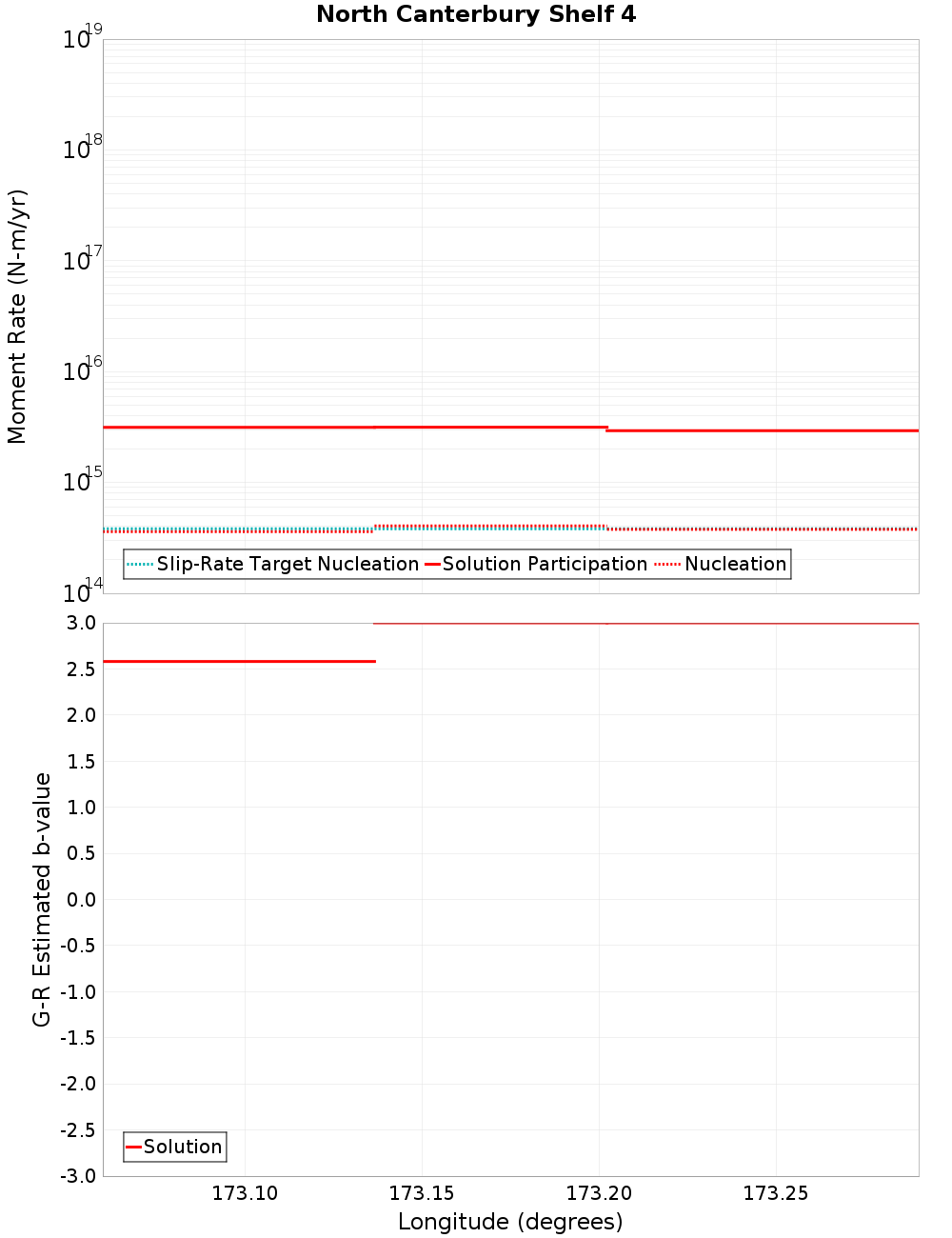

Moment-Rates and b-Values

(top)

Along-strike plot

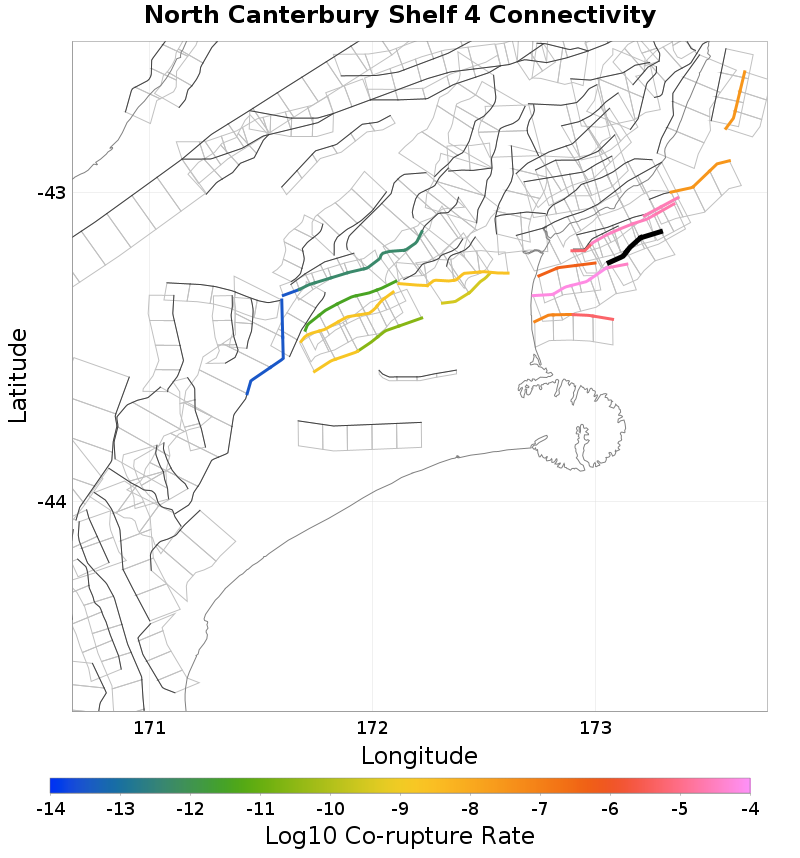

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Pegasus Bay, 1.54 km away
Leithfield - NCVI - NCVII, 4.53 km away
Waikuku, 5.12 km away
North Canterbury Shelf 11, 5.86 km away
Motunau, 6 km away
North Canterbury Shelf 2, 7.11 km away
Point Gibson, 10.06 km away
AmberBlyth, 12.25 km away

Pegasus Bay, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate6.699424E-5

Leithfield - NCVI - NCVII, 4.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate3.3303746E-5

Waikuku, 5.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?true
Directly Connected?true
Co-rupture Count124
Co-rupture Rate5.4344576E-7

North Canterbury Shelf 11, 5.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?true
Directly Connected?true
Co-rupture Count46
Co-rupture Rate2.5104797E-5

Motunau, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

North Canterbury Shelf 2, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Point Gibson, 10.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate2.9204163E-8

AmberBlyth, 12.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDQuMDI4eFNw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
