Blue Mountain Details

Property	Value
Rupture Count	7,960
Ruptures Above Sect Min Mag	7,960
Ruptures w/ Nonzero Rates	304
Magnitude Range	[7.39, 8.32]
Length Range	[39, 439] km
Total Rate	5.9066737E-5 /yr
Multi-Fault Rate	2.4910792E-5 /yr (42.17%)
Directly-Connected Faults	6
All Co-Rupturing Faults	67

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

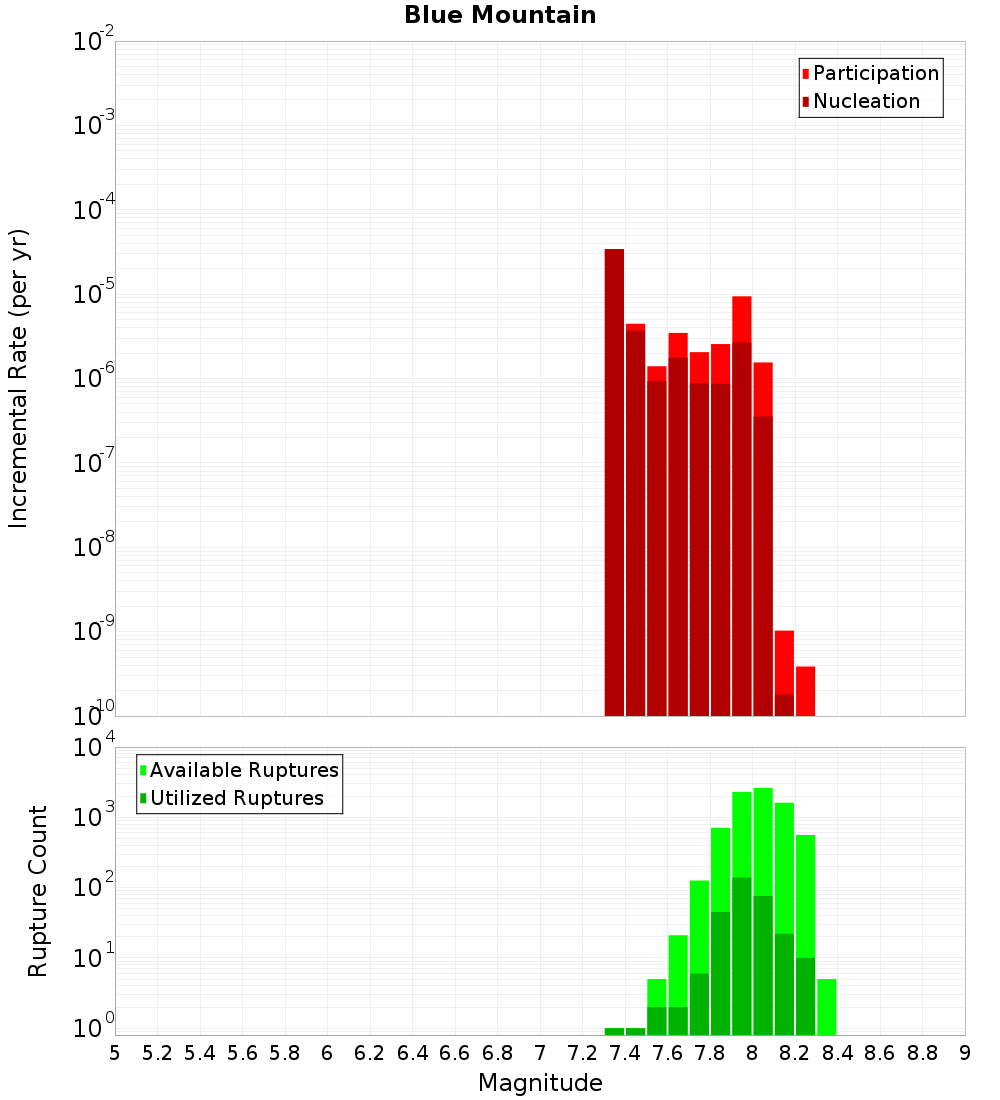

Magnitude-Frequency Distribution

Incremental	Cumulative

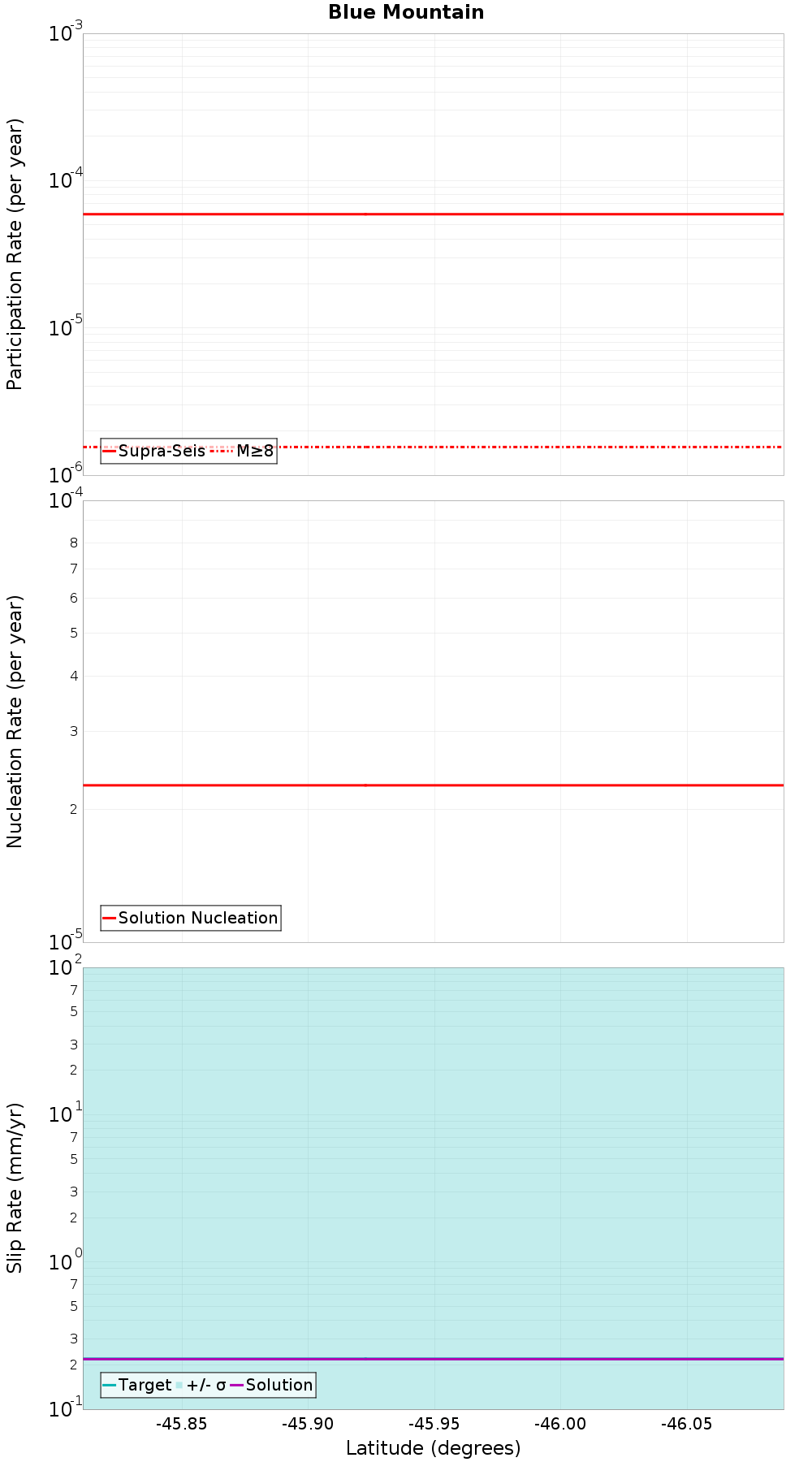

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Clifton, 0.1 km away
Beacon Hill, 0.18 km away
Tuapeka, 0.23 km away
Teviot, 0.86 km away
Backbone, 1.02 km away
Beaumont River, 3.48 km away
Spylaw, 3.89 km away
Hillfoot, 6.17 km away
Otanomomo, 7.22 km away
Hyde South - The Twins, 12.86 km away
Little Hillfoot, 14.21 km away

Clifton, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,093
Co-rupture Rate	1.6004864E-5

Beacon Hill, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	1,317
Co-rupture Rate	3.3897982E-6

Tuapeka, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Teviot, 0.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,544
Co-rupture Rate	7.665649E-7

Backbone, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,828
Co-rupture Rate	5.6710774E-6

Beaumont River, 3.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,945
Co-rupture Rate	1.0352197E-5

Spylaw, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hillfoot, 6.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	true
Co-rupture Count	5,512
Co-rupture Rate	9.628271E-6

Otanomomo, 7.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hyde South - The Twins, 12.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	false
Co-rupture Count	981
Co-rupture Rate	2.8960071E-6

Little Hillfoot, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMDguMGt2N1FW
Connected?	true
Directly Connected?	false
Co-rupture Count	375
Co-rupture Rate	3.3878837E-6
