Esk North Details

PropertyValue
Rupture Count940
Ruptures Above Sect Min Mag937
Ruptures w/ Nonzero Rates150
Magnitude Range[7.00, 8.40]
Length Range[23, 706] km
Total Rate1.401545E-4 /yr
Multi-Fault Rate1.3678153E-4 /yr (97.59%)
Directly-Connected Faults6
All Co-Rupturing Faults73

Table Of Contents

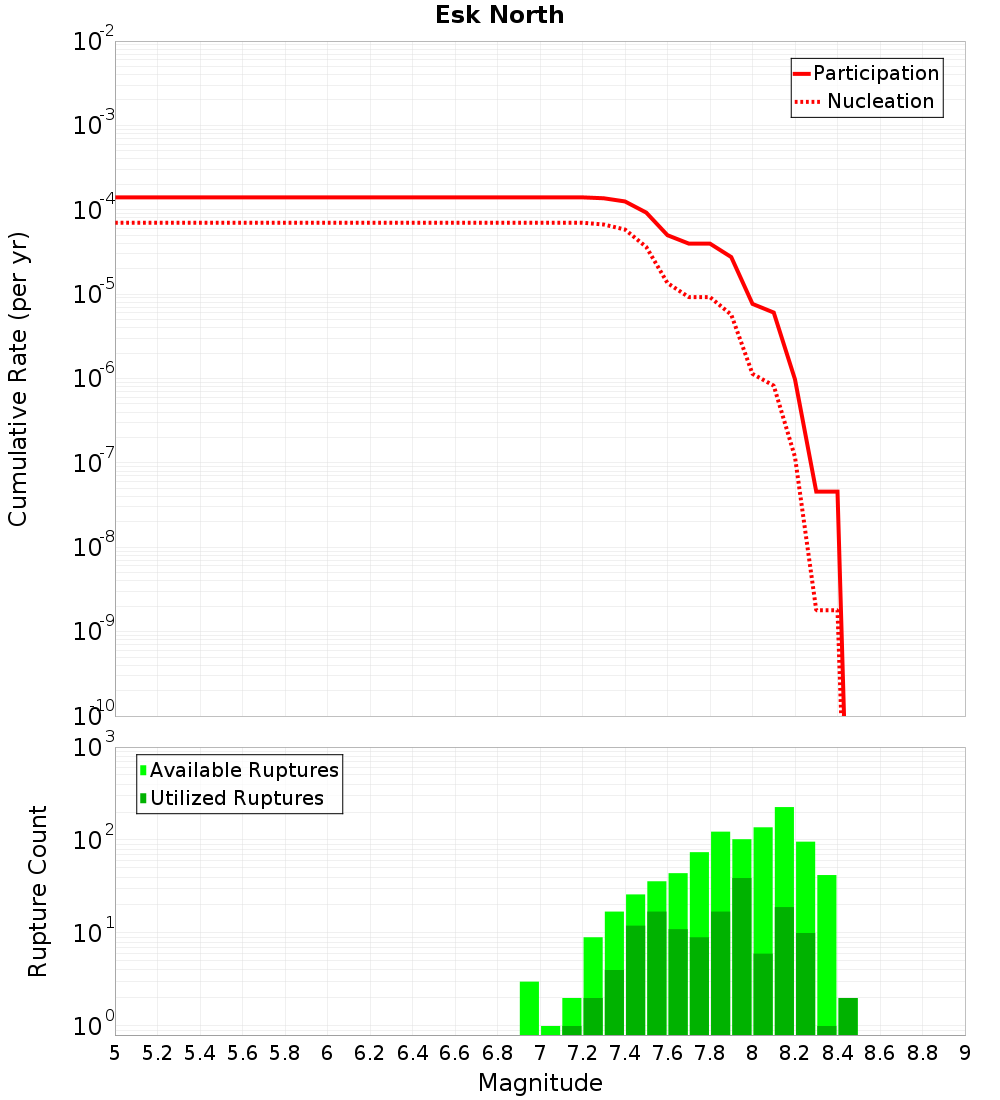

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Kakapo, 0.09 km awayPoulter, 9.54 km away
Esk South, 0.99 km awayHope: Hanmer NW, 9.97 km away
Pancake, 1.2 km awayHope: Hamner SW, 9.97 km away
Hope: Hope River, 1.2 km awayLees Valley, 11.43 km away
Virginia, 2.08 km awayBalmoral, 11.55 km away
Hurunui Peak, 4.03 km awayMt Culverden, 12.11 km away
Hope: Kakapo-2-Hamner, 4.29 km awayDoctors, 14.67 km away
Clarence: Southwest, 8.71 km awayAlpine: Kaniere to Springs Junction, 14.76 km away
Mt Arden, 9.01 km away

Kakapo, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count107
Co-rupture Rate3.6711273E-5

Esk South, 0.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pancake, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hope River, 1.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count176
Co-rupture Rate3.402015E-5

Virginia, 2.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count67
Co-rupture Rate6.6367305E-5

Hurunui Peak, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Kakapo-2-Hamner, 4.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count57
Co-rupture Rate5.3569318E-5

Clarence: Southwest, 8.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count789
Co-rupture Rate6.371465E-5

Mt Arden, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 9.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate1.0110348E-5

Hope: Hamner SW, 9.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.5860258E-5

Lees Valley, 11.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Balmoral, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate4.475387E-6

Mt Culverden, 12.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate2.3025955E-6

Alpine: Kaniere to Springs Junction, 14.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
