Rangitaiki 2 Details

PropertyValue
Rupture Count3,363
Ruptures Above Sect Min Mag3,359
Ruptures w/ Nonzero Rates23
Magnitude Range[6.66, 8.31]
Length Range[13, 575] km
Total Rate4.5309193E-4 /yr
Multi-Fault Rate4.5309193E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults50

Table Of Contents

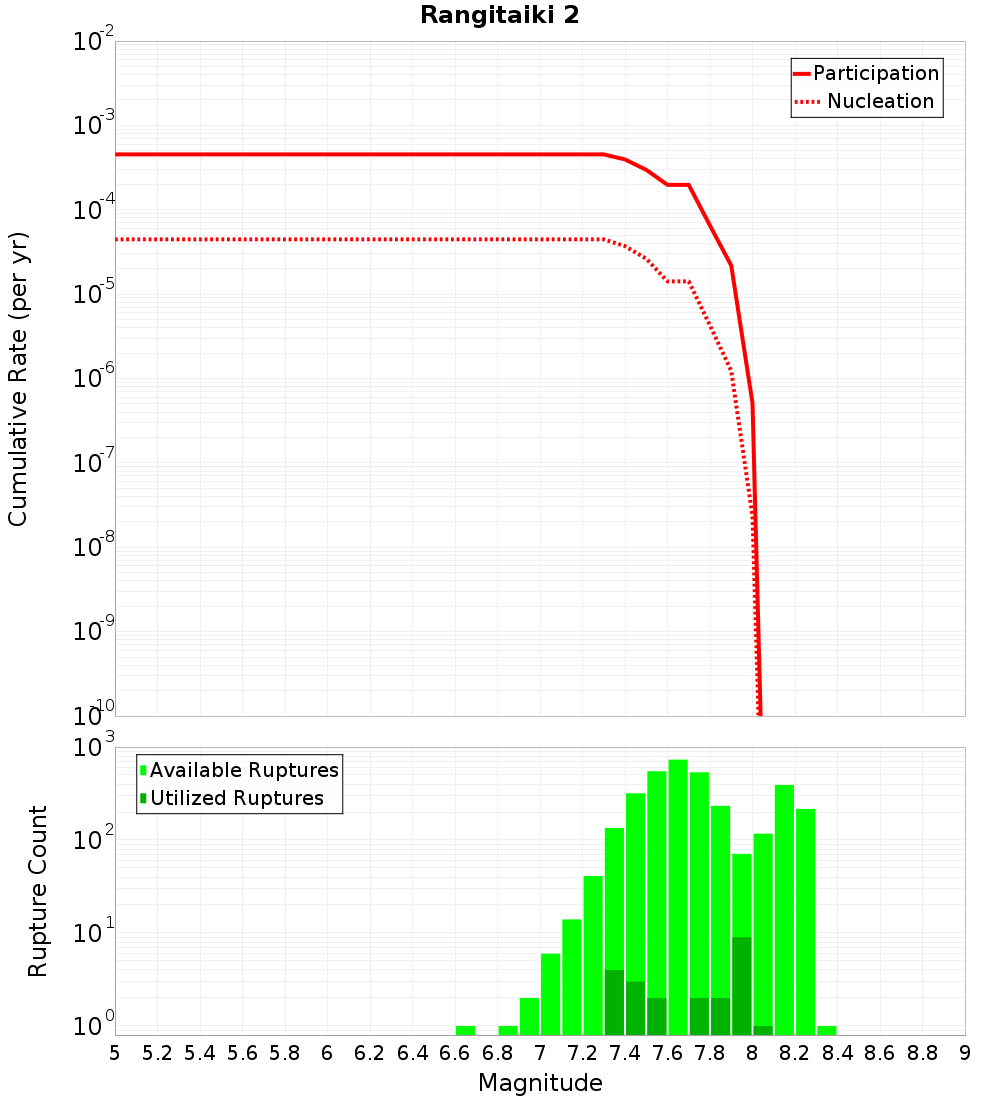

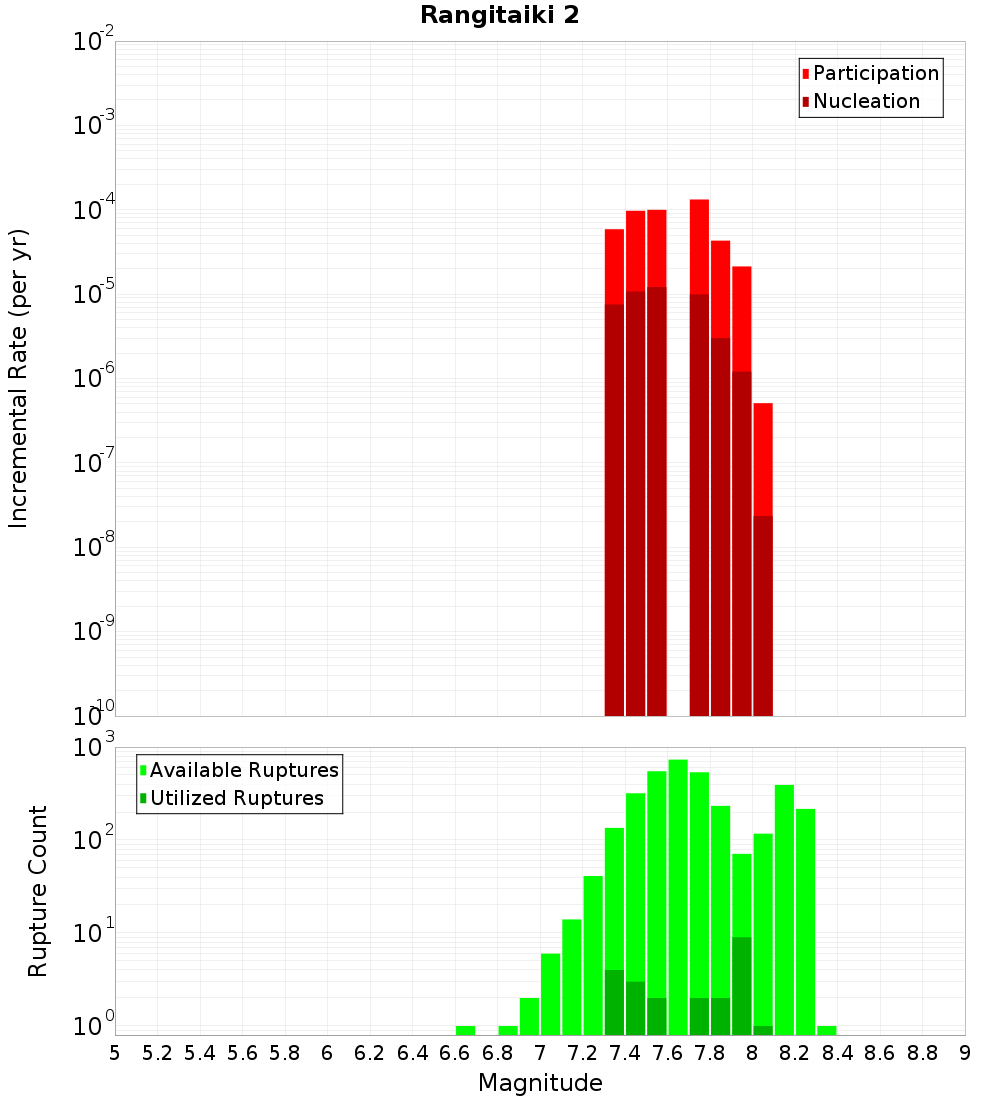

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ohiwa 1, 0.42 km away
Whakaari 4, 0.45 km away
Rangitaiki 1, 0.74 km away
White Island 1, 0.77 km away
White Island 2, 2.66 km away
Waimanawa - Waikaremoana, 6.46 km away
Keepa, 7.49 km away
Calypso 2, 8.01 km away
Waimana: North, 9.4 km away
Edgecumbe Coastal, 14.83 km away
Waiotahi: North, 14.87 km away
Ohae 1, 14.97 km away

Ohiwa 1, 0.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count837
Co-rupture Rate1.2451259E-4

Whakaari 4, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count1,795
Co-rupture Rate1.0301065E-4

Rangitaiki 1, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count2,803
Co-rupture Rate3.6610698E-4

White Island 1, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count3,219
Co-rupture Rate1.972104E-4

White Island 2, 2.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count915
Co-rupture Rate2.6703835E-4

Waimanawa - Waikaremoana, 6.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Keepa, 7.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count19
Co-rupture Rate0.0

Calypso 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?true
Co-rupture Count224
Co-rupture Rate9.183643E-5

Waimana: North, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 14.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?true
Directly Connected?false
Co-rupture Count1,625
Co-rupture Rate1.7894653E-4

Waiotahi: North, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTMuMGZuZW1j
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
