Alpine: George landward Details
| Property | Value |
|---|---|
| Rupture Count | 21,549 |
| Ruptures Above Sect Min Mag | 21,547 |
| Ruptures w/ Nonzero Rates | 900 |
| Magnitude Range | [6.73, 8.61] |
| Length Range | [16, 1,129] km |
| Total Rate | 9.889832E-4 /yr |
| Multi-Fault Rate | 9.889832E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 129 |
Table Of Contents

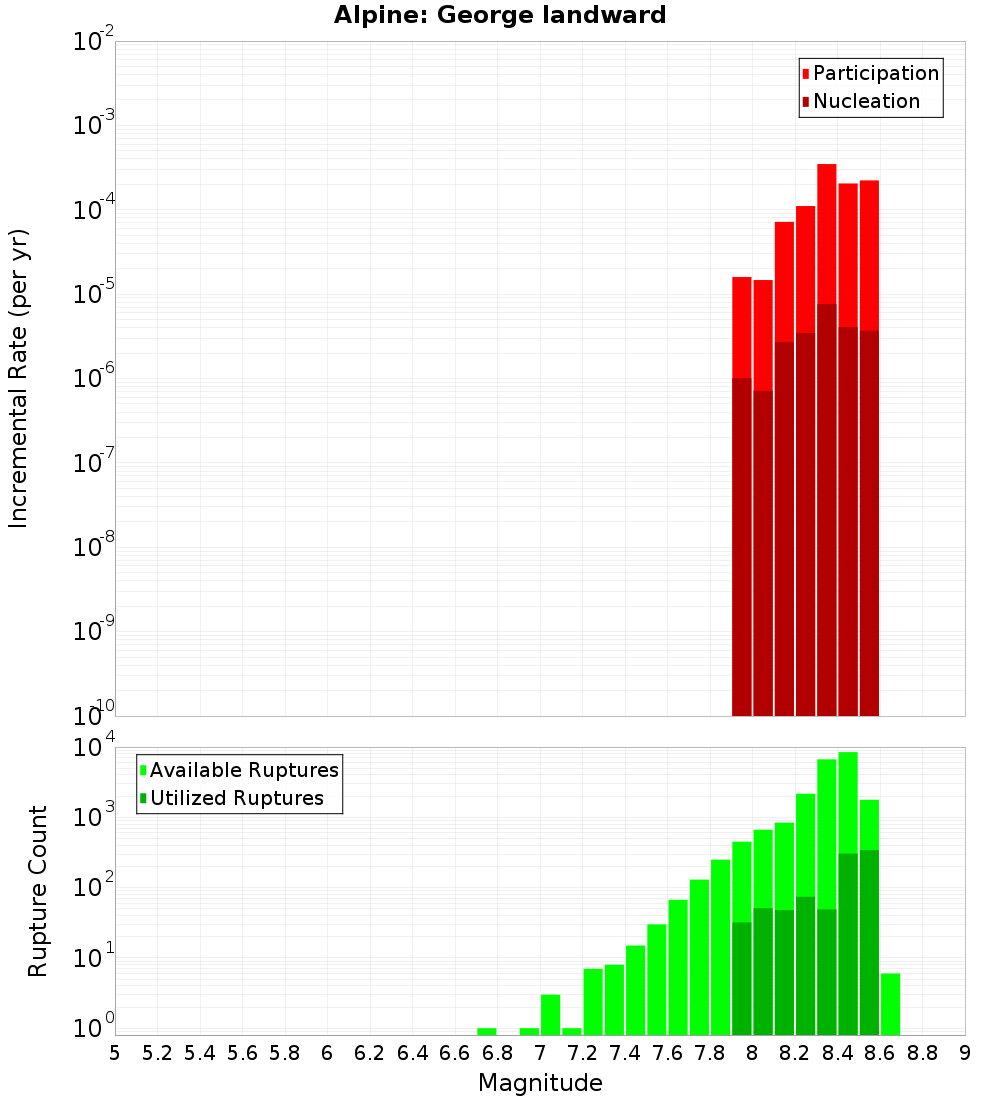

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

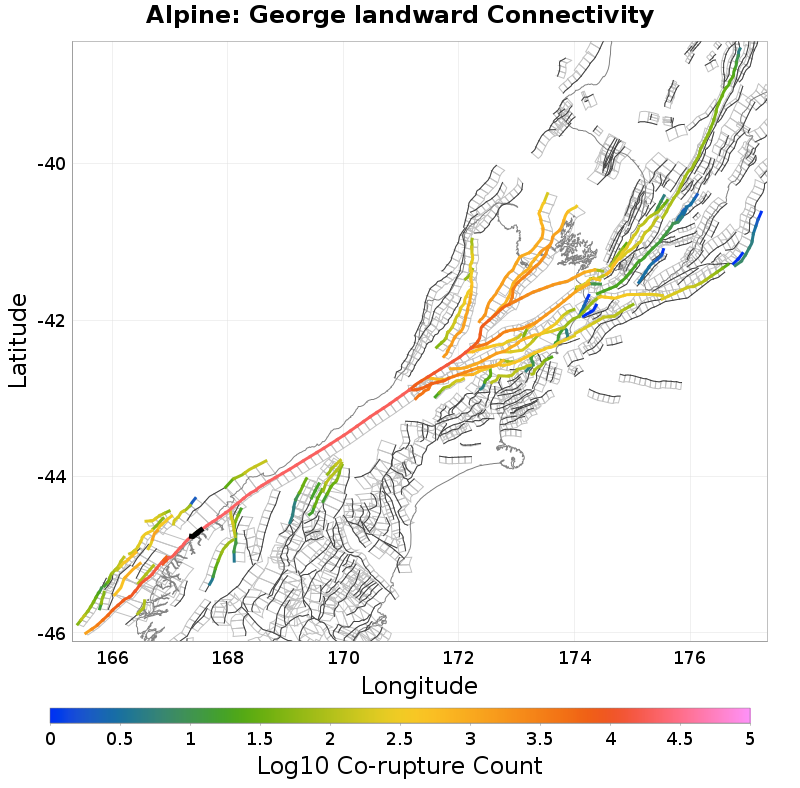

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George seaward, 0 km away |
| Alpine: George to Jacksons, 0 km away |
| Alpine: Caswell - South George, 0.03 km away |
| Madagascar, 0.18 km away |
| Central Wedge 1 & 2 & 3, 6.81 km away |
Alpine: George seaward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 311 |
| Co-rupture Rate | 0.0 |
Alpine: George to Jacksons, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 21,474 |
| Co-rupture Rate | 9.887962E-4 |
Alpine: Caswell - South George, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20,557 |
| Co-rupture Rate | 9.86573E-4 |
Madagascar, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Central Wedge 1 & 2 & 3, 6.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,174 |
| Co-rupture Rate | 0.0 |
