Mt Sutton Details

PropertyValue
Rupture Count205
Ruptures Above Sect Min Mag203
Ruptures w/ Nonzero Rates14
Magnitude Range[6.98, 8.14]
Length Range[22, 275] km
Total Rate1.7900518E-5 /yr
Multi-Fault Rate1.7900518E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults20

Table Of Contents

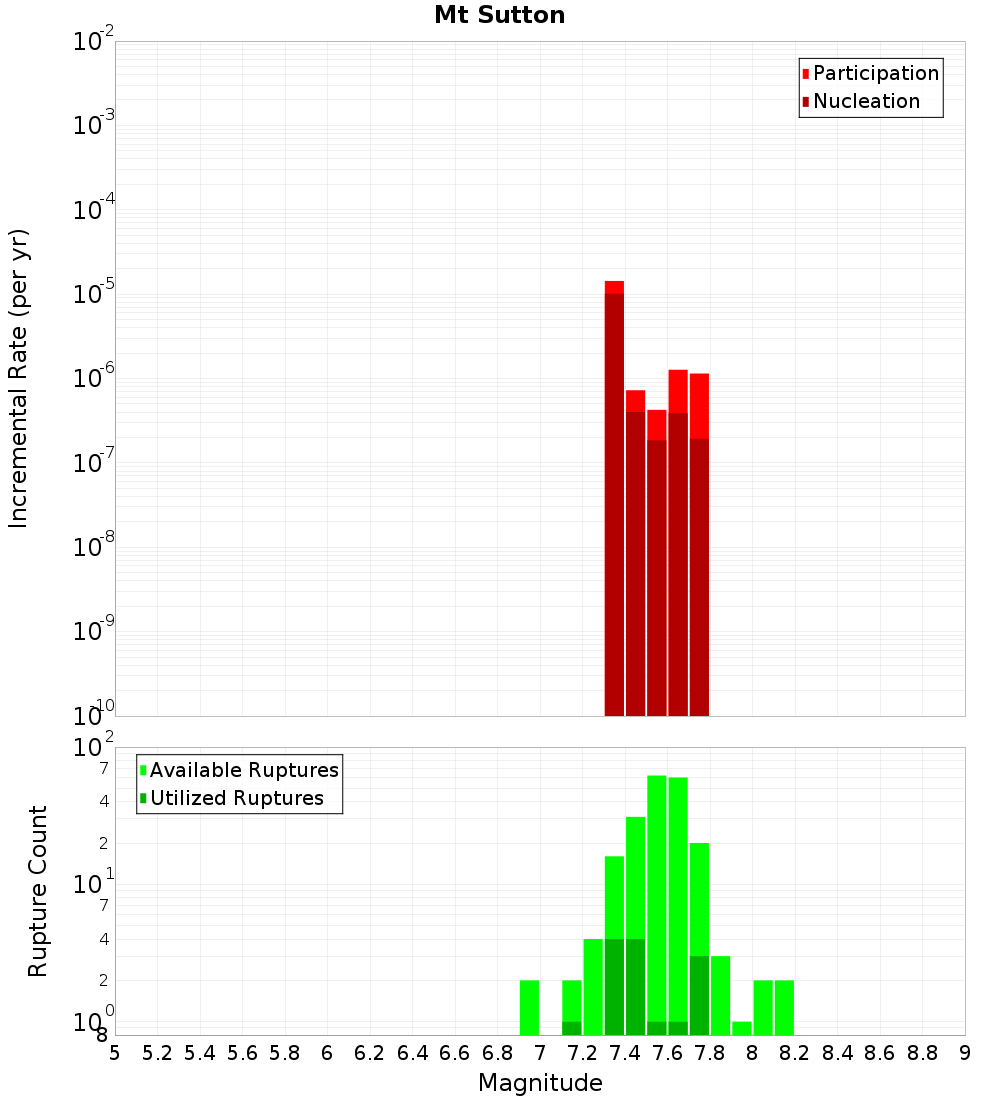

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

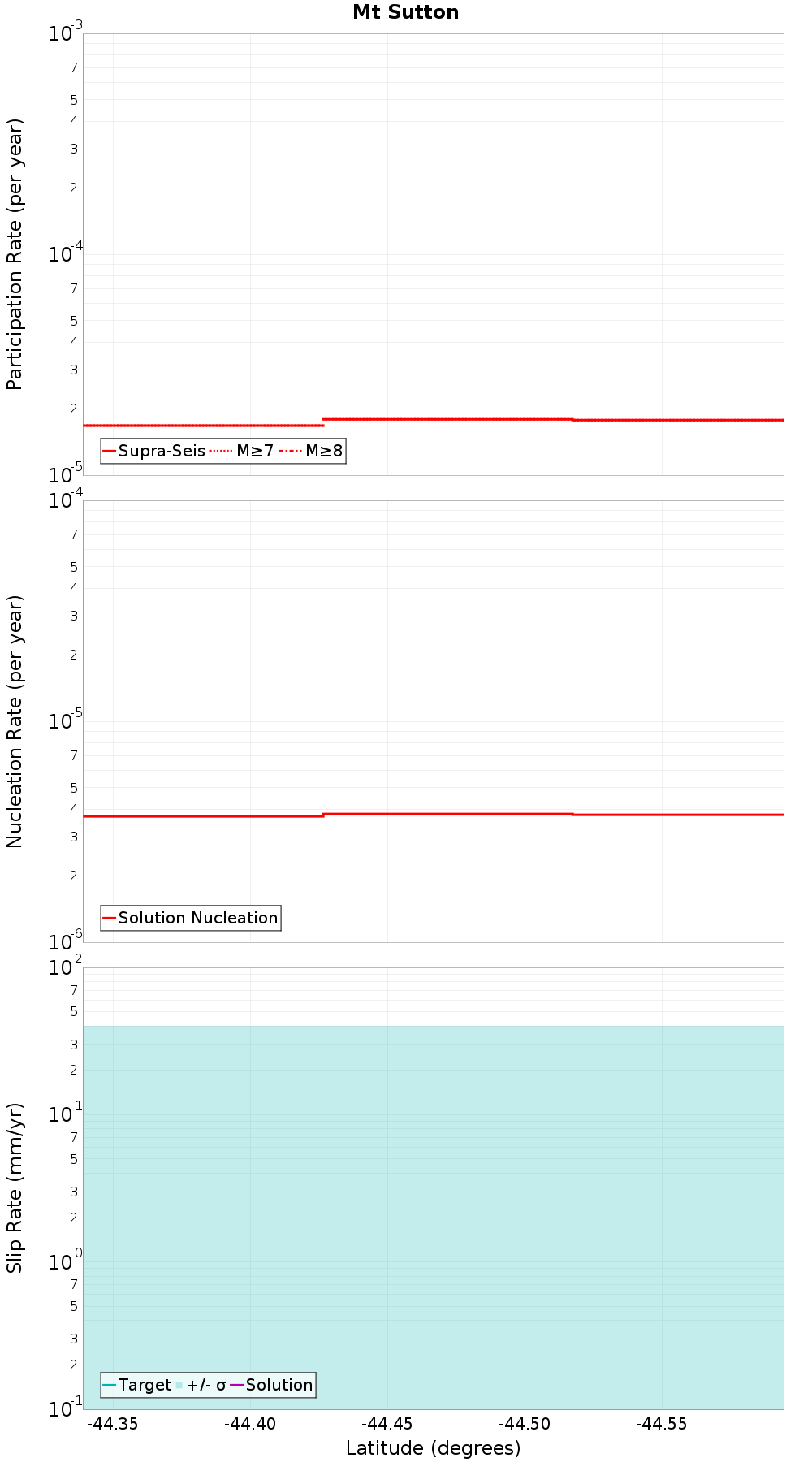

Along-Strike Values

(top)

Along-strike plot

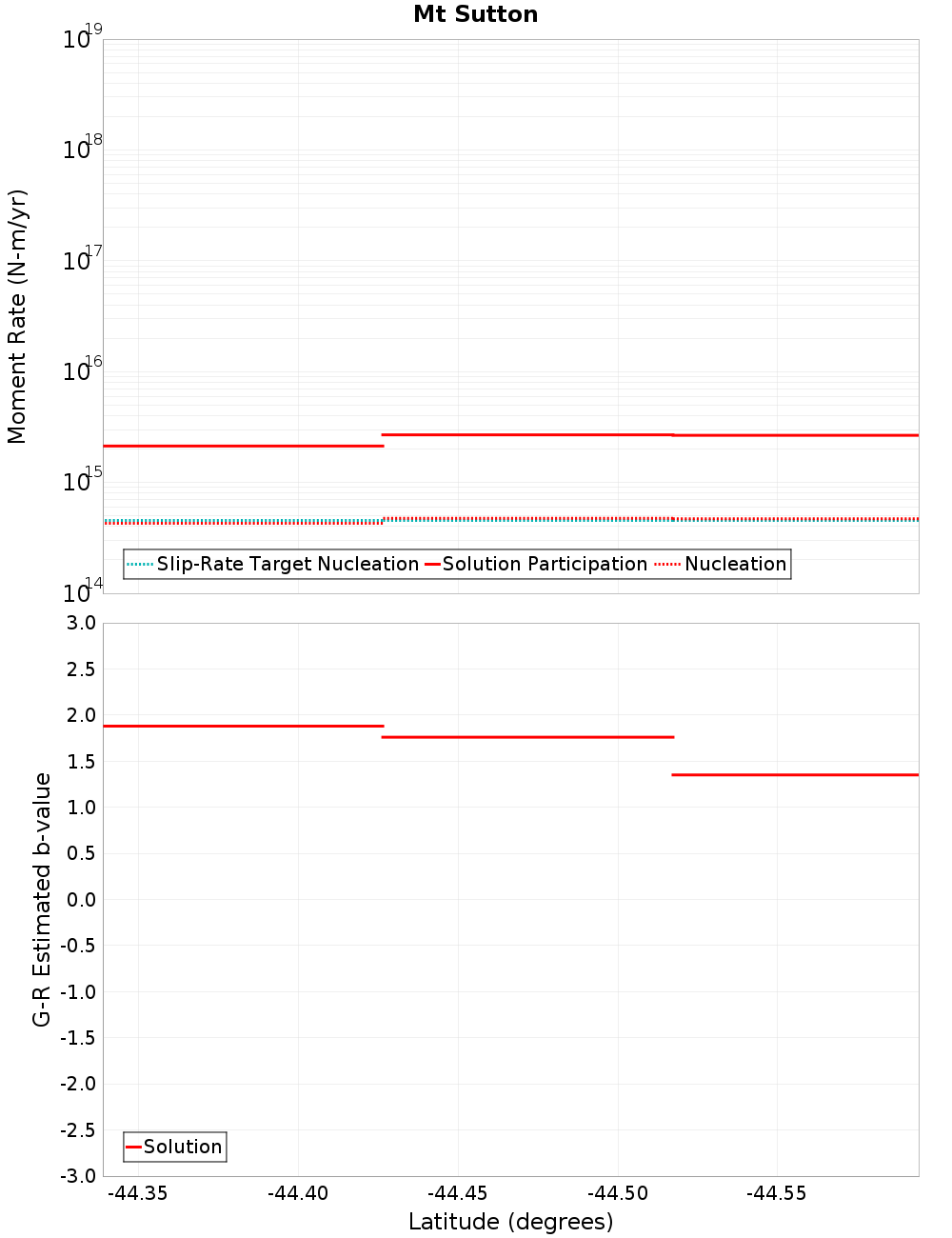

Moment-Rates and b-Values

(top)

Along-strike plot

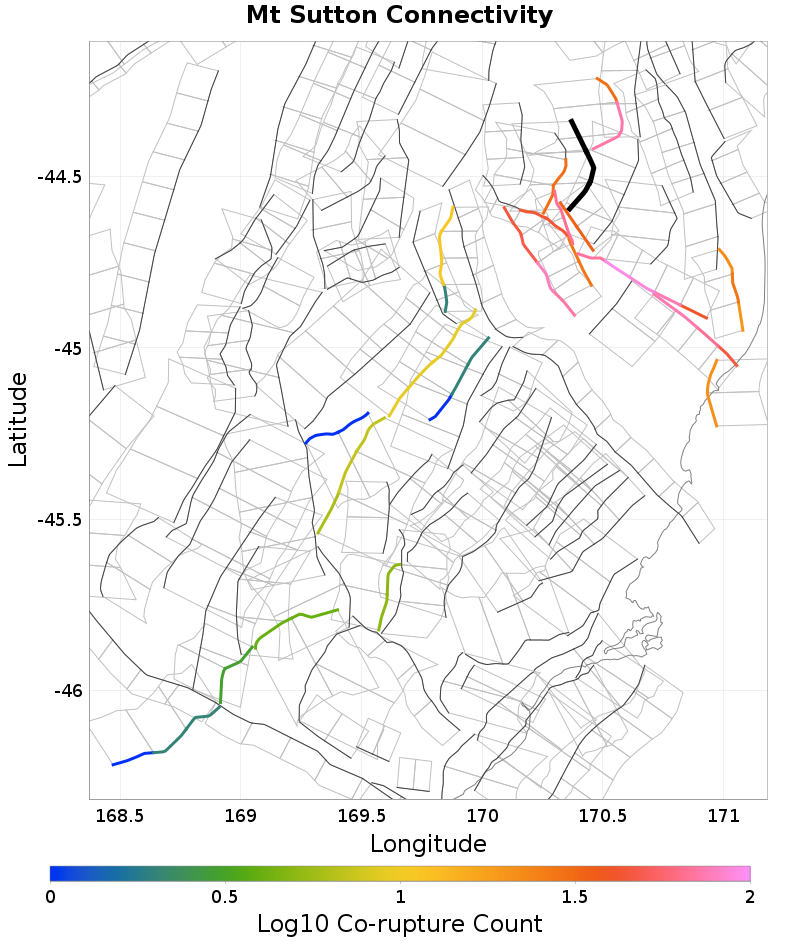

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Middle Range, 0.14 km away
Waitangi, 0.22 km away
Dryburgh, 0.25 km away
Grampian, 1.54 km away
Gibson, 2.87 km away
Fern Gully, 3.2 km away
Falstone, 7.01 km away
Omarama Saddle, 7.05 km away
Awahokomo, 8.83 km away
Kirkliston, 9.08 km away
Hawkdun, 9.36 km away
Stonewall, 13.56 km away

Middle Range, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count94
Co-rupture Rate3.0957765E-6

Waitangi, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.619974E-5

Dryburgh, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate1.4465181E-6

Grampian, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count72
Co-rupture Rate1.1457892E-6

Gibson, 2.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate1.6090948E-7

Fern Gully, 3.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count43
Co-rupture Rate1.5631817E-12

Falstone, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Omarama Saddle, 7.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Awahokomo, 8.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.8851358E-10

Kirkliston, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 9.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Stonewall, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count93
Co-rupture Rate7.255566E-7
