Wellington: Tararua 3 Details

PropertyValue
Rupture Count50,840
Ruptures Above Sect Min Mag50,836
Ruptures w/ Nonzero Rates808
Magnitude Range[6.77, 8.44]
Length Range[16, 777] km
Total Rate0.0014867617 /yr
Multi-Fault Rate0.0014867617 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults128

Table Of Contents

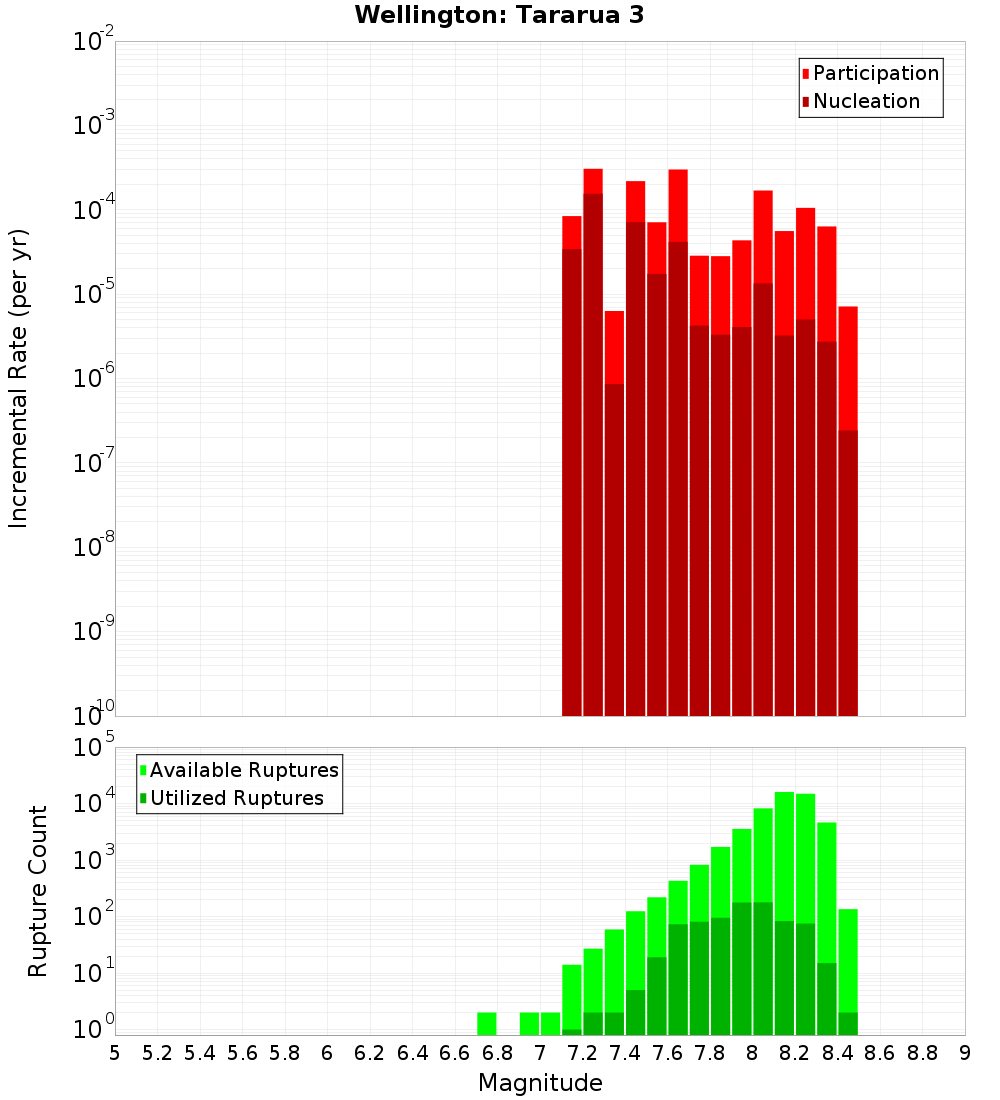

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

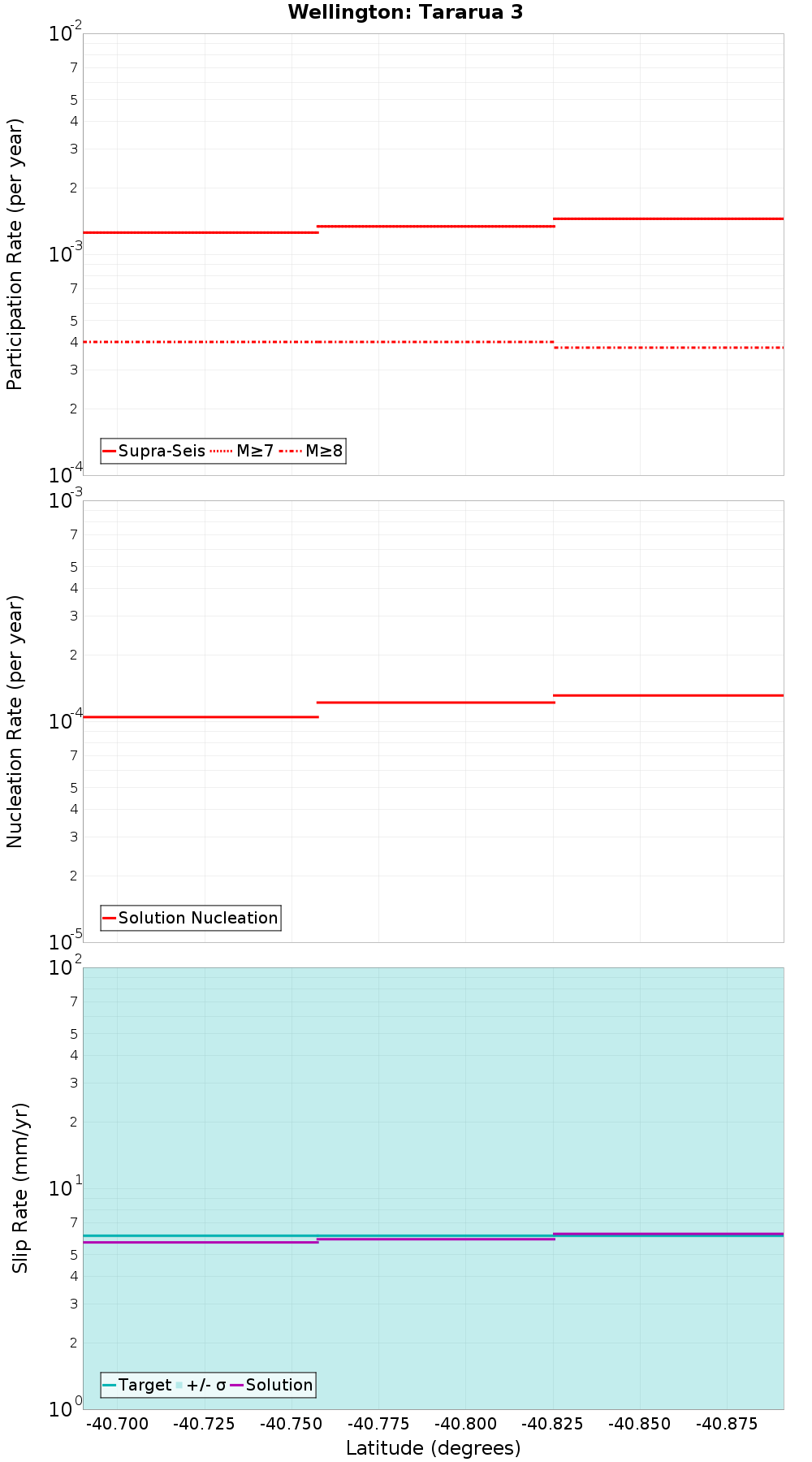

Along-Strike Values

(top)

Along-strike plot

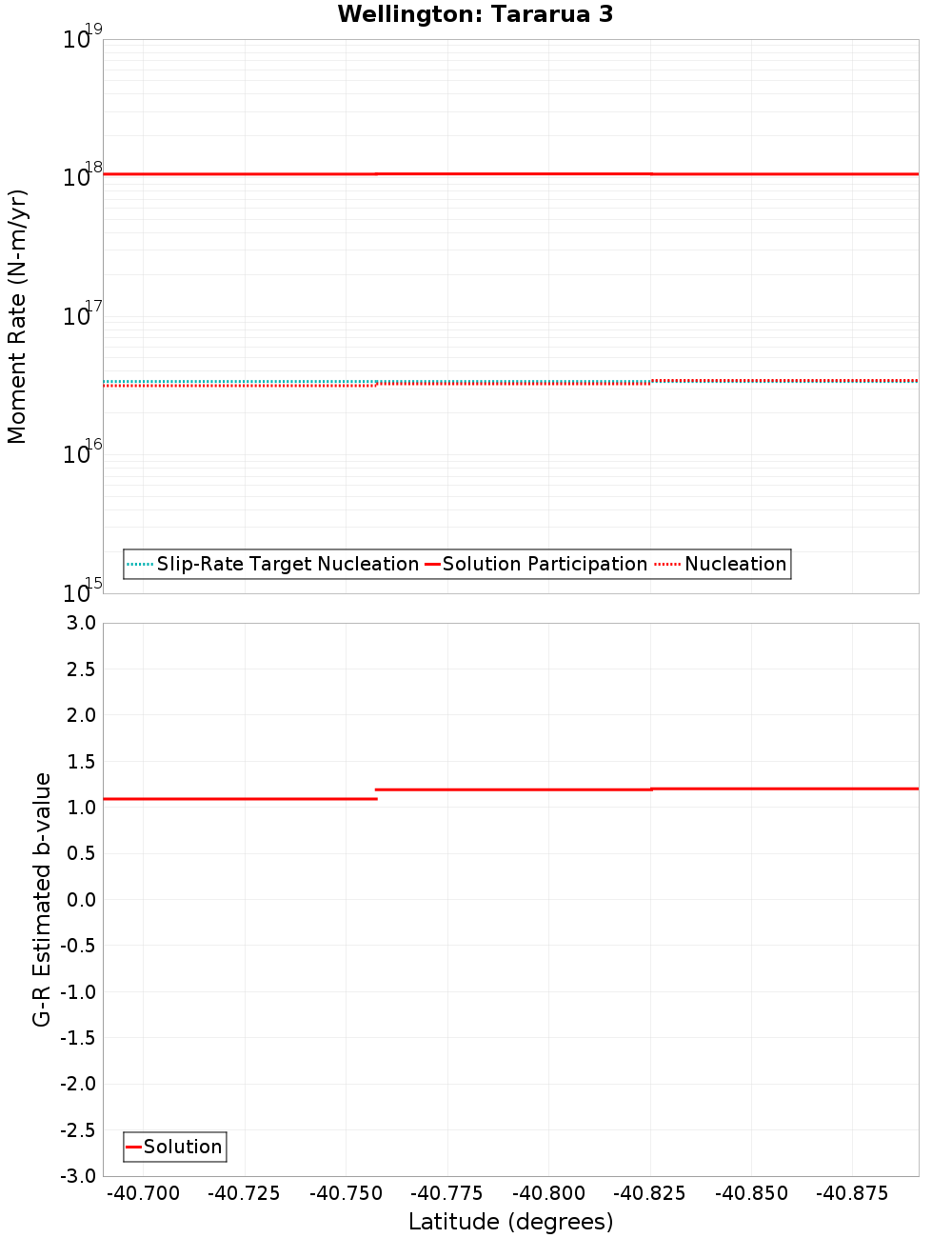

Moment-Rates and b-Values

(top)

Along-strike plot

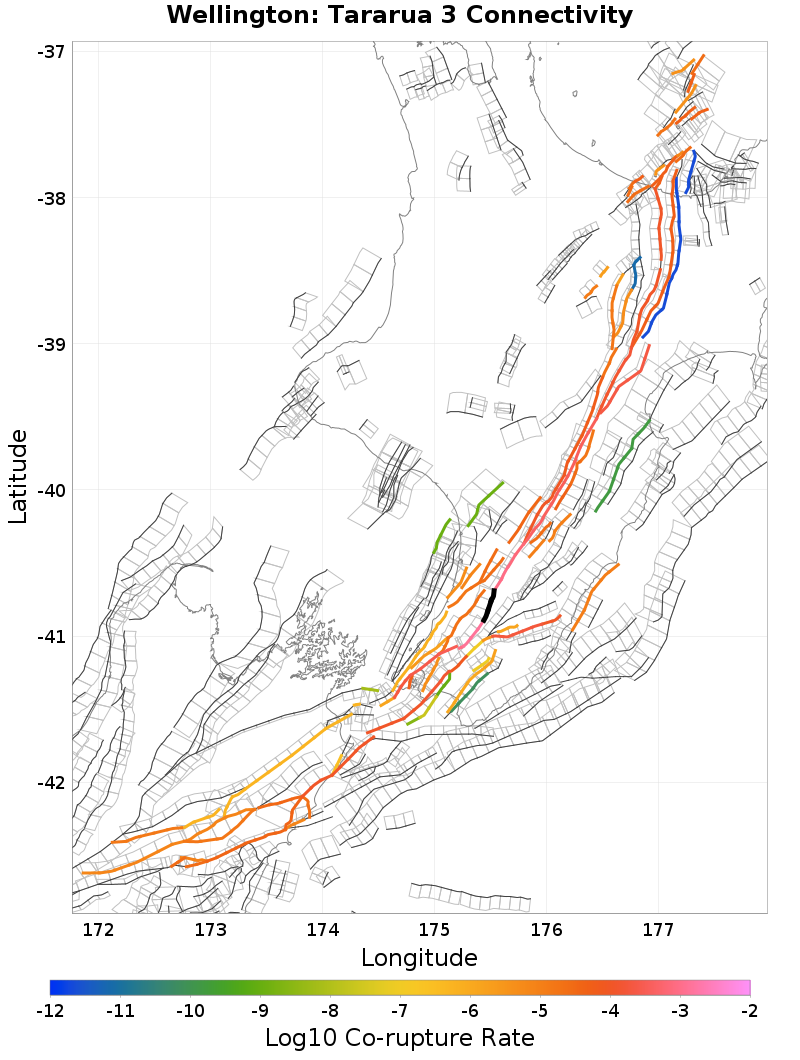

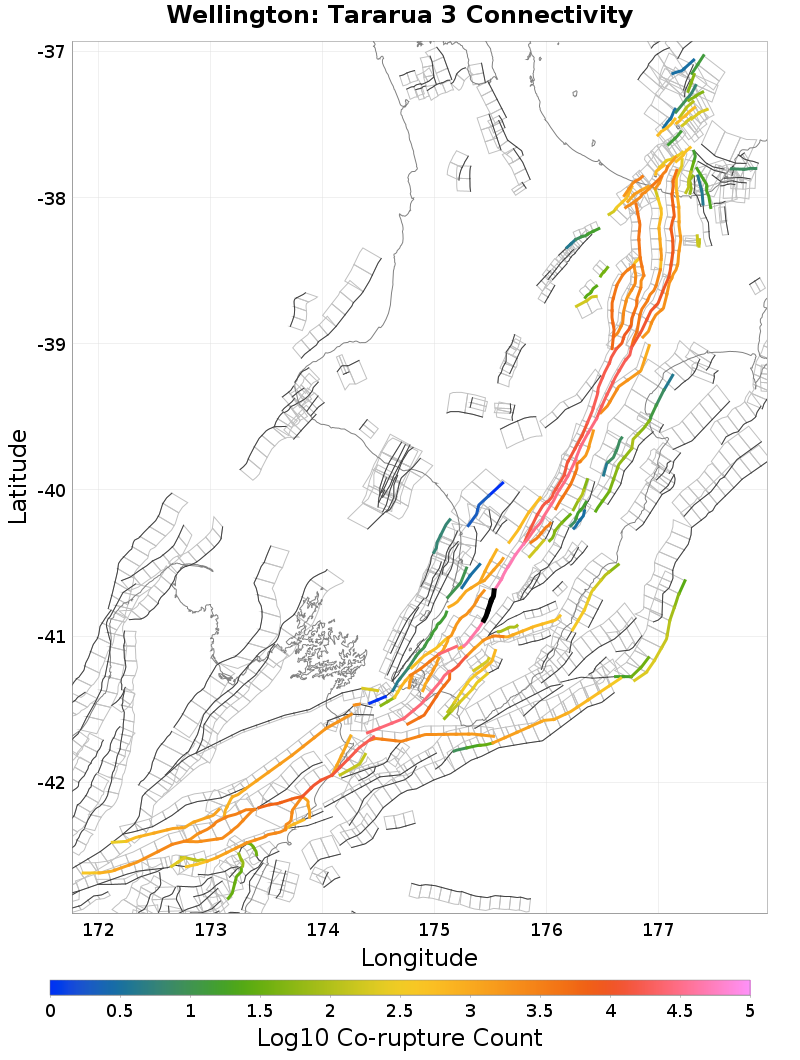

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Tararua 2, 0 km away
Wellington: Pahiatua, 0.03 km away
Otaki Forks: 2, 0.3 km away
Tokomaru, 1.29 km away
Northern Ohariu, 1.86 km away
Wairarapa: 3, 9.13 km away
Mokonui Southwest, 9.81 km away
Otaki Forks: 1, 11.36 km away
Masterton, 11.85 km away
Carterton, 13.79 km away
Wairarapa: 2, 14.29 km away

Wellington: Tararua 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count42,630
Co-rupture Rate0.001387354

Wellington: Pahiatua, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count49,026
Co-rupture Rate9.2186936E-4

Otaki Forks: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count2,035
Co-rupture Rate2.1748516E-5

Tokomaru, 1.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count1,044
Co-rupture Rate2.6249603E-5

Northern Ohariu, 1.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count1,334
Co-rupture Rate3.7234488E-5

Wairarapa: 3, 9.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 9.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 1, 11.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count1,638
Co-rupture Rate2.0289765E-5

Masterton, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate1.3374159E-6

Carterton, 13.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?true
Co-rupture Count3,082
Co-rupture Rate1.8543933E-4

Wairarapa: 2, 14.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTUuMFFxNXR1
Connected?true
Directly Connected?false
Co-rupture Count14,347
Co-rupture Rate7.558472E-5
