Maimai: South Details

Property	Value
Rupture Count	2,867
Ruptures Above Sect Min Mag	2,864
Ruptures w/ Nonzero Rates	272
Magnitude Range	[6.69, 8.14]
Length Range	[15, 396] km
Total Rate	1.2002839E-4 /yr
Multi-Fault Rate	1.2002839E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

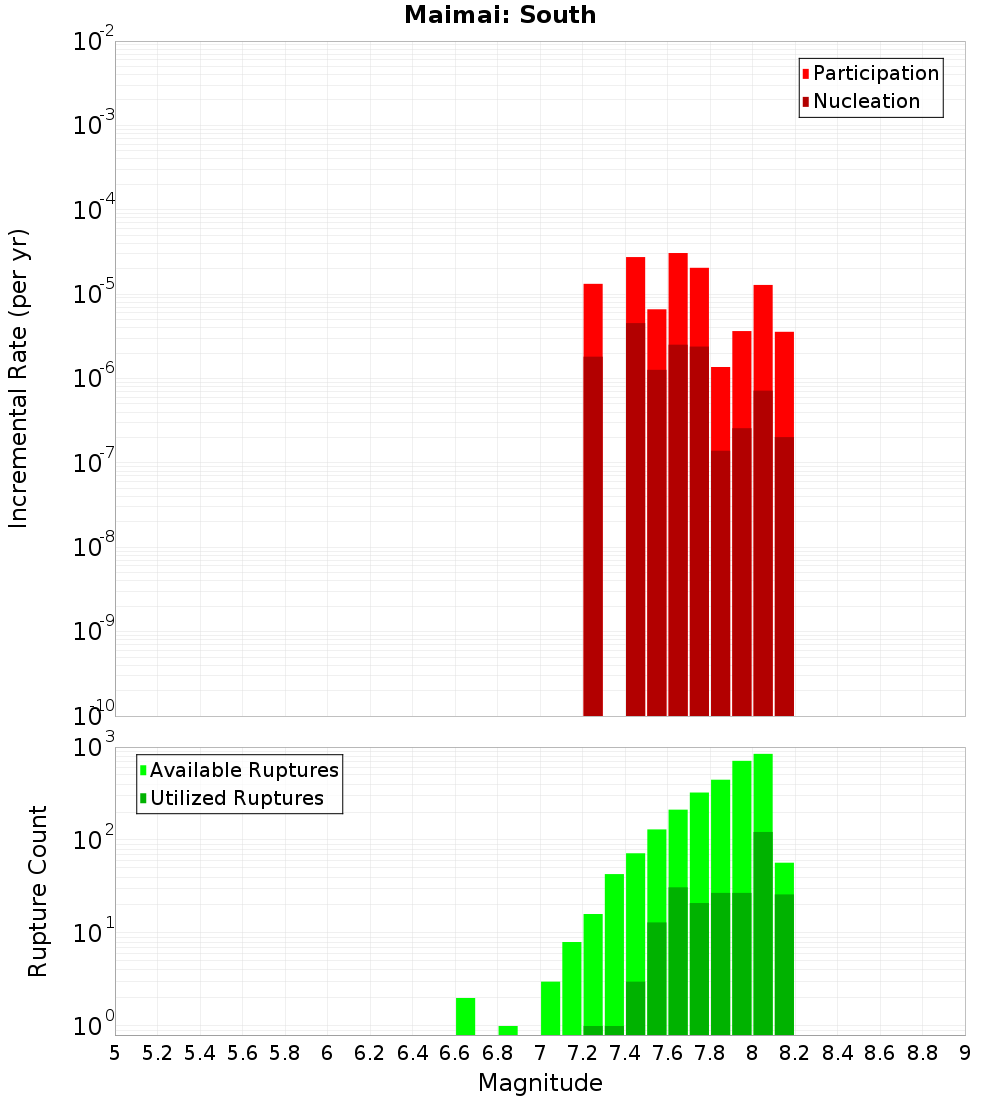

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

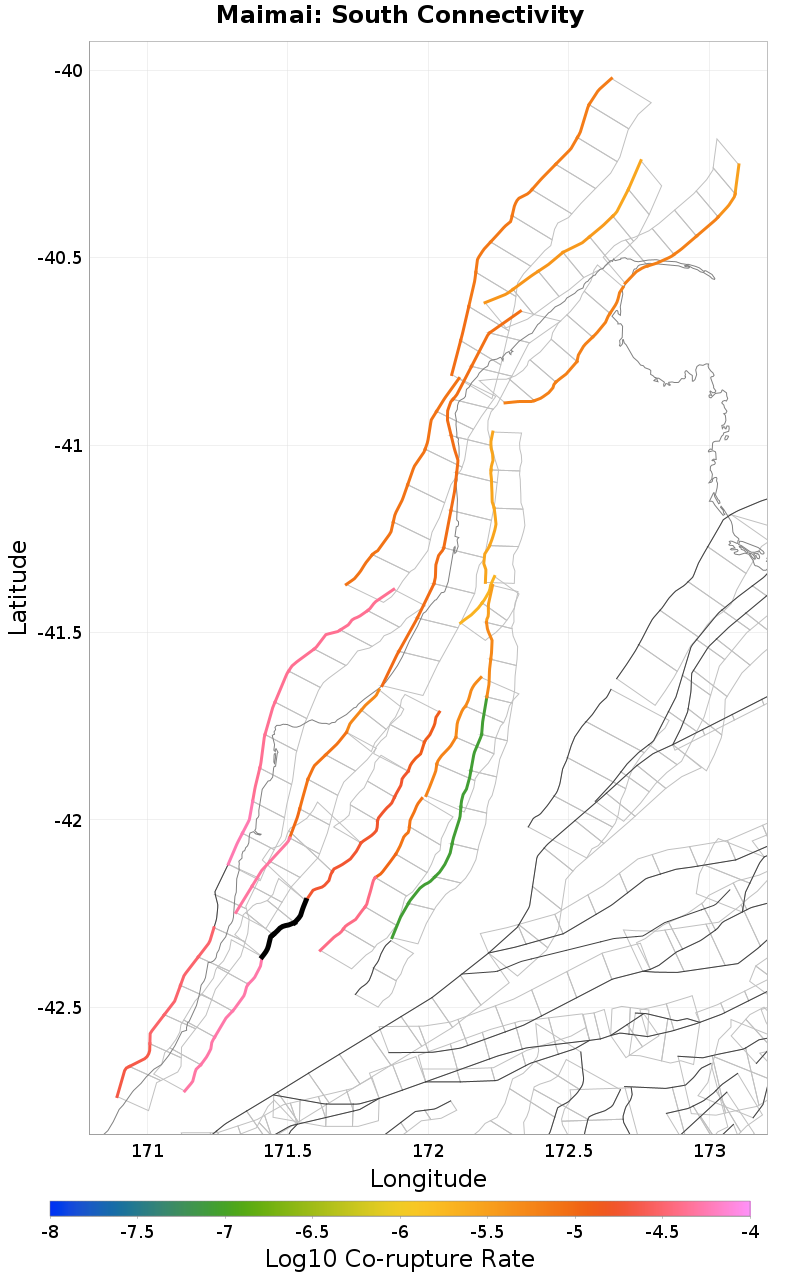

Connectivity

Nearby Sections

Fault Section
Maimai: Brunner Anticline, 0 km away
Maimai, 0.09 km away
Paparoa West, 0.22 km away
Cape Foulwind 1, 0.4 km away
Cape Foulwind 2, 4.77 km away
Lyell South, 11.15 km away

Maimai: Brunner Anticline, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,118
Co-rupture Rate	5.1623505E-5

Maimai, 0.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,552
Co-rupture Rate	1.7935809E-5

Paparoa West, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	4.750812E-5

Cape Foulwind 1, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,218
Co-rupture Rate	3.0700226E-5

Cape Foulwind 2, 4.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	1,040
Co-rupture Rate	5.5570123E-5

Lyell South, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzMTguMHdFVVN3
Connected?	true
Directly Connected?	true
Co-rupture Count	71
Co-rupture Rate	3.789563E-5
