Otaki Forks: 2 Details

Property	Value
Rupture Count	21,207
Ruptures Above Sect Min Mag	21,204
Ruptures w/ Nonzero Rates	331
Magnitude Range	[6.82, 8.61]
Length Range	[19, 1,132] km
Total Rate	1.4641421E-4 /yr
Multi-Fault Rate	1.4641421E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	111

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

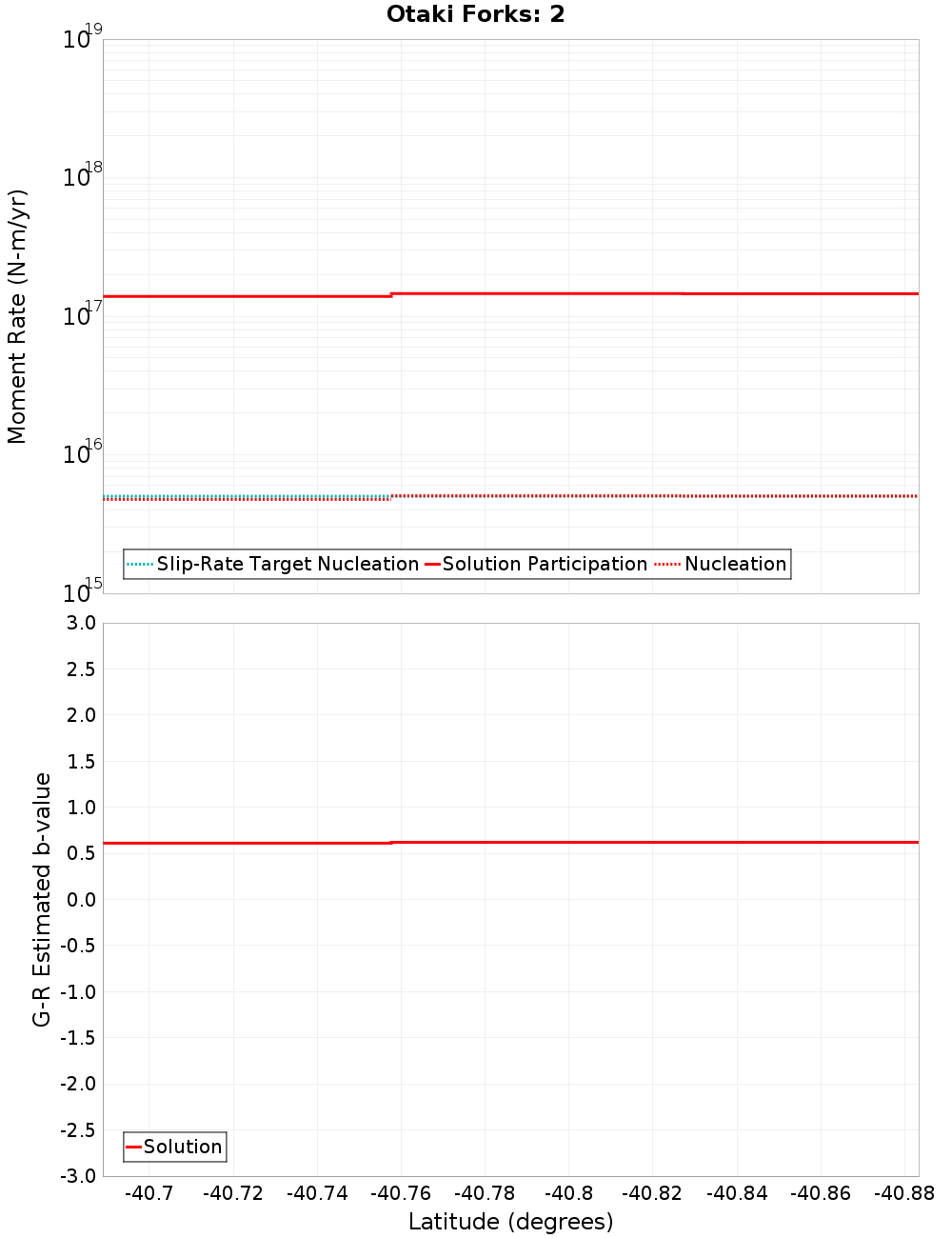

Moment-Rates and b-Values

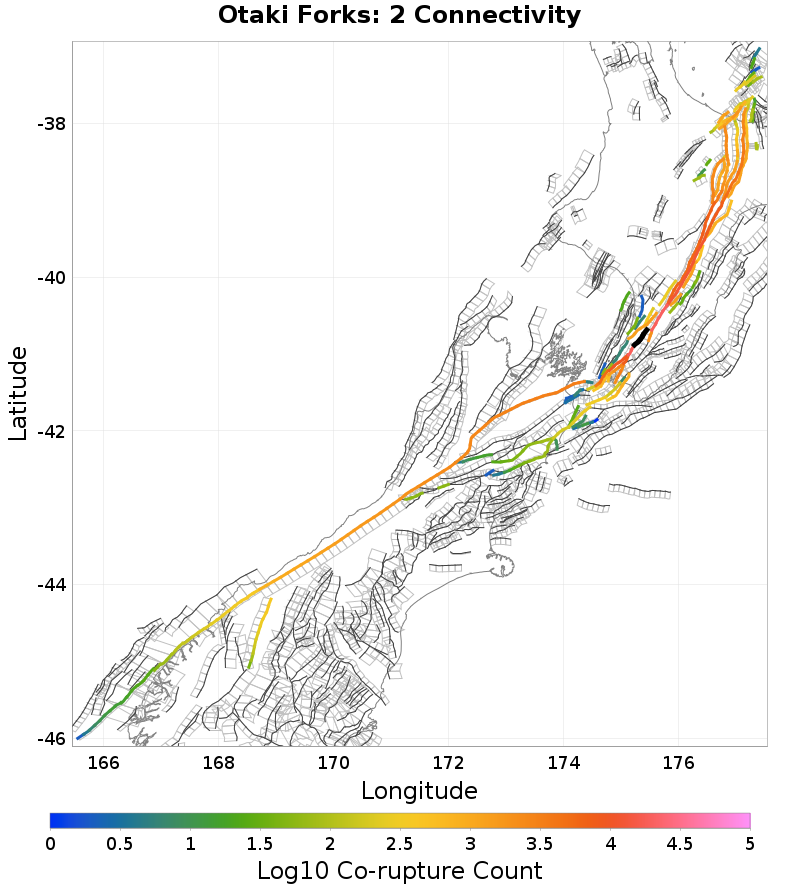

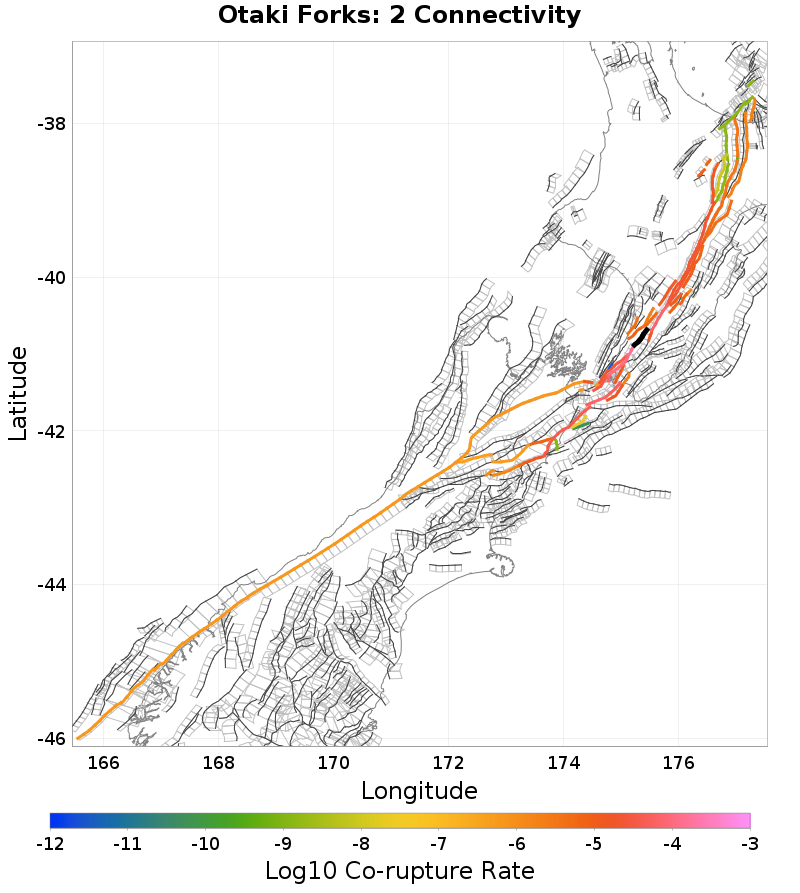

Connectivity

Nearby Sections

Fault Section
Otaki Forks: 1, 0 km away
Wellington: Tararua 3, 0.3 km away
Tokomaru, 3.91 km away
Wellington: Pahiatua, 4.69 km away
Wellington: Tararua 2, 6.42 km away
Northern Ohariu, 7.03 km away
Ohariu, 11.39 km away
Wellington: Tararua 1, 13.31 km away
Levin Anticline, 14.48 km away

Otaki Forks: 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	true
Co-rupture Count	18,514
Co-rupture Rate	1.44374E-4

Wellington: Tararua 3, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	true
Co-rupture Count	2,035
Co-rupture Rate	1.50178075E-5

Tokomaru, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	true
Co-rupture Count	344
Co-rupture Rate	2.1896387E-6

Wellington: Pahiatua, 4.69 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	true
Co-rupture Count	20,110
Co-rupture Rate	6.738641E-5

Wellington: Tararua 2, 6.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 7.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	true
Co-rupture Count	1,417
Co-rupture Rate	9.945697E-6

Ohariu, 11.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	false
Co-rupture Count	5,329
Co-rupture Rate	1.8573404E-5

Wellington: Tararua 1, 13.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDEuMFBiRXdS
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
