Akatarawa Details

Property	Value
Rupture Count	8,566
Ruptures Above Sect Min Mag	8,565
Ruptures w/ Nonzero Rates	898
Magnitude Range	[6.69, 8.33]
Length Range	[15, 606] km
Total Rate	1.1108143E-4 /yr
Multi-Fault Rate	1.1108143E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	97

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

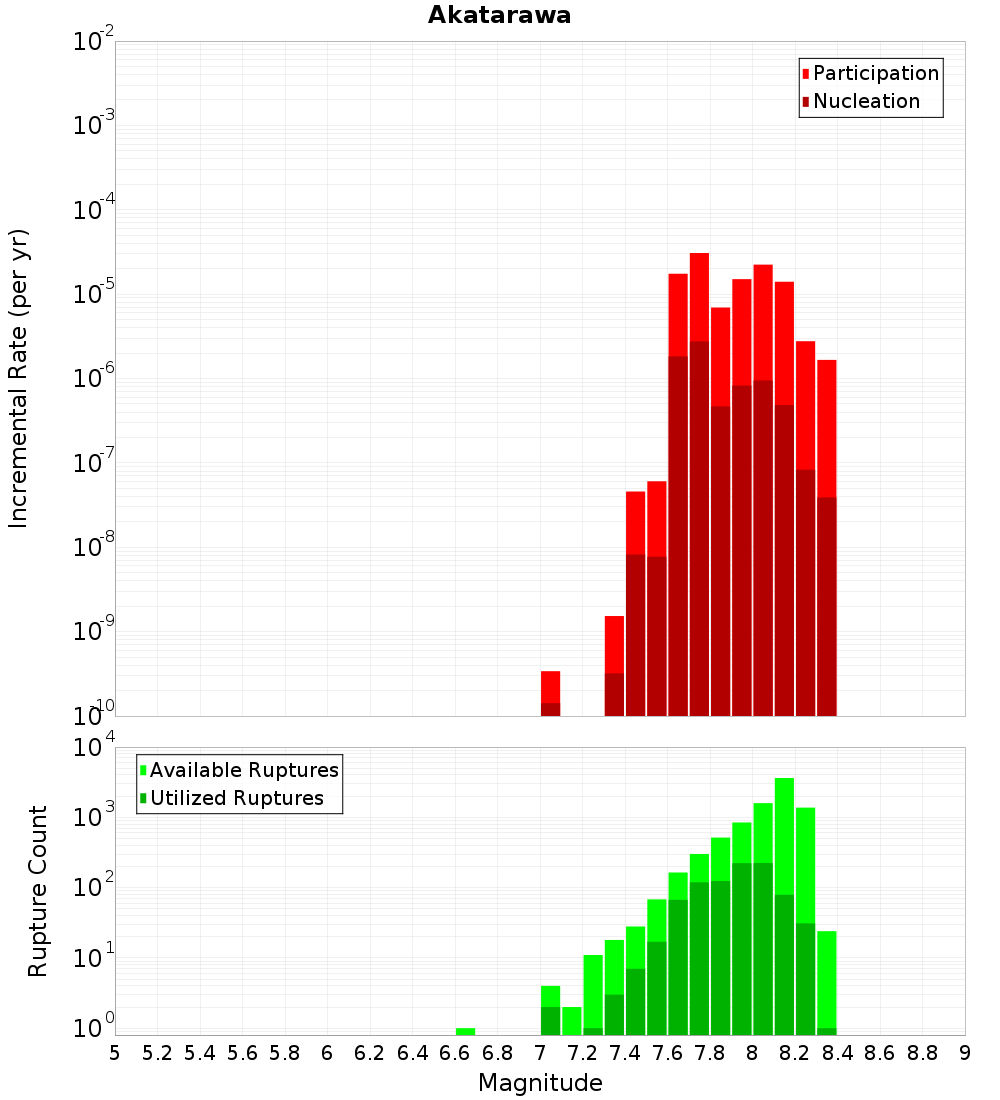

Magnitude-Frequency Distribution

Incremental	Cumulative

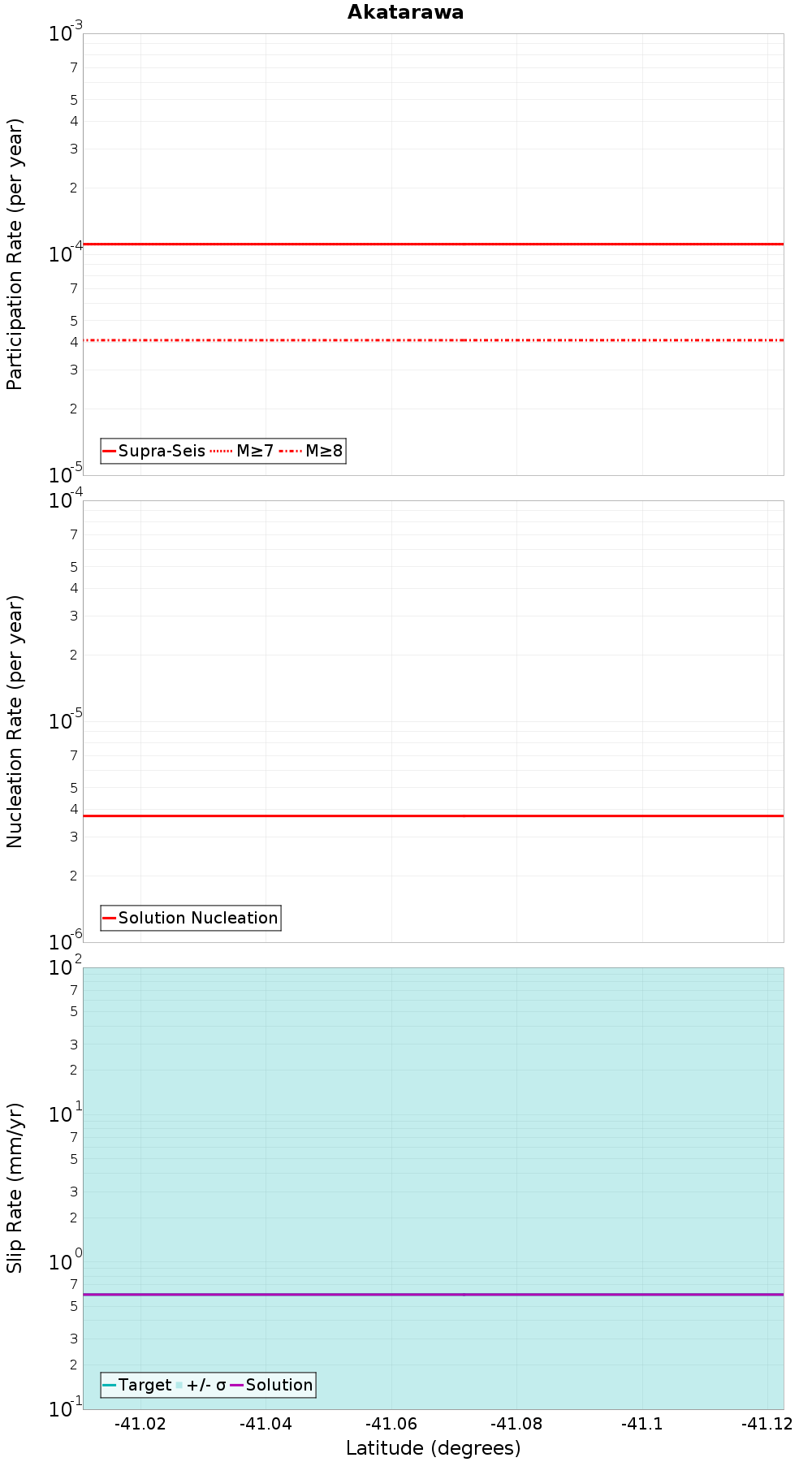

Along-Strike Values

Moment-Rates and b-Values

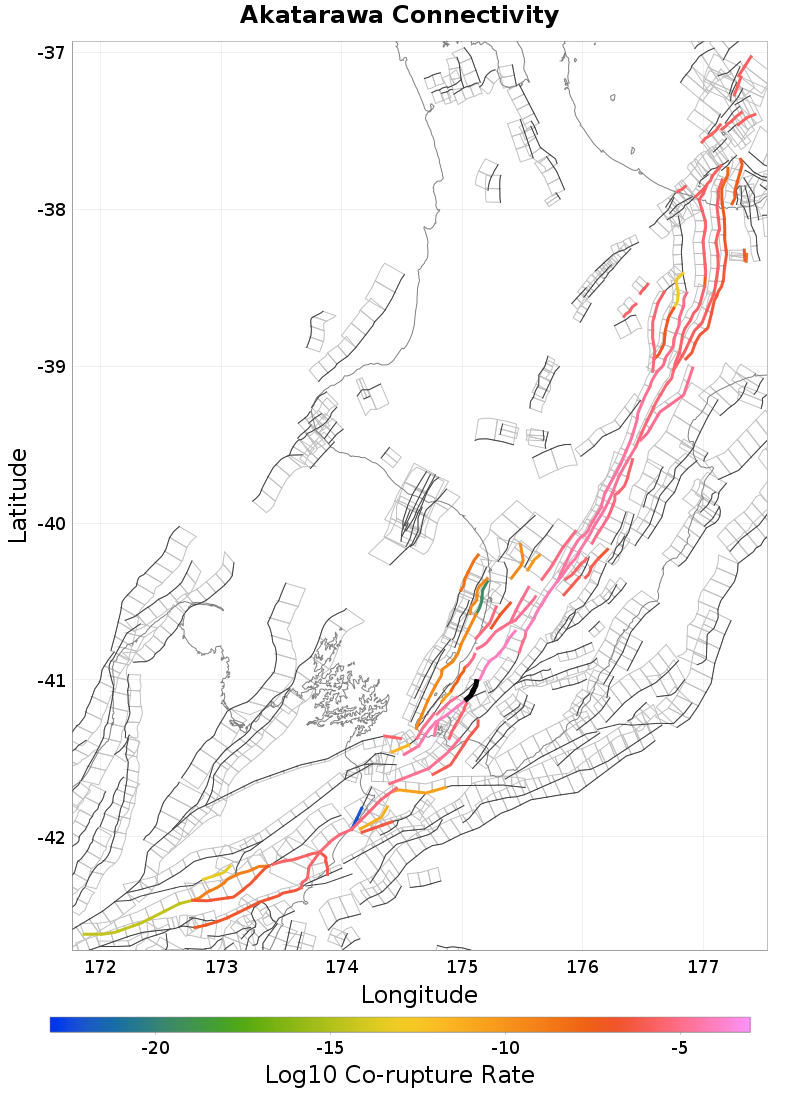

Connectivity

Nearby Sections

Fault Section
Wellington Hutt Valley: 5, 0 km away
Otaki Forks: 1, 0 km away
Moonshine, 0 km away
Wellington Hutt Valley: 4, 0.01 km away
Whitemans Valley, 3.01 km away
Ohariu, 6.24 km away
Wharekauhau, 6.44 km away
Wellington: Tararua 1, 9.17 km away
Pukerua - Shepherds Gully: 3, 10.58 km away
Wellington: Tararua 2, 10.96 km away
Wairarapa: 1, 12.63 km away
Wairarapa: 2, 12.78 km away

Wellington Hutt Valley: 5, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaki Forks: 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	true
Co-rupture Count	8,438
Co-rupture Rate	1.1085751E-4

Moonshine, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,699
Co-rupture Rate	1.5025163E-5

Wellington Hutt Valley: 4, 0.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	true
Co-rupture Count	3,000
Co-rupture Rate	8.9735986E-5

Whitemans Valley, 3.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	true
Co-rupture Count	2,181
Co-rupture Rate	2.8737616E-6

Ohariu, 6.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	false
Co-rupture Count	1,251
Co-rupture Rate	1.9407611E-5

Wharekauhau, 6.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	false
Co-rupture Count	894
Co-rupture Rate	1.7195596E-6

Wellington: Tararua 1, 9.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pukerua - Shepherds Gully: 3, 10.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wellington: Tararua 2, 10.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wairarapa: 1, 12.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	true
Directly Connected?	false
Co-rupture Count	100
Co-rupture Rate	1.3582969E-5

Wairarapa: 2, 12.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNDYuMFlCV3hW
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
