Cluden Details

Property	Value
Rupture Count	1,725
Ruptures Above Sect Min Mag	1,723
Ruptures w/ Nonzero Rates	202
Magnitude Range	[6.84, 8.28]
Length Range	[17, 373] km
Total Rate	2.4925484E-5 /yr
Multi-Fault Rate	2.3581028E-5 /yr (94.61%)
Directly-Connected Faults	5
All Co-Rupturing Faults	47

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

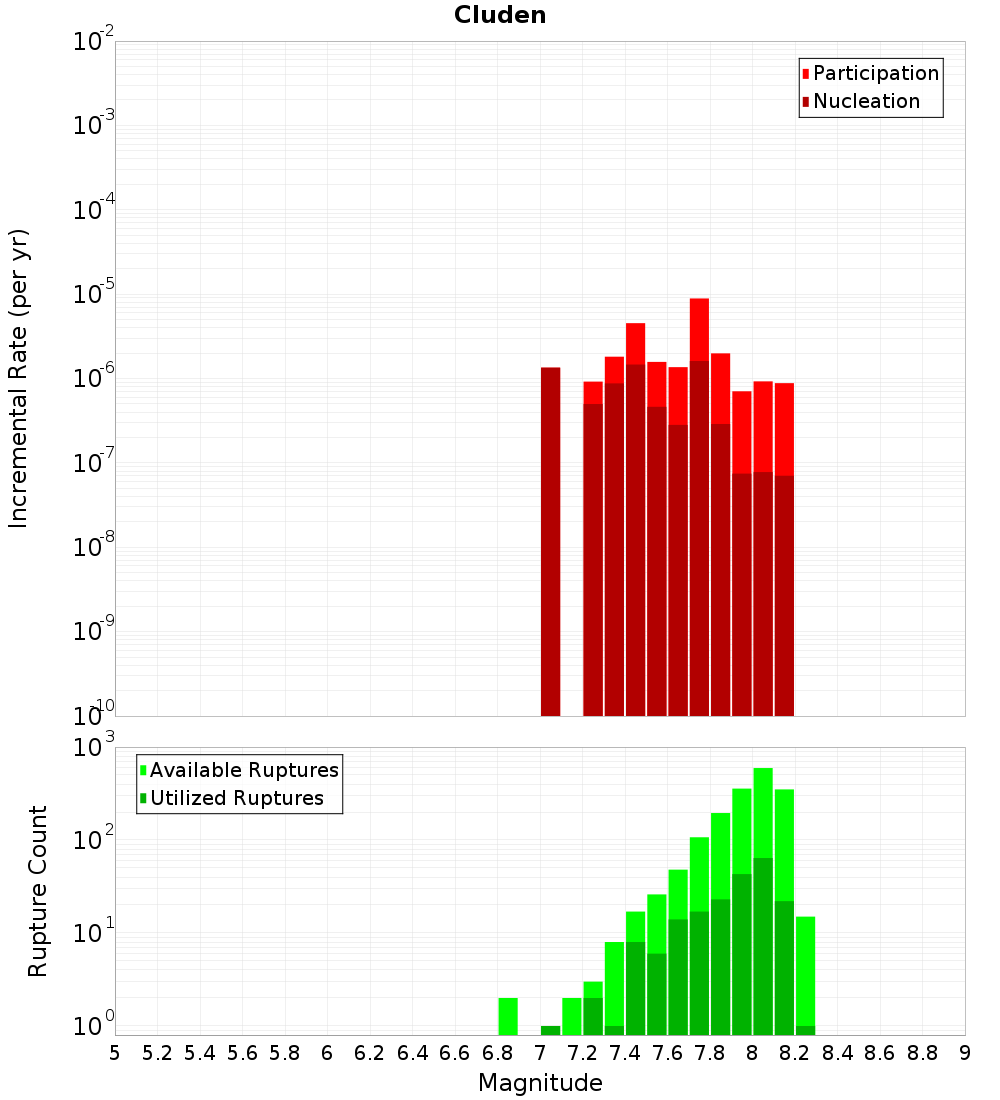

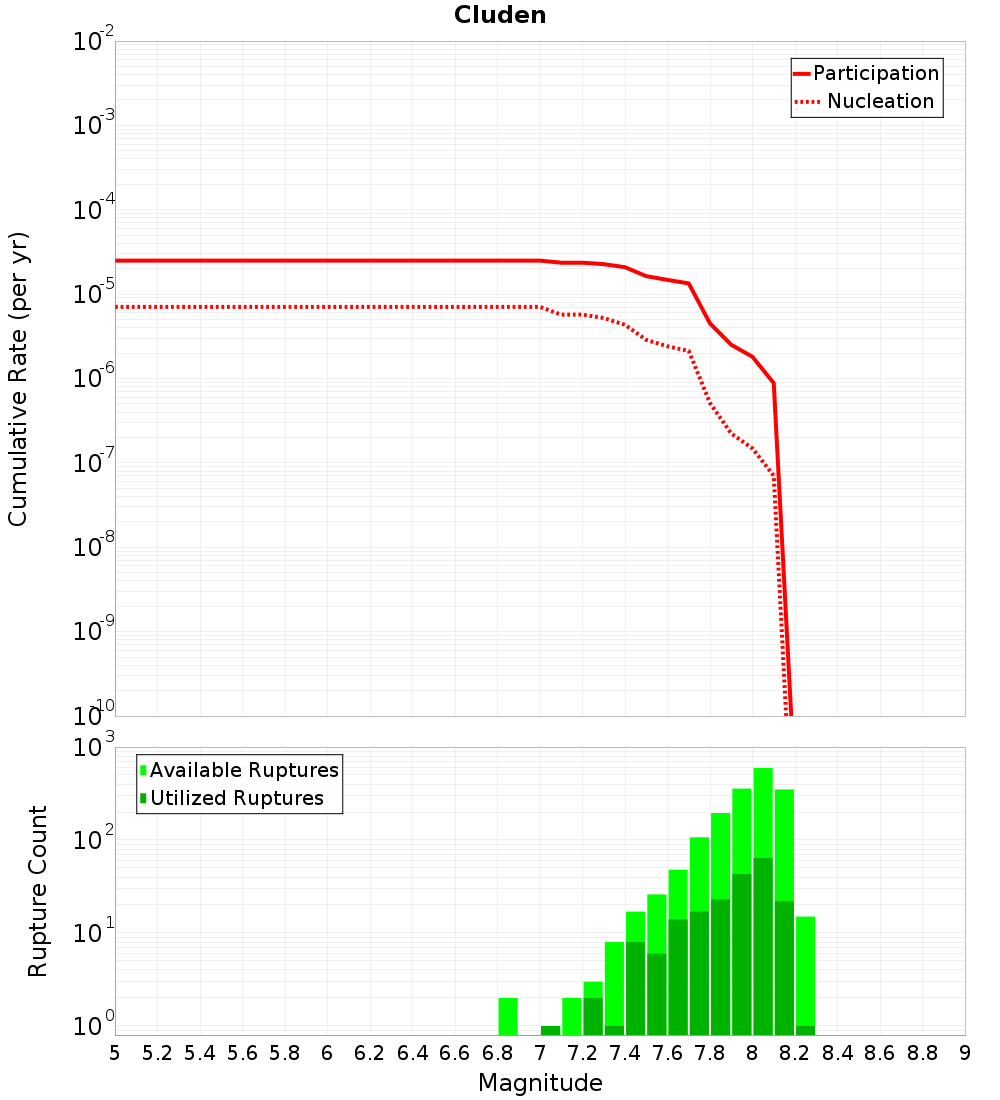

Magnitude-Frequency Distribution

Incremental	Cumulative

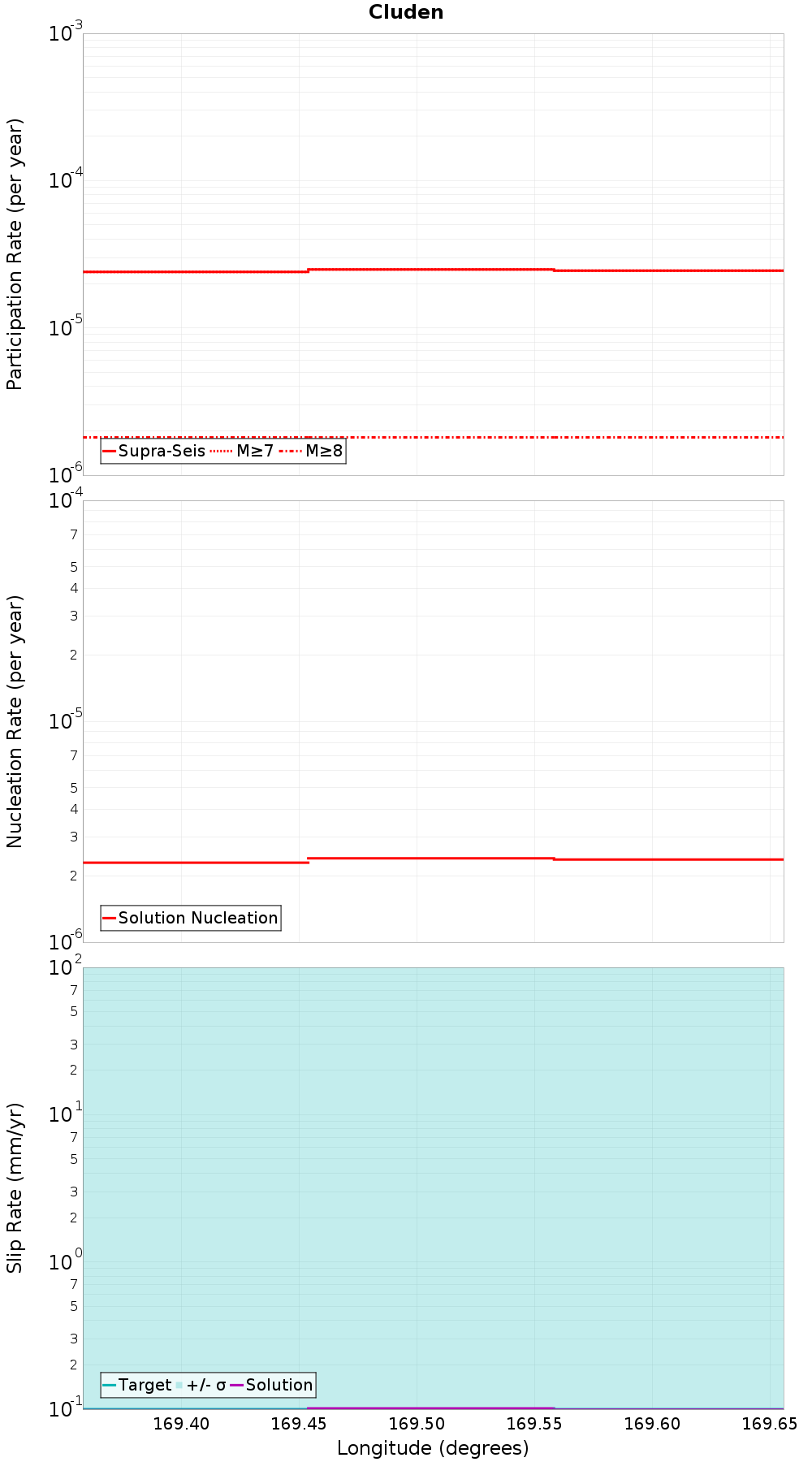

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Lindis River, 0.14 km away
Grandview, 0.17 km away
Goodger, 0.21 km away
Dromedary, 1.29 km away
Pisa, 1.98 km away
Dunstan, 3.6 km away
Paddys Ridge, 5.99 km away
Blue Lake, 7.31 km away
Motatapu, 8.83 km away
Wanaka, 12.39 km away
Omarama Saddle, 13.48 km away

Lindis River, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	true
Co-rupture Count	303
Co-rupture Rate	9.176096E-7

Grandview, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Goodger, 0.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dromedary, 1.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	true
Co-rupture Count	648
Co-rupture Rate	1.0877471E-5

Pisa, 1.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	true
Co-rupture Count	1,490
Co-rupture Rate	4.4721996E-6

Dunstan, 3.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	true
Co-rupture Count	126
Co-rupture Rate	5.3802846E-6

Paddys Ridge, 5.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	true
Co-rupture Count	356
Co-rupture Rate	1.040493E-5

Blue Lake, 7.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motatapu, 8.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	8.6720814E-7

Wanaka, 12.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	false
Co-rupture Count	64
Co-rupture Rate	9.710707E-9

Omarama Saddle, 13.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTcuMFZpb1R1
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	3.576183E-7
