Mossburn Details
| Property | Value |
|---|---|
| Rupture Count | 505 |
| Ruptures Above Sect Min Mag | 505 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [7.14, 8.53] |
| Length Range | [26, 841] km |
| Total Rate | 2.2238544E-4 /yr |
| Multi-Fault Rate | 1.7401871E-6 /yr (0.78%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

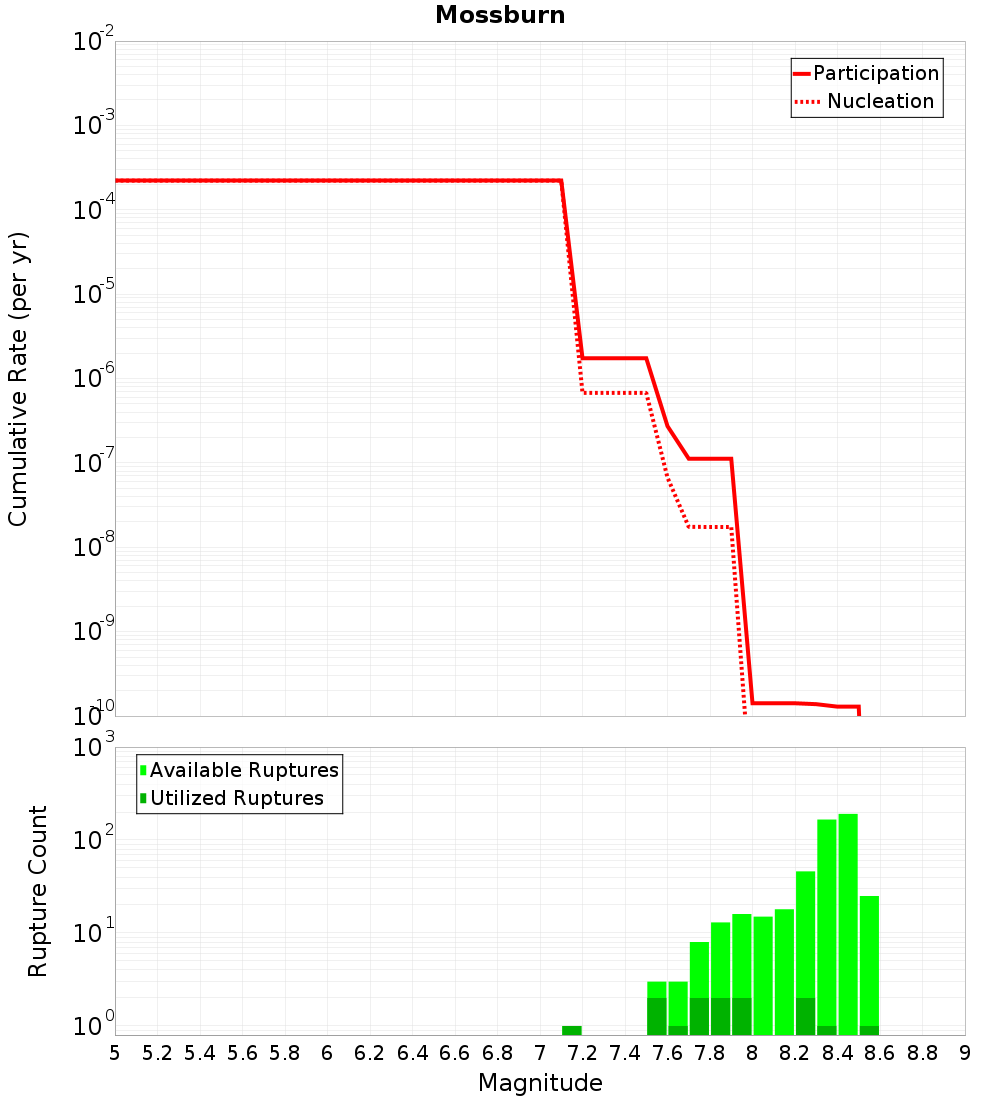

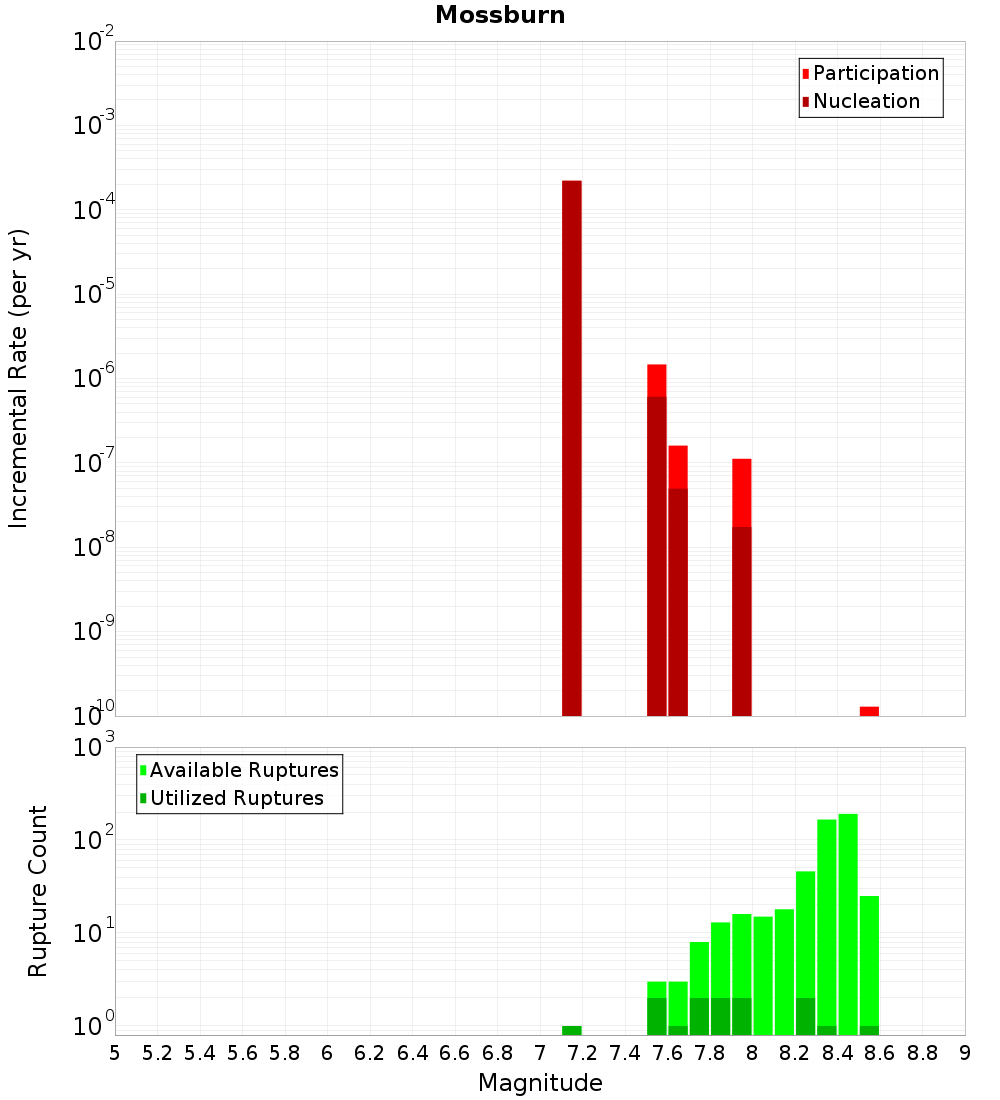

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

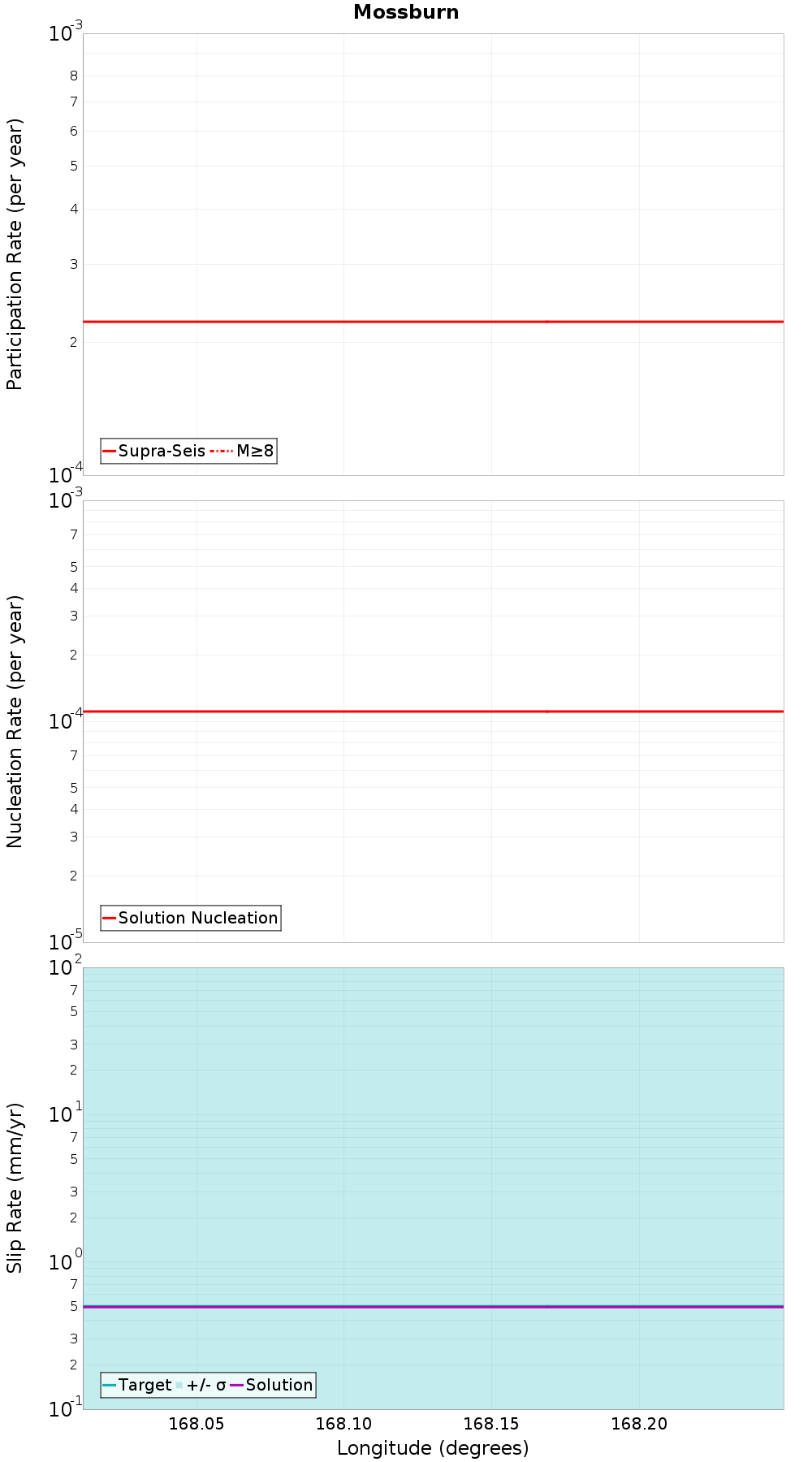

Along-Strike Values
Moment-Rates and b-Values

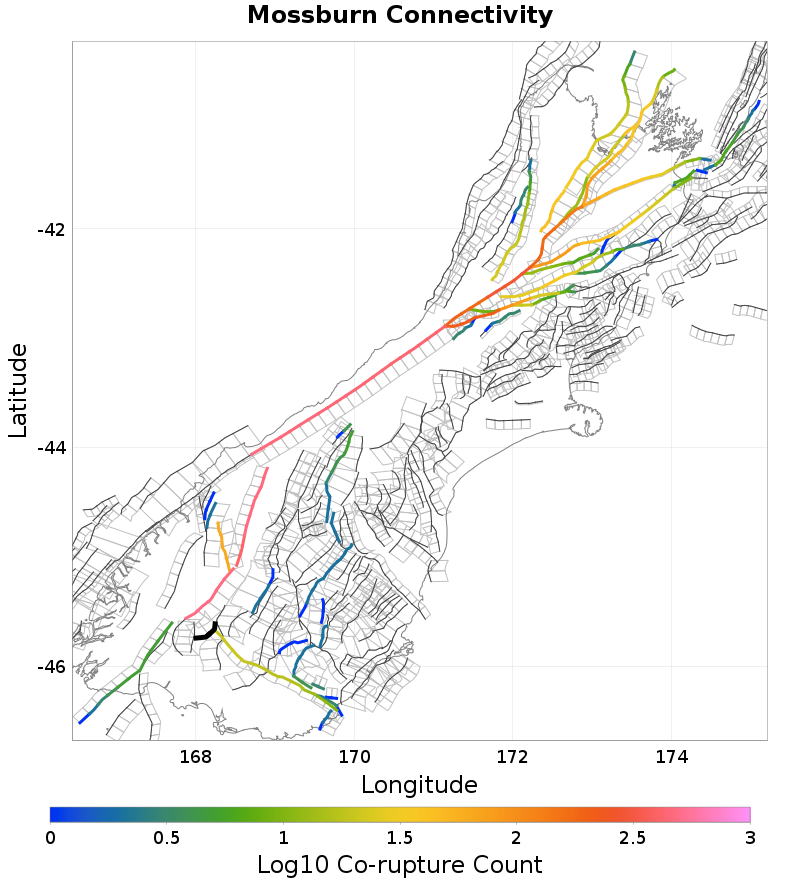

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Moonlight South, 0.15 km away |
| McKerchar, 0.15 km away |
| Hokonui, 1.17 km away |
| Acton, 1.57 km away |
| Tin Hut, 2.3 km away |
| White Hill, 12.23 km away |
| Mid Dome, 14.2 km away |
Moonlight South, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 484 |
| Co-rupture Rate | 3.2340775E-10 |
McKerchar, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hokonui, 1.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.7398637E-6 |
Acton, 1.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tin Hut, 2.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Hill, 12.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mid Dome, 14.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMDZhRWRB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
