Oruawharo - Mangatoro Details

PropertyValue
Rupture Count2,118
Ruptures Above Sect Min Mag2,108
Ruptures w/ Nonzero Rates352
Magnitude Range[6.66, 8.23]
Length Range[16, 500] km
Total Rate6.7140436E-4 /yr
Multi-Fault Rate6.7140436E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults63

Table Of Contents

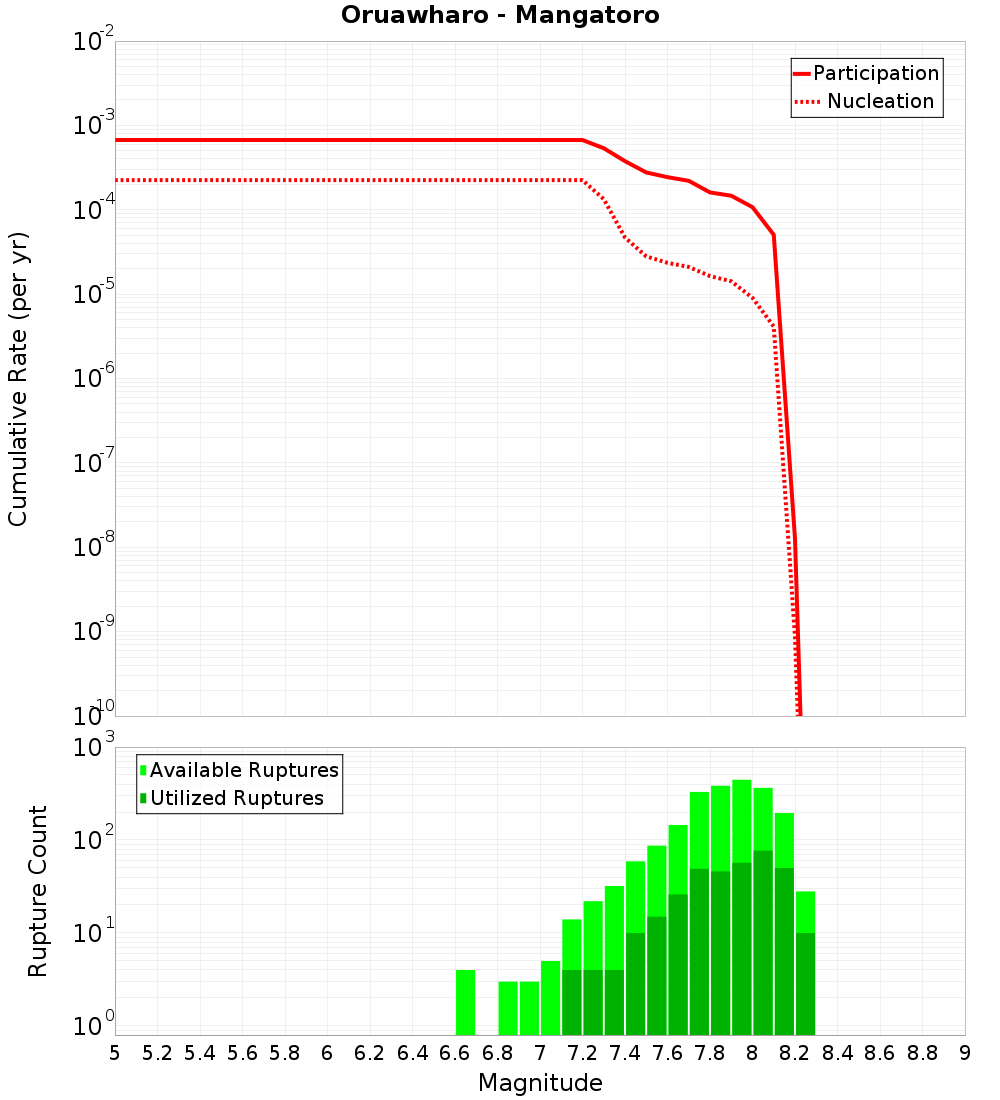

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

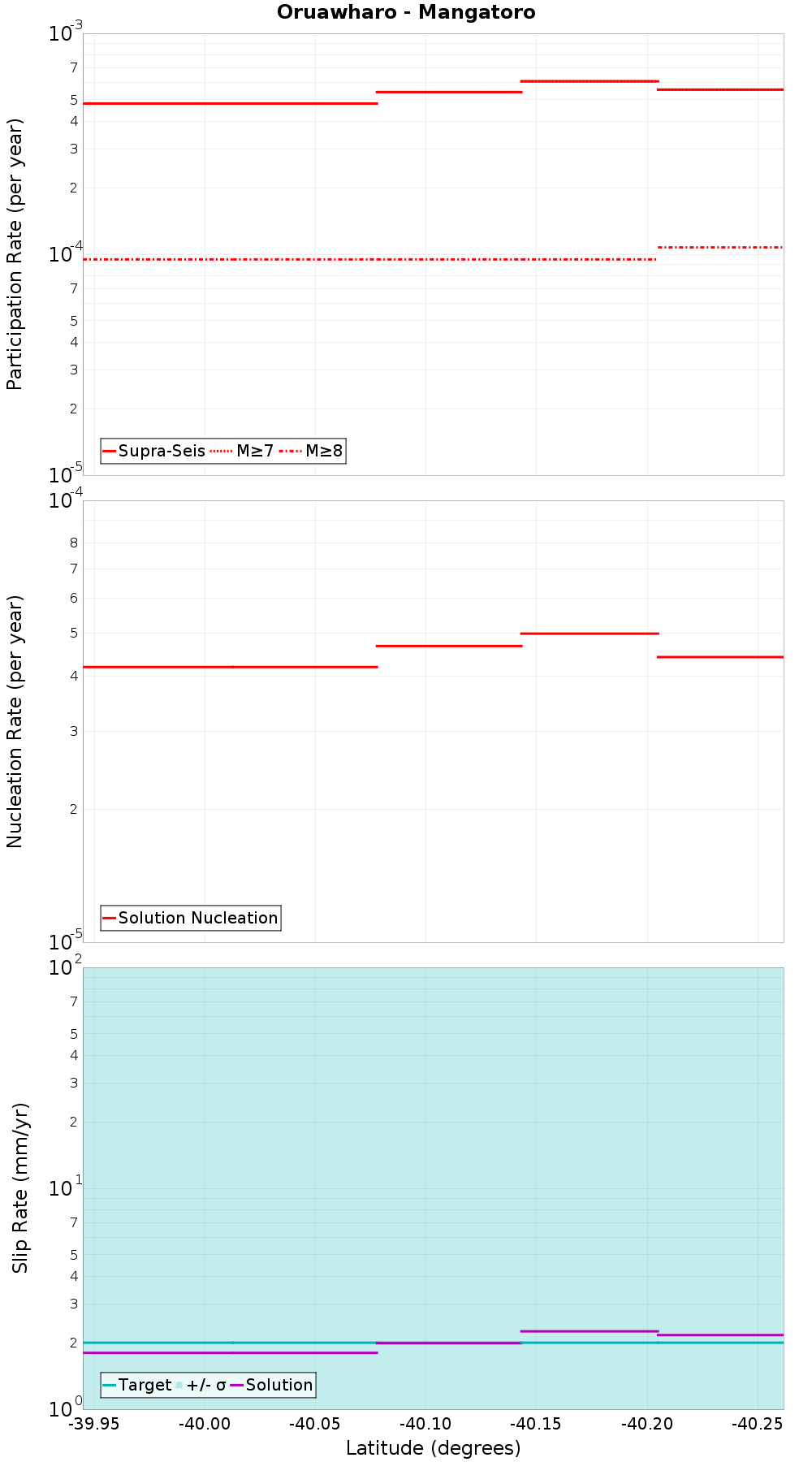

Along-Strike Values

(top)

Along-strike plot

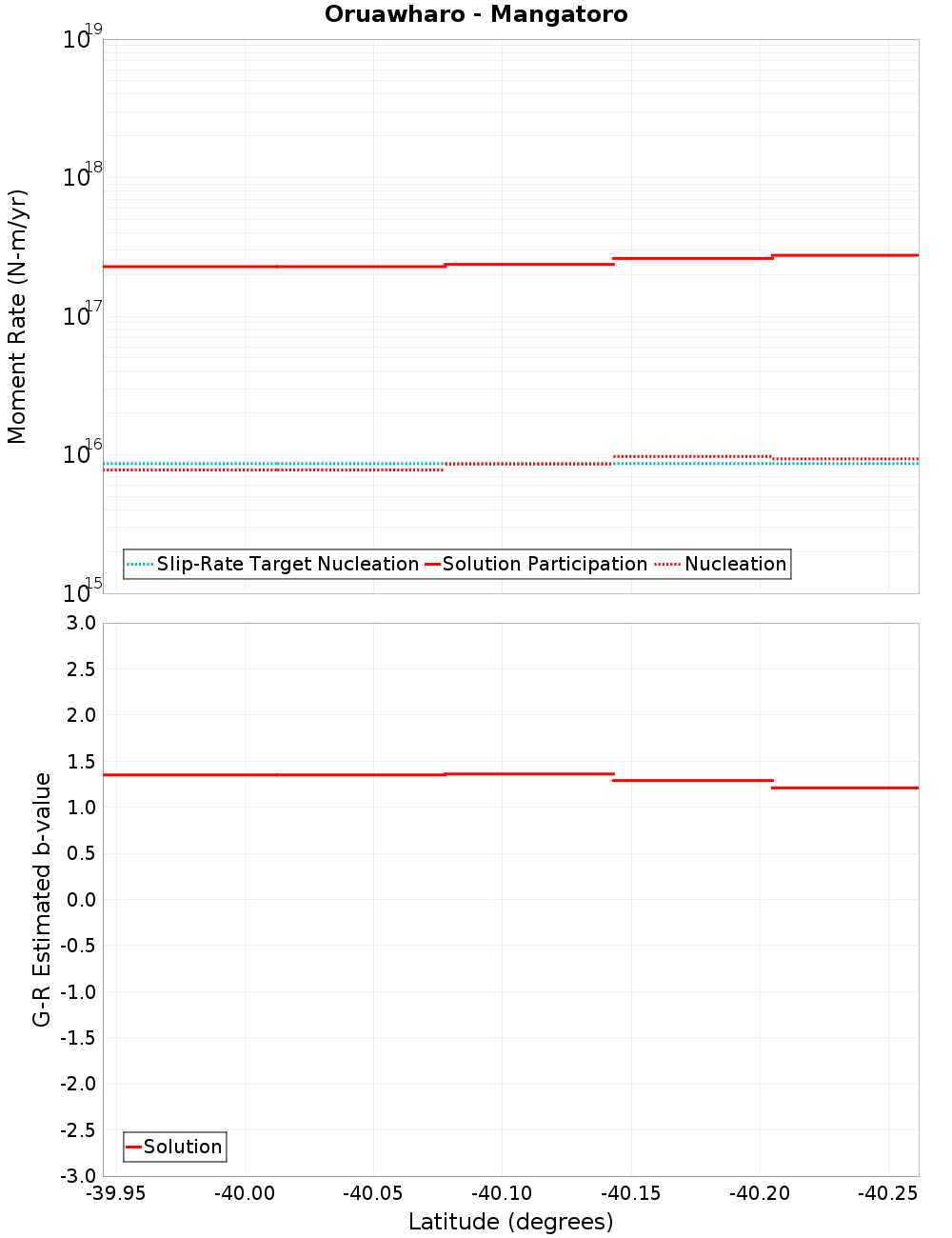

Moment-Rates and b-Values

(top)

Along-strike plot

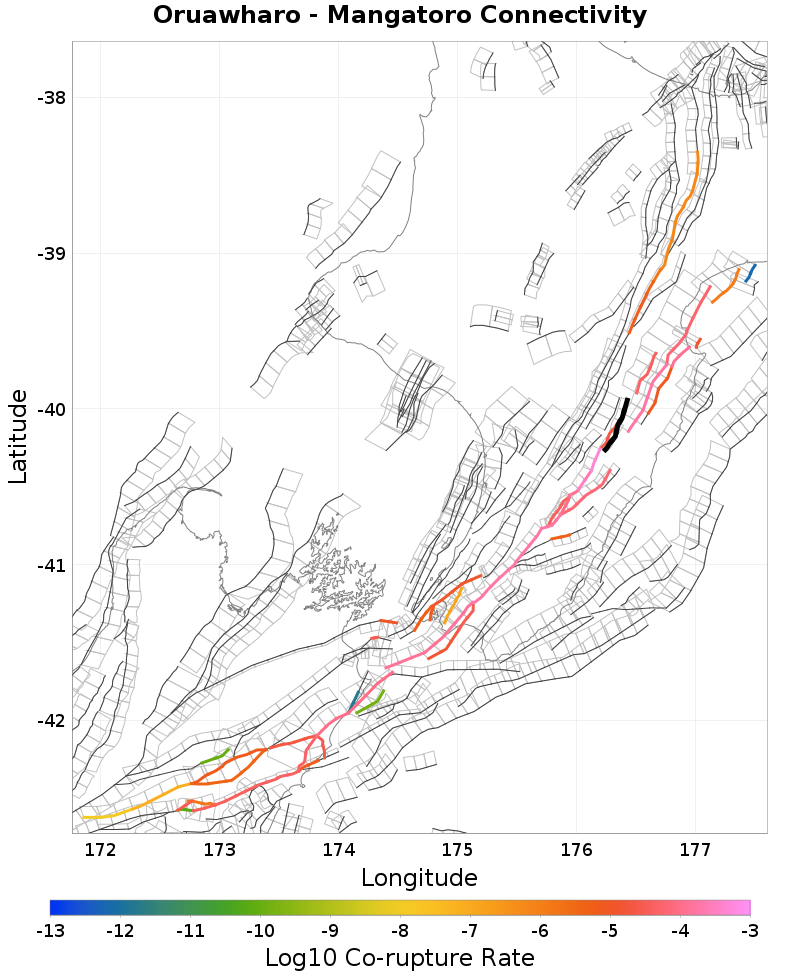

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Clear Hills - Waikopiro, 0.12 km away
Waipukurau - Poukawa, 3.21 km away
Waewaepa, 3.74 km away
Ruataniwha, 5.67 km away
Te Heka, 8.05 km away
Maunga, 8.13 km away
Tukituki Thrust, 9.21 km away
Waipukaka, 12.74 km away
Pongaroa - Weber, 14.66 km away

Clear Hills - Waikopiro, 0.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?true
Co-rupture Count315
Co-rupture Rate2.0388738E-5

Waipukurau - Poukawa, 3.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate1.6976788E-4

Waewaepa, 3.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?true
Co-rupture Count1,116
Co-rupture Rate5.060441E-4

Ruataniwha, 5.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Te Heka, 8.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?true
Co-rupture Count260
Co-rupture Rate4.5942954E-5

Maunga, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tukituki Thrust, 9.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate1.1596201E-4

Waipukaka, 12.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?true
Directly Connected?true
Co-rupture Count661
Co-rupture Rate6.6510765E-5

Pongaroa - Weber, 14.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNTguMHVmYmdS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
