Galloway Details

PropertyValue
Rupture Count2,149
Ruptures Above Sect Min Mag2,149
Ruptures w/ Nonzero Rates309
Magnitude Range[7.08, 8.29]
Length Range[23, 419] km
Total Rate2.6126148E-5 /yr
Multi-Fault Rate2.3382434E-5 /yr (89.50%)
Directly-Connected Faults4
All Co-Rupturing Faults43

Table Of Contents

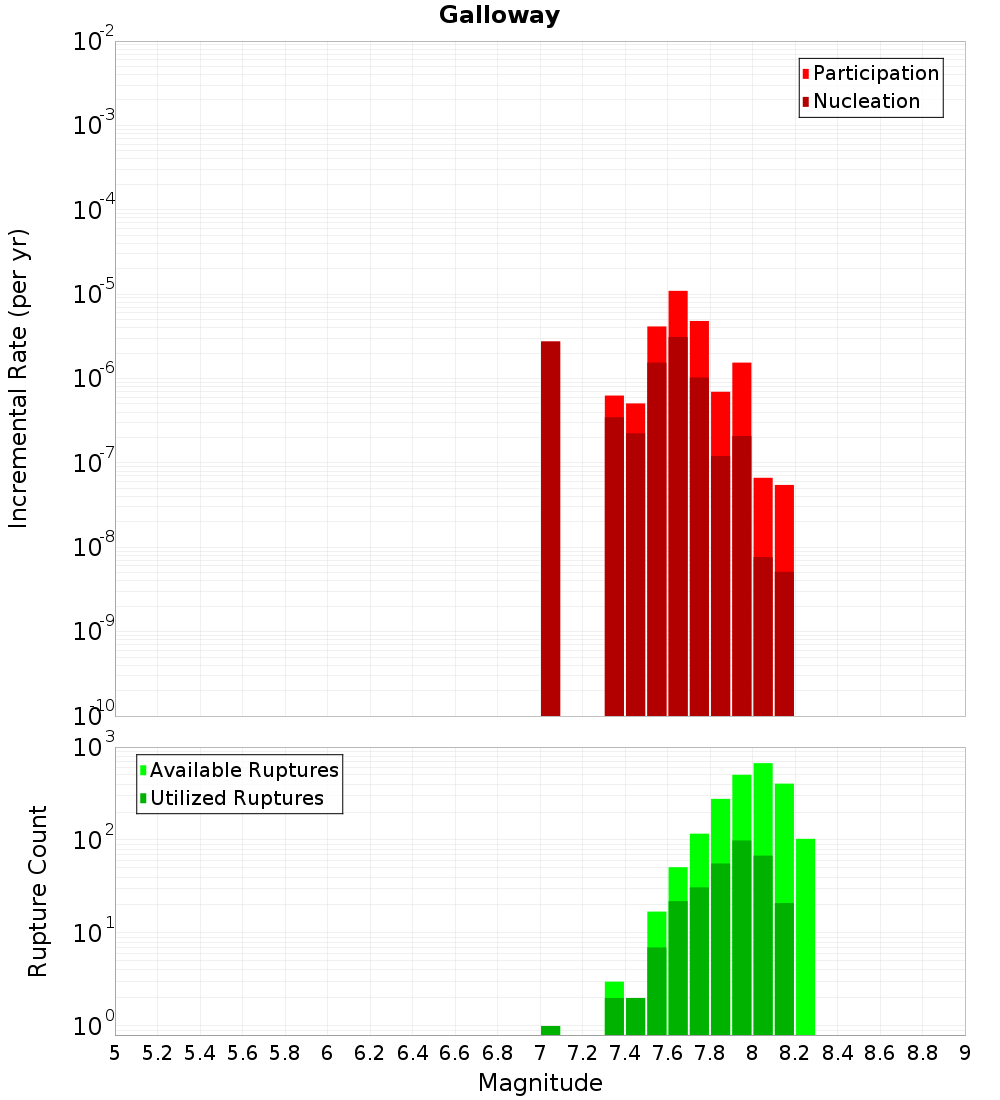

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

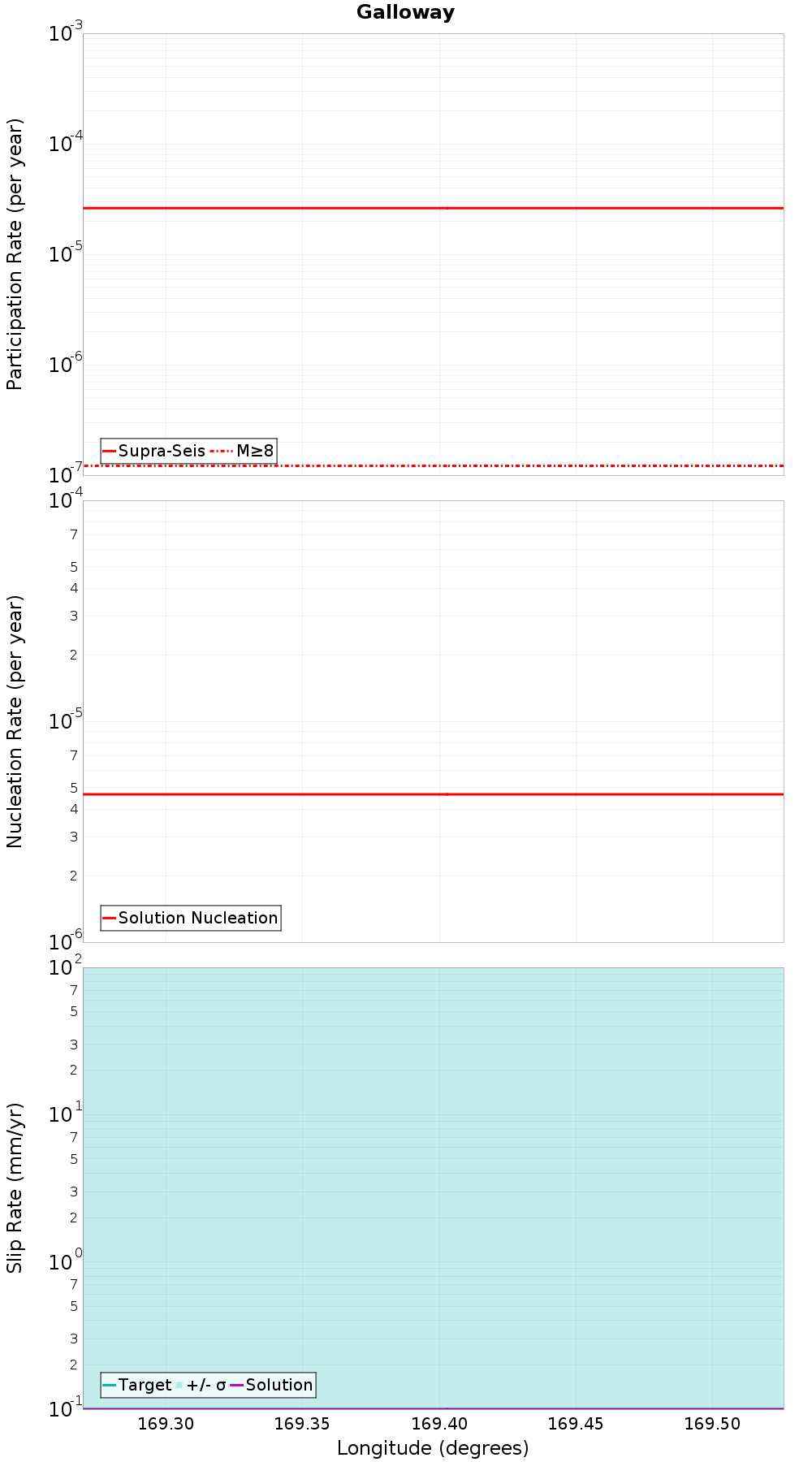

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Lake Onslow, 0.3 km away
Old Man, 0.55 km away
Little Valley, 2.75 km away
Dunstan, 3.61 km away
Gimmerburn, 4.14 km away
Raggedy - Blackstone, 4.8 km away
Waikaia, 6.91 km away
Pisa, 7.93 km away
Garvie, 9.46 km away
Garibaldi, 13.11 km away
Roaring Lion, 13.84 km away
Long Valley, 13.99 km away

Lake Onslow, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?true
Co-rupture Count815
Co-rupture Rate7.53084E-6

Old Man, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?true
Co-rupture Count1,207
Co-rupture Rate1.3189464E-8

Little Valley, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate1.7536571E-7

Dunstan, 3.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate7.11575E-6

Gimmerburn, 4.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?true
Co-rupture Count757
Co-rupture Rate1.1423148E-5

Raggedy - Blackstone, 4.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?true
Co-rupture Count1,345
Co-rupture Rate1.2226139E-5

Waikaia, 6.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count815
Co-rupture Rate1.3152226E-8

Pisa, 7.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 9.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count289
Co-rupture Rate3.4322094E-11

Garibaldi, 13.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count153
Co-rupture Rate1.3057246E-6

Roaring Lion, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Long Valley, 13.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzNjUuME5La2li
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate3.591931E-9
