Campbell Bank Details

Property	Value
Rupture Count	3,358
Ruptures Above Sect Min Mag	3,350
Ruptures w/ Nonzero Rates	340
Magnitude Range	[6.54, 8.18]
Length Range	[12, 495] km
Total Rate	8.379417E-4 /yr
Multi-Fault Rate	8.379417E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	44

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

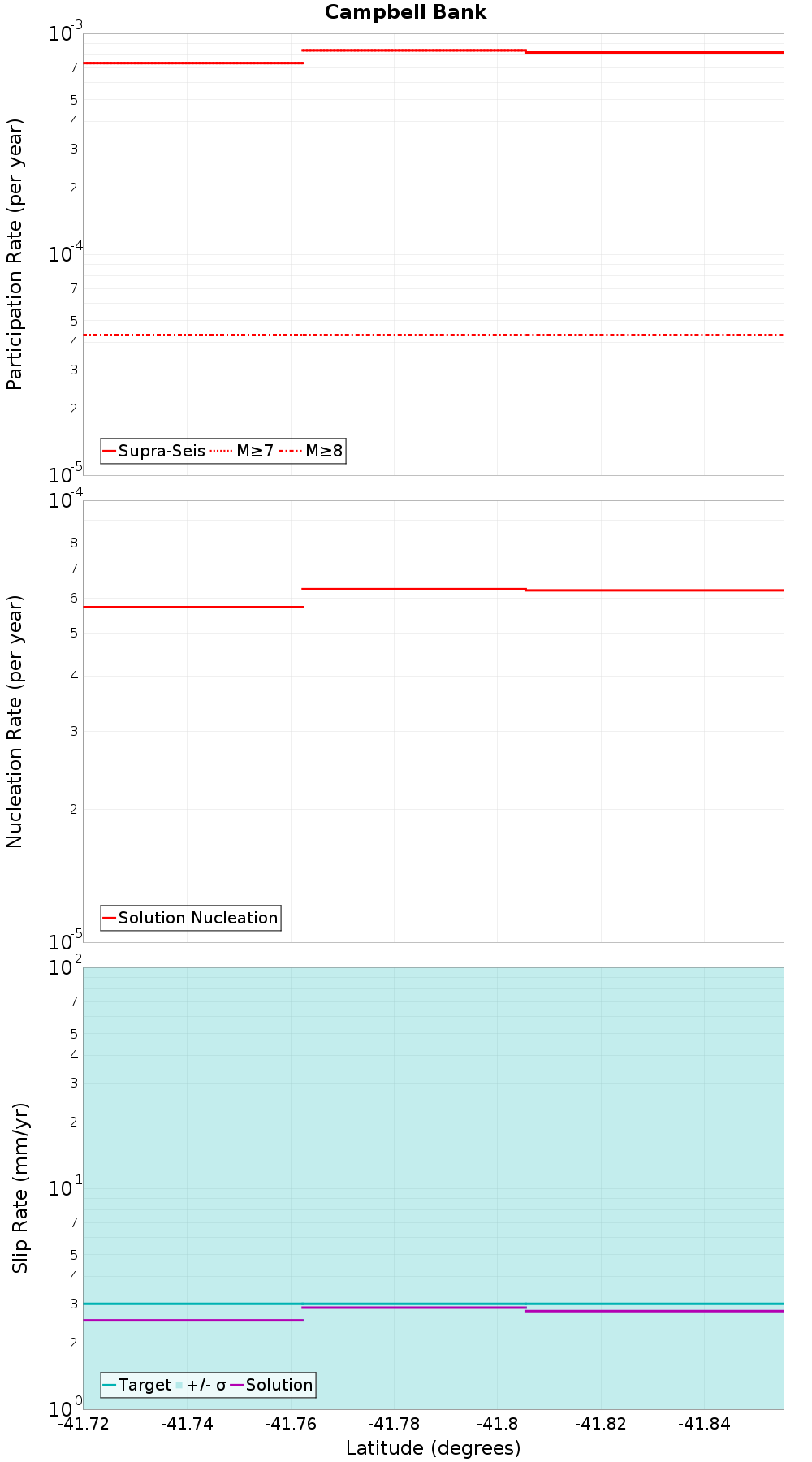

Along-Strike Values

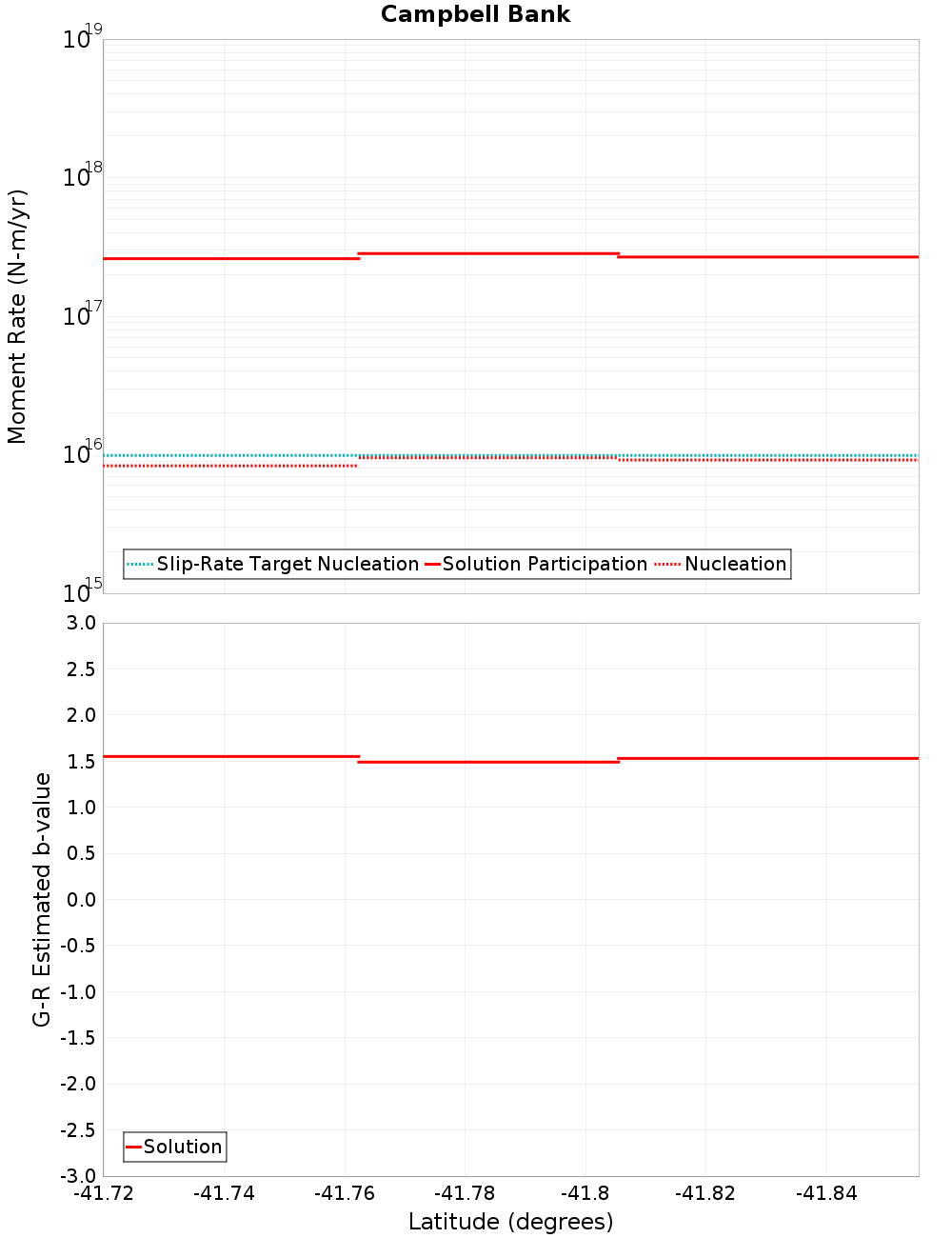

Moment-Rates and b-Values

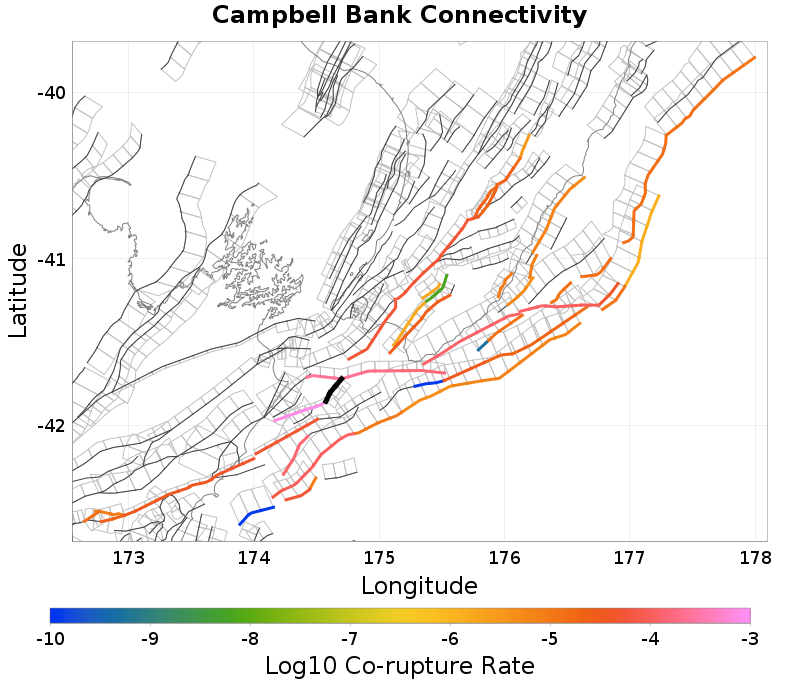

Connectivity

Nearby Sections

Fault Section
Chancet, 0 km away
BooBoo, 0.23 km away
Upper Slope, 0.3 km away
Te Rapa 2, 2.05 km away
Te Rapa 1, 3.64 km away
Kekerengu Bank, 8.08 km away
Wharanui, 9.77 km away
Hope: Te Rapa, 12.5 km away
Opouawe - Uruti, 13.93 km away
Wharekauhau, 13.94 km away

Chancet, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	true
Co-rupture Count	2,048
Co-rupture Rate	8.193214E-4

BooBoo, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	true
Co-rupture Count	3,170
Co-rupture Rate	2.4581392E-4

Upper Slope, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	157
Co-rupture Rate	1.3215047E-4

Te Rapa 2, 2.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Rapa 1, 3.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Kekerengu Bank, 8.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	true
Co-rupture Count	1,020
Co-rupture Rate	1.1270895E-4

Wharanui, 9.77 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hope: Te Rapa, 12.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,077
Co-rupture Rate	5.3054566E-5

Opouawe - Uruti, 13.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	1,818
Co-rupture Rate	3.357422E-5

Wharekauhau, 13.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	108
Co-rupture Rate	5.3609412E-5
