London Hill Details

PropertyValue
Rupture Count4,466
Ruptures Above Sect Min Mag4,460
Ruptures w/ Nonzero Rates82
Magnitude Range[6.74, 8.42]
Length Range[16, 732] km
Total Rate1.6342504E-4 /yr
Multi-Fault Rate1.6342504E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults148

Table Of Contents

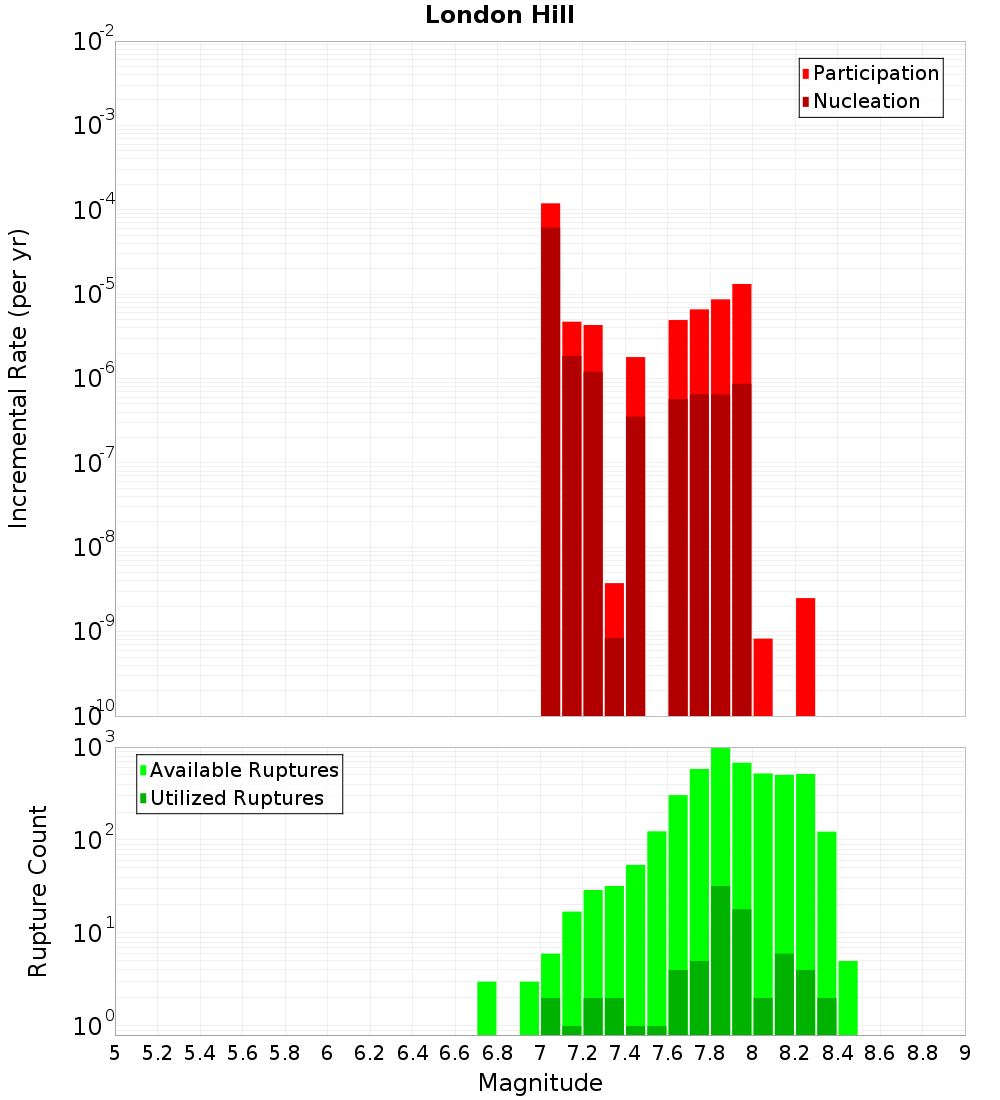

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

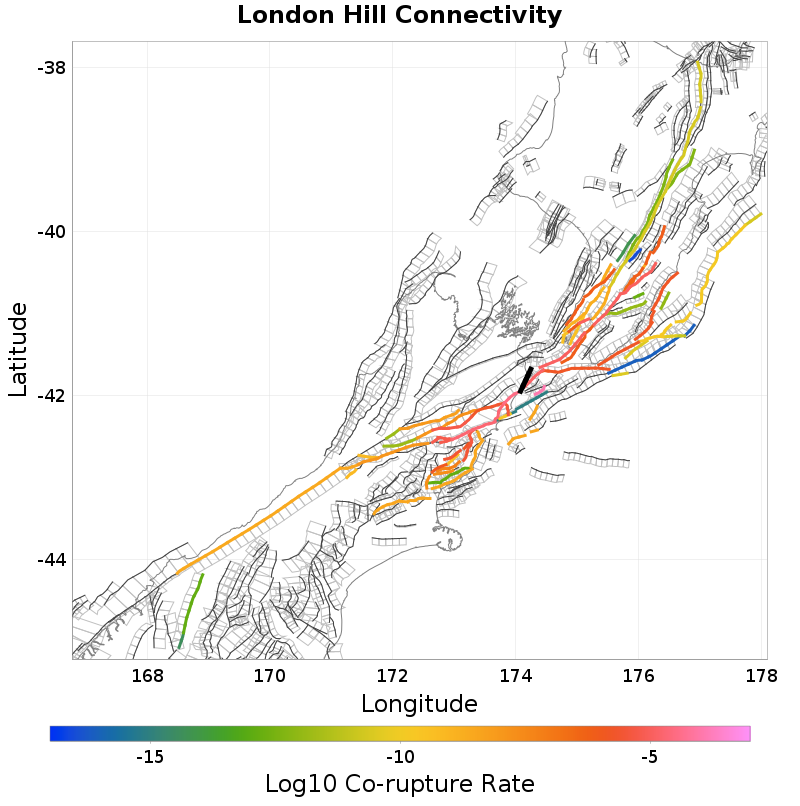

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kekerengu 1, 0 km away
Needles, 0 km away
Chancet, 0.17 km away
Needles East 2, 0.29 km away
Wharanui, 0.49 km away
Upper Slope, 0.69 km away
Hope: Te Rapa, 4.43 km away
BooBoo, 7.46 km away
Wairarapa: Needles, 9.47 km away
Clarence: Northeast, 10.86 km away
Vernon 4, 10.91 km away
Awatere: Northeast 2, 14.08 km away

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count814
Co-rupture Rate3.3329652E-5

Needles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count3,448
Co-rupture Rate1.3189973E-5

Chancet, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count8
Co-rupture Rate0.0

Needles East 2, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count121
Co-rupture Rate0.0

Wharanui, 0.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count1
Co-rupture Rate1.1690184E-4

Upper Slope, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate3.5621797E-9

Hope: Te Rapa, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?true
Co-rupture Count185
Co-rupture Rate8.536757E-16

BooBoo, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?false
Co-rupture Count1,152
Co-rupture Rate1.6055847E-6

Wairarapa: Needles, 9.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?true
Directly Connected?false
Co-rupture Count2,277
Co-rupture Rate1.1584389E-5

Clarence: Northeast, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 4, 10.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awatere: Northeast 2, 14.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
