Te Whaiti North Details

Property	Value
Rupture Count	14
Ruptures Above Sect Min Mag	14
Ruptures w/ Nonzero Rates	1
Magnitude Range	[8.11, 8.27]
Length Range	[352, 527] km
Total Rate	3.6813583E-11 /yr
Multi-Fault Rate	3.6813583E-11 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	22

Table Of Contents

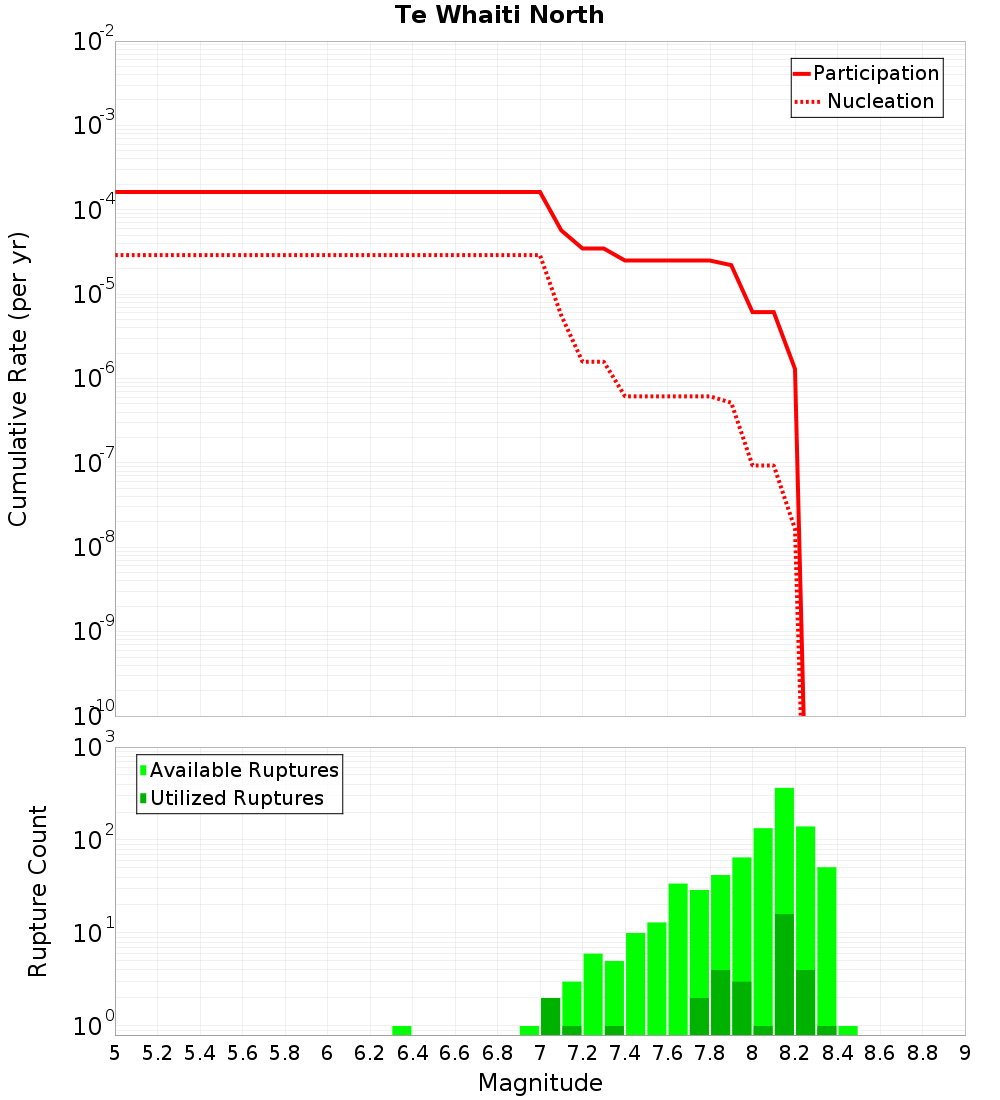

Magnitude-Frequency Distribution

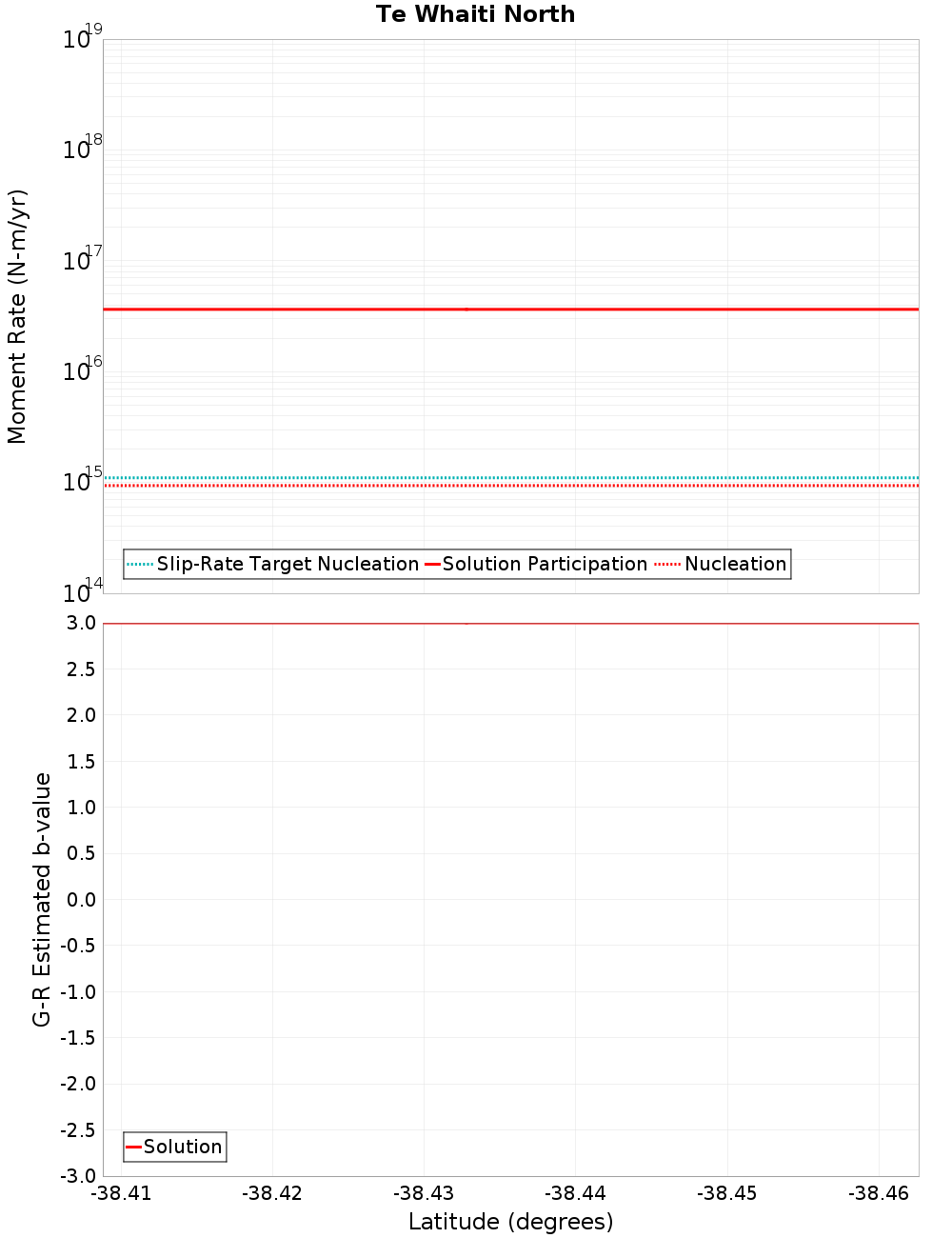

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Te Whaiti South, 0 km away
Wheao: North, 0 km away
Waiohau: North, 0.16 km away
Waiohau: South, 10.36 km away
Wheao: South, 11.11 km away
Whakatane: North, 13.65 km away

Te Whaiti South, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	true
Co-rupture Count	697
Co-rupture Rate	5.405952E-5

Wheao: North, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	63
Co-rupture Rate	0.0

Waiohau: North, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	true
Co-rupture Count	203
Co-rupture Rate	1.0822719E-4

Waiohau: South, 10.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	603
Co-rupture Rate	1.6391408E-5

Wheao: South, 11.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	true
Directly Connected?	false
Co-rupture Count	152
Co-rupture Rate	5.6672457E-6

Whakatane: North, 13.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTQuMDVHUkVV
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
