Honeycomb Details

Property	Value
Rupture Count	5,321
Ruptures Above Sect Min Mag	5,314
Ruptures w/ Nonzero Rates	237
Magnitude Range	[6.75, 8.16]
Length Range	[19, 450] km
Total Rate	3.4680057E-4 /yr
Multi-Fault Rate	3.3349748E-4 /yr (96.16%)
Directly-Connected Faults	4
All Co-Rupturing Faults	51

Table Of Contents

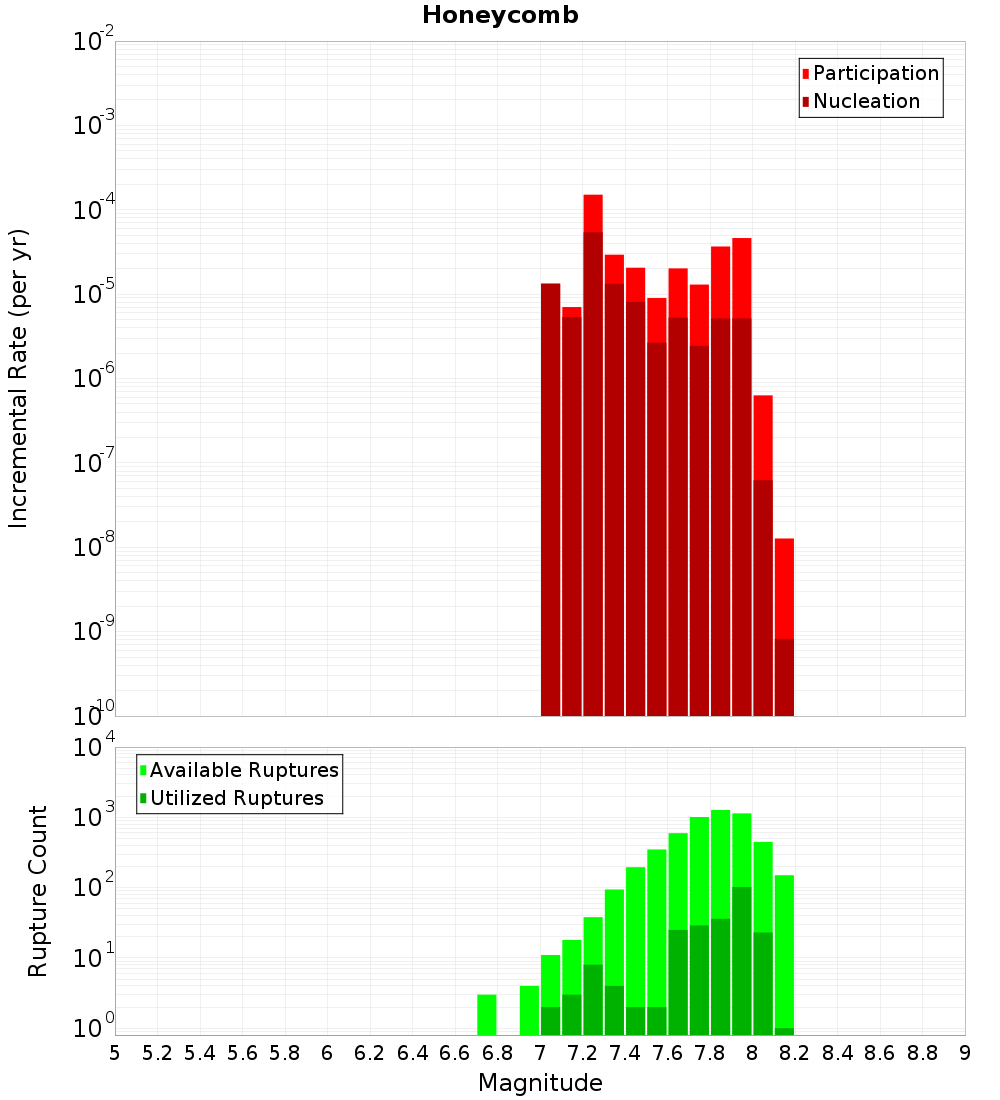

Magnitude-Frequency Distribution

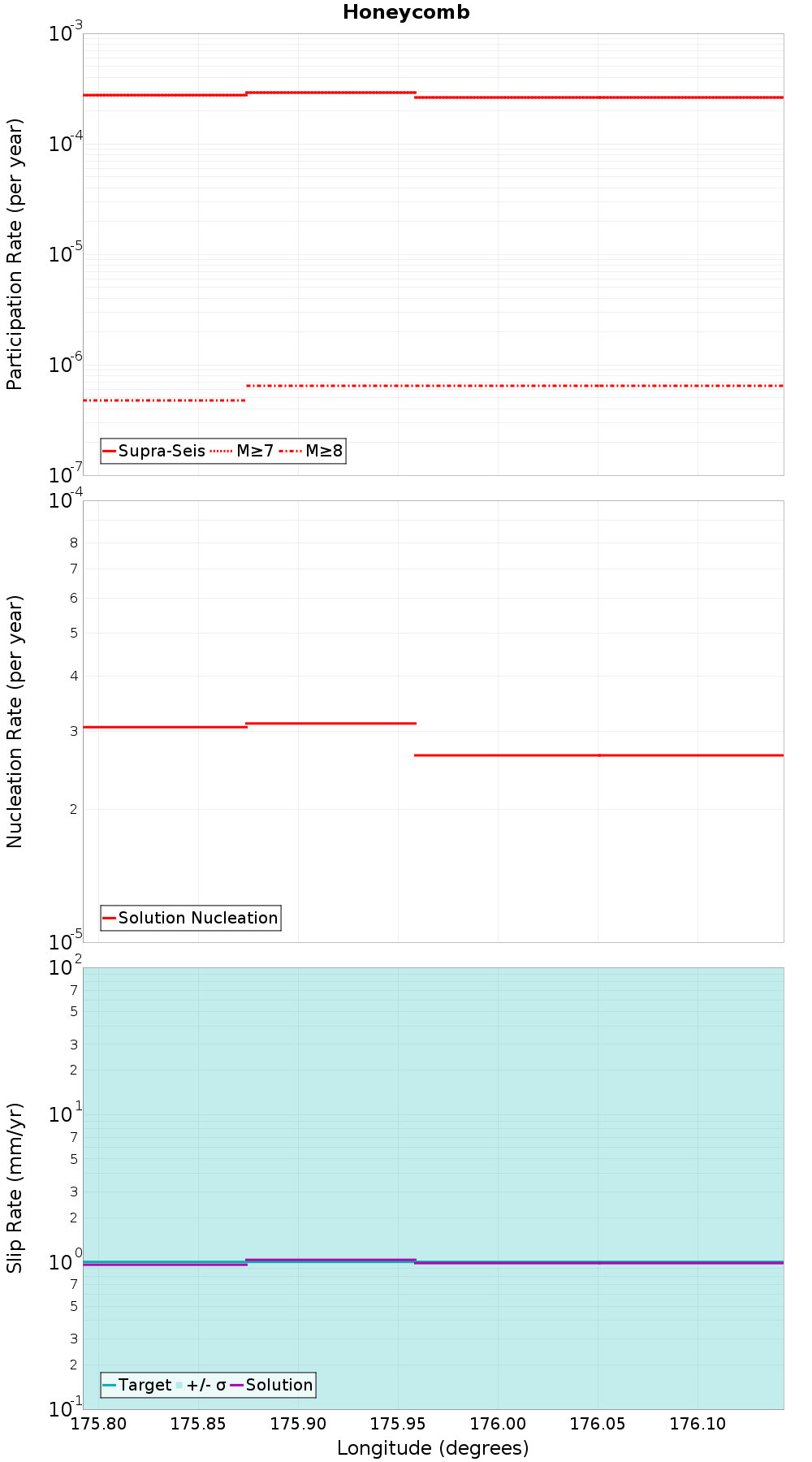

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Basin, 0.57 km away
Palliser - Kaiwhata, 1.22 km away
Opouawe - Uruti, 5.87 km away
Riversdale, 6.88 km away
Whareama Bank, 8.19 km away
Uruti Point, 9.04 km away
Pahaua, 13.47 km away

Uruti Basin, 0.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	true
Co-rupture Count	3,976
Co-rupture Rate	2.3649343E-4

Palliser - Kaiwhata, 1.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	true
Co-rupture Count	308
Co-rupture Rate	8.416384E-5

Opouawe - Uruti, 5.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,971
Co-rupture Rate	1.49092375E-5

Riversdale, 6.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	1.3375508E-4

Whareama Bank, 8.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Uruti Point, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pahaua, 13.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTYuMFZpNHc4
Connected?	true
Directly Connected?	true
Co-rupture Count	2,416
Co-rupture Rate	8.364537E-5
