Okupe 1 Details

PropertyValue
Rupture Count783
Ruptures Above Sect Min Mag779
Ruptures w/ Nonzero Rates155
Magnitude Range[6.96, 8.01]
Length Range[23, 232] km
Total Rate4.0613528E-4 /yr
Multi-Fault Rate3.8034632E-4 /yr (93.65%)
Directly-Connected Faults6
All Co-Rupturing Faults23

Table Of Contents

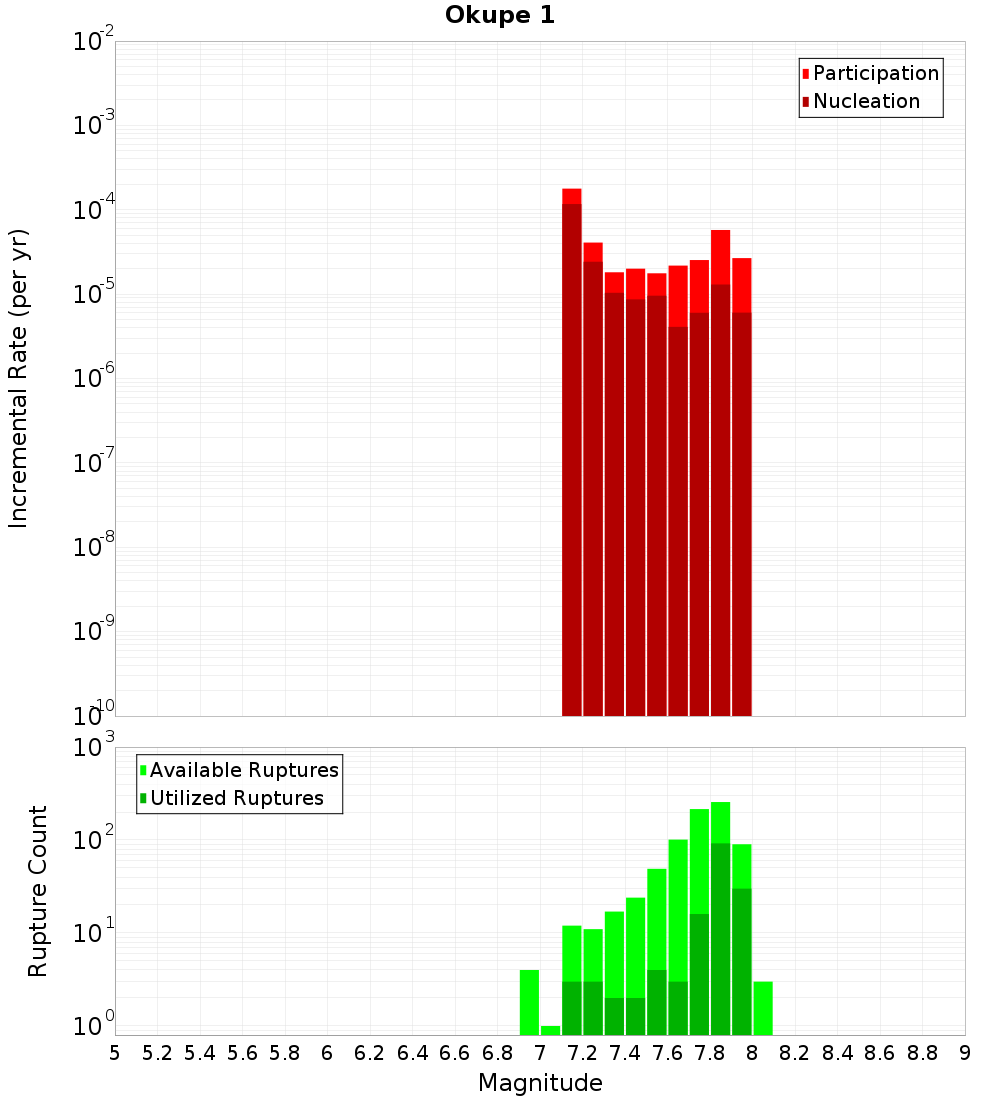

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

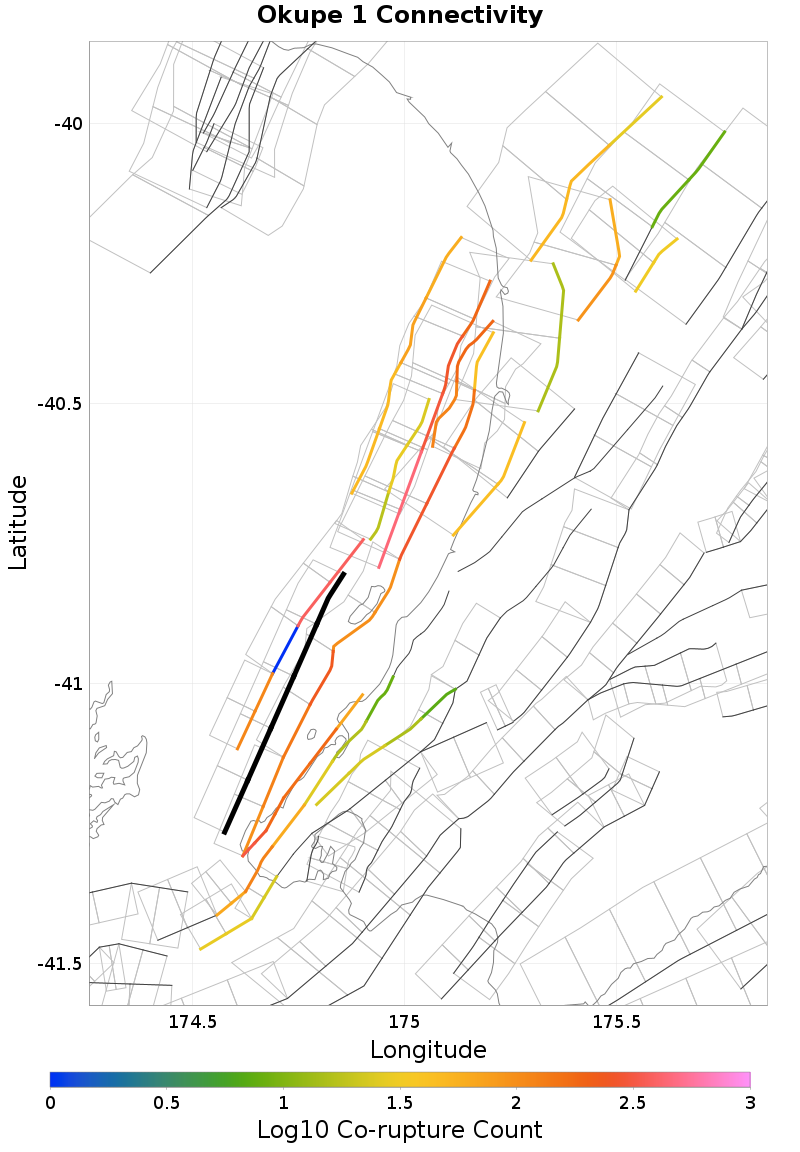

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Fisherman 2, 1.12 km awayFisherman 3, 8.61 km away
Fisherman 1, 3.93 km awayOhariu South 2, 9.01 km away
Shepherds Gully - Mana, 4.43 km awayOhariu, 9.22 km away
Otaheke South, 4.46 km awayOhariu South 1, 9.4 km away
Onepoto, 4.91 km awayWellington Hutt Valley: 2, 13.33 km away
Pukerua - Shepherds Gully: 1, 5.82 km awayWellington Hutt Valley: 3, 13.49 km away
Pukerua - Shepherds Gully: 2, 7.34 km awayWairau 3, 13.94 km away
Pukerua - Shepherds Gully: 3, 7.9 km awayWellington Hutt Valley: 1, 14.1 km away
Otaheke North, 8 km awayMoonshine, 14.37 km away

Fisherman 2, 1.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count378
Co-rupture Rate8.183073E-5

Fisherman 1, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count113
Co-rupture Rate2.5849344E-4

Shepherds Gully - Mana, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count122
Co-rupture Rate1.46697985E-5

Otaheke South, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count235
Co-rupture Rate3.2857497E-5

Onepoto, 4.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count476
Co-rupture Rate6.515231E-5

Pukerua - Shepherds Gully: 1, 5.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count316
Co-rupture Rate1.2499675E-4

Pukerua - Shepherds Gully: 2, 7.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count177
Co-rupture Rate6.14772E-5

Pukerua - Shepherds Gully: 3, 7.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate8.7159286E-5

Otaheke North, 8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count266
Co-rupture Rate8.330321E-5

Fisherman 3, 8.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate1.4627359E-5

Ohariu South 2, 9.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count64
Co-rupture Rate1.4430741E-5

Ohariu, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count121
Co-rupture Rate3.8535185E-5

Ohariu South 1, 9.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 13.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 13.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 1, 14.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate3.853333E-5

Moonshine, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate0.0
