Waikuku Details

Property	Value
Rupture Count	581
Ruptures Above Sect Min Mag	568
Ruptures w/ Nonzero Rates	48
Magnitude Range	[6.59, 8.04]
Length Range	[14, 311] km
Total Rate	4.6543835E-5 /yr
Multi-Fault Rate	4.6543835E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

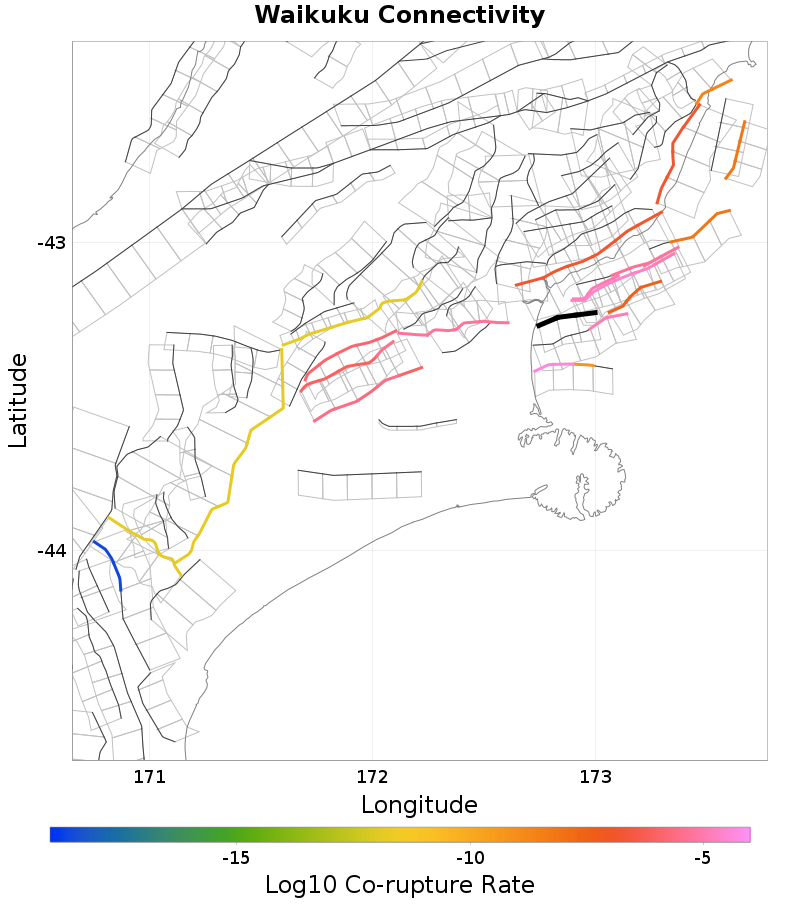

Connectivity

Nearby Sections

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	1.2121521E-5

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	2.7586602E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	96
Co-rupture Rate	1.0889885E-5

North Canterbury Shelf 4, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	3.4374022E-8

Motunau, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	4.0819887E-6

AmberBlyth, 9.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	1.4340746E-7

Starvation - Ashley, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	474
Co-rupture Rate	4.8661627E-6

CenPeg1n2, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	3.9891183E-5

OmihiLwrHuru, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTYzOTguMFZlVVhn
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
