Hawke Bay 5 & 11 Details
| Property | Value |
|---|---|
| Rupture Count | 24 |
| Ruptures Above Sect Min Mag | 23 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.63, 7.66] |
| Length Range | [11, 140] km |
| Total Rate | 1.1806135E-4 /yr |
| Multi-Fault Rate | 1.1806135E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

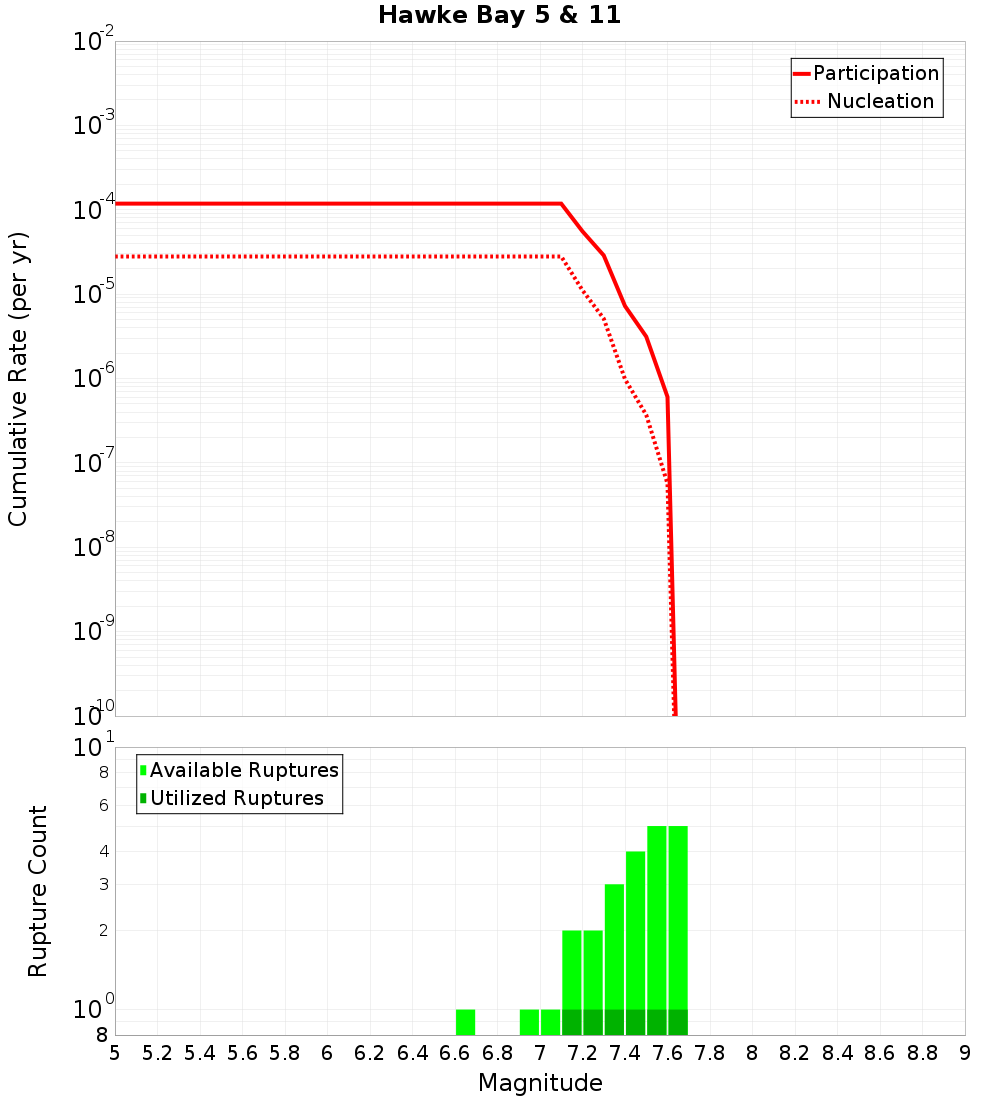

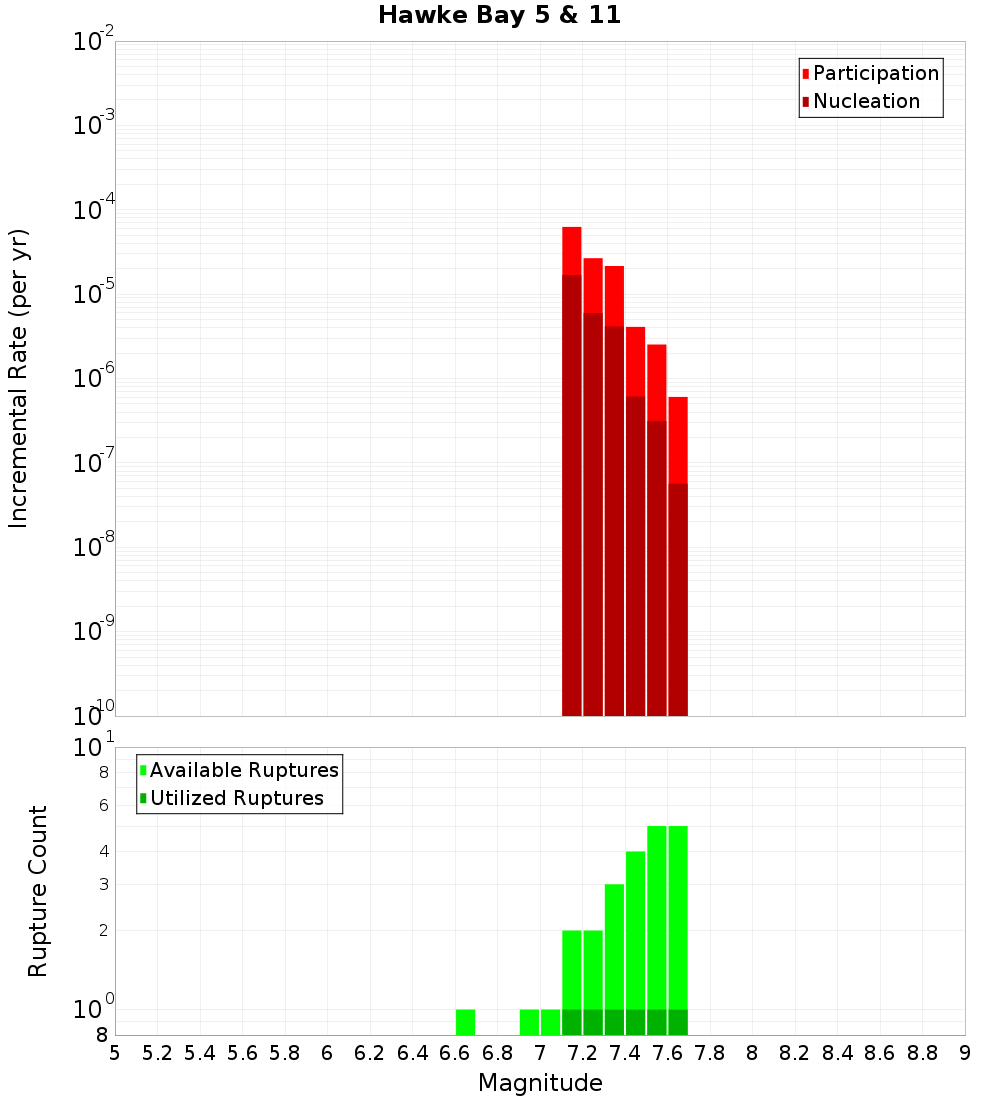

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

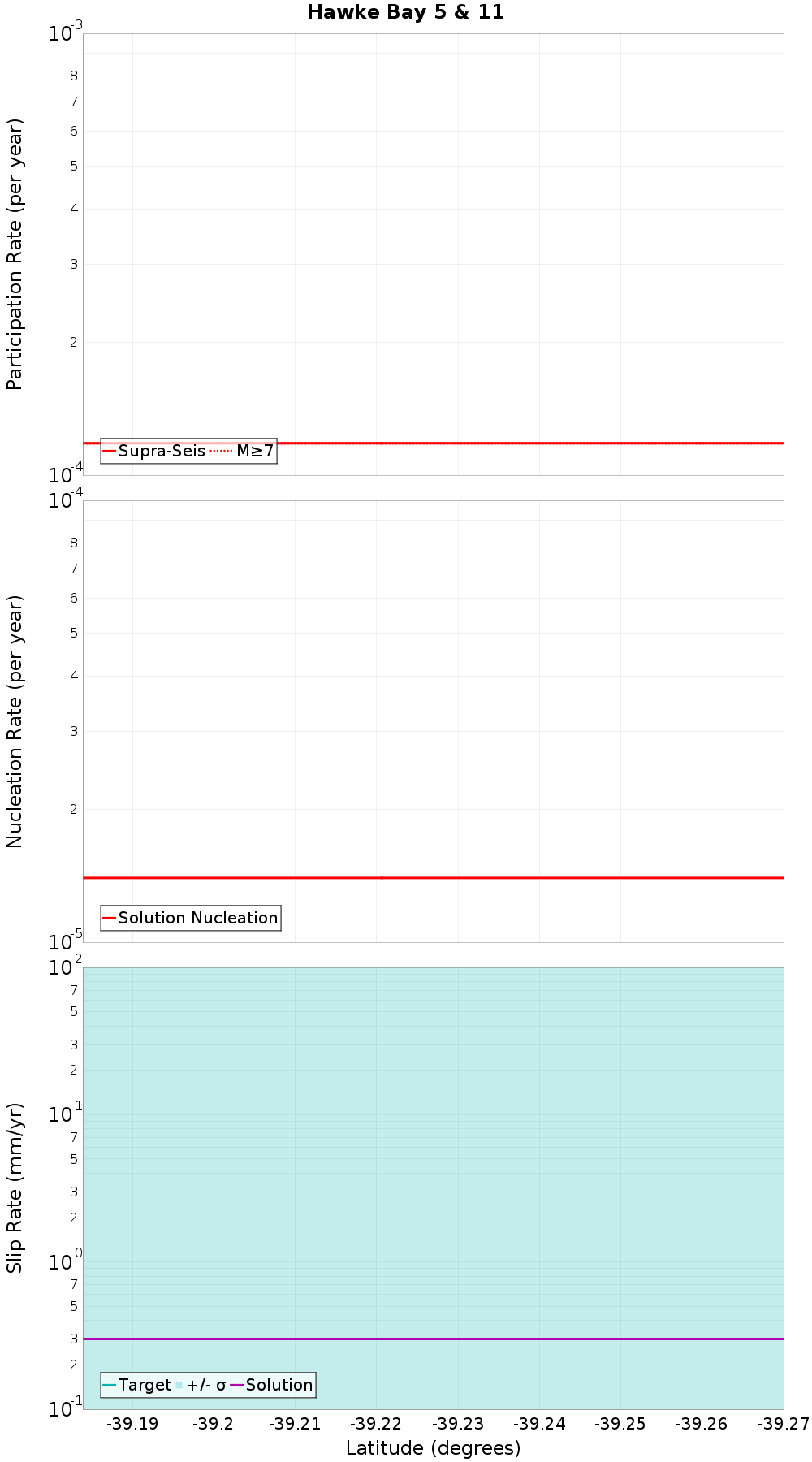

Along-Strike Values
Moment-Rates and b-Values

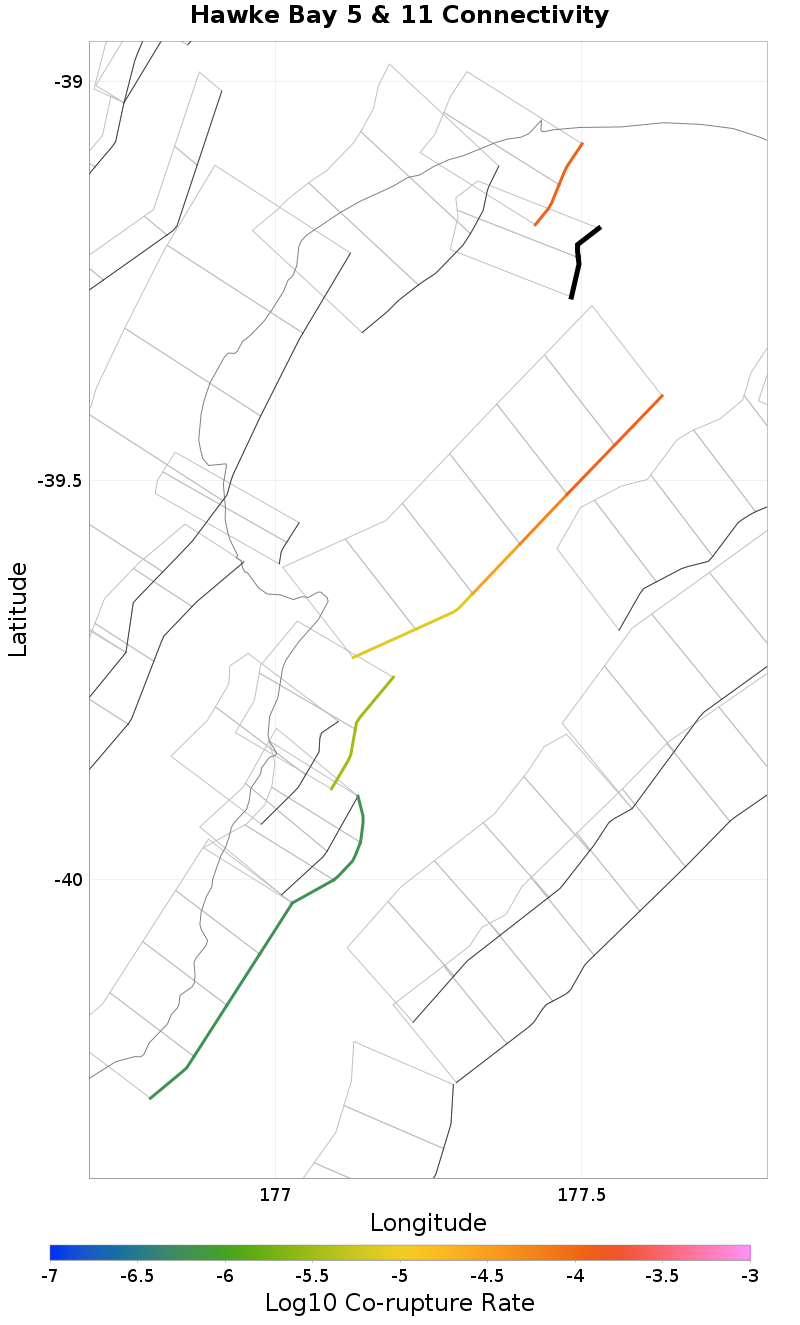

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 4.23 km away |
| Hawke Bay 1, 8.85 km away |
| Kidnappers Ridge, 11.87 km away |
Hawke Bay 4, 4.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NTIuMDM2eXRO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.174564E-4 |
Hawke Bay 1, 8.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NTIuMDM2eXRO | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Kidnappers Ridge, 11.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NTIuMDM2eXRO | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.1806135E-4 |
