Marlborough Slope 4 Details

Property	Value
Rupture Count	944
Ruptures Above Sect Min Mag	941
Ruptures w/ Nonzero Rates	19
Magnitude Range	[6.74, 8.20]
Length Range	[17, 500] km
Total Rate	2.5423622E-4 /yr
Multi-Fault Rate	2.5423622E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	30

Table Of Contents

Magnitude-Frequency Distribution

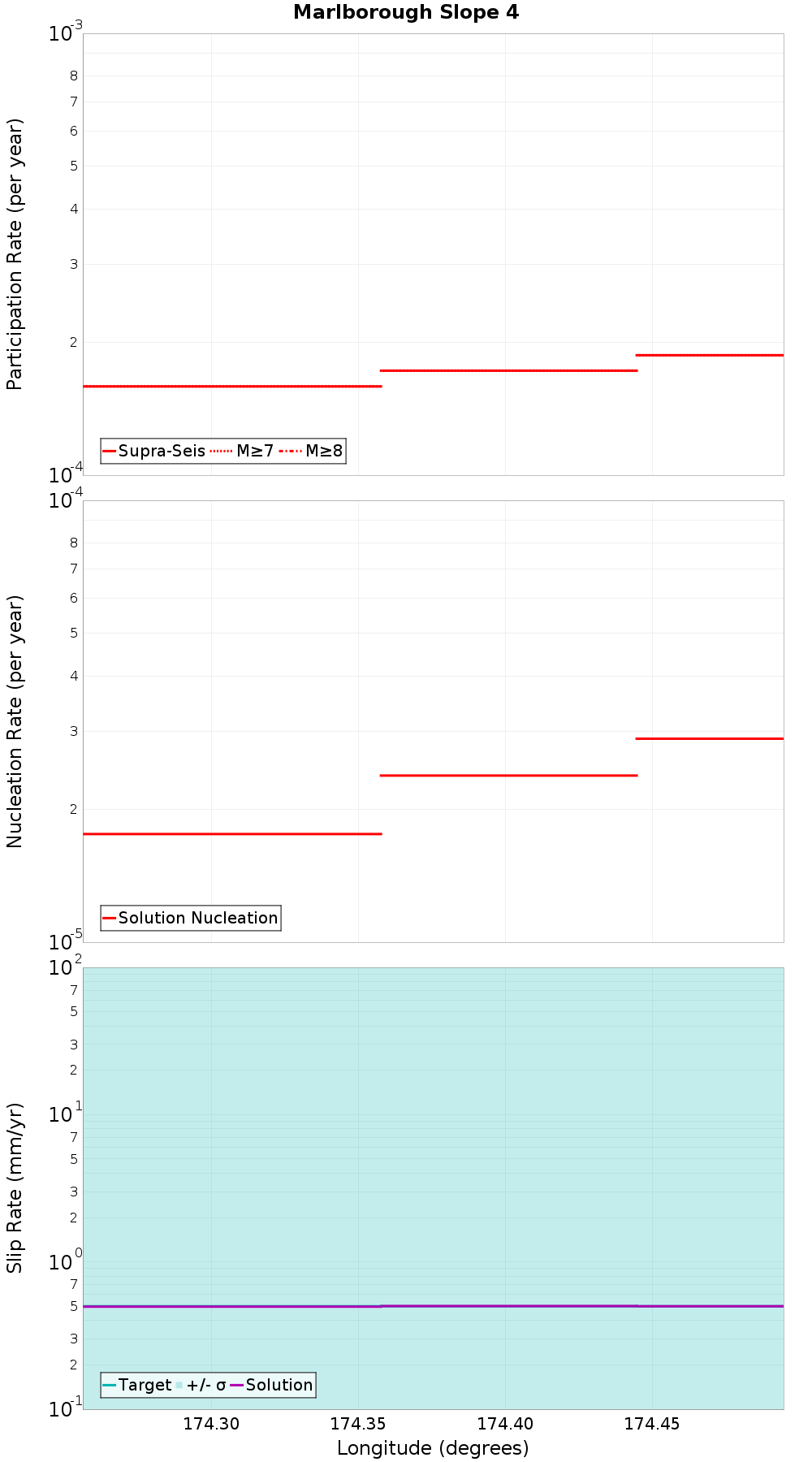

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

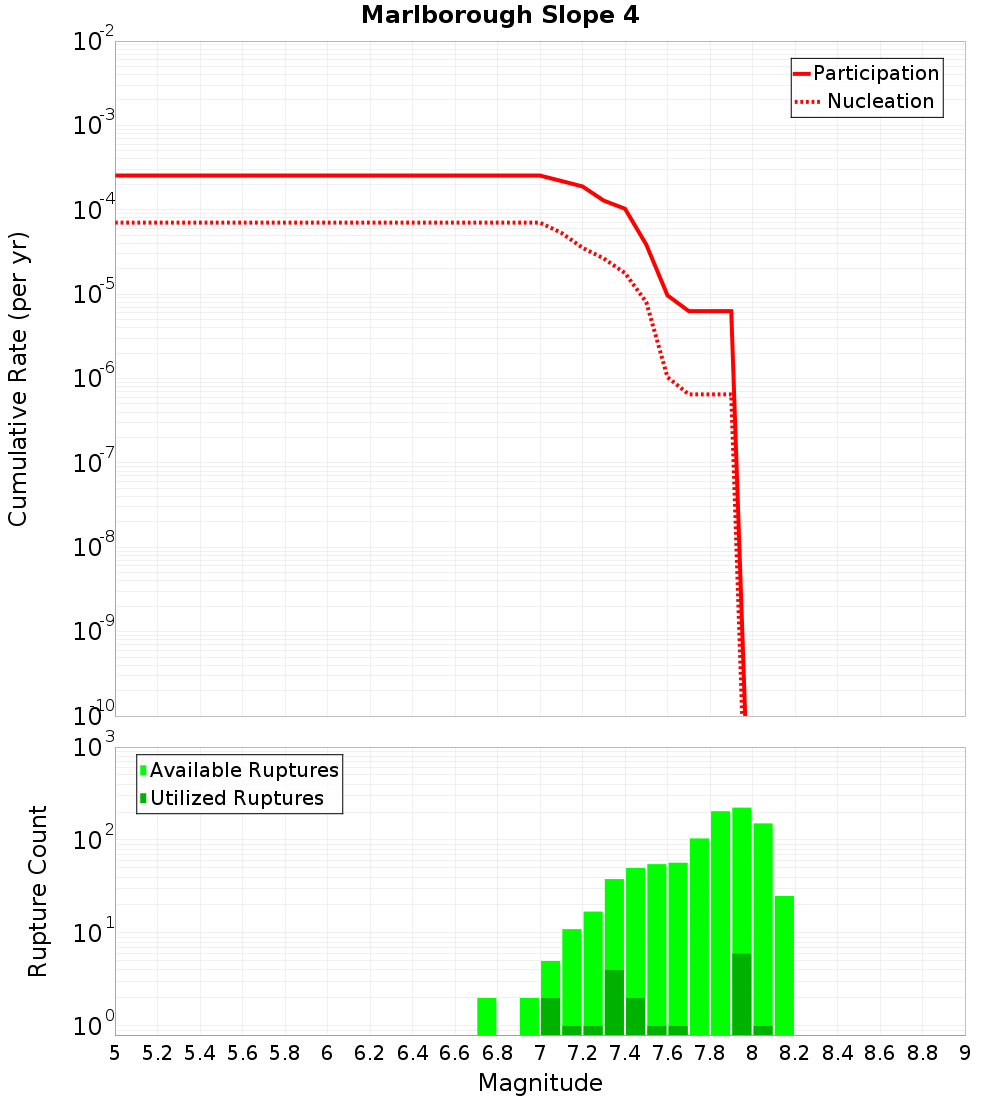

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

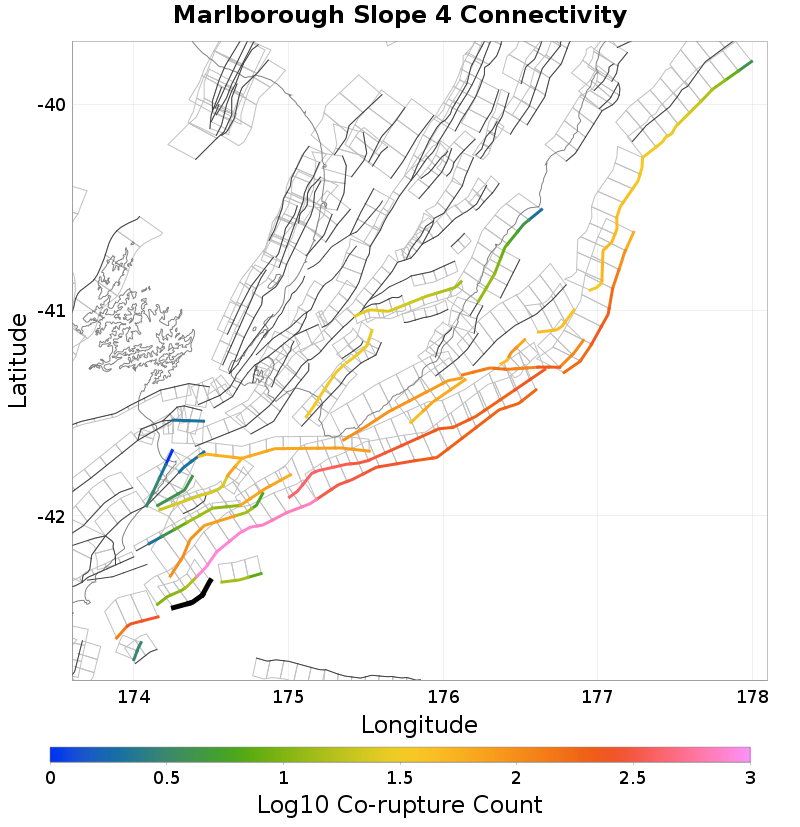

Connectivity

Nearby Sections

Fault Section
Kekerengu Bank, 4.72 km away
Marlborough Slope 3, 6.08 km away
Marlborough Slope 2, 6.6 km away
Upper Slope, 12.3 km away
Kaikoura - Mangamaunu, 13.21 km away

Kekerengu Bank, 4.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjMuME5DTmc5
Connected?	true
Directly Connected?	true
Co-rupture Count	828
Co-rupture Rate	6.68772E-5

Marlborough Slope 3, 6.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjMuME5DTmc5
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	1.284612E-4

Marlborough Slope 2, 6.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjMuME5DTmc5
Connected?	true
Directly Connected?	true
Co-rupture Count	257
Co-rupture Rate	2.3843766E-5

Upper Slope, 12.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjMuME5DTmc5
Connected?	true
Directly Connected?	true
Co-rupture Count	107
Co-rupture Rate	1.194799E-4

Kaikoura - Mangamaunu, 13.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjMuME5DTmc5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
