Opotiki 3 Details
| Property | Value |
|---|---|
| Rupture Count | 420 |
| Ruptures Above Sect Min Mag | 415 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.72, 8.34] |
| Length Range | [16, 600] km |
| Total Rate | 1.5600184E-4 /yr |
| Multi-Fault Rate | 3.647401E-7 /yr (0.23%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 45 |
Table Of Contents

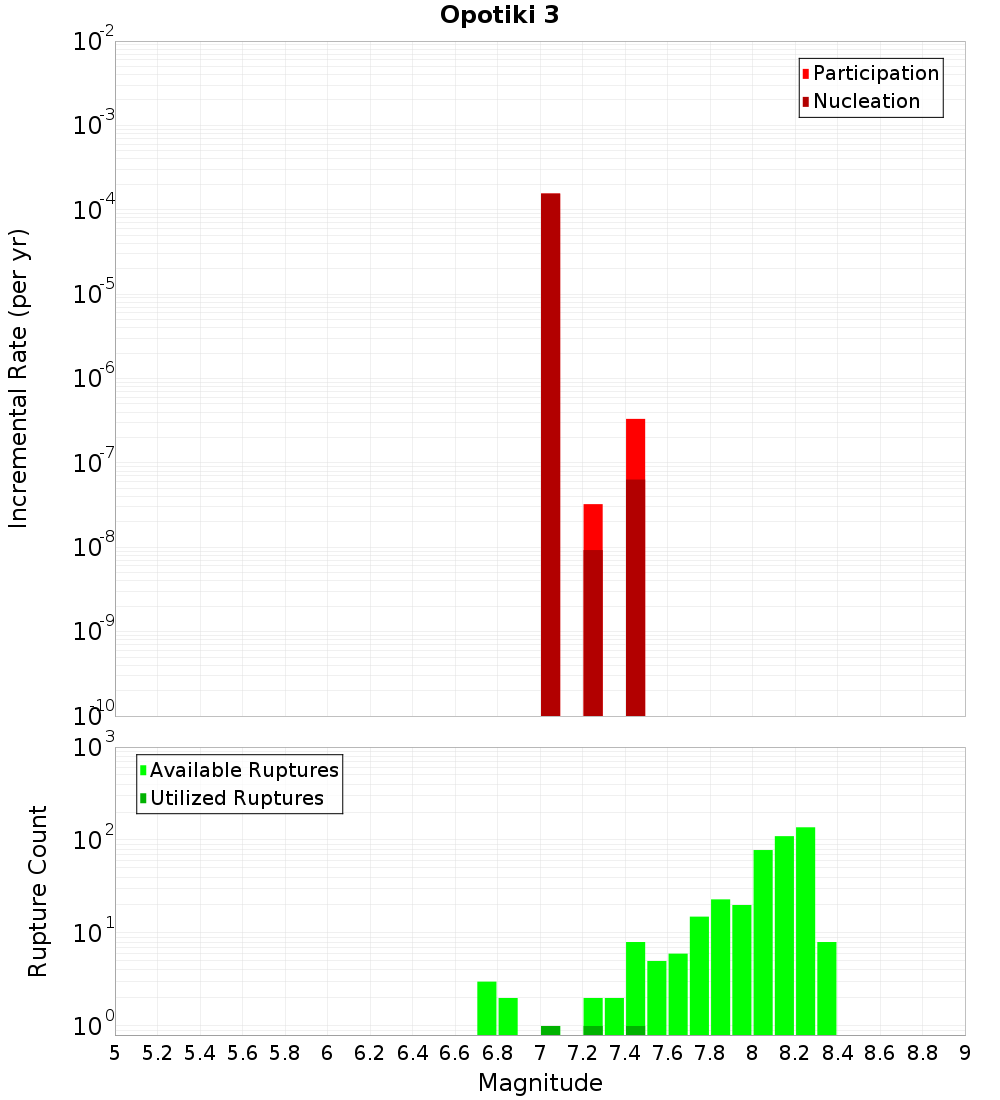

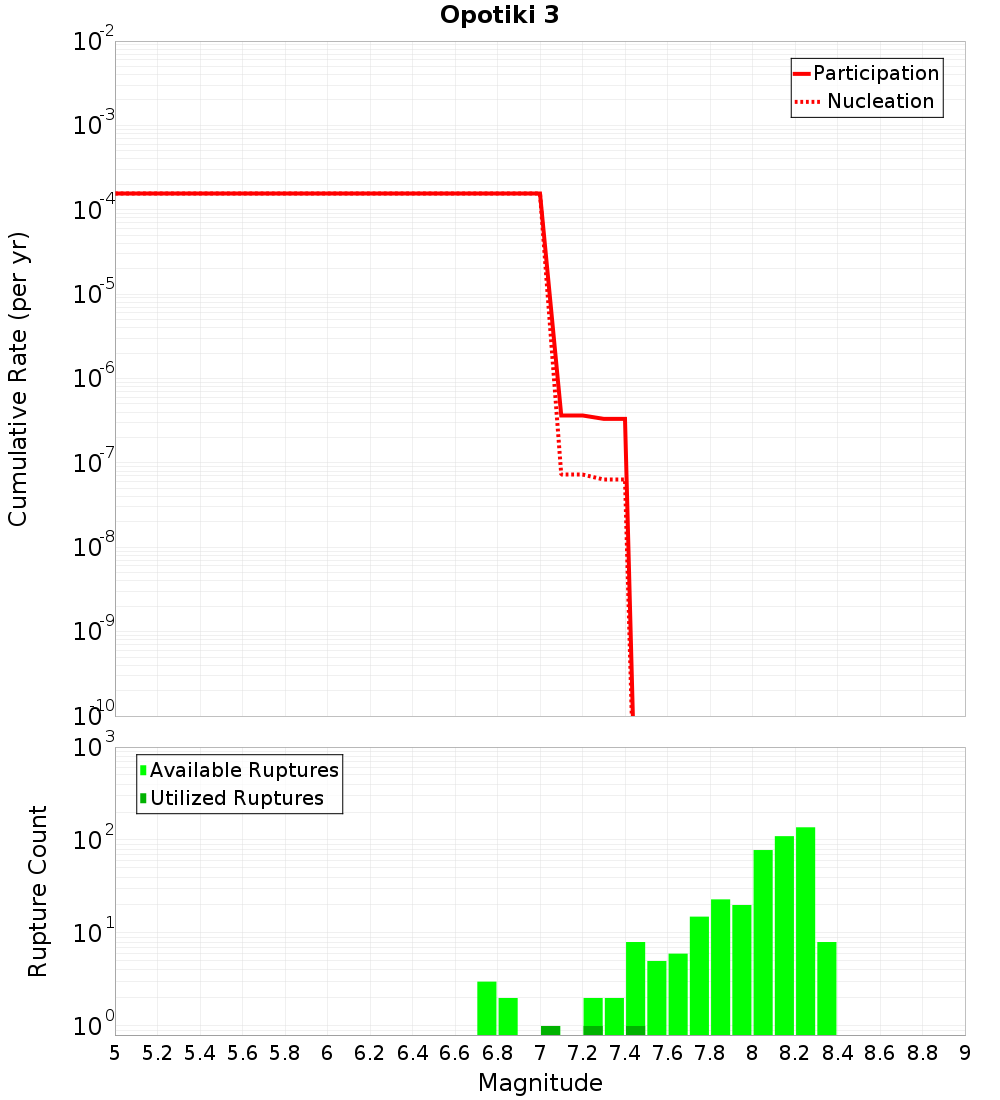

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

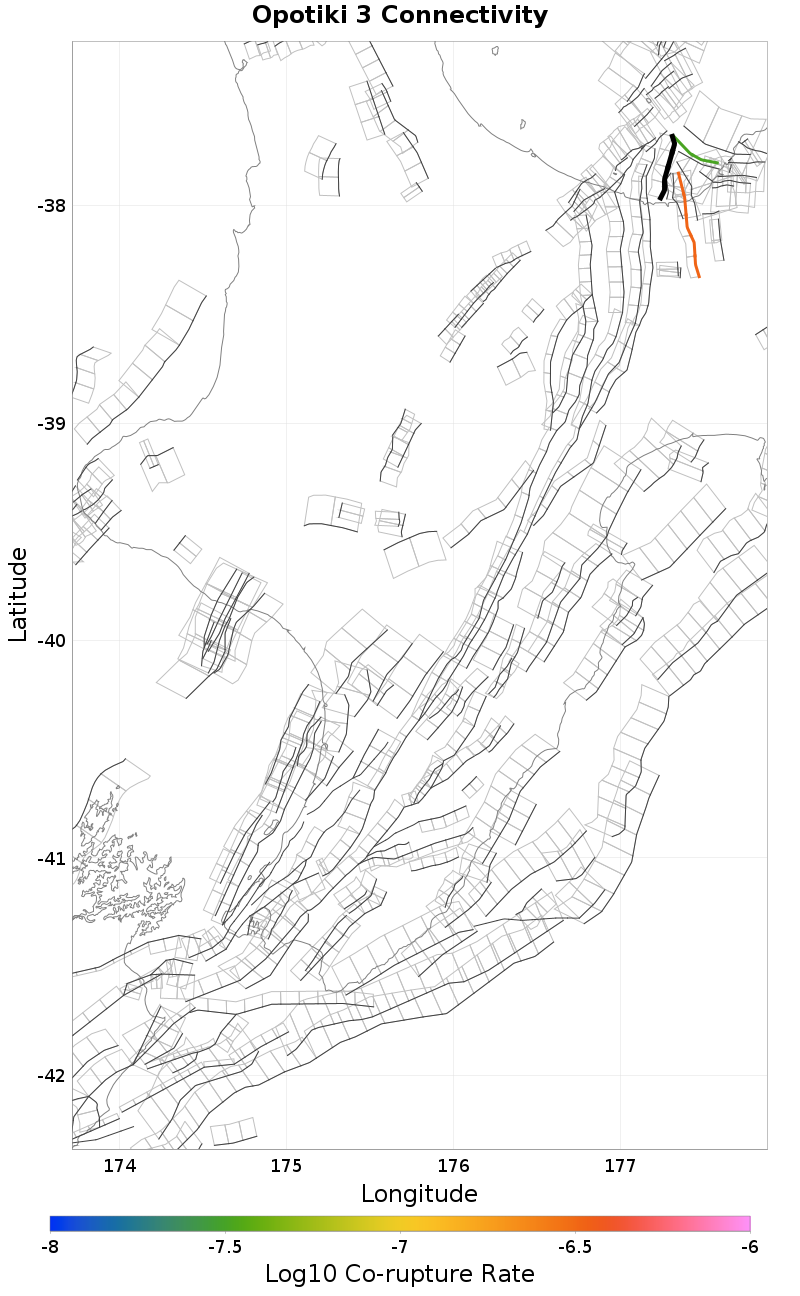

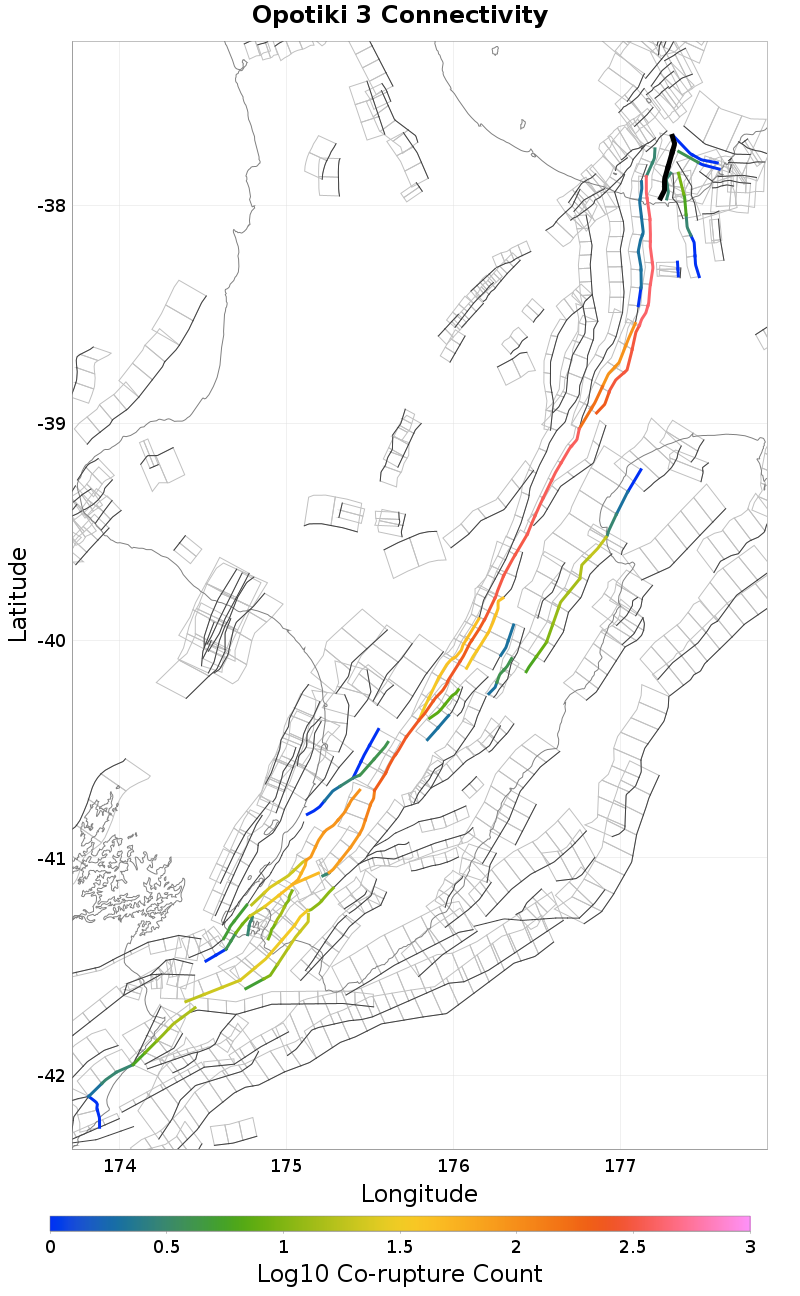

Connectivity
 |  |
|---|
Nearby Sections
Ohae 1, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1 |
| Co-rupture Rate | 3.2435487E-8 |
Opotiki 2, 1.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Ohae 2, 3.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Tirohanga, 3.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opape 1, 3.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 2, 3.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 3.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 411 |
| Co-rupture Rate | 0.0 |
Kotare - Moutuhora, 6.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9 |
| Co-rupture Rate | 3.323046E-7 |
Te Arawa 1, 7.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimanawa - Waikaremoana, 7.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Hariki, 8.05 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Whakaari 4, 8.08 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ohiwa 1, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: North, 8.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Tuatoru 1, 8.45 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 13.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 14.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjUuMEd2VlQ1 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
