Leonard Mound Details

PropertyValue
Rupture Count518
Ruptures Above Sect Min Mag515
Ruptures w/ Nonzero Rates33
Magnitude Range[6.76, 8.24]
Length Range[16, 530] km
Total Rate3.1606064E-4 /yr
Multi-Fault Rate3.1606064E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults52

Table Of Contents

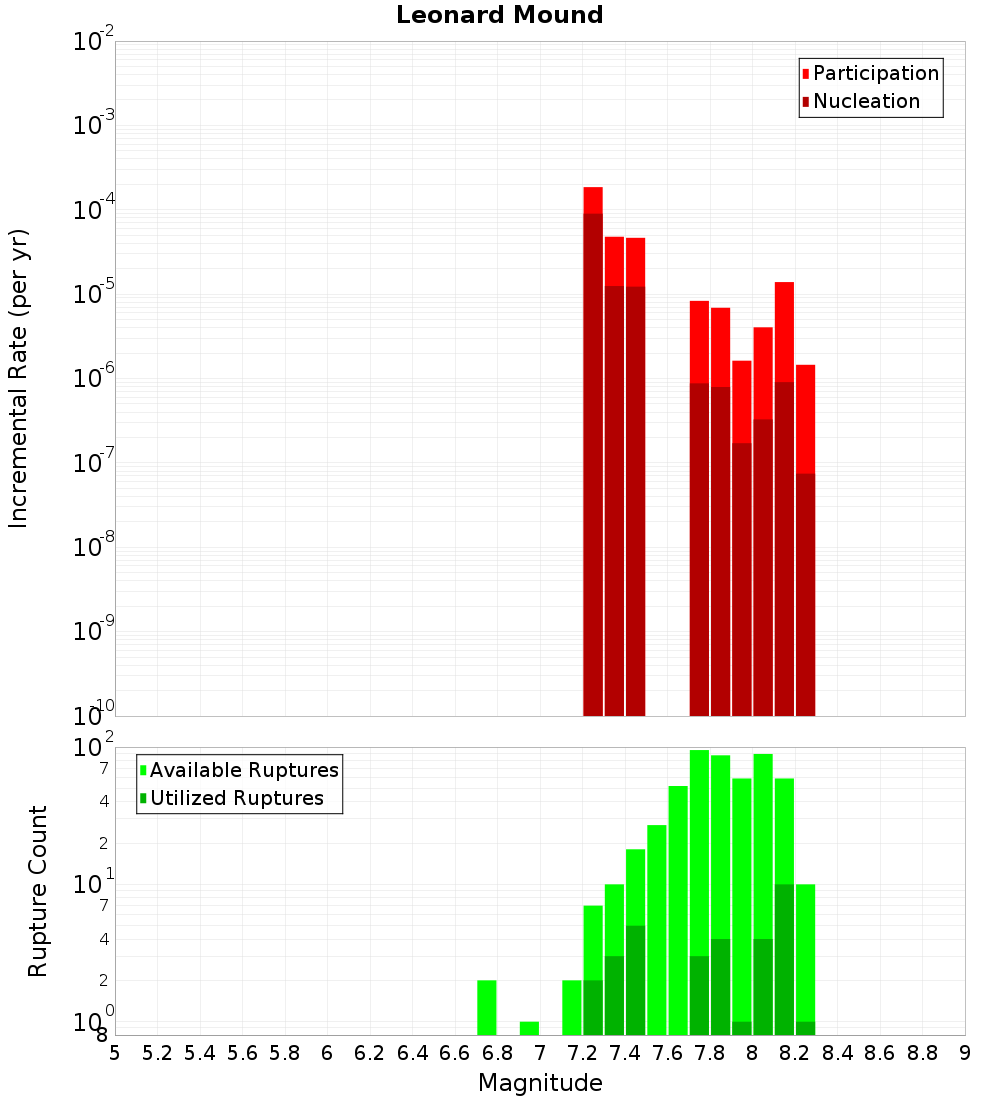

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

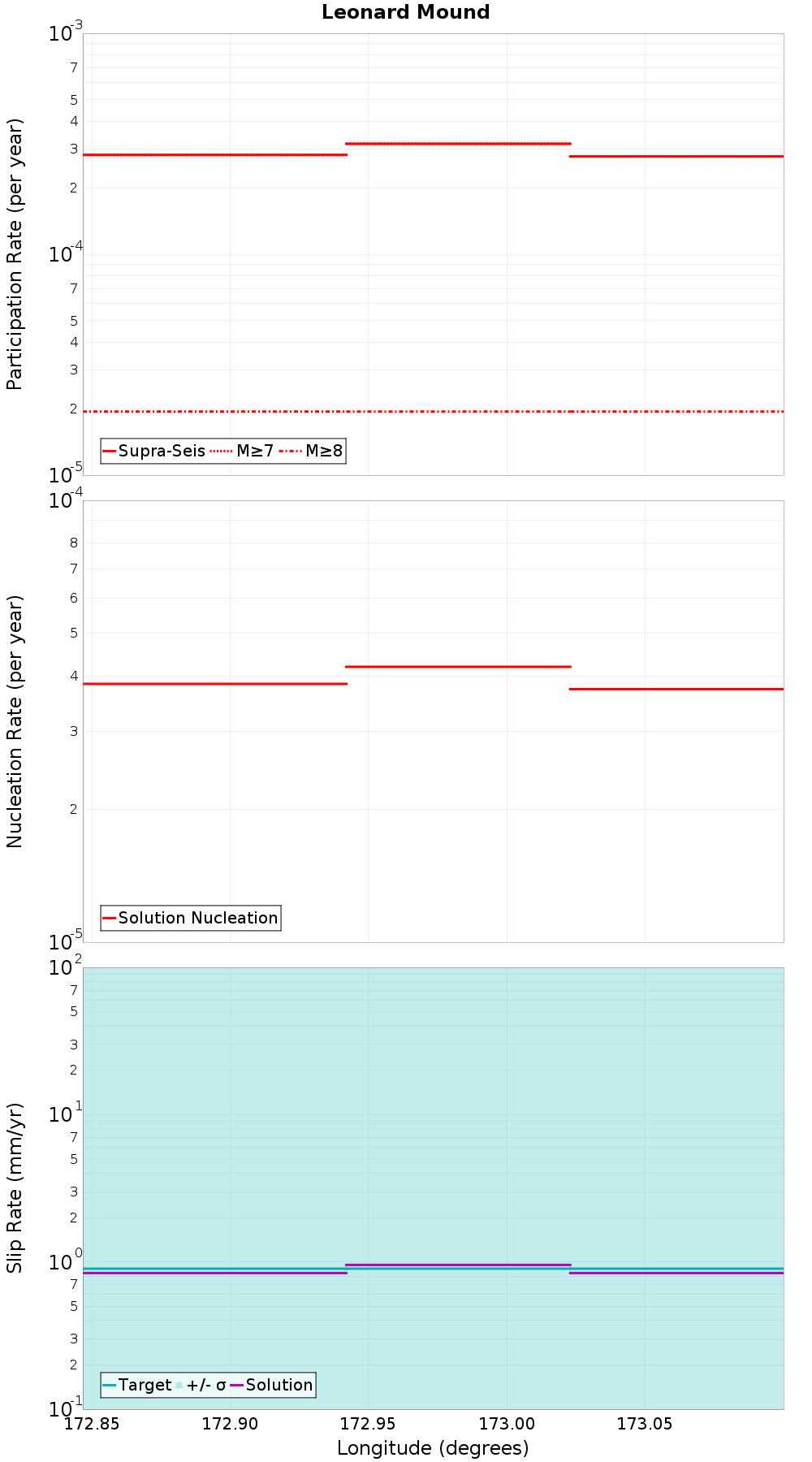

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

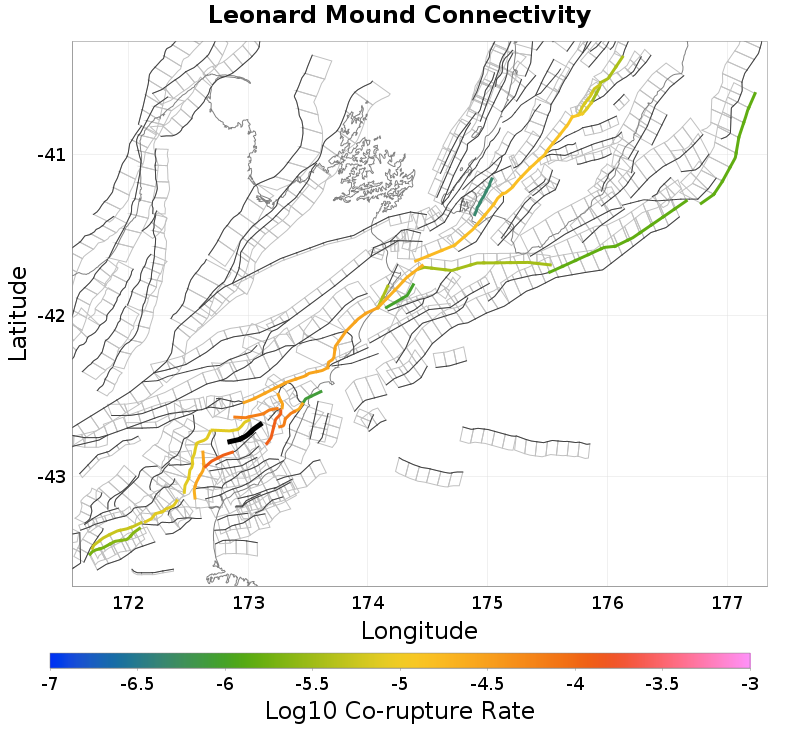

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kaiwara North, 0.3 km away
Lowry, 1.98 km away
The Humps, 4.72 km away
Mt Culverden, 4.83 km away
Leader: South, 6.16 km away
Alexander, 8.1 km away
Hundalee, 9.87 km away
Balmoral, 11.2 km away
Kaiwara South, 12.53 km away
Doctors, 12.65 km away

Kaiwara North, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?true
Co-rupture Count424
Co-rupture Rate1.2403836E-4

Lowry, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?true
Co-rupture Count184
Co-rupture Rate1.184647E-4

The Humps, 4.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate6.592374E-5

Mt Culverden, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate7.633846E-6

Leader: South, 6.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Alexander, 8.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hundalee, 9.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate6.592374E-5

Balmoral, 11.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaiwara South, 12.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NjYuMFE1cHJa
Connected?true
Directly Connected?false
Co-rupture Count74
Co-rupture Rate2.8469934E-5
