Honeycomb Details

PropertyValue
Rupture Count5,321
Ruptures Above Sect Min Mag5,315
Ruptures w/ Nonzero Rates23
Magnitude Range[6.75, 8.16]
Length Range[19, 450] km
Total Rate4.095282E-4 /yr
Multi-Fault Rate1.2646131E-4 /yr (30.88%)
Directly-Connected Faults4
All Co-Rupturing Faults51

Table Of Contents

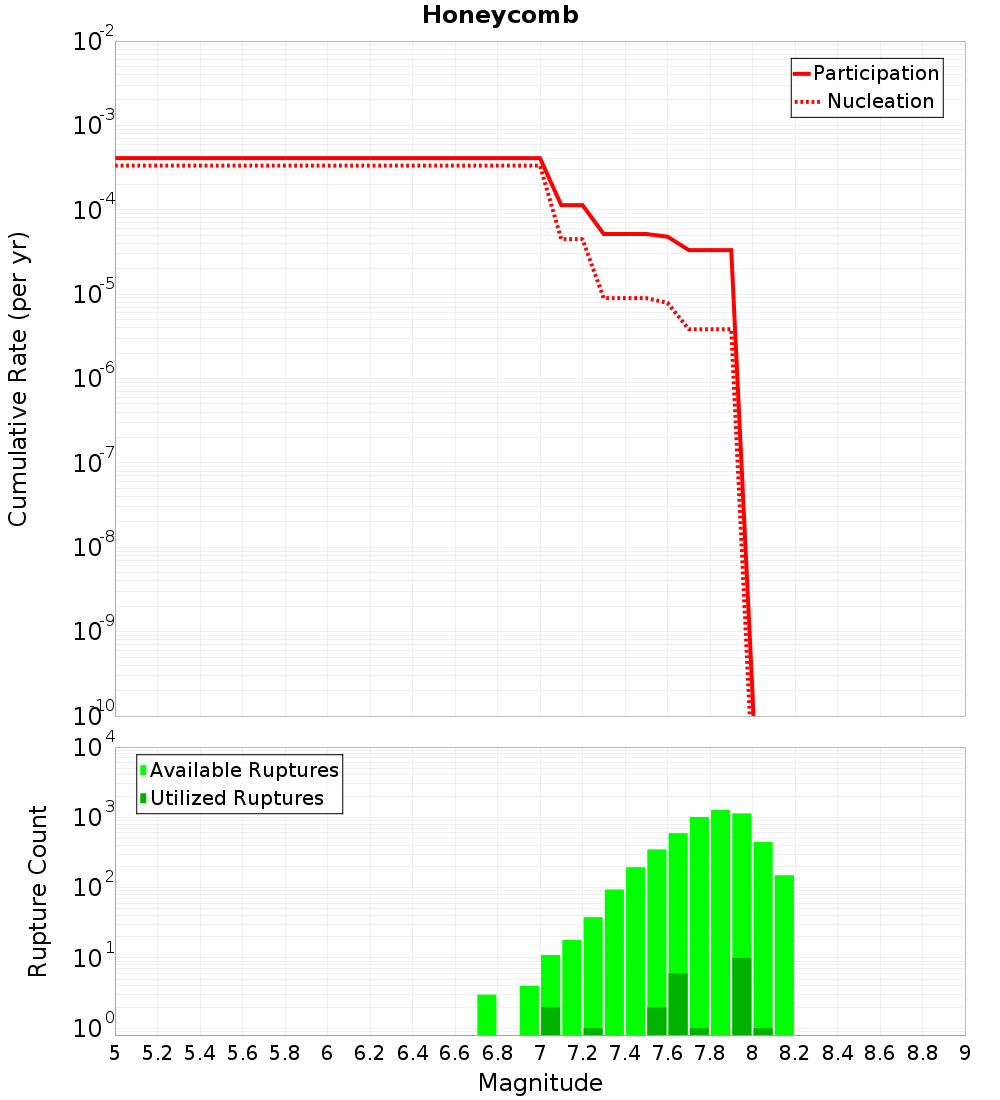

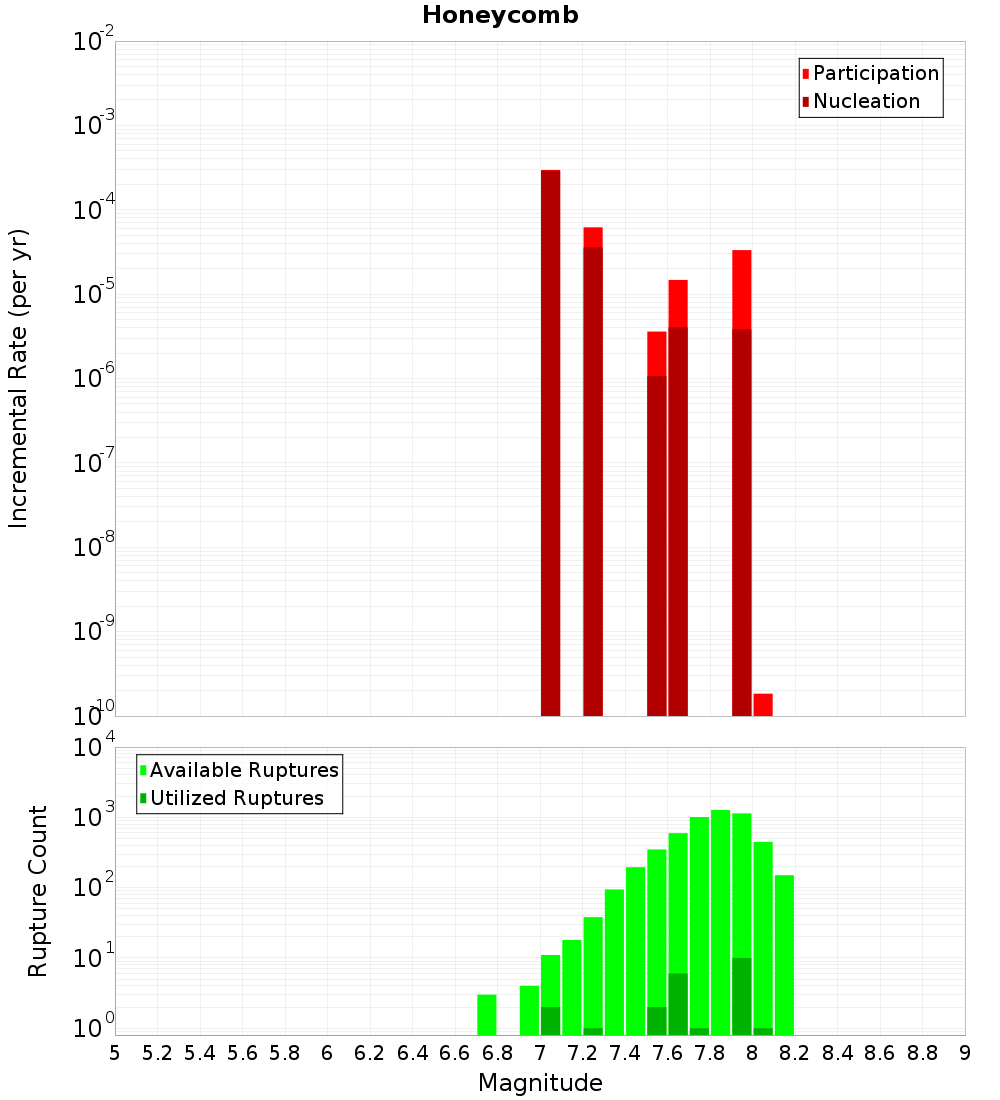

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

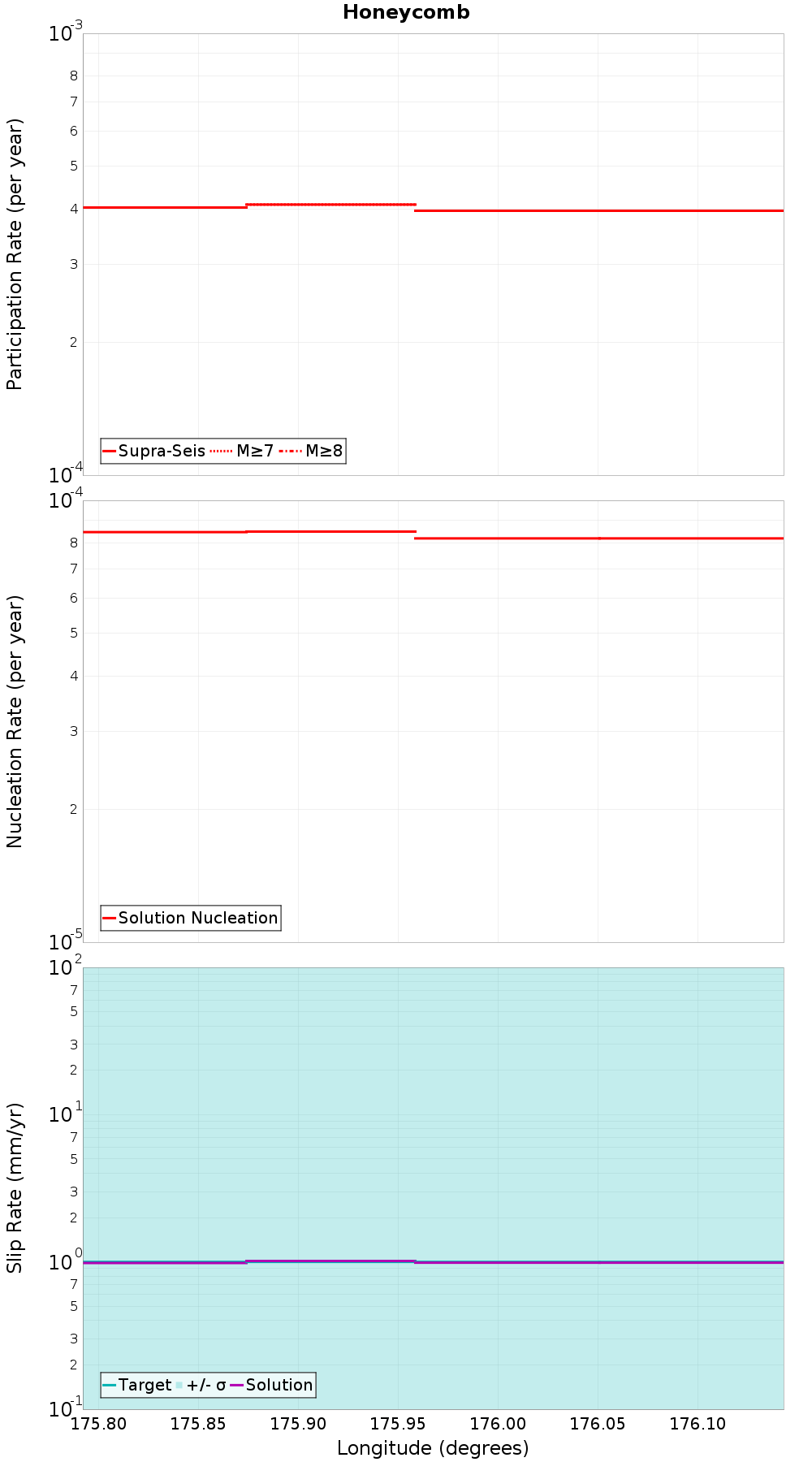

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

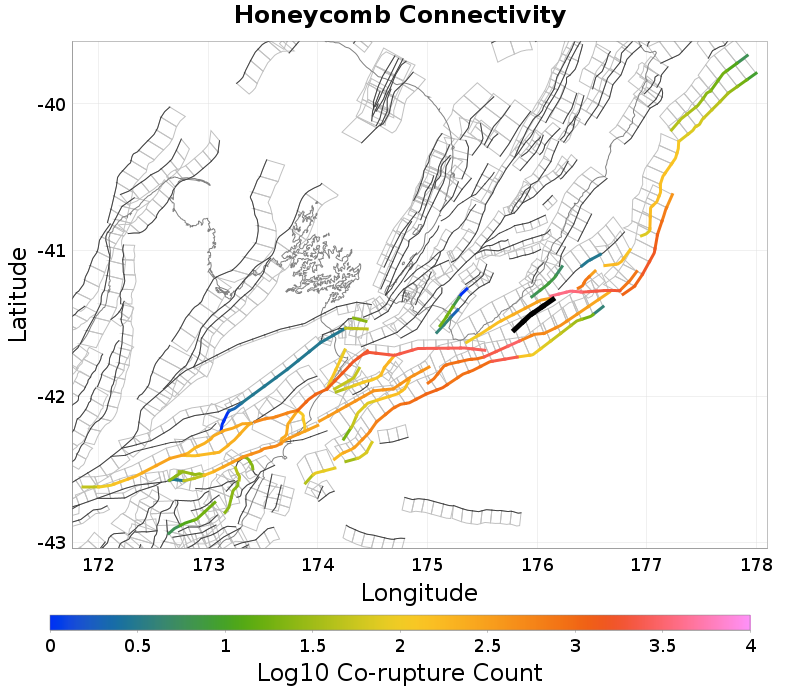

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Basin, 0.57 km away
Palliser - Kaiwhata, 1.22 km away
Opouawe - Uruti, 5.87 km away
Riversdale, 6.88 km away
Whareama Bank, 8.19 km away
Uruti Point, 9.04 km away
Pahaua, 13.47 km away

Uruti Basin, 0.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?true
Co-rupture Count3,976
Co-rupture Rate1.04466766E-4

Palliser - Kaiwhata, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?true
Co-rupture Count308
Co-rupture Rate1.8584773E-5

Opouawe - Uruti, 5.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?true
Co-rupture Count2,971
Co-rupture Rate6.30597E-7

Riversdale, 6.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Whareama Bank, 8.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Uruti Point, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahaua, 13.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc0NzcuME5DdGpq
Connected?true
Directly Connected?true
Co-rupture Count2,416
Co-rupture Rate3.42354E-5
