Rangipo Central Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 24 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.45, 7.94] |
| Length Range | [7, 233] km |
| Total Rate | 9.78056E-5 /yr |
| Multi-Fault Rate | 9.78056E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

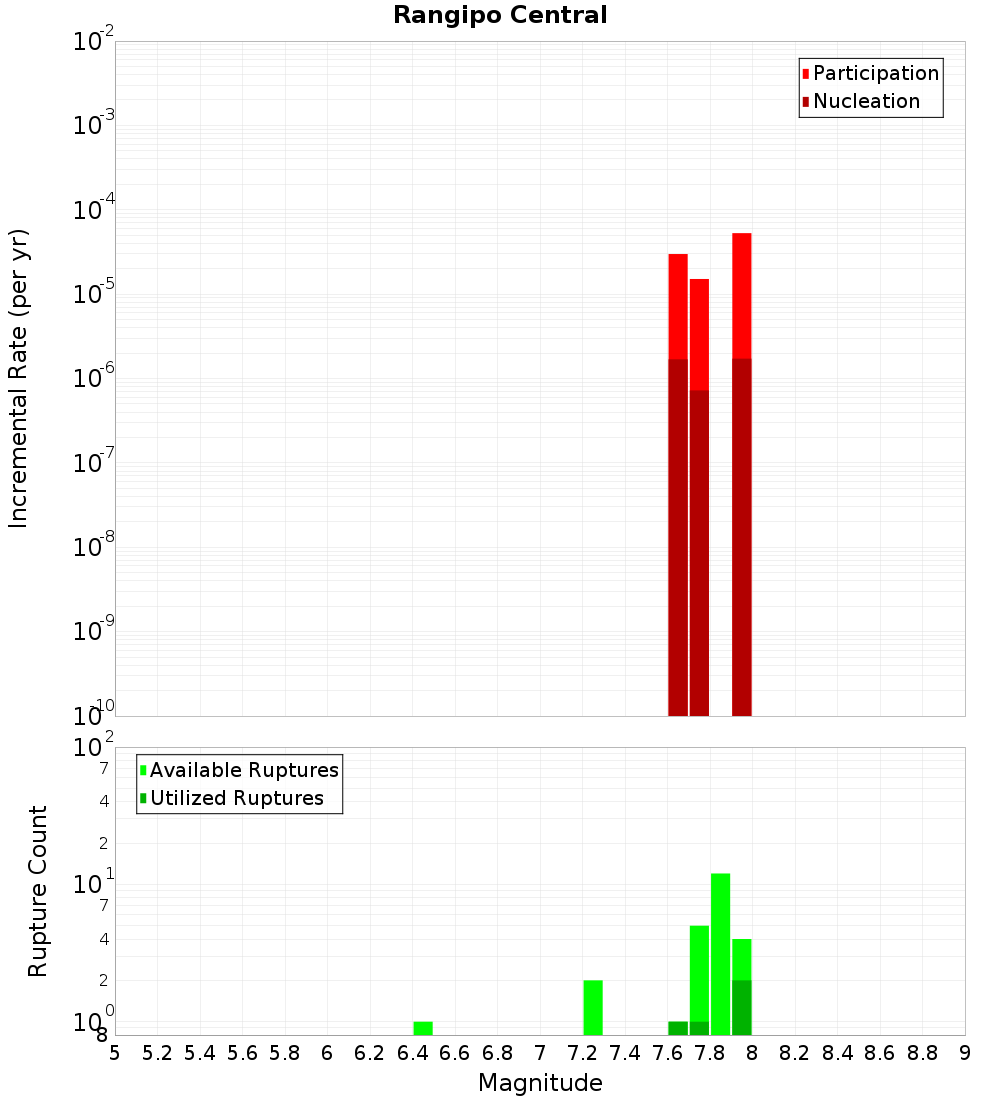

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

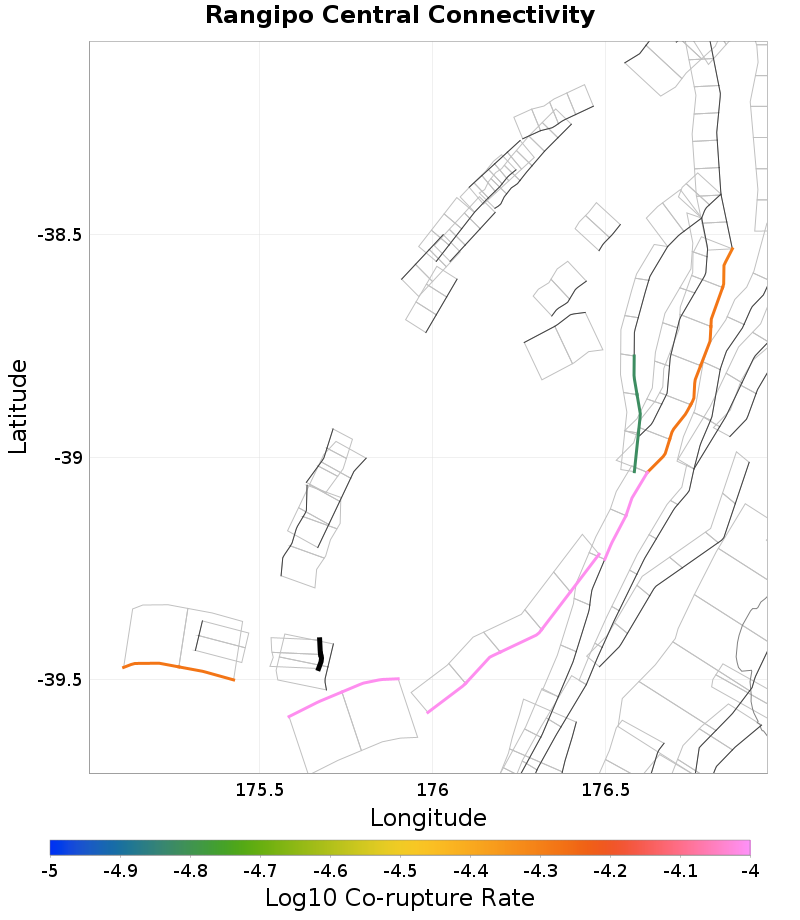

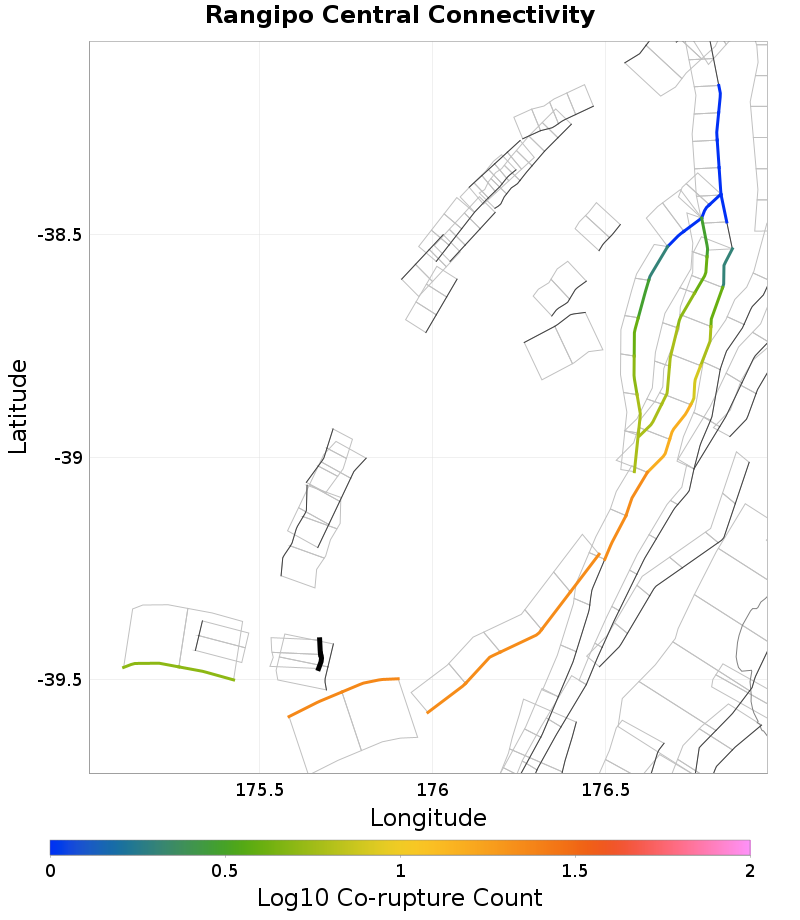

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Rangipo South, 1.56 km away |
| Harris Road, 5.66 km away |
| Waipuna, 7.6 km away |
| Snowgrass, 7.66 km away |
| Waihi South, 13.8 km away |
Rangipo South, 1.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDYuMFR3ZDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Harris Road, 5.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDYuMFR3ZDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waipuna, 7.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDYuMFR3ZDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 5.2816187E-5 |
Snowgrass, 7.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDYuMFR3ZDRx | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 23 |
| Co-rupture Rate | 9.78056E-5 |
Waihi South, 13.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDYuMFR3ZDRx | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
