Waikuku Details

Property	Value
Rupture Count	581
Ruptures Above Sect Min Mag	574
Ruptures w/ Nonzero Rates	17
Magnitude Range	[6.59, 8.04]
Length Range	[14, 311] km
Total Rate	5.046044E-5 /yr
Multi-Fault Rate	5.046044E-5 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

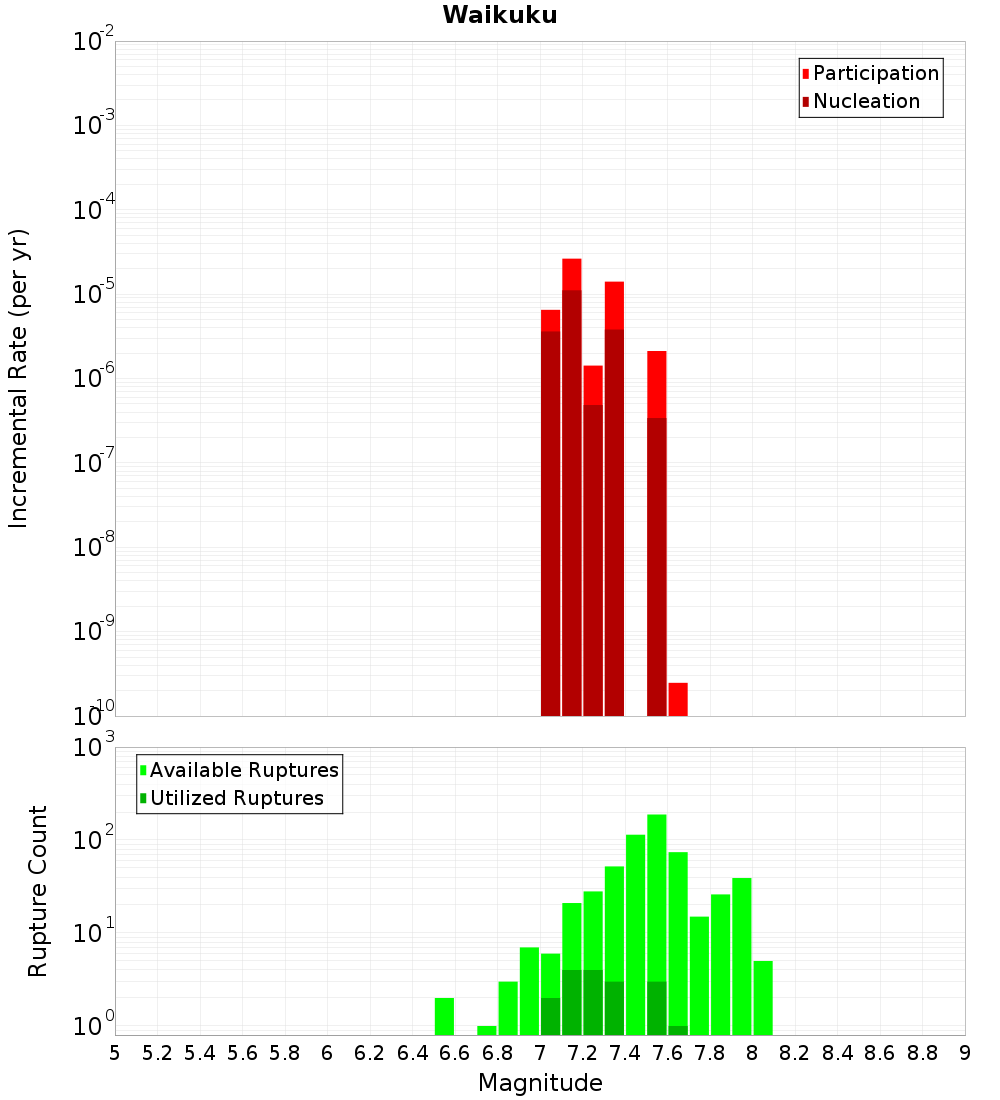

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

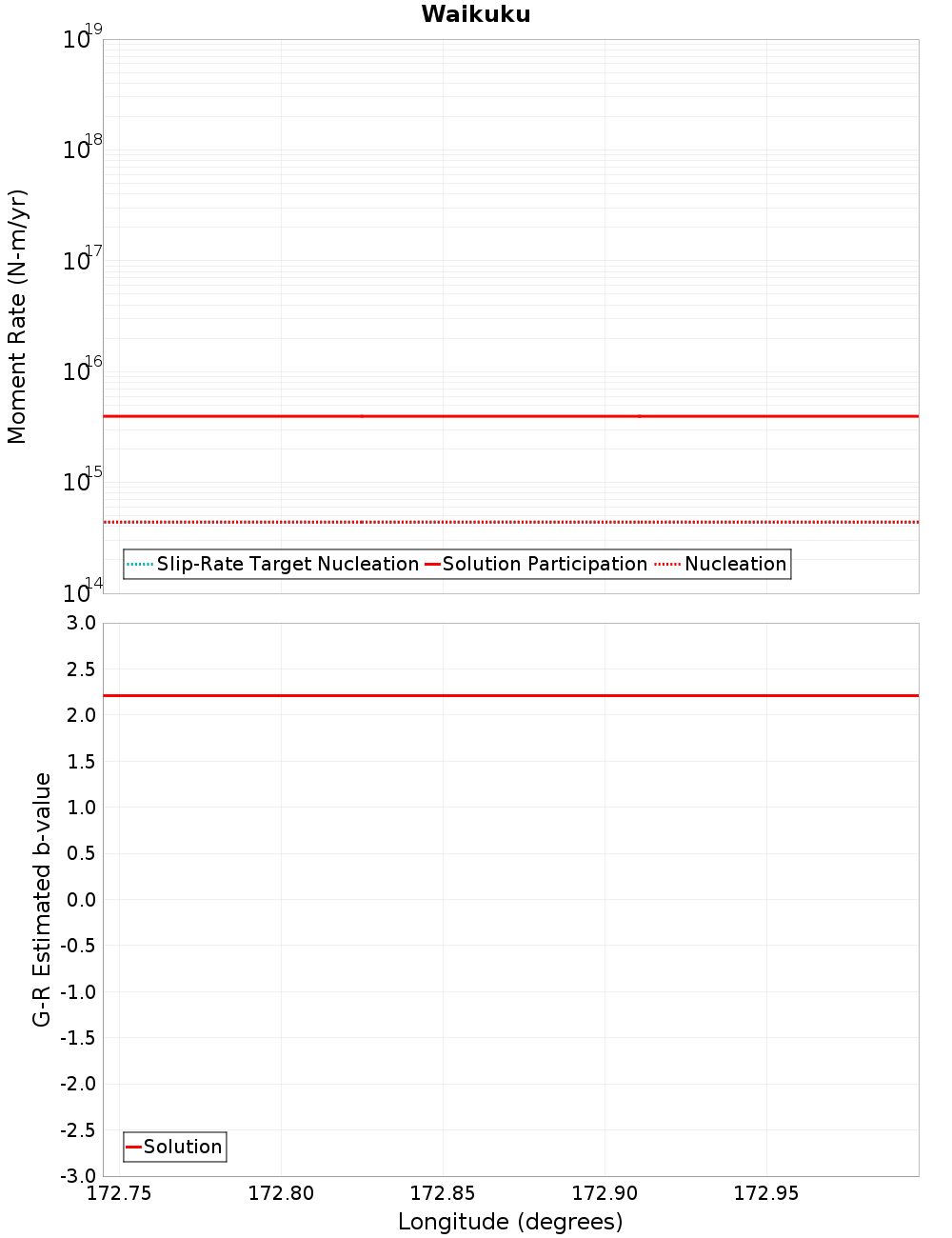

Moment-Rates and b-Values

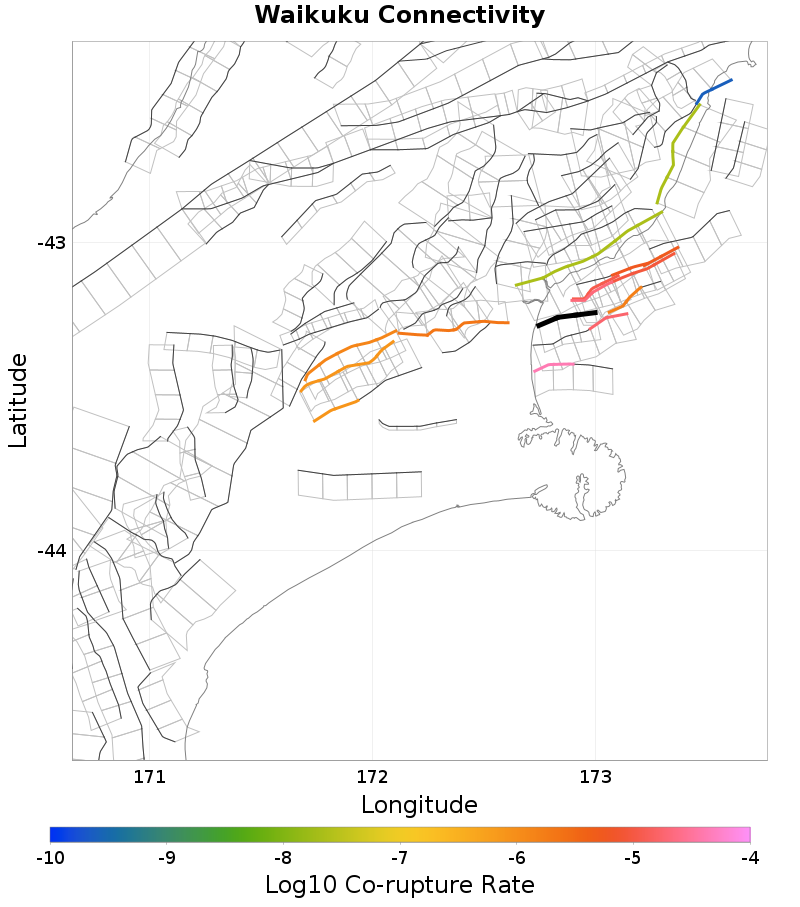

Connectivity

Nearby Sections

Fault Section
Pegasus Bay, 3.19 km away
Leithfield - NCVI - NCVII, 4.07 km away
North Canterbury Shelf 2, 4.61 km away
North Canterbury Shelf 4, 5.12 km away
Motunau, 9.01 km away
AmberBlyth, 9.2 km away
Starvation - Ashley, 11.22 km away
CenPeg1n2, 11.9 km away
OmihiLwrHuru, 14.73 km away

Pegasus Bay, 3.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	44
Co-rupture Rate	1.7159458E-5

Leithfield - NCVI - NCVII, 4.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	221
Co-rupture Rate	2.1899918E-5

North Canterbury Shelf 2, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	96
Co-rupture Rate	1.1330792E-5

North Canterbury Shelf 4, 5.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	124
Co-rupture Rate	1.605676E-6

Motunau, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	5.5747664E-6

AmberBlyth, 9.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	2.2170122E-8

Starvation - Ashley, 11.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	474
Co-rupture Rate	2.0962107E-6

CenPeg1n2, 11.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	true
Co-rupture Count	31
Co-rupture Rate	4.1825602E-5

OmihiLwrHuru, 14.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MDkuMHVIdWdS
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0
