Ruby Bay - Moutere Details
| Property | Value |
|---|---|
| Rupture Count | 9,112 |
| Ruptures Above Sect Min Mag | 9,110 |
| Ruptures w/ Nonzero Rates | 19 |
| Magnitude Range | [7.02, 8.56] |
| Length Range | [24, 947] km |
| Total Rate | 3.156752E-5 /yr |
| Multi-Fault Rate | 3.156752E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 68 |
Table Of Contents

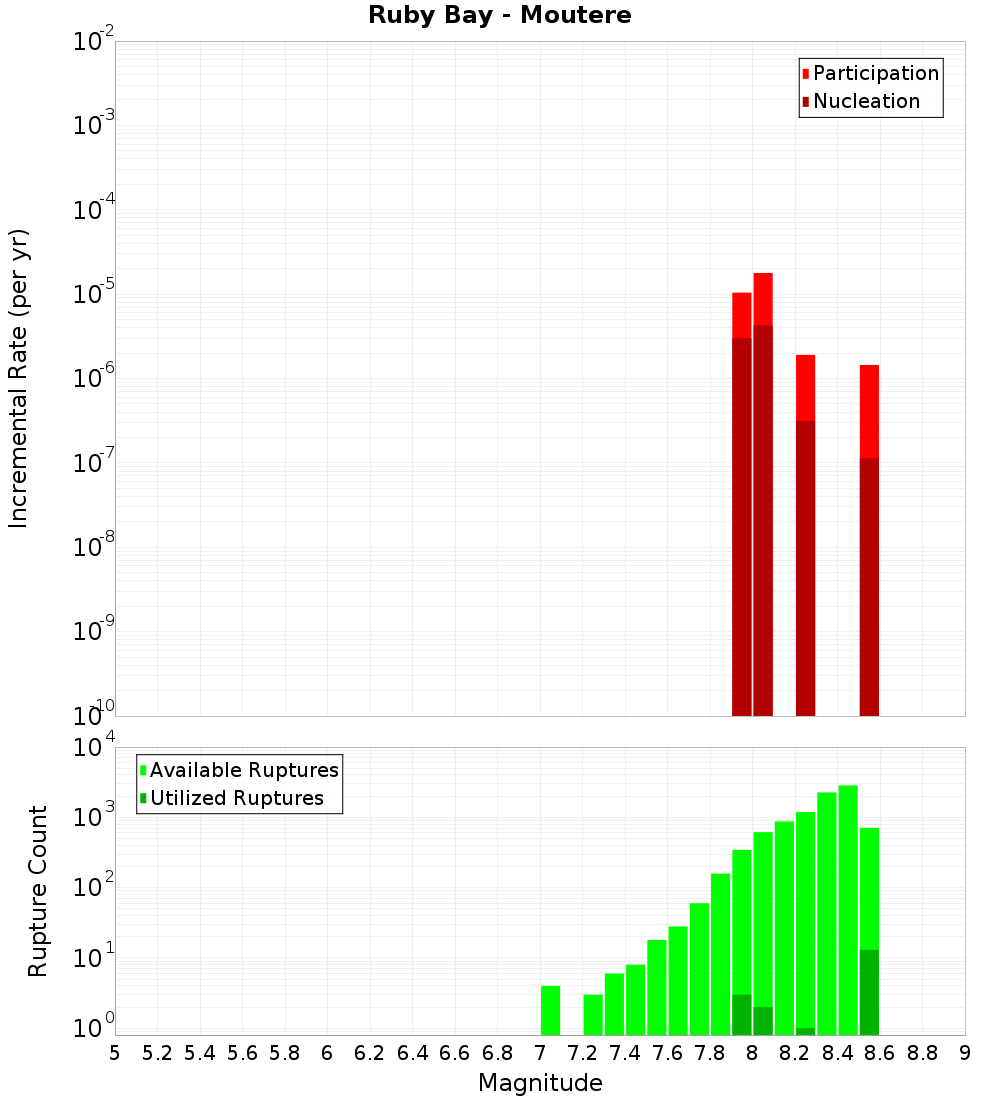

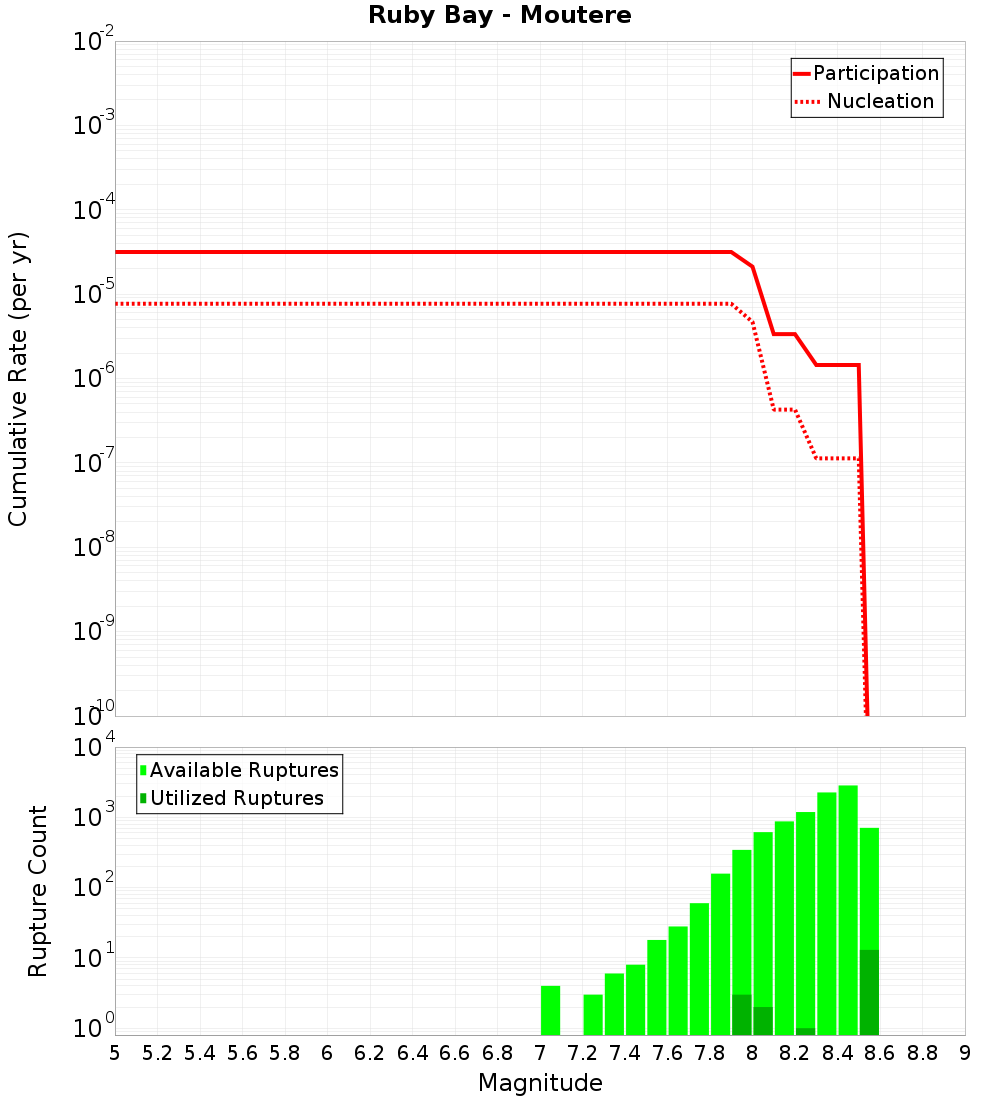

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

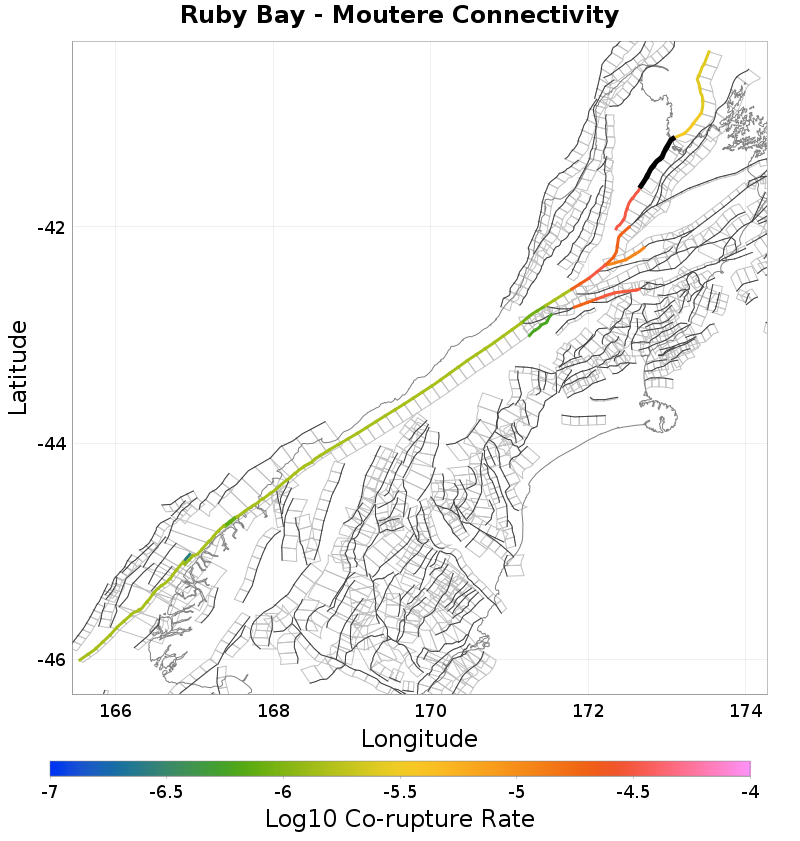

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Surville, 0.09 km away |
| Tutaki, 3.43 km away |
| Flaxmore - Waimea - Tahunanui, 9.4 km away |
| Wairau, 14.99 km away |
Surville, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzUuMHZGREZy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,925 |
| Co-rupture Rate | 3.3533313E-6 |
Tutaki, 3.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzUuMHZGREZy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,010 |
| Co-rupture Rate | 3.156752E-5 |
Flaxmore - Waimea - Tahunanui, 9.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzUuMHZGREZy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Wairau, 14.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzUuMHZGREZy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
