Titri North Details

PropertyValue
Rupture Count22
Ruptures Above Sect Min Mag22
Ruptures w/ Nonzero Rates6
Magnitude Range[7.20, 7.82]
Length Range[29, 131] km
Total Rate4.2495754E-5 /yr
Multi-Fault Rate4.2495754E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults5

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

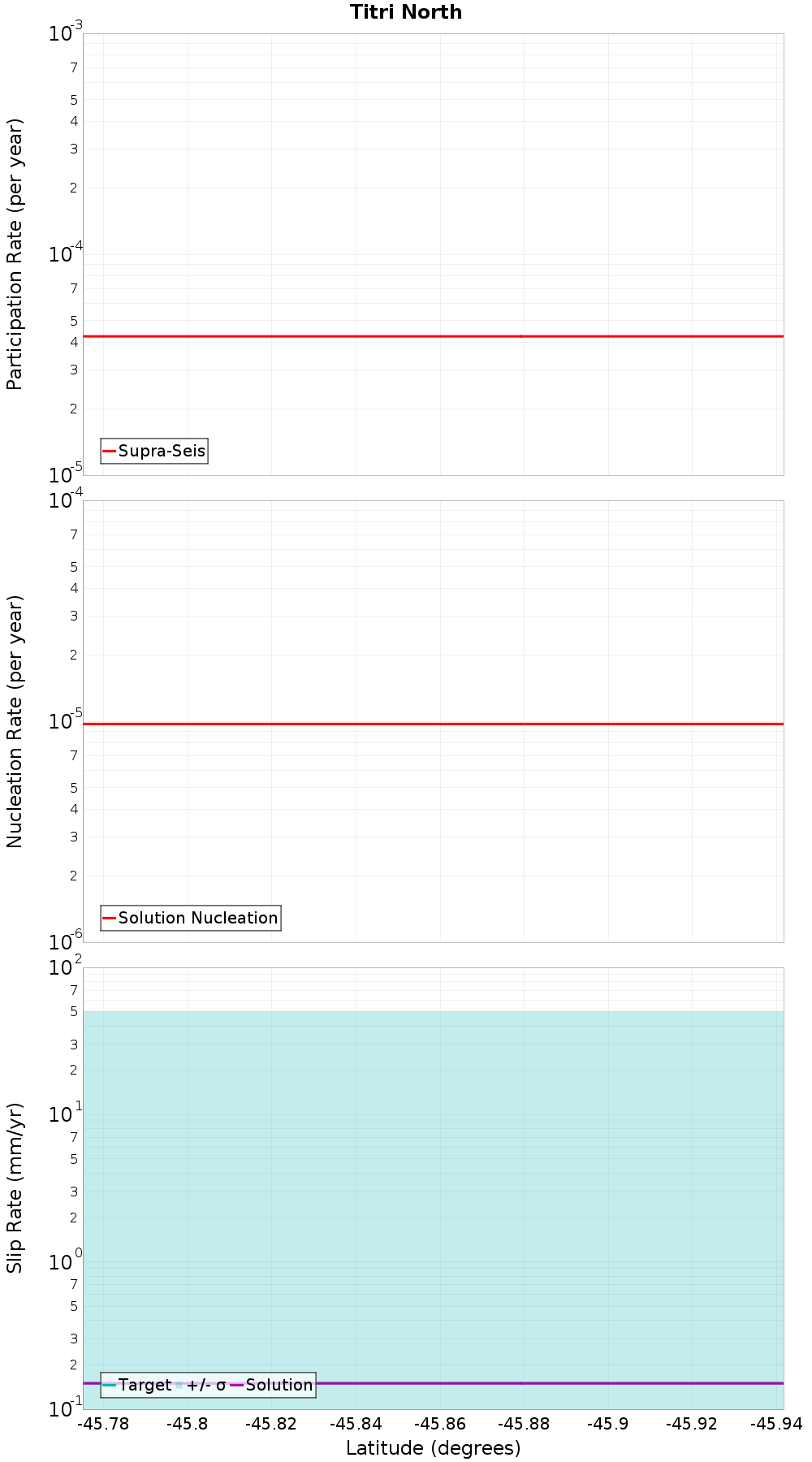

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

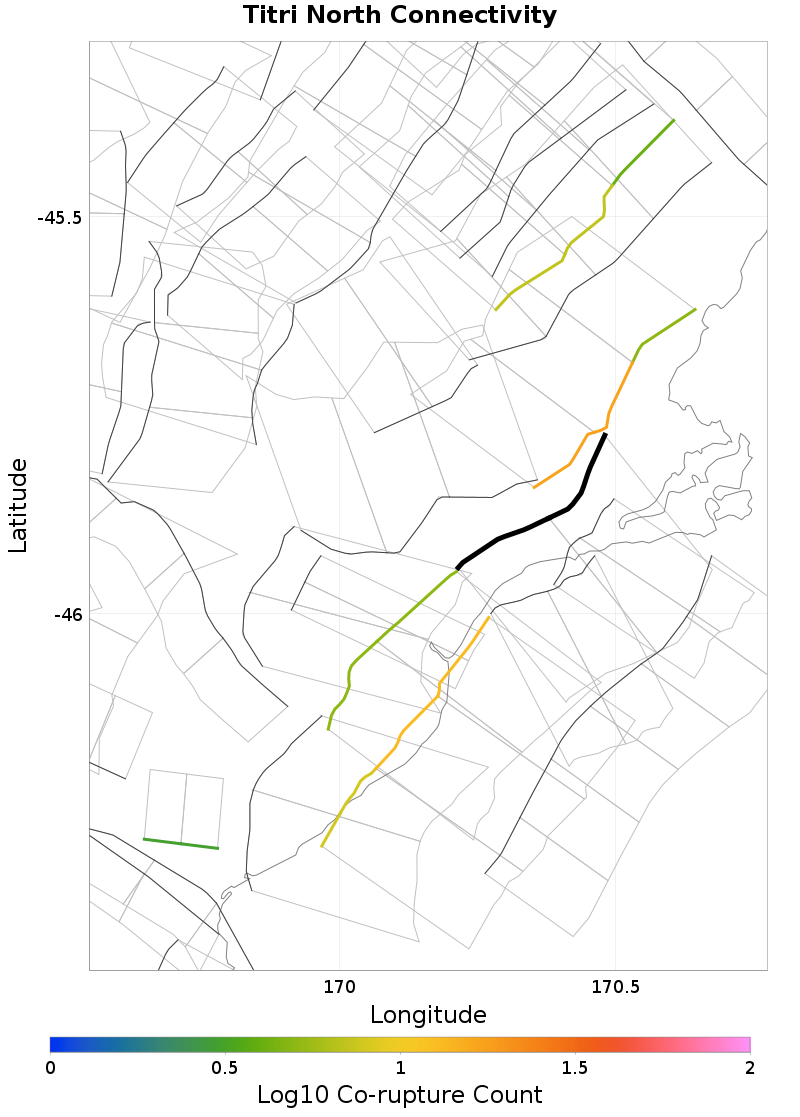

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Titri Central, 0.03 km away
Sliver Stream - Merton, 0.88 km away
Kaikorai, 2.67 km away
Akatore, 5.06 km away
Green Island, 5.36 km away
Maungatua - North Taieri, 5.52 km away
Waitahuna 2, 11.55 km away
Titri South, 14.14 km away

Titri Central, 0.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate3.8675043E-5

Sliver Stream - Merton, 0.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate5.154085E-6

Kaikorai, 2.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatore, 5.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate3.8207095E-6

Green Island, 5.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 5.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitahuna 2, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Titri South, 14.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1MzguMHF4UnFW
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
