Alpine: Nancy Details

Property	Value
Rupture Count	20,007
Ruptures Above Sect Min Mag	20,006
Ruptures w/ Nonzero Rates	112
Magnitude Range	[6.65, 8.61]
Length Range	[12, 1,129] km
Total Rate	0.0018181505 /yr
Multi-Fault Rate	0.0018181505 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	125

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values

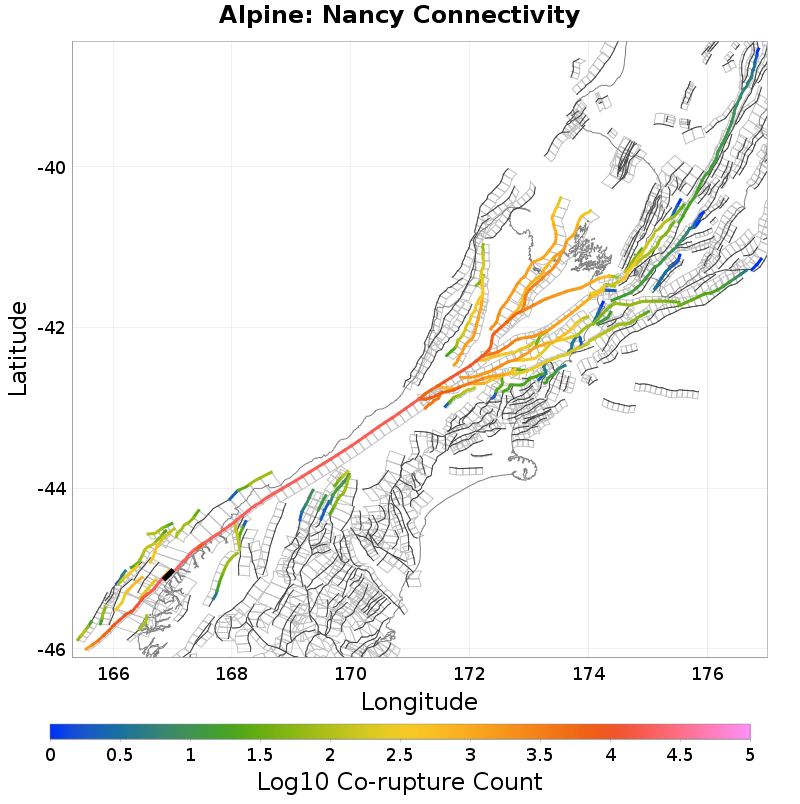

Connectivity
- Nearby Sections

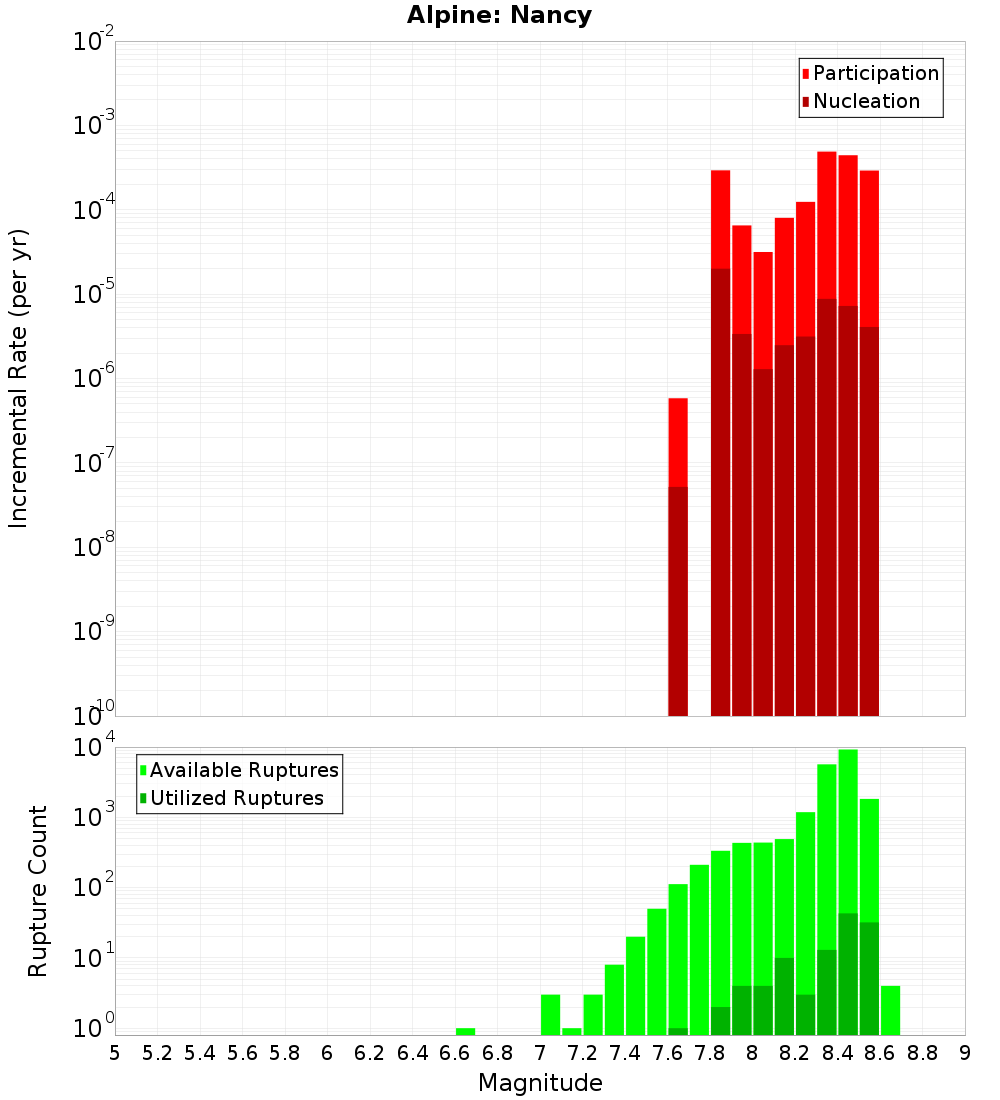

Magnitude-Frequency Distribution

Incremental	Cumulative

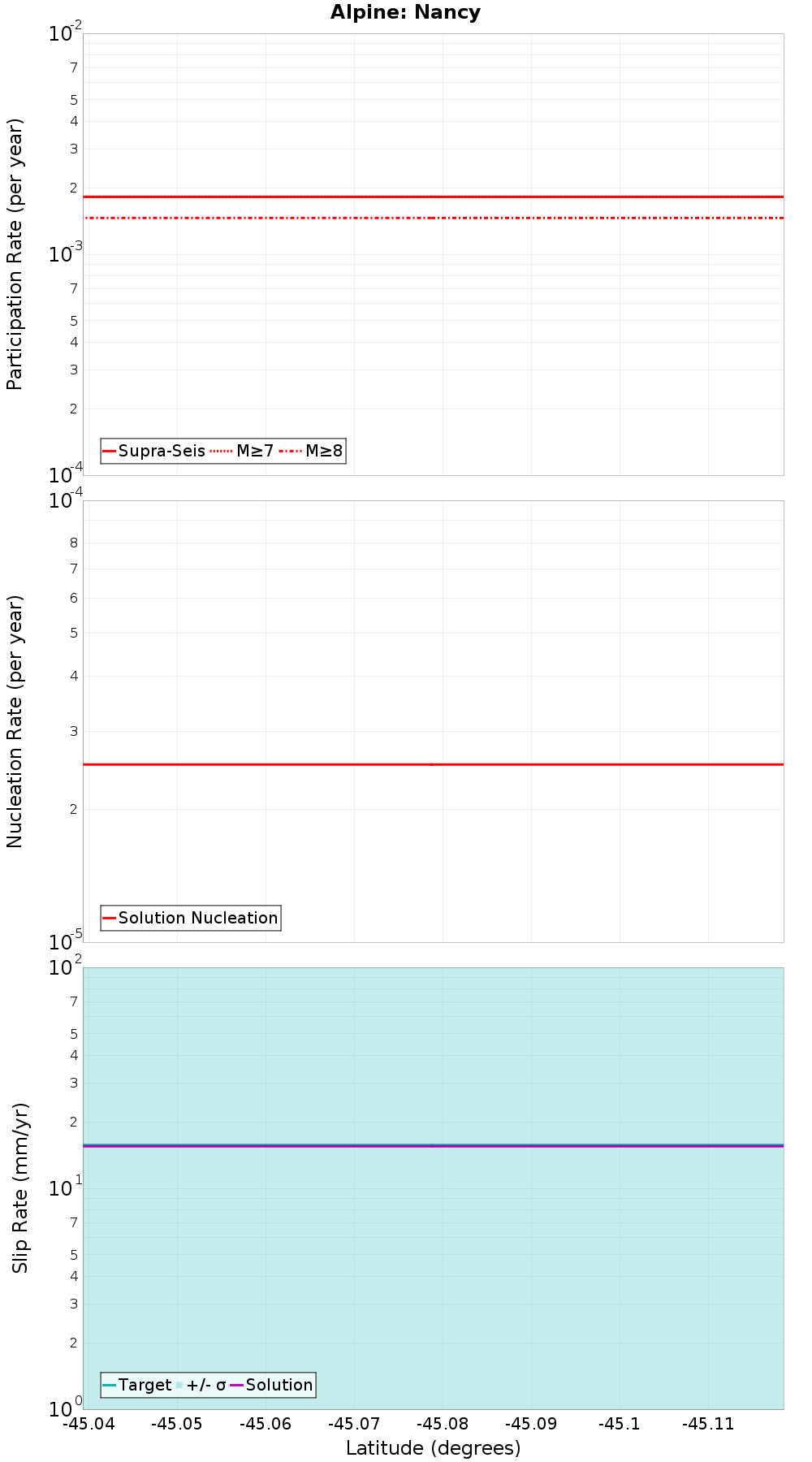

Along-Strike Values

Moment-Rates and b-Values

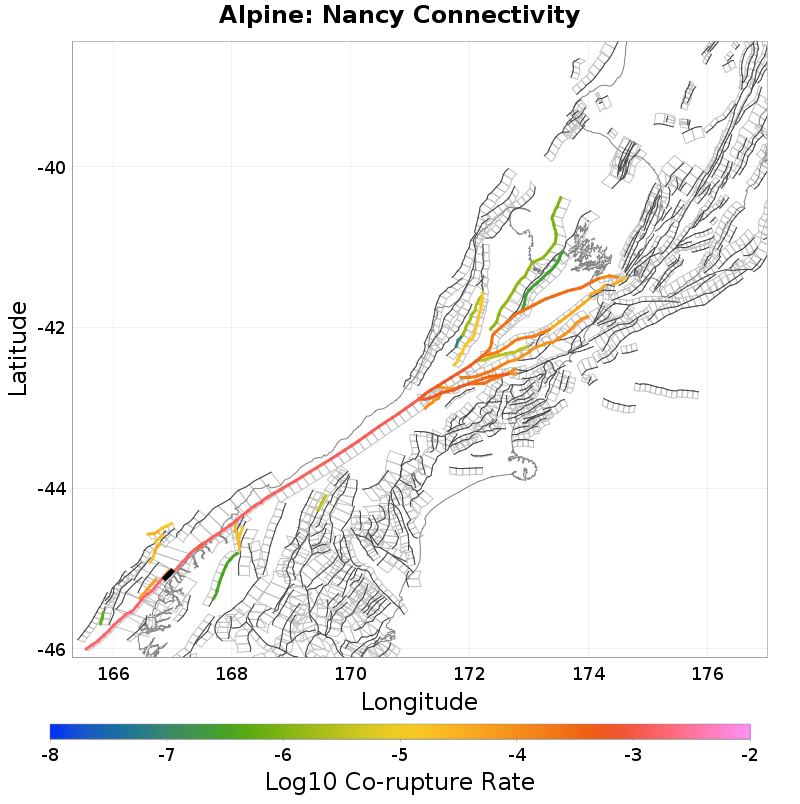

Connectivity

Nearby Sections

Fault Section
Alpine: Caswell, 0 km away
South Wedge 2, 0.07 km away
Central Wedge 4 - South Wedge 411, 0.38 km away
Alpine: Resolution - Charles, 2.58 km away
Alpine: Resolution - Dagg, 2.58 km away
Central Wedge 1 & 2 & 3, 3.81 km away
South Wedge 1, 8.89 km away
South Wedge 5, 14.35 km away
South Wedge 3-6-10, 14.88 km away

Alpine: Caswell, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	true
Co-rupture Count	19,719
Co-rupture Rate	0.0017989757

South Wedge 2, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Central Wedge 4 - South Wedge 411, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Resolution - Charles, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	false
Co-rupture Count	515
Co-rupture Rate	6.6226974E-5

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	true
Co-rupture Count	18,225
Co-rupture Rate	0.0018181505

Central Wedge 1 & 2 & 3, 3.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	true
Co-rupture Count	496
Co-rupture Rate	3.251565E-5

South Wedge 1, 8.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	false
Co-rupture Count	215
Co-rupture Rate	6.0628696E-5

South Wedge 5, 14.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

South Wedge 3-6-10, 14.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NDMuMHJwaVg5
Connected?	true
Directly Connected?	false
Co-rupture Count	674
Co-rupture Rate	0.0
