Blue Lake Details

PropertyValue
Rupture Count7,129
Ruptures Above Sect Min Mag7,126
Ruptures w/ Nonzero Rates34
Magnitude Range[6.86, 8.47]
Length Range[20, 728] km
Total Rate2.852169E-5 /yr
Multi-Fault Rate2.852169E-5 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults59

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

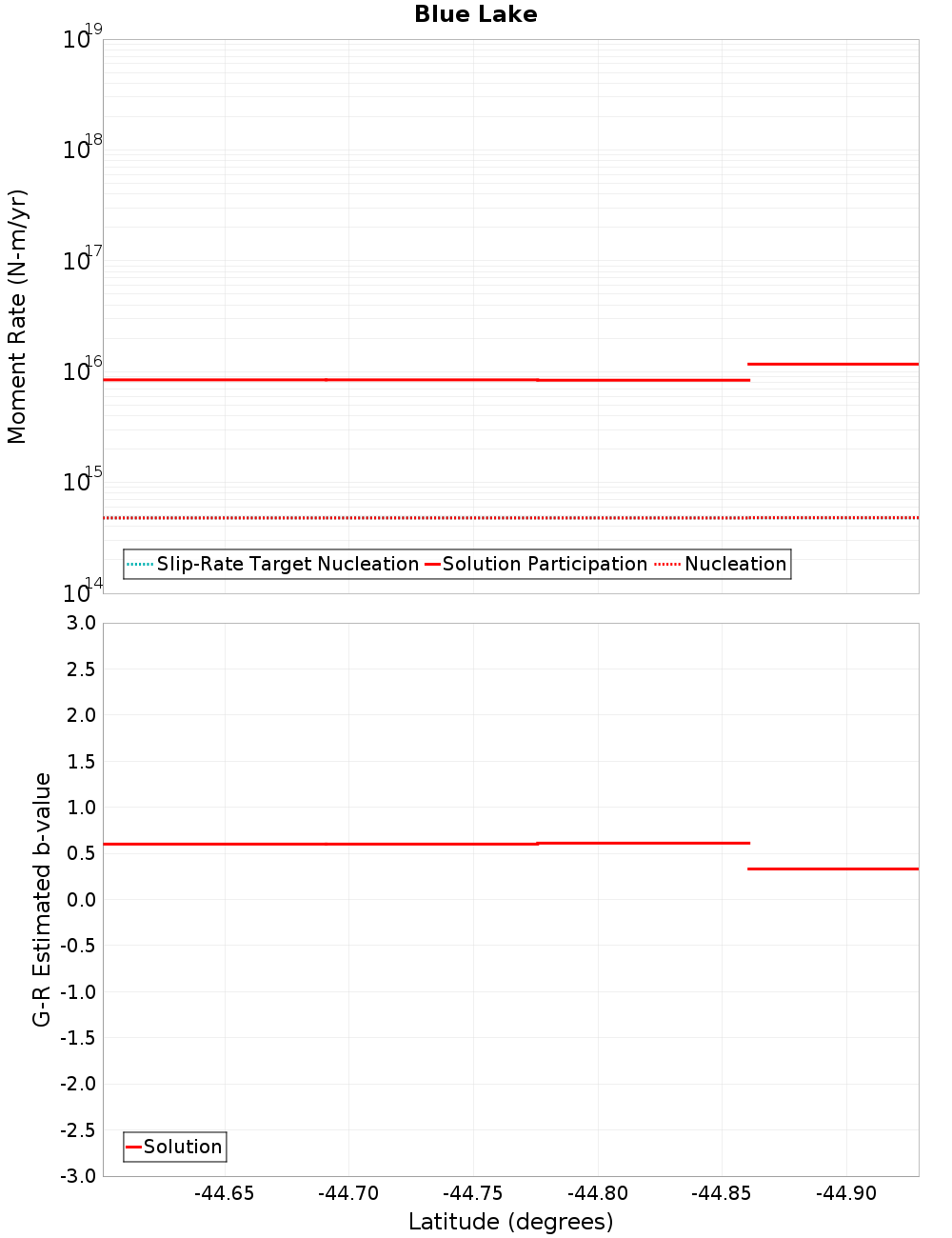

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Raggedy - Blackstone, 0.17 km away
Garibaldi, 1.08 km away
Omarama Saddle, 1.09 km away
Dunstan, 1.26 km away
Gimmerburn, 4.56 km away
Dromedary, 4.84 km away
Cluden, 7.31 km away
Lindis River, 8.67 km away
Goodger, 9.08 km away
Ostler South, 9.43 km away
Hawkdun, 9.5 km away
Fern Gully, 11.86 km away
Gibson, 13.94 km away
Falstone, 14.77 km away

Raggedy - Blackstone, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count2,604
Co-rupture Rate1.3195967E-5

Garibaldi, 1.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count624
Co-rupture Rate2.1951632E-6

Omarama Saddle, 1.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count430
Co-rupture Rate1.8667387E-6

Dunstan, 1.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count1,799
Co-rupture Rate1.8330544E-5

Gimmerburn, 4.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count3,077
Co-rupture Rate1.461599E-5

Dromedary, 4.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?true
Co-rupture Count4,582
Co-rupture Rate1.24131575E-5

Cluden, 7.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Lindis River, 8.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Goodger, 9.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 9.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hawkdun, 9.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?true
Directly Connected?false
Co-rupture Count190
Co-rupture Rate0.0

Fern Gully, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 13.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Falstone, 14.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTc1NTIuMEFFdFR2
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
